Programmable Servo Drive
48V 50A with CAN or CAT

Series PRO-A50V48 Operating Voltage 12 to 48 VDC Peak Output 90 Amps (peak of sine) Continuous Output 50 Amps (peak of sine) Commmunications RS-232, CANbus or EtherCAT® Form Factor Stand-alone Data Sheet PRO-A50V48A-SA-CAN-STO Datasheet (US)

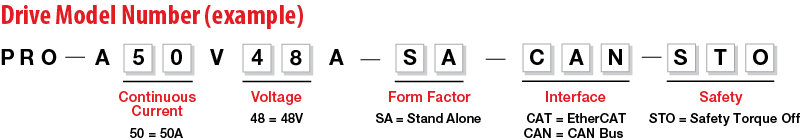

PRO-A50V48A-SA-CAT-STO Datasheet (US)

Product Details

Overview & Features

The PRO Series is ElectroCraft’s most advanced, high-performance drive platform with built-in programmable motion control, compatible with Brushless DC Motors, PMDC Brush Motors, and Hybrid Stepper Motors. The PRO Series embeds a sophisticated motion controller and drive into a single unit, allowing intelligent control by executing motion profiles stored in non-volatile memory. The PRO Series can also be configured as an intelligent slave, executing motion sequences received via CAN bus, EtherCAT or RS-232.

The PRO Series includes powerful setup, configuration, and programming tools with ElectroCraft’s MotionPRO Suite, Windows-based software.

The PRO Series can tackle a wide range of motion control applications from simple to complex and is available in multiple sizes and configurations, including chassis mount enclosures or PCB assemblies. Check out the full list of features in our downloadable PDF data sheet.

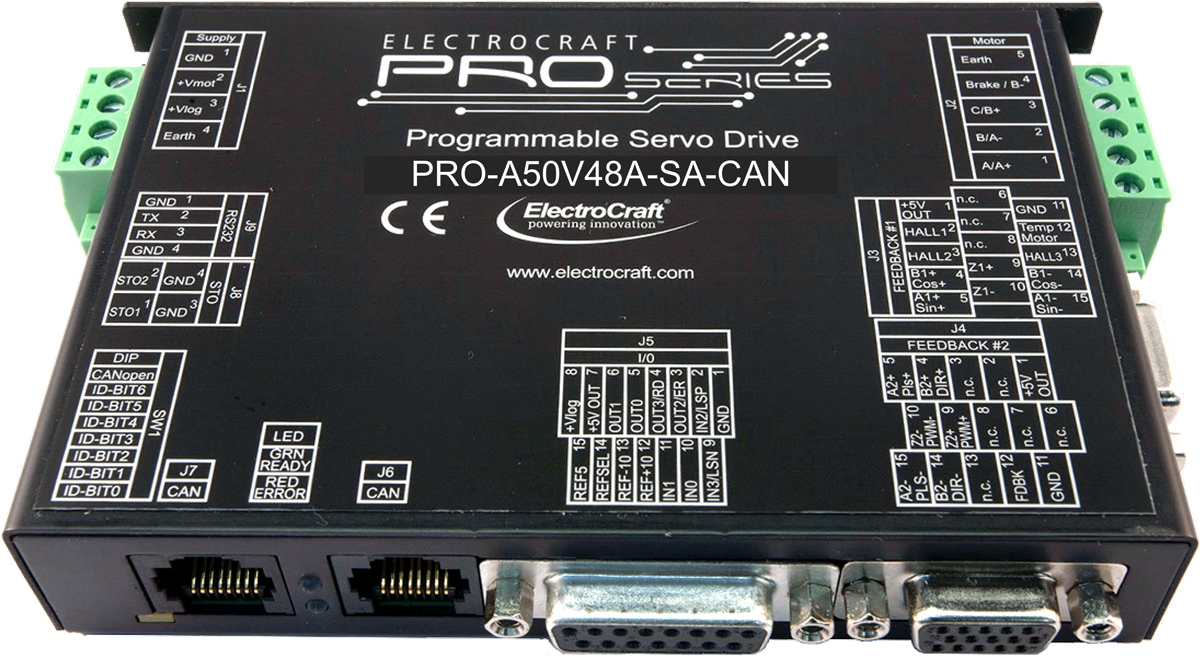

PRO-A50V48-SA-CAN (Stand-alone, CAN)

Motor – sensor configurations

Sensor Motor PMSM BLDC DC
BRUSH
Incr. Encoder ✓ ✓
Incr. Encoder + Dig. Hall ✓ ✓
Digital Hall Only ✓
SSI / BiSS-C ✓ ✓ ✓
Tacho ✓
  1. Available starting with F514K firmware version

Features

  • Motion controller and drive in a single compact unit based on MotionChip™ technology
  • Universal solution for control of rotary and linear brushless and brushed motors
  • PMSM and BLDC motion control capability
  • Motor supply: 11-60V; Logic supply: 9-36V
  • Output current with / without external heat sink:
    • Nominal: 45 / 35.4ARMS (64 / 50A sinusoidal amplitude)
    • Peak: 64ARMS (90A sinusoidal amplitude)
  • Thermal Protection: The internal temperature sensor disables the PWM outputs if the measured temperature exceeds 95°C
  • Feedback Devices (dual-loop support)
    1st feedback devices supported:
    • Incremental encoder interface (differential)
    2nd feedback devices supported:
    • Incremental encoder interface (differential)
    • pulse & direction interface (differential) for external (master) digital reference
    • BiSS / SSI / EnDAT1 encoder interface
  • *STO: 2 safe torque-off inputs, 18-36V, safety integrity level (SIL3/Cat3/PLe) acc. to EN61800-5-1;-2/ EN61508-3;-4/ EN ISO 13849-1.
  • Digital Hall sensor interface (differential)
  • 2 digital PNP inputs, 7-36V: 2 limit switches
  • 2 digital outputs, 5-36V, NPN open-collector: Ready, Error 0.5A
  • Solenoid driver for motor brake, 2A, commanded by OUT0
  • 2 analogue inputs, 12-bit, 0-5V: Reference and Feedback (for Tacho), or general purpose
  • CAN-bus 2.0B interface (±58V max voltage)
  • 32 h/w addresses selectable by DIN switch
  • MPLCAN and CANopen (CiA 301 v4.2, CiA 305 v.2.2.13 and CiA 402 v3.0) protocols selectable by DIN switch
  • 16k x 16 SRAM memory for data acquisition
  • 16k x 16 E2ROM to store setup data, MPL motion programs, cam tables and other user data
*The STO circuit must be supplied with minimum 18V to enable PWM output

Electrical characteristics

All parameters measured under the following conditions (unless otherwise specified):

  • Tamb = 24°C, VLOG = 24 VDC; VMOT = 48VDC
  • Supplies start-up / shutdown sequence: any
  • Load current (sinusoidal amplitude) = 64A
Operating Conditions Min. Typ. Max. Units
Ambient temperature1 0 +40 °C
Ambient humidity Non-condensing 0 90 %Rh
Altitude / pressure2 Altitude (vs. sea level) -0.1 0 ÷ 2 2 km
Ambient Pressure 02 0.75 ÷ 1 10.0 atm
Storage Conditions Min. Typ. Max. Units
Ambient temperature -40 +85 °C
Ambient humidity Non-condensing 0 100 %Rh
Ambient Pressure 0 10.0 atm
Mechanical Mounting Min. Typ. Max. Units
Mounted on heatsink It is necessary to mount the drive on a metallic heatsink using the provided mounting holes. If the integrated internal thermal sensor exceeds 95°C, the drive outputs turn off.
Environmental Characteristics Min. Typ. Max. Units
Size (Length x Width x Height) Without mating connectors 139 x 93.9 x 24.6 mm
~5.47 x 3.7 x 0.97 inch
Weight Without mating connectors 240 g
Power dissipation Idle (no load) 3.6 W
Operating see theoretical chart
Efficiency 98 %
Cleaning agents Dry cleaning is recommended Only Water- or Alcohol- based
Protection degree According to IEC60529, UL508 IP20
Logic Supply Input (+VLOG) Min. Typ. Max. Units
Supply voltage Nominal values 9 24 36 VDC
Absolute maximum values, drive operating but outside guaranteed parameters 8 24 40 VDC
Absolute maximum values, surge (duration ≤ 10ms)† -1 +45 V
Supply current No enc.
No Load on Digital Outputs		 +VLOG = 9V 280 mA
+VLOG = 12V 200
+VLOG = 24V 130
+VLOG = 36V 90
Motor Supply Input (+VMOT) Min. Typ. Max. Units
Supply voltage Nominal values 12 48 60 VDC
Absolute maximum values, drive operating but outside guaranteed parameters 11 70 VDC
Absolute maximum values, surge (duration ≤ 10ms)† -1 75 V
Supply current Idle 1 5 mA
Operating -50 ±10 +50 A
Absolute maximum value, short-circuit condition (duration ≤ 10ms)† 100 A
Motor Outputs (A/A+, B/A-, C) Min. Typ. Max. Units
Nominal current Sinusoidal RMS 1 45 ARMS
Sinusoidal RMS 2 35.4
Sinusoidal amplitude 1 64 A
Sinusoidal amplitude 2 50
Peak current maximum 13s with 6 AWG wires, external heatsink -90 +90 A
Short-circuit protection threshold ±100 A
Short-circuit protection delay 5 10 µs
Off-state leakage current ±0.5 ±1 mA
Motor inductance (phase-to-phase) Recommended value, for current ripple max. ±5% of full range; +VMOT = 48V FPWM µH
20 kHz 330
40 kHz 150
60 kHz 120
Minimum value, limited by short-circuit protection; +VMOT = 48V 20 kHz 120 µH
40 kHz 40
60 kHz 30
Motor electrical time-constant (L/R) Recommended value for ±5% current measurement error 20 kHz 250 µs
40 kHz 125
60 kHz 100
Current measurement FS = Full Scale accuracy ±5 ±8 %FS
  1. For extended temperature range, down to -30ºC, a special execution is required.
  2. The drive can be operated in vacuum (no altitude restriction), but at altitudes over 2,500m, current and power rating are reduced due to thermal dissipation efficiency.

PRO-A50V48-SA-CAT (Stand-alone, CAT)

Motor – sensor configurations

Sensor Motor PMSM BLDC DC
BRUSH
Incr. Encoder ✓ ✓
Incr. Encoder + Dig. Hall ✓ ✓
SSI / BiSS-C / EnDAT / Tamagawa / Panasonic / Nikon / Sanyo Denki ✓ ✓ ✓
Tacho ✓

Features

  • Motion controller and drive in a single compact unit based on MotionChip™ technology
  • Universal solution for control of rotary and linear brushless and brushed motors
  • Advanced motion control capabilities (PVT, S-curve, electronic cam)
  • Motor supply: 12-60V; Logic supply: 9-36V
  • Output current with / without external heat sink:
  • Nominal: 45 / 35.4ARMS (64 / 50A sinusoidal amplitude)
  • Peak: 64ARMS (90A sinusoidal amplitude)
  • Thermal Protection: The internal temperature sensor disables the PWM outputs if the measured temperature exceeds 95⁰C
  • Feedback Devices (dual-loop support) 1st feedback devices supported:
    • Incremental encoder interface (single ended or differential)
    • pulse & direction interface (single ended or differential) for external (master) digital reference
    • Digital Hall sensor interface (single-ended and open collector)
    2nd feedback devices supported:
    • Incremental encoder interface (single ended or differential)
    • pulse & direction interface (single ended or differential) for external (master) digital reference
    • BISS / SSI / EnDAT / TAMAGAWA / Panasonic/ Nikon/ Sanyo Denki encoder interface
  • 2 digital PNP inputs, 7-36V: 2 limit switches
  • 2 digital outputs, 5-36V, NPN open-collector: Ready, Error 0.5A
  • Solenoid driver for motor brake, 2A, commanded by OUT0 NPN type
  • 2 analogue inputs, 12-bit, 0-5V: Reference and Feedback (for Tacho), or general purpose
  • RS-232 serial & dual 100Mbps RJ45 EtherCAT® interfaces
  • 64 h/w addresses selectable by DIN switch
  • Commissioning (set-up) possible through RS-232, FoE (file-over-EtherCAT®), EoE (Ethernet-over-EtherCAT®)
  • 16k x 16 SRAM memory for data acquisition
  • 24k x16 E2ROM to store setup data, MPL motion programs, cam tables and other user data
  • *STO: 2 safe torque-off inputs, 18-36V, safety integrity level SIL3/Cat3/PLe acc. to EN61800-5-1; -2/ EN61508-3; -4/ EN ISO13849-
*The STO circuit must be supplied with minimum 18V to enable PWM output

Electrical characteristics

All parameters measured under the following conditions (unless otherwise specified):

  • Tamb = 24°C, VLOG = 24 VDC; VMOT = 48VDC
  • Supplies start-up / shutdown sequence: any
  • Load current (sinusoidal amplitude) = 64A
Operating Conditions Min. Typ. Max. Units
Ambient temperature1 0 +40 °C
Ambient humidity Non-condensing 0 90 %Rh
Altitude / pressure2 Altitude (vs. sea level) -0.1 0 ÷ 2 2 km
Ambient Pressure 0 0.75 ÷ 1 10.0 atm
Storage Conditions Min. Typ. Max. Units
Ambient temperature -40 +85 °C
Ambient humidity Non-condensing 0 100 %Rh
Ambient Pressure 0 10.0 atm
Mechanical Mounting
Mounted on heatsink It is necessary to mount the PRO-A50V48A-SA-CAT-STO on a metallic heatsink using the provided mounting holes. If the integrated internal thermal sensor exceeds 95°C, the drive outputs turn off.
Environmental Characteristics Min. Typ. Max. Units
Size (Length x Width x Height) Without mating connectors 139 x 93.9 x 24.5 mm
~5.47 x 3.7 x 0.96 inch
Weight Without mating connectors TBD g
Power dissipation Idle (no load) 3.6 W
Operating see theoretical chart
Efficiency 98 %
Cleaning agents Dry cleaning is recommended Only Water- or Alcohol- based
Protection degree According to IEC60529, UL508 IP20 -
Logic Supply Input (+VLOG) Min. Typ. Max. Units
Supply voltage Nominal values 9 24 36 VDC
Absolute maximum values, drive operating but outside guaranteed parameters 8 24 40 VDC
Absolute maximum values, surge (duration ≤ 10ms)† -1 +45 V
Supply current No enc.
No Load on Digital Outputs		 +VLOG = 9V 190 mA
+VLOG = 12V 170
+VLOG = 24V 110
+VLOG = 36V 80
Motor Supply Input (+VMOT) Min. Typ. Max. Units
Supply voltage Nominal values 12 48 60 VDC
Absolute maximum values, drive operating but outside guaranteed parameters 11 70 VDC
Absolute maximum values, surge (duration ≤ 10ms)† -1 75 V
Supply current Idle 1 5 mA
Operating -50 ±10 +50 A
Absolute maximum value, short-circuit condition (Duration ≤ 10ms)† 100 A
Motor Outputs (A/A+, B/A-, C) Min. Typ. Max. Units
Nominal current Sinusoidal RMS 3 45 ARMS
Sinusoidal RMS 4 35.4
Sinusoidal amplitude 3 64 A
Sinusoidal amplitude 4 50
Peak current maximum 13s with 6 AWG wires, external heatsink -90 +90 A
Short-circuit protection threshold ±100 A
Short-circuit protection delay 5 10 µs
Off-state leakage current ±0.5 ±1 mA
Motor inductance (phase-to-phase) Recommended value, for current ripple max. ±5% of full range; +VMOT = 48 V FPWM µH
20 kHz 330
40 kHz 150
60 kHz 120
Minimum value, limited by short-circuit protection; +VMOT = 48 V 20 kHz 120 µH
40 kHz 40
60 kHz 30
Motor electrical time-constant (L/R) Recommended value for ±5% current measurement error 20 kHz 250 µs
40 kHz 125
60 kHz 100
Current measurement FS = Full Scale accuracy ±5 ±8 %FS
  1. For extended temperature range, down to -30°C, a special execution is required.
  2. PRO-A50V48A-SA-CAT-STO can be operated in vacuum (no altitude restriction), but at altitudes over 2,500m, current and power rating are reduced due to thermal dissipation efficiency.
  3. With adequate thermal heat sink
  4. No thermal heat sink (worst case scenario)
  5. All differential Hall input pins have internal 120Ω termination resistors connected across if SW1 pin 7 is put on “ON” position

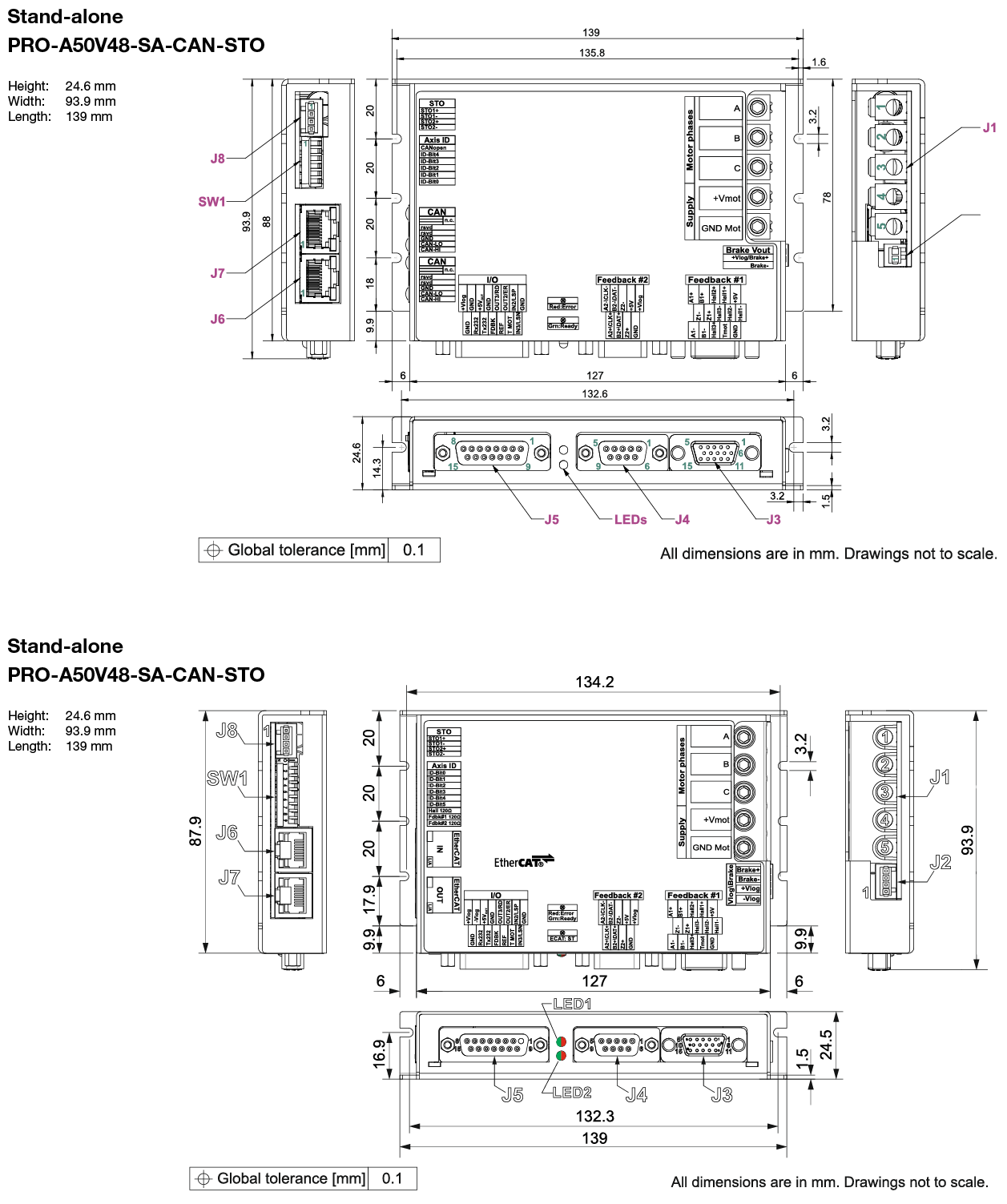

Dimensional Drawing

Technical Drawing

Motor Compatibility

Brushless DC Motors

PMDC Motors

Stepper Motors

Linear Actuators

Please contact ElectroCraft if the motor you are searching for is not included in the charts below.

Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
RPX, LRPX Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
RPX16-007V12 1.6 3.7 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
RPX16-007V24 0.8 1.9 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
RPX16-007V48 0.4 0.9 48 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
RPX16-013V12 2.4 6.6 12 PRO-A08V48B PRO-A04V36A CPP-A06V48A CPP-A06V48A
RPX16-013V24 1.2 3.3 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
RPX16-013V48 0.6 1.7 48 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX16-013V12 (4:1 to 23:1) 2.4 to 2.5 5.3 to 6.8 12 PRO-A08V48B PRO-A04V36A CPP-A06V48A CPP-A06V48A
LRPX16-013V12 (31:1 to 941:1) 0.6 to 2.3 0.9 to 4.1 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX16-013V24 (all ratios) 0.3 to 1.2 0.5 to 3.3 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX16-013V48 (all ratios) 0.2 to 0.6 0.2 to 1.7 48 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
RPX22-042V12 5.0 10.8 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
RPX22-042V24 2.5 5.5 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A CPP-A06V48A
RPX22-042V48 1.3 2.8 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A CPP-A06V48A
LRPX22-042V12 (3:1 to 66:1) 3.5 5.0 to 10.8 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX22-042V12 (81:1 ) 3.2 4.0 12 PRO-A08V48B PRO-A08V48B CPP-B06V48A CPP-A06V48A
LRPX22-042V12 (94:1 to 624:1) 0.7 to 2.8 0.9 to 3.5 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX22-042V24 (3:1 to 19:1) 1.8 5.5 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A CPP-A06V48A
LRPX22-042V24 (27:1 to 624:1) 0.4 to 1.8 0.4 to 4.2 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX22-042V48 (3:1 to 624:1) 0.2 to 0.9 0.2 to 2.8 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A CPP-A06V48A
RPX32-090V12 7.6 23.5 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A12V48A
RPX32-090V24 3.8 11.8 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A06V48A
RPX32-090V48 1.9 5.9 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX32-090V12 (3:1 to 19:1) 4.2 23.5 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A06V48A
LRPX32-090V12 (24:1 to 28:1) 4.2 16.6 to 19.6 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A06V48A
LRPX32-090V12 (33:1) 4.2 14.0 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A06V48A
LRPX32-090V12 (50:1 to 60:1) 4.2 15.5 to 18.3 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A06V48A
LRPX32-090V12 (76:1) 4.2 12.1 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A06V48A
LRPX32-090V12 (90:1 to 192:1) 4.0 to 4.2 4.8 to 10.2 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX32-090V12 (246:1 to 291:1) 2.9 to 3.4 3.5 to 4.2 12 PRO-A08V48B PRO-A08V48B CPP-B06V48A CPP-A06V48A
LRPX32-090V12 (344:1 to 999:1) 0.8 to 2.5 0.9 to 3.0 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX32-090V24 (3:1 to 19:1) 2.1 11.8 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A06V48A
LRPX32-090V24 (24:1 to 28:1) 2.1 8.3 to 9.8 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX32-090V24 (33:1 to 107:1) 2.1 4.3 to 7.0 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A CPP-A06V48A
LRPX32-090V24 (116:1 to 999:1) 0.4 to 2.1 0.5 to 4.0 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX32-090V48 (3:1 to 24:1) 1.1 4.9 to 5.9 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX32-090V48 (192:1 to 999:1) 0.2 to 1.0 0.2 to 4.1 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A CPP-A06V48A
RPX32-150V12 12.6 36.8 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RPX32-150V24 6.7 19.6 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
RPX32-150V48 3.3 9.8 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RPX40-125V12 6.6 19.7 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
RPX40-125V24 3.3 9.8 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RPX40-125V48 1.6 4.9 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RPX40-250V12 10.9 33.3 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RPX40-250V24 5.5 16.7 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
RPX40-250V48 2.7 8.3 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX40-250V12 (3:1 to 63:1) 6.8 21.6 to 33.3 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A12V48A
LRPX40-250V12 (69:1 to 93:1) 6.8 14.4 to 19.5 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
LRPX40-250V12 (103:1 to 126:1) 6.8 10.7 to 13.1 12 PRO-A10V80A PRO-A10V80A CPP-A12V80A CPP-A12V48A
LRPX40-250V12 (170:1 to 232:1) 4.3 to 5.3 6.4 to 7.9 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
LRPX40-250V12 (257:1 to 346:1) 2.9 to 3.9 4.3 to 5.8 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX40-250V12 (383:1 to 941:1) 1.1 to 2.6 1.6 to 3.9 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX40-250V24 (3:1 to 46:1) 3.4 14.5 to 16.7 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A06V48A
LRPX40-250V24 (57:1 to 63:1) 3.4 10.8 to 11.9 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A06V48A
LRPX40-250V24 (69:1 to 126:1) 3.4 5.4 to 9.7 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX40-250V24 (170:1 to 941:1) 0.5 to 2.6 0.8 to 4.0 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A CPP-A06V48A
LRPX40-250V48 (3:1 to 76:1) 1.7 4.4 to 8.3 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
LRPX40-250V48 (93:1 to 941:1) 0.3 to 1.7 0.4 to 3.6 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A CPP-A06V48A
RPX40-325V12 10.2 31.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RPX40-325V24 5.1 15.5 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
RPX40-325V48 2.6 7.7 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RPX52-300V12 20.0 36.8 12 PRO-A20V80A PRO-A20V80A CPP-A40V24A CPP-A24V48A
RPX52-300V24 10.0 17.4 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RPX52-300V48 5.0 8.6 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
RPX52-600V12 24.0 56.3 12 PRO-A20V80A PRO-A20V80A CPP-A40V24A CPP-A24V48A
RPX52-600V24 12.0 26.5 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RPX52-600V48 6.0 12.9 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
RPX52-750V24 14.1 55.8 24 PRO-A08V48B PRO-A08V48B CPP-A40V24A CPP-A24V48A
RPX52-750V48 7.1 28.6 48 PRO-A08V48B PRO-A08V48B CPP-A24V80A CPP-A12V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
RapidPower - RP Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
RP17-12V24 RP17M-8V24 4.2 7.6 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RP17-12V48 RP17M-8V48 2.1 3.8 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A CPP-A06V48A
RP17-12V60 RP17M-8V60 1.7 3.0 60 PRO-A10V80A PRO-A10V80A CPP-A06V48A CPP-A06V48A
RP17-22V24 RP17M-16V24 3.6 9.9 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RP17-22V48 RP17M-16V48 1.8 4.9 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RP17-22V60 RP17M-16V60 1.4 3.9 60 PRO-A10V80A PRO-A10V80A CPP-A06V48A CPP-A06V48A
RP17-36V24 RP17M-25V24 3.7 10.4 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RP17-36V48 RP17M-25V48 1.4 5.2 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RP17-36V60 RP17M-25V60 1.4 4.2 60 PRO-A10V80A PRO-A10V80A CPP-A06V48A CPP-A06V48A
RP17-45V24 RP17M-32V24 3.6 10.9 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A06V48A
RP17-45V48 RP17M-32V48 1.8 5.5 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RP17-45V60 RP17M-32V60 1.4 4.4 60 PRO-A10V80A PRO-A10V80A CPP-A06V48A CPP-A06V48A
RP23-26V12 RP23M-18V12 5.3 11.0 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
RP23-26V24 RP23M-18V24 4.6 9.0 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
RP23-26V48 RP23M-18V48 2.6 6.5 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RP23-34V12 RP23M-24V12 8.6 17.5 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP23-34V24 RP23M-24V24 4.5 10 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
RP23-34V48 RP23M-24V48 2.5 7.0 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A CPP-A06V48A
RP23-54V12 RP23M-38V12 8.7 15.9 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP23-54V24 RP23M-38V24 5.7 18.5 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
RP23-54V48 RP23M-38V48 4.2 11.1 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A06V48A
RP23-73V24 RP23M-52V24 8.3 25.3 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A12V48A
RP23-73V48 RP23M-52V48 4.7 14.4 48 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
RP34-112V24 RP34M-79V24 24.4 85.2 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
RP34-112V48 RP34M-79V48 12.1 42.4 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP34-112V90 RP34M-79V90 6.1 21.2 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A12V48A
RP34-217V24 RP34M-153V24 22.3 76.0 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
RP34-217V48 RP34M-153V48 16.9 59.1 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP34-217V90 RP34M-153V90 8.9 31.1 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP34-313V24 RP34M-221V24 22.7 68.1 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
RP34-313V48 RP34M-221V48 17.0 59.5 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP34-313V90 RP34M-221V90 11.3 39.7 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
RapidPower Plus - RPP Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
RPP23-64V48 RPP23M-45V48 3.0 11.0 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A06V48A
RPP23--98V48 RPP23M-69V48 4.5 15.0 48 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
RPP23-118V48 RPP23-83V48 6.0 20.0 48 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
RPP23-154V48 RPP23M-108V48 7.3 25.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A12V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
MPW Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
MPW52-300V24 6.4 17.4 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A CPP-A12V48A
MPW52-300V48 3.4 8.6 48 PRO-A08V48B PRO-A08V48B CPP-A06V80A CPP-A06V48A
MPW52-600V24 11.4 26.5 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
MPW52-600V48 5.6 12.9 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
MPW86-120V24 (10:1) 22.0 80.0 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
MPW86-120V48 (10:1) 15.0 40.0 48 PRO-A50V48 PRO-A50V48 CPP-A24V80A CPP-A24V48A
MPW86-185V24 (10:1) 30.0 73.0 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
MPW86-185V48 (10:1) 16.0 29.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
MPW86-120V24 (20:1) 21.0 47.0 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
MPW86-120V48 (20:1) 13.0 23.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
MPW86-185V24 (20:1) 24.0 43.0 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
MPW86-185V48 (20:1) 10.0 17.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
MPW140H-900V24-E 8.84 23.56 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
MPW140H-900V48-E 4.42 11.78 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
MP, MPP, MPS Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
All MP24
(24V windings, all ratios)		 up to 23.5 58.5 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
All MP24
(48V windings, all ratios)		 up to 11.8 29.3 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
All MPP24
(24V windings, all ratios)		 up to 30.0 65 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A CPP-A24V48A
All MPP24
(48V windings, all ratios)		 up to 15.0 32.5 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
MP, MPP, MPS Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
All MP26, MP36
(24V windings, all ratios)		 up to 25.0 80.0 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A
All MPP26, MPP36
(24V windings, all ratios)		 up to 30.0 100.0 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A
MPS Series
(24V windings, all models)		 up to 28.0 80.0 24 PRO-A50V48 PRO-A50V48 CPP-A40V24A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
DirectPower - DP Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
DP20-10V12 DP20M-07V12 3.8 11.5 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
DP20-10V24 DP20M-07V24 1.9 5.7 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
DP20-15V12 DP20M-11V12 4.0 13.5 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
DP20-15V24 DP20M-11V24 2.0 6.7 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
DP20-20V12 DP20M-14V12 4.3 11.5 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
DP20-20V24 DP20M-14V24 2.1 2.7 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
DP25-30V12 DP25M-21V12 9.0 32.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DP25-30V24 DP25M-21V24 5.0 16.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DP25-35V24 DP25M-25V24 5.0 20.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DP25-45V12 DP25M-32V12 8.0 30.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DP25-45V24 DP25M-32V24 4.0 16.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DP30-60V12 9.0 27.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DP30-60V24 4.0 14.0 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
DP30-75V12 7.0 14.0 12 PRO-A10V80A PRO-A10V80A CPP-A12V80A
DP30-75V24 3.0 7.0 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
DP30-85V12 5.0 15.0 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DP30-85V24 3.0 6.0 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
DirectPower Plus - DPP Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
DPP240(T)-29V48 DPP240M(T)-20V48 2.0 16.0 48 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DPP240(T)-29V60 DPP240M(T)-20V60 2.0 14.0 60 PRO-A10V80A PRO-A10V80A CPP-A12V80A
DPP242(T)-44V48 DPP242M(T)-31V48 4.0 27.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP242(T)-44V60 DPP242M(T)-31V60 3.0 21.0 60 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DPP243(T)-52V48 DPP243M(T)-36V48 5.0 32.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP243(T)-52V60 DPP243M(T)-36V60 4.0 25.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP642(T)-100V48 DPP642M(T)-70V48 6.0 25.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP642(T)-100V60 DPP642M(T)-70V60 5.0 20.0 60 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DPP643(T)-165V48 DPP643M(T)-116V48 6.0 30.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP643(T)-165V60 DPP643M(T)-116V60 6.0 23.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP644(T)-210V48 DPP644M(T)-148V48 7.0 28.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP644(T)-210V60 DPP644M(T)-148V60 5.0 22.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP681(T)-90V48 DPP681M(T)-64V48 7.0 30.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP681(T)-90V60 DPP681M(T)-64V60 6.0 25.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP701-150V60 DPP701M-106V60 4.0 27.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
Hansen PMDC Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
111-2121623 1.1 2.0 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
111-2123223 1.8 4.9 12 PRO-A08V48B PRO-A04V36A CPP-A06V48A
111-2124823 1.9 7.8 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
111-2241623 0.5 1.0 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
111-2243223 0.7 2.0 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
111-2244823 1.0 3.9 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1121627 1.7 3.7 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1123227 2.2 8.4 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1124827 2.8 13.3 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
116-1241627 0.9 2.1 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1243227 1.2 4.6 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
116-1244827 1.5 9.1 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1121632 2.1 6.1 12 PRO-A08V48B PRO-A04V36A CPP-A06V48A
116-1123232 3.2 16.7 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
116-1124832 3.9 24 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
116-1241632 1.0 3.1 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1243232 1.6 7.5 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1244832 2.0 12.7 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
121-1121636 4.0 9.0 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
121-1123236 4.9 19.0 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
121-1124836 5.4 28.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
121-1241636 1.9 5.0 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
121-1243236 2.7 12.0 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
121-1244836 3.1 20.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
121-1121646 4.6 15.0 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
121-1123246 5.9 26.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
121-1124836 5.9 32.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
121-1241646 2.4 9.0 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
121-1243246 3.9 19.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
121-1244836 5.3 33.0 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
TorquePower - TP Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
TP23-150A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-150A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-150A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-150A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-210A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-210A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-210A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-48A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-48A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-48A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-48A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-72A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-72A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-72A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-72A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-235A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-235A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-235A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-235A60 0 PRO-A10V80A PRO-A10V80A CPP-A12V80A
TP34-420A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-420A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-420A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-420A60 0 PRO-A10V80A PRO-A10V80A CPP-A12V80A
TP34-620A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-620A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-620A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-620A60 0 PRO-A10V80A PRO-A10V80A CPP-A12V80A
TP42-1440A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-1440A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-1440A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
TP42-2100A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-2100A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-2100A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
TP42-810A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-810A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-810A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
TorquePower Plus - TPP Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
TPP11M-10A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-10A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-10A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-14A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-14A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-14A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-18A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-18A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-18A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-29A10 TPP17M-21A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-29A15 TPP17M-21A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-29A20 TPP17M-21A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-47A10 TPP17M-33A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-47A15 TPP17M-33A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-47A20 TPP17M-33A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-58A10 TPP17M-41A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-58A15 TPP17M-41A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-58A20 TPP17M-41A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-150A10 TPP23M-106A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-150A20 TPP23M-106A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-150A30 TPP23M-106A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP23-240A10 TPP23M-170A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-240A20 TPP23M-170A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-240A30 TPP23M-170A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP23-90A10 TPP23M-64A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-90A20 TPP23M-64A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-90A30 TPP23M-64A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-1190A20 TPP34M-840A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-1190A30 TPP34M-840A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-1190A50 TPP34M-840A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
TPP34-396A20 TPP34M-280A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-396A30 TPP34M-280A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-396A50 TPP34M-280A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
TPP34-793A20 TPP34M-560A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-793A30 TPP34M-560A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-793A50 TPP34M-560A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
TorquePower Enhanced - TPE Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
TPE17-45A10 TPE17M-32A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-45A15 TPE17M-32A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-45A20 TPE17M-32A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-63A10 TPE17M-44A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-63A15 TPE17M-44A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-63A20 TPE17M-44A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-78A10 TPE17M-55A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-78A15 TPE17M-55A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-78A20 TPE17M-55A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-100A10 TPE23M-71A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-100A20 TPE23M-71A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-100A30 TPE23M-71A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPE23-166A10 TPE23M-117A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-166A20 TPE23M-117A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-166A30 TPE23M-117A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPE23-294A10 TPE23M-208A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-294A20 TPE23M-208A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-294A30 TPE23M-208A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
AxialPower Enhanced - APES Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
APES11M-8A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES11M-8A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES11M-8A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES11M-11A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES11M-11A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES11M-11A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-45A10 APES17M-45A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-45A15 APES17M-45A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-45A20 APES17M-45A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-63A10 APES17M-63A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-63A15 APES17M-63A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-63A20 APES17M-63A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-78A10 APES17M-78A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-78A15 APES17M-78A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES17-78A20 APES17M-78A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-100A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-100A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-100A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-100A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-166A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-166A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-166A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-166A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-294A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-294A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APES23-294A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APES23-294A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
AxialPower Plus - APPS Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
APPS11M-7A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS11M-7A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS11M-7A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS11M-10A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS11M-10A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS11M-10A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-29A10 APPS17M-21A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-29A15 APPS17M-21A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-29A20 APPS17M-21A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-47A10 APPS17M-33A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-47A15 APPS17M-33A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-47A20 APPS17M-33A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-58A10 APPS17M-41A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-58A15 APPS17M-41A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-58A20 APPS17M-41A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS23-90A10 APPS23M-64A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS23-90A20 APPS23M-64A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS23-90A30 APPS23M-64A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
APPS23-150A10 APPS23M-106A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS23-150A20 APPS23M-106A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS23-150A30 APPS23M-106A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
L3 Imperial Metric PRO (-CAT) PRO (-CAN) CPP-Universal CPP-EZ
L3SAF-M200 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
L3SAF-M300 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
L3SAF-M500 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A

Documents & Downloads

Download Description
ElectroCraft MotionPRO Suite Configuration and Programming Software with Quick Start Guide Download Software (ZIP)
PRO-A50V48A-SA-CAN-STO Datasheet (US) Download Data Sheet (PDF)
PRO-A50V48A-SA-CAT-STO Datasheet (US) Download Data Sheet (PDF)
PRO-A50V48A-SA Drive Technical Reference (Stand-alone, CAN/CAT) Download Manual (PDF)
PRO Series EtherCAT® XML File Download Software (ZIP)
EtherCAT® CoE Programming Manual User Manual (PDF)
PRO Series CANopen EDS File Download EDS File (ZIP)
PRO-A50V48A-SA-CAN-STO Connection Diagram Download Manual (PDF)
PRO-A50V48A-SA-CAT-STO Connection Diagram Download Manual (PDF)
MotionPro Suite II - Quick Setup and Programming Guide 0424 Setup and Programming Guide (PDF)

Accessories
