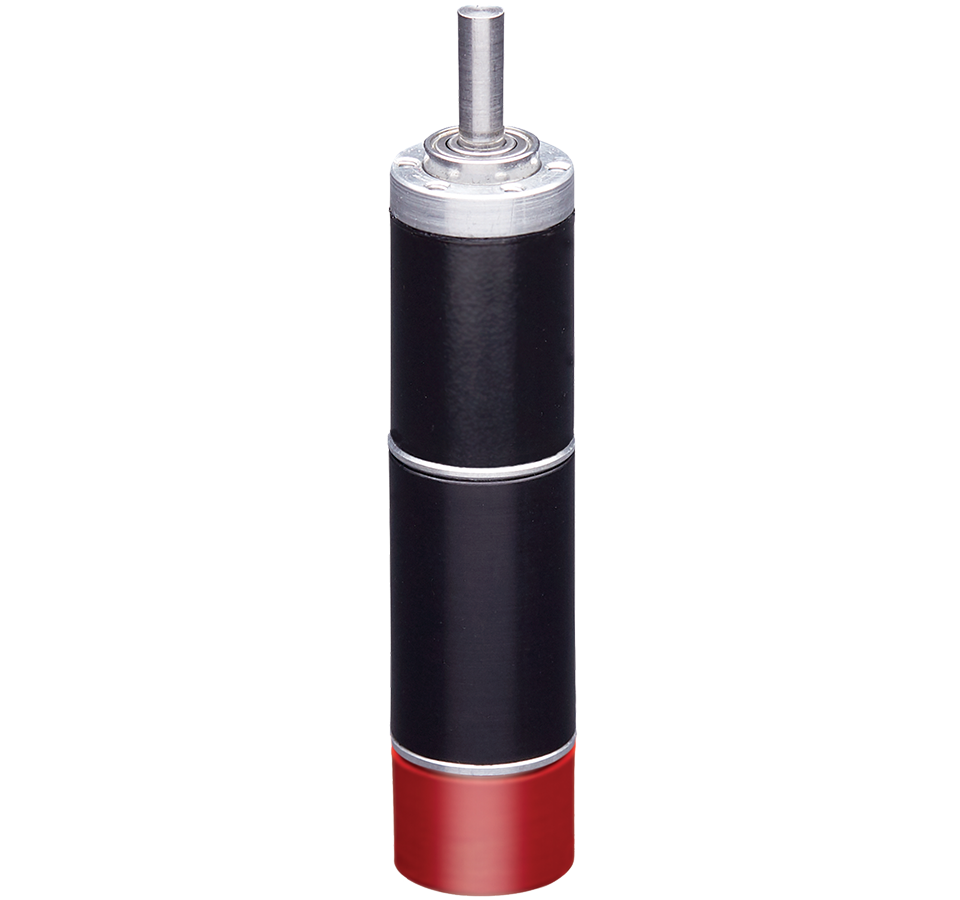

LRPX16 16mm BLDC Planetary Gear Motor
Low Noise RapidPower™ Xtreme Series
Series
LRPX16
Size
16.25mm (0.640 in)
Peak Torque
to 0.9 Nm (135 oz.in)
Product Details
Overview & Features
The ElectroCraft LRPX series is a family of compact, high-performance brushless DC (BLDC) gearmotors that integrate the innovative RPX series motor with a custom planetary gearbox, delivering exceptional torque at low speeds in a sleek, efficient package. The LRPX enables equipment downsizing with higher efficiency and smaller footprints, translating to significant cost savings, reduced heat generation, and enhanced reliability

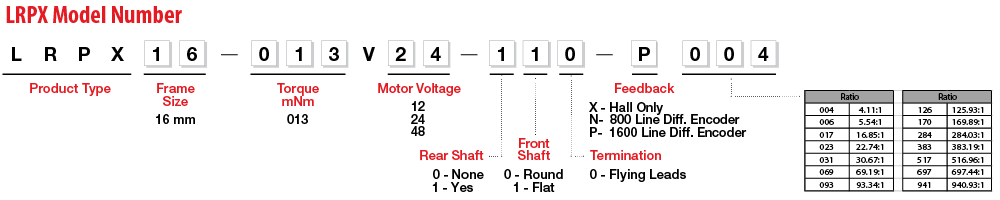

Motor Only
| Part Number | Voltage | Resistance | Inductance | Number of Poles |
Torque Constant |
Voltage Constant |
Continuous Running |
Peak | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Units | Volts | Ohms | mH | N-m/A | oz-in/A | V-sec/rad | V/kRPM | Torque (N-m) |
RPM | Current (A) |
Torque (N-m) |
RPM | Current (A) |
|
| RPX16-013V12 | 12 | 2 | 115 | 4 | 7.25 | 1.0 | 0.007 | 0.8 | 13 | 11,650 | 2.40 | 35 | 4,458 | 6.6 |
| RPX16-013V24 | 24 | 8.2 | 510 | 14.30 | 2.0 | 0.014 | 1.5 | 1.20 | 4,458 | 3.3 | ||||
| RPX16-013V48 | 48 | 32 | 2100 | 28.60 | 4.1 | 0.029 | 3.0 | 0.60 | 4,458 | 1.7 | ||||
One Stage Gearbox
| Part Number | Voltage | Resistance | Inductance | Number of Poles |
Torque Constant |
Voltage Constant |
Continuous Running |
Peak | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Units | Volts | Ohms | mH | N-m/A | oz-in/A | V-sec/rad | V/kRPM | Torque (N-m) |
RPM | Current (A) |
Torque (N-m) |
RPM | Current (A) |
|
| LRPX16-013V12-___-_004 | 12 | 2 | 115 | 4 | 0.03 | 4.22 | 0.03 | 3.12 | 0.048 | 2838 | 2.40 | 0.17 | 219 | 6.6 |
| LRPX16-013V24-___-_004 | 24 | 8.2 | 510 | 0.06 | 8.32 | 0.06 | 6.17 | 0.048 | 2838 | 1.20 | 0.17 | 219 | 3.3 | |
| LRPX16-013V48-___-_004 | 48 | 32 | 2100 | 0.12 | 16.65 | 0.12 | 12.33 | 0.048 | 2838 | 0.60 | 0.17 | 219 | 1.65 | |
| LRPX16-013V12-___-_006 | 12 | 2 | 115 | 0.04 | 5.68 | 0.04 | 4.21 | 0.065 | 2103 | 2.40 | 0.23 | 156 | 6.6 | |
| LRPX16-013V24-___-_006 | 24 | 8.2 | 510 | 0.08 | 11.22 | 0.08 | 8.31 | 0.065 | 2103 | 1.20 | 0.23 | 156 | 3.3 | |
| LRPX16-013V48-___-_006 | 48 | 32 | 2100 | 0.16 | 22.44 | 0.16 | 16.62 | 0.065 | 2103 | 0.60 | 0.23 | 156 | 1.65 | |
Two Stage Gearbox
| Part Number | Voltage | Resistance | Inductance | Number of Poles |
Torque Constant |
Voltage Constant |
Continuous Running |
Peak | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Units | Volts | Ohms | mH | N-m/A | oz-in/A | V-sec/rad | V/kRPM | Torque (N-m) |
RPM | Current (A) |
Torque (N-m) |
RPM | Current (A) |
|
| LRPX16-013V12-___-_017 | 12 | 2 | 115 | 4 | 0.12 | 17.29 | 0.12 | 12.81 | 0.18 | 694 | 2.46 | 0.6 | 112 | 6.88 |
| LRPX16-013V24-___-_017 | 24 | 8.2 | 510 | 0.24 | 34.12 | 0.24 | 25.28 | 0.18 | 694 | 1.23 | 0.6 | 112 | 3.44 | |
| LRPX16-013V48-___-_017 | 48 | 32 | 2100 | 0.48 | 68.24 | 0.48 | 50.55 | 0.18 | 694 | 0.62 | 0.6 | 112 | 1.72 | |
| LRPX16-013V12-___-_023 | 12 | 2 | 115 | 0.16 | 23.33 | 0.16 | 17.28 | 0.24 | 516 | 2.46 | 0.6 | 241 | 5.25 | |
| LRPX16-013V24-___-_023 | 24 | 8.2 | 510 | 0.33 | 46.05 | 0.33 | 34.11 | 0.24 | 516 | 1.23 | 0.6 | 241 | 2.63 | |
| LRPX16-013V48-___-_023 | 48 | 32 | 2100 | 0.65 | 92.10 | 0.65 | 68.22 | 0.24 | 516 | 0.62 | 0.6 | 241 | 1.31 | |
| LRPX16-013V12-___-_031 | 12 | 2 | 115 | 0.22 | 31.47 | 0.22 | 23.31 | 0.3 | 393 | 2.33 | 0.6 | 268 | 4.05 | |
| LRPX16-013V24-___-_031 | 24 | 8.2 | 510 | 0.44 | 62.11 | 0.44 | 46.01 | 0.3 | 393 | 1.17 | 0.6 | 268 | 2.03 | |
| LRPX16-013V48-___-_031 | 48 | 32 | 2100 | 0.88 | 124.21 | 0.88 | 92.01 | 0.3 | 393 | 0.58 | 0.6 | 268 | 1.01 | |
Three Stage Gearbox
| Part Number | Voltage | Resistance | Inductance | Number of Poles |
Torque Constant |
Voltage Constant |
Continuous Running |
Peak | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Units | Volts | Ohms | mH | N-m/A | oz-in/A | V-sec/rad | V/kRPM | Torque (N-m) |
RPM | Current (A) |
Torque (N-m) |
RPM | Current (A) |
|
| LRPX16-013V12-___-_069 | 12 | 2 | 115 | 4 | 0.50 | 70.99 | 0.50 | 52.58 | 0.4 | 199 | 1.73 | 0.8 | 168 | 2.87 |
| LRPX16-013V24-___-_069 | 24 | 8.2 | 510 | 0.99 | 140.11 | 0.99 | 103.79 | 0.4 | 199 | 0.87 | 0.8 | 168 | 1.44 | |
| LRPX16-013V48-___-_069 | 48 | 32 | 2100 | 1.98 | 280.22 | 1.98 | 207.57 | 0.4 | 199 | 0.43 | 0.8 | 168 | 0.72 | |
| LRPX16-013V12-___-_093 | 12 | 2 | 115 | 0.68 | 95.77 | 0.68 | 70.94 | 0.4 | 154 | 1.44 | 0.8 | 138 | 2.28 | |
| LRPX16-013V24-___-_093 | 24 | 8.2 | 510 | 1.33 | 189.01 | 1.33 | 140.01 | 0.4 | 154 | 0.72 | 0.8 | 138 | 1.14 | |
| LRPX16-013V48-___-_093 | 48 | 32 | 2100 | 2.67 | 378.03 | 2.67 | 280.02 | 0.4 | 154 | 0.36 | 0.8 | 138 | 0.57 | |
| LRPX16-013V12-___-_126 | 12 | 2 | 115 | 0.91 | 129.20 | 0.91 | 95.71 | 0.4 | 118 | 1.22 | 0.8 | 110 | 1.85 | |
| LRPX16-013V24-___-_126 | 24 | 8.2 | 510 | 1.80 | 255.01 | 1.80 | 188.90 | 0.4 | 118 | 0.61 | 0.8 | 110 | 0.93 | |
| LRPX16-013V48-___-_126 | 48 | 32 | 2100 | 3.60 | 510.02 | 3.60 | 377.79 | 0.4 | 118 | 0.31 | 0.8 | 110 | 0.46 | |
| LRPX16-013V12-___-_170 | 12 | 2 | 115 | 1.23 | 174.31 | 1.23 | 129.12 | 0.4 | 88 | 1.10 | 0.8 | 82 | 1.40 | |
| LRPX16-013V24-___-_170 | 24 | 8.2 | 510 | 2.43 | 344.03 | 2.43 | 254.84 | 0.4 | 88 | 0.55 | 0.8 | 82 | 0.70 | |
| LRPX16-013V48-___-_170 | 48 | 32 | 2100 | 4.86 | 688.05 | 4.86 | 509.67 | 0.4 | 88 | 0.28 | 0.8 | 82 | 0.35 | |
Four Stage Gearbox
| Part Number | Voltage | Resistance | Inductance | Number of Poles |
Torque Constant |
Voltage Constant |
Continuous Running |
Peak | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Units | Volts | Ohms | mH | N-m/A | oz-in/A | V-sec/rad | V/kRPM | Torque (N-m) |
RPM | Current (A) |
Torque (N-m) |
RPM | Current (A) |
|
| LRPX16-013V12-___-_284 | 12 | 2 | 115 | 4 | 2.06 | 291.41 | 2.06 | 215.86 | 0.5 | 55 | 0.98 | 0.95 | 54 | 1.33 |
| LRPX16-013V24-___-_284 | 24 | 8.2 | 510 | 4.06 | 575.16 | 4.06 | 426.05 | 0.5 | 55 | 0.49 | 0.95 | 54 | 0.67 | |
| LRPX16-013V48-___-_284 | 48 | 32 | 2100 | 8.12 | 1150.32 | 8.12 | 852.09 | 0.5 | 55 | 0.25 | 0.95 | 54 | 0.33 | |
| LRPX16-013V12-___-_383 | 12 | 2 | 115 | 2.78 | 393.15 | 2.78 | 291.22 | 0.5 | 41 | 0.88 | 0.95 | 41 | 1.14 | |
| LRPX16-013V24-___-_383 | 24 | 8.2 | 510 | 5.48 | 775.96 | 5.48 | 574.79 | 0.5 | 41 | 0.44 | 0.95 | 41 | 0.57 | |
| LRPX16-013V48-___-_383 | 48 | 32 | 2100 | 10.96 | 1551.92 | 10.96 | 1149.57 | 0.5 | 41 | 0.22 | 0.95 | 41 | 0.29 | |
| LRPX16-013V12-___-_517 | 12 | 2 | 115 | 3.75 | 530.40 | 3.75 | 392.89 | 0.5 | 31 | 0.81 | 0.95 | 31 | 1.00 | |
| LRPX16-013V24-___-_517 | 24 | 8.2 | 510 | 7.39 | 1046.84 | 7.39 | 775.44 | 0.5 | 31 | 0.41 | 0.95 | 31 | 0.50 | |
| LRPX16-013V48-___-_517 | 48 | 32 | 2100 | 14.78 | 2093.69 | 14.78 | 1550.88 | 0.5 | 31 | 0.20 | 0.95 | 31 | 0.25 | |
| LRPX16-013V12-___-_697 | 12 | 2 | 115 | 5.05 | 715.57 | 5.05 | 530.05 | 0.5 | 21 | 0.76 | 0.95 | 19 | 0.90 | |
| LRPX16-013V24-___-_697 | 24 | 8.2 | 510 | 9.97 | 1412.32 | 9.97 | 1046.16 | 0.5 | 21 | 0.38 | 0.95 | 19 | 0.45 | |
| LRPX16-013V48-___-_697 | 48 | 32 | 2100 | 19.95 | 2824.63 | 19.95 | 2092.32 | 0.5 | 21 | 0.19 | 0.95 | 19 | 0.23 | |
| LRPX16-013V12-___-_941 | 12 | 2 | 115 | 6.82 | 965.39 | 6.82 | 715.11 | 0.5 | 16 | 0.65 | 0.95 | 15 | 0.96 | |
| LRPX16-013V24-___-_941 | 24 | 8.2 | 510 | 13.45 | 1905.38 | 13.45 | 1411.40 | 0.5 | 16 | 0.33 | 0.95 | 15 | 0.48 | |
| LRPX16-013V48-___-_941 | 48 | 32 | 2100 | 26.91 | 3810.77 | 26.91 | 2822.79 | 0.5 | 16 | 0.16 | 0.95 | 15 | 0.24 | |
General Specifications
One Stage Gearbox
| Part Number | Ratio (approx.) |
Ratio (Exact) |
Backlash (avg) (Degrees) |
Length (Motor + Gearhead) (mm) |
Weight (g) |
Temperature Range (°C) |
|---|---|---|---|---|---|---|
| LRPX16-013Vxx-___-_004 | 4.11 | 78 / 19 | 0.8 | 59.5 | 60 | -30C to 100C |
| LRPX16-013Vxx-___-_006 | 5.54 | 72 / 13 | 0.9 | 59.5 | 60 | -30C to 100C |
Two Stage Gearbox
| Part Number | Ratio (approx.) |
Ratio (Exact) |
Backlash (avg) (Degrees) |
Length (Motor + Gearhead) (mm) |
Weight (g) |
Temperature Range (°C) |
|---|---|---|---|---|---|---|
| LRPX16-013Vxx-___-_017 | 16.85 | 6084 / 361 | 1.0 | 64.3 | 65 | -30C to 100C |
| LRPX16-013Vxx-___-_023 | 22.74 | 5616 / 247 | 1.0 | 64.3 | 65 | -30C to 100C |
| LRPX16-013Vxx-___-_031 | 30.67 | 5184 / 169 | 1.0 | 64.3 | 65 | -30C to 100C |
Three Stage Gearbox
| Part Number | Ratio (approx.) |
Ratio (Exact) |
Backlash (avg) (Degrees) |
Length (Motor + Gearhead) (mm) |
Weight (g) |
Temperature Range (°C) |
|---|---|---|---|---|---|---|
| LRPX16-013Vxx-___-_069 | 69.19 | 474552 / 6859 | 1.1 | 69.2 | 70 | -30C to 100C |
| LRPX16-013Vxx-___-_093 | 93.34 | 438048 / 4693 | 1.1 | 69.2 | 70 | -30C to 100C |
| LRPX16-013Vxx-___-_126 | 125.93 | 404352 / 3211 | 1.1 | 69.2 | 70 | -30C to 100C |
| LRPX16-013Vxx-___-_170 | 169.89 | 373248 / 2197 | 1.1 | 69.2 | 70 | -30C to 100C |
Four Stage Gearbox
| Part Number | Ratio (approx.) |
Ratio (Exact) |
Backlash (avg) (Degrees) |
Length (Motor + Gearhead) (mm) |
Weight (g) |
Temperature Range (°C) |
|---|---|---|---|---|---|---|
| LRPX16-013Vxx-___-_284 | 284.03 | 37015056 / 130321 | 1.1 | 74 | 76 | -30C to 100C |
| LRPX16-013Vxx-___-_383 | 383.19 | 34167744 / 89167 | 1.1 | 74 | 76 | -30C to 100C |
| LRPX16-013Vxx-___-_517 | 516.96 | 31539456 / 61009 | 1.0 | 74 | 76 | -30C to 100C |
| LRPX16-013Vxx-___-_697 | 697.44 | 29113344 / 41743 | 1.0 | 74 | 76 | -30C to 100C |
| LRPX16-013Vxx-___-_941 | 940.93 | 26873856 / 28561 | 1.1 | 74 | 76 | -30C to 100C |
Speed / Torque Curves
Dimensional Drawing

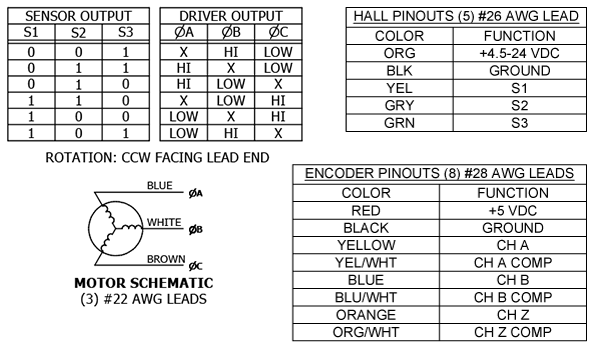

Connector Pinouts
Drive Compatibility
Please contact ElectroCraft if the drive you are searching for is not included in the charts below.
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| LRPX16-013V12 (4:1 to 23:1) | 2.4 to 2.5 | 5.3 to 6.8 | 12 | PRO-A08V48B | PRO-A04V48B | CPP-A06V48A | CPP-A06V48A | |
| LRPX16-013V12 (4:1 to 23:1) | 0.6 to 2.3 | 0.9 to 4.1 | 12 | PRO-A08V48B | PRO-A04V48B | CPP-B06V48A | CPP-A06V48A | |
| LRPX16-013V24 (all ratios) | 0.3 to 1.2 | 0.5 to 3.3 | 24 | PRO-A08V48B | PRO-A04V48B | CPP-B06V48A | CPP-A06V48A | |
| LRPX16-013V48 (all ratios) | 0.2 to 0.6 | 0.2 to 1.7 | 48 | PRO-A08V48B | PRO-A04V48B | CPP-B06V48A | CPP-A06V48A | |
