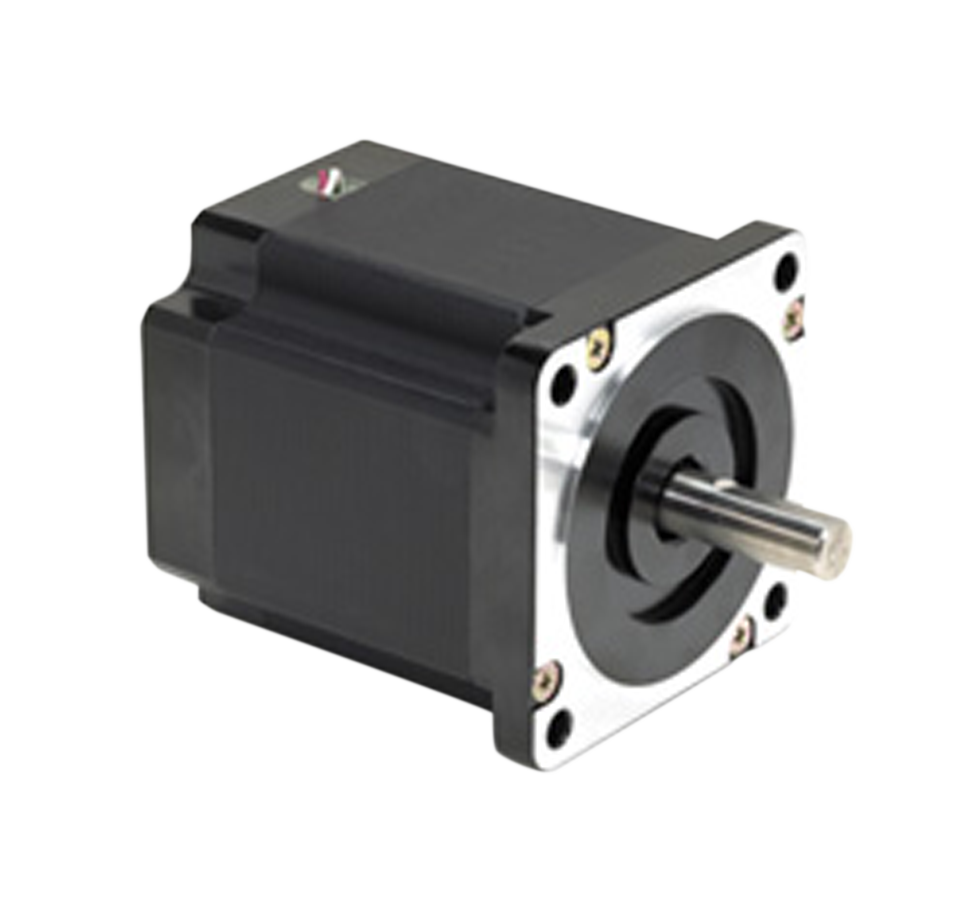

TPP34 Plus Stepper Motor
TorquePower™ Series
Summary Details
Size: Nema 34, 1.8°Holding Torque: up to 1190 oz-in or 840 Ncm
Speed: up to 35 RPS
Complete Motion Solution
For a complete motion solution, the TPP34 is compatible with ElectroCraft's Universal and PRO Series drives.
Compact. Force.
This bi-directional, 1.8° size 34 hybrid DC
stepping motor provides a lot of torque in a
relatively small size. The TPP34 has holding
torque up to 1190 oz-in with a step angle
accuracy of ±3%.
Additional Product Details

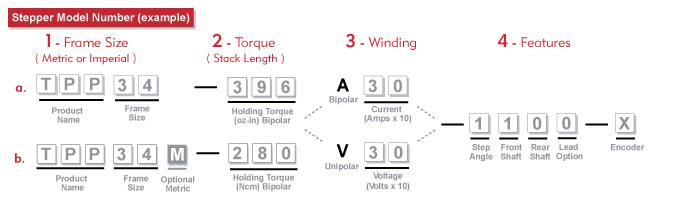

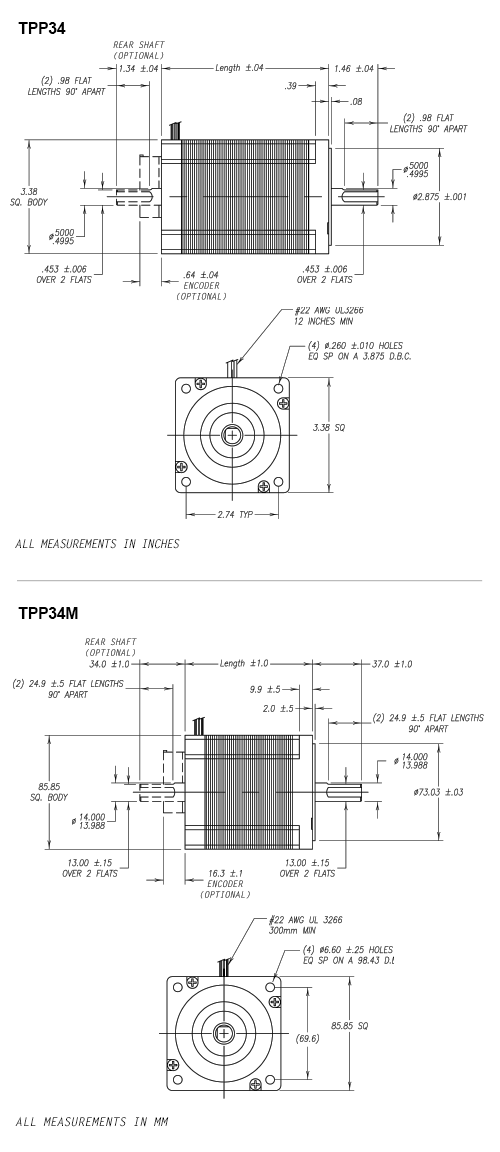

Outline Drawing
| TPP34 & TPP34M Frame Size Drawing Key | |||
|---|---|---|---|
| MOTOR TYPE | LENGTH (INCHES) |
LENGTH (MM) |
|
| IMPERIAL | METRIC | ||
| TPP34-396 | TPP34M-280 | 2.60 ±.04 | 66.0 ±1.0 |
| TPP34-793 | TPP34M-560 | 3.78 ±.04 | 96.0 ±.1.0 |
| TPP34-1190 | TPP34M-840 | 4.96 ±.04 | 126.0 ±.1.0 |

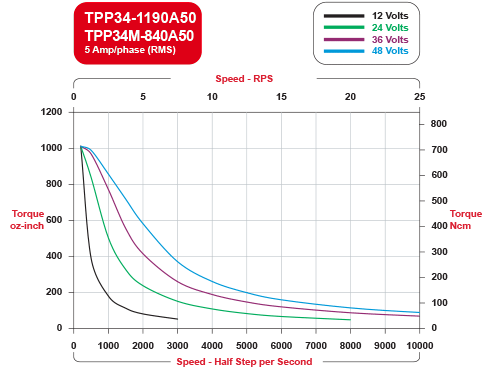

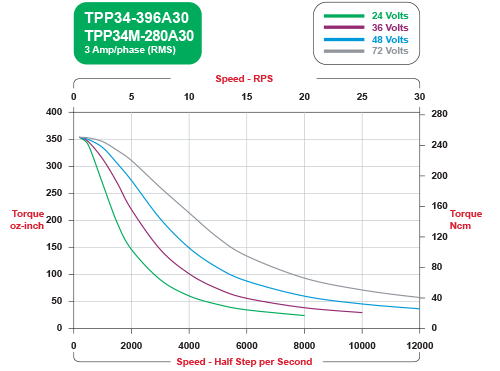

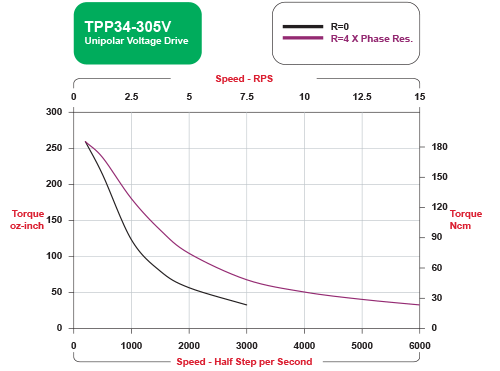

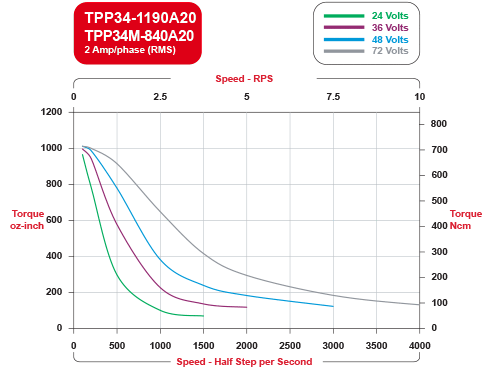

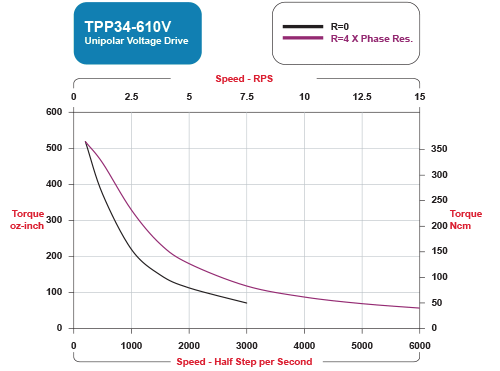

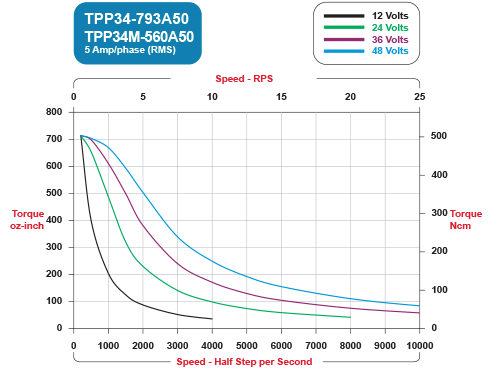

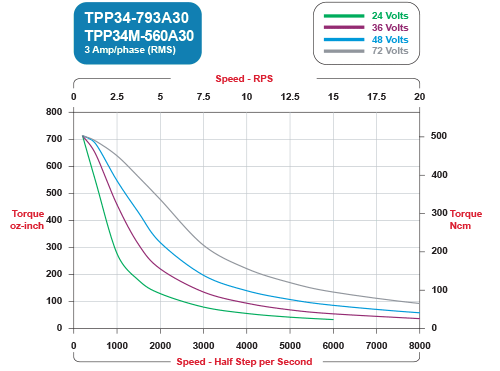

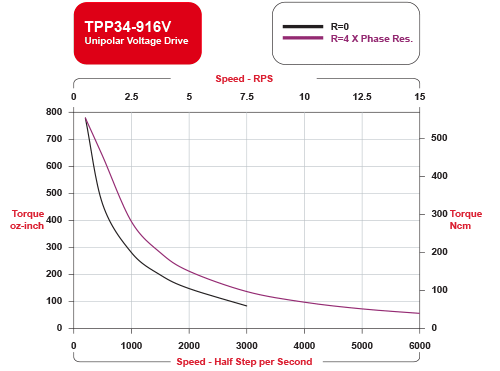

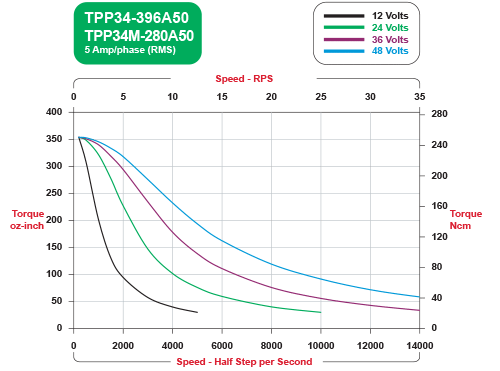

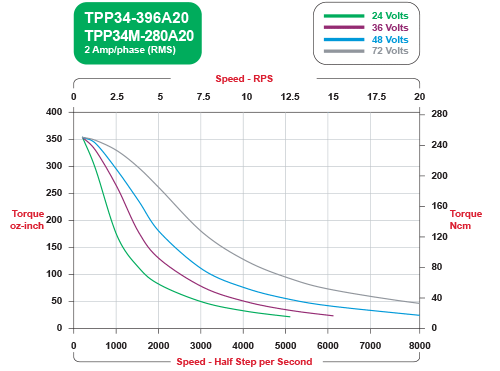

Speed / Torque Curves
BIPOLAR
UNIPOLAR
Mechanical / Winding Data
| TPP34 Bi-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TPP34-396 | TPP34-793 | TPP34-1190 |
| Metric Models | TPP34M-280 | TPP34M-560 | TPP34M-840 |
| Holding Torque Bi-Polar (oz-in) |
396.0 | 793.0 | 1190.0 |
| Holding Torque Bi-Polar (Ncm) |
280 | 560 | 840 |
| Length (inches) |
2.60 | 3.78 | 4.96 |
| Length (cm) |
6.6 | 9.6 | 12.6 |
| Width (inches) |
3.4 | 3.4 | 3.4 |
| Width (cm) |
8.6 | 8.6 | 8.6 |
| Weight (oz) |
61.7 | 98.8 | 138.6 |
| Weight (Kg) |
1.7 | 2.8 | 3.9 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 4 | 4 | 4 |
| TPP34 Uni-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TPP34-305 | TPP34-610 | TPP34-916 |
| Metric Models | TPP34M-215 | TPP34M-430 | TPP34M-646 |
| Holding Torque Uni-Polar (oz-in) |
305.0 | 610.0 | 916.0 |
| Holding Torque Uni-Polar (Ncm) |
215 | 431 | 647 |
| Length (inches) |
2.60 | 3.78 | 4.96 |
| Length (cm) |
6.6 | 9.6 | 12.6 |
| Width (inches) |
3.4 | 3.4 | 3.4 |
| Width (cm) |
8.6 | 8.6 | 8.6 |
| Weight (oz) |
61.7 | 98.8 | 138.6 |
| Weight (Kg) |
1.7 | 2.8 | 3.9 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 6 | 6 | 6 |
| TPP34 Bi-Polar Windings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 396A20 | 396A30 | 396A50 | 793A20 | 793A30 | 793A50 | 1190A20 | 1190A30 | 1190A50 |
| Metric Models | 280A20 | 280A30 | 280A50 | 560A20 | 560A30 | 560A50 | 840A20 | 840A30 | 840A50 |
| Current (A/Phase) |
2.0 | 3.0 | 5.0 | 2.0 | 3.0 | 5.0 | 2.0 | 3.0 | 5.0 |
| Voltage (V/Phase) |
5.0 | 3.0 | 2.0 | 7.9 | 4.7 | 3.1 | 8.7 | 5.2 | 3.4 |
| Resistance (R/Phase) |
2.5 | 1.0 | 0.4 | 34.3 | 1.6 | 0.6 | 4.3 | 1.7 | 0.7 |
| Inductance (mH) |
21.9 | 8.7 | 3.4 | 793.0 | 13.6 | 5.4 | 44.3 | 17.6 | 7.0 |
| TPP34 Uni-Polar Windings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 305V23 | 305V30 | 305V50 | 610V35 | 610V47 | 610V79 | 916V39 | 916V52 | 916V87 |
| Metric Models | 215V23 | 215V30 | 215V50 | 430V35 | 430V47 | 430V79 | 646V39 | 646V52 | 646V87 |
| Current Uni-Polar (A/Phase) |
4.5 | 3.0 | 2.0 | 4.5 | 3.0 | 2.0 | 4.5 | 3.0 | 2.0 |
| Voltage Uni-Polar (V/Phase) |
2.3 | 3.0 | 5.0 | 3.5 | 4.7 | 7.9 | 3.9 | 5.2 | 8.7 |
| Resistance Uni-Polar (R/Phase) |
0.5 | 1.0 | 2.5 | 0.8 | 1.6 | 3.9 | 0.9 | 1.7 | 4.3 |
| Inductance Uni-Polar (mH) |
2.2 | 4.3 | 10.9 | 3.4 | 6.8 | 17.1 | 4.4 | 8.6 | 22.2 |
| Current Bi-Polar (A/Phase) |
3.0 | 2.1 | 1.4 | 3.2 | 2.1 | 1.4 | 3.2 | 2.1 | 1.4 |
| Voltage Bi-Polar (V/Phase) |
3.2 | 4.2 | 7.1 | 4.7 | 6.6 | 11.1 | 5.2 | 7.3 | 12.2 |
| Resistance Bi-Polar (R/Phase) |
1.0 | 2.0 | 5.0 | 13.6 | 27.2 | 68.5 | 1.7 | 3.4 | 8.7 |
| Inductance Bi-Polar (mH) |
8.7 | 17.4 | 43.7 | 793.0 | 793.0 | 793.0 | 17.6 | 35.2 | 88.7 |
TPP34 CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| TPP34-1190A20 | TPP34M-840A20 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| TPP34-1190A30 | TPP34M-840A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| TPP34-1190A50 | TPP34M-840A50 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |||
| TPP34-396A20 | TPP34M-280A20 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| TPP34-396A30 | TPP34M-280A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| TPP34-396A50 | TPP34M-280A50 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |||
| TPP34-793A20 | TPP34M-560A20 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| TPP34-793A30 | TPP34M-560A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| TPP34-793A50 | TPP34M-560A50 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |||
