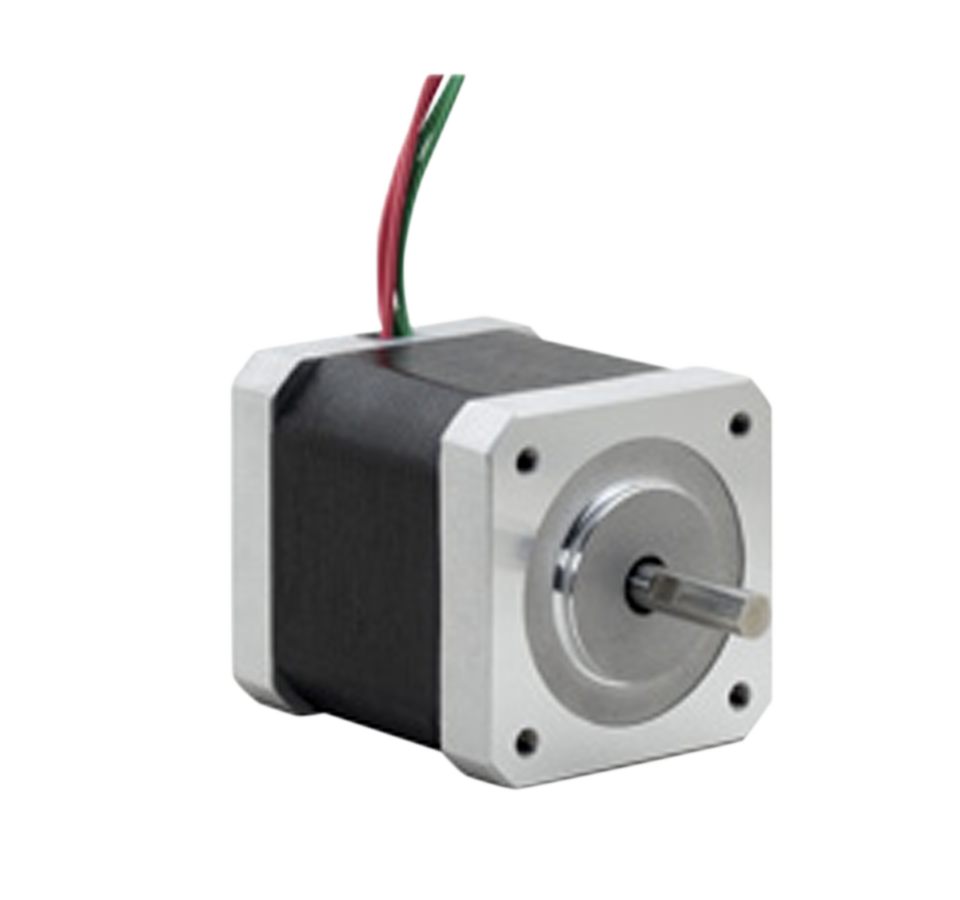

TPE17 Stepper Motor
TorquePower™ Enhanced Series
Summary Details
Size: Nema 17, 1.8°Holding Torque: up to 78 oz-in or 55 Ncm
Speed: up to 80 RPS
Complete Motion Solution
For a complete motion solution, the TPE17 is compatible with ElectroCraft's Universal and PRO Series drives.
Compact. Powerful.
The ElectroCraft Torque Power™ Enhanced
Nema 17 is a high performance stepper motor
incorporating creative design and manufacturing
techniques to offer improved holding torque.
Motors are available in both bipolar and unipolar
windings with a variety of shaft configurations
and encoder options to meet the needs of any
application.
Additional Product Details

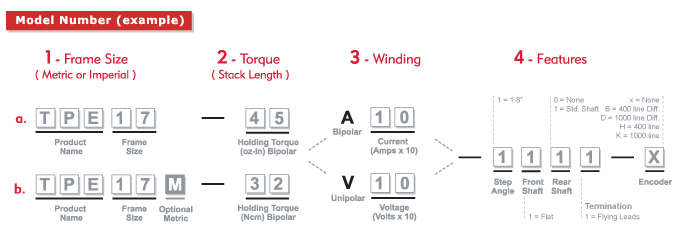

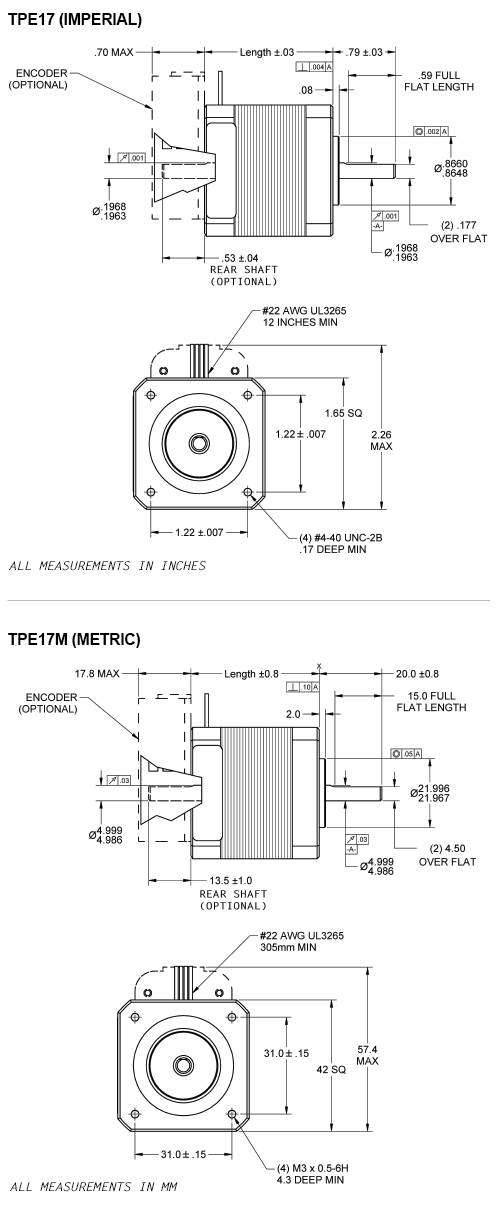

Outline Drawing
| TPE17 & TPE17M Frame Size Drawing Key | |||
|---|---|---|---|
| MOTOR TYPE | LENGTH (INCHES) |
LENGTH (MM) |
|
| IMPERIAL | METRIC | ||
| TPE17-45 | TPE17M-32 | 1.42 ±.03 | 36.1 ±.8 |
| TPE17-63 | TPE17M-44 | 1.62 ±.03 | 41.1 ±.8 |
| TPE17-78 | TPE17M-55 | 1.91 ±.03 | 49.1 ±.8 |
Specifications & Winding Data
| TPE17 Bi-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TPE17-45 | TPE17-63 | TPE17-78 |
| Metric Models | TPE17M-32 | TPE17M-44 | TPE17M-55 |
| Holding Torque Bi-Polar (oz-in) |
45.0 | 63.0 | 78.0 |
| Holding Torque Bi-Polar (Ncm) |
32 | 44 | 55 |
| Length (inches) |
1.45 | 1.65 | 1.96 |
| Length (cm) |
3.7 | 4.2 | 5.0 |
| Width (inches) |
1.6 | 1.6 | 1.6 |
| Width (cm) |
4.1 | 4.1 | 4.1 |
| Weight (oz) |
9.0 | 11.0 | 13.0 |
| Weight (Kg) |
0.3 | 0.3 | 0.4 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 4 | 4 | 4 |
| TPE17 Uni-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TPE17-35 | TPE17-48 | TPE17-60 |
| Metric Models | TPE17M-25 | TPE17M-34 | TPE17M-42 |
| Holding Torque Uni-Polar (oz-in) |
35.0 | 48.0 | 60.0 |
| Holding Torque Uni-Polar (Ncm) |
25 | 34 | 42 |
| Length (inches) |
1.45 | 1.65 | 1.96 |
| Length (cm) |
3.7 | 4.2 | 5.0 |
| Width (inches) |
1.6 | 1.6 | 1.6 |
| Width (cm) |
4.1 | 4.1 | 4.1 |
| Weight (oz) |
9.0 | 11.0 | 13.0 |
| Weight (Kg) |
0.3 | 0.3 | 0.4 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 6 | 6 | 6 |
| TPE17 Bi-Polar Windings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 45A10 | 45A15 | 45A20 | 63A10 | 63A15 | 63A20 | 78A10 | 78A15 | 78A20 |
| Metric Models | 32A10 | 32A15 | 32A20 | 44A10 | 44A15 | 44A20 | 55A10 | 55A15 | 55A20 |
| Current (A/Phase) |
1.0 | 1.5 | 2.0 | 1.0 | 1.5 | 2.0 | 1.0 | 1.5 | 2.0 |
| Voltage (V/Phase) |
4.5 | 2.9 | 2.2 | 5.3 | 3.4 | 2.6 | 6.4 | 4.2 | 3.2 |
| Resistance (R/Phase) |
4.5 | 2.0 | 1.1 | 5.3 | 2.3 | 1.3 | 6.4 | 2.8 | 1.6 |
| Inductance (mH) |
7.3 | 3.4 | 1.9 | 10.3 | 4.5 | 2.5 | 15.8 | 7.0 | 4.0 |
| TPE17 Uni-Polar Windings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 35V40 | 35V60 | 35V120 | 48V40 | 48V60 | 48V120 | 60V40 | 60V60 | 60V120 |
| Metric Models | 25V40 | 25V60 | 25V120 | 34V40 | 34V60 | 34V120 | 42V40 | 42V60 | 42V120 |
| Current Uni-Polar (A/Phase) |
1.1 | 0.7 | 0.4 | 1.3 | 0.9 | 0.5 | 1.6 | 1.0 | 0.5 |
| Voltage Uni-Polar (V/Phase) |
4.3 | 6.6 | 12.8 | 4.2 | 6.1 | 11.8 | 4.0 | 6.2 | 12.5 |
| Resistance Uni-Polar (R/Phase) |
4.0 | 9.3 | 35.6 | 3.4 | 7.1 | 26.1 | 2.6 | 6.2 | 24.9 |
| Inductance Uni-Polar (mH) |
3.2 | 7.3 | 29.0 | 3.3 | 6.8 | 25.6 | 3.3 | 7.9 | 31.9 |
| Current Bi-Polar (A/Phase) |
0.8 | 0.5 | 0.3 | 0.9 | 0.6 | 0.3 | 1.0 | 0.7 | 0.4 |
| Voltage Bi-Polar (V/Phase) |
6.1 | 9.3 | 18.1 | 6.0 | 8.6 | 16.6 | 5.7 | 8.8 | 17.6 |
| Resistance Bi-Polar (R/Phase) |
8.0 | 18.6 | 71.2 | 6.8 | 14.2 | 52.2 | 5.2 | 12.4 | 49.8 |
| Inductance Bi-Polar (mH) |
12.8 | 29.4 | 116.0 | 13.0 | 27.3 | 103.0 | 13.2 | 31.6 | 128.0 |

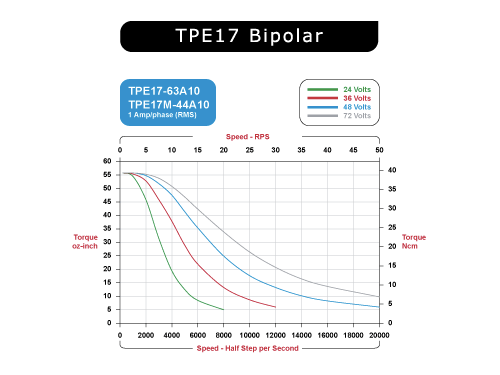

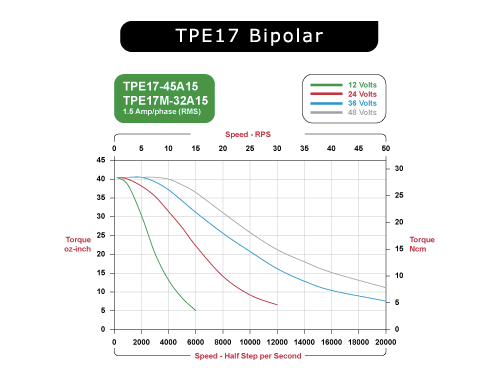

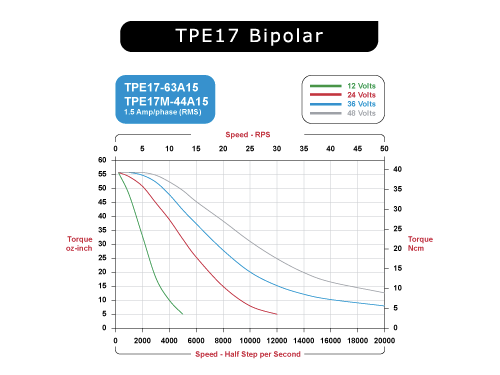

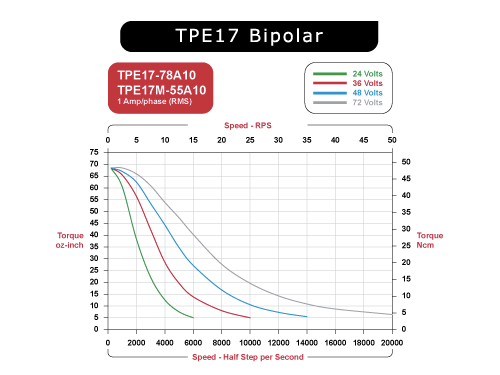

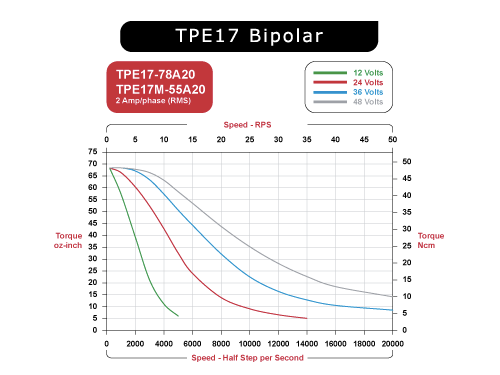

Speed / Torque Curves

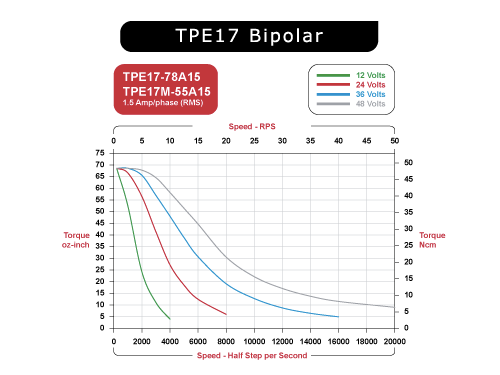

BIPOLAR

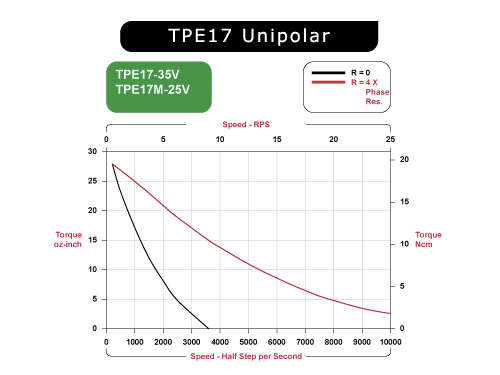

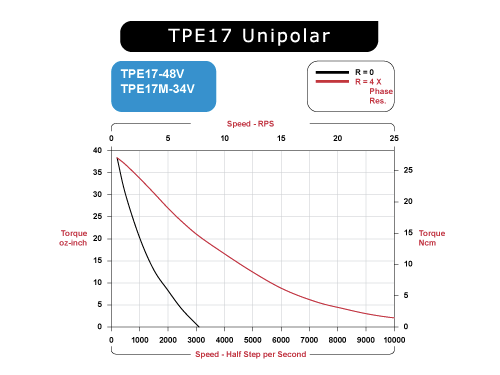

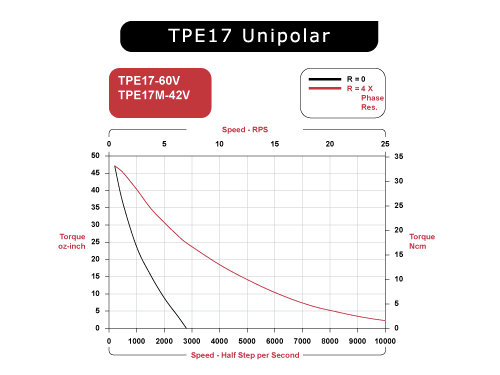

UNIPOLAR
CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| TPE17-45A10 | TPE17M-32A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPE17-45A15 | TPE17M-32A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPE17-45A20 | TPE17M-32A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPE17-63A10 | TPE17M-44A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPE17-63A15 | TPE17M-44A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPE17-63A20 | TPE17M-44A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPE17-78A10 | TPE17M-55A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPE17-78A15 | TPE17M-55A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPE17-78A20 | TPE17M-55A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
