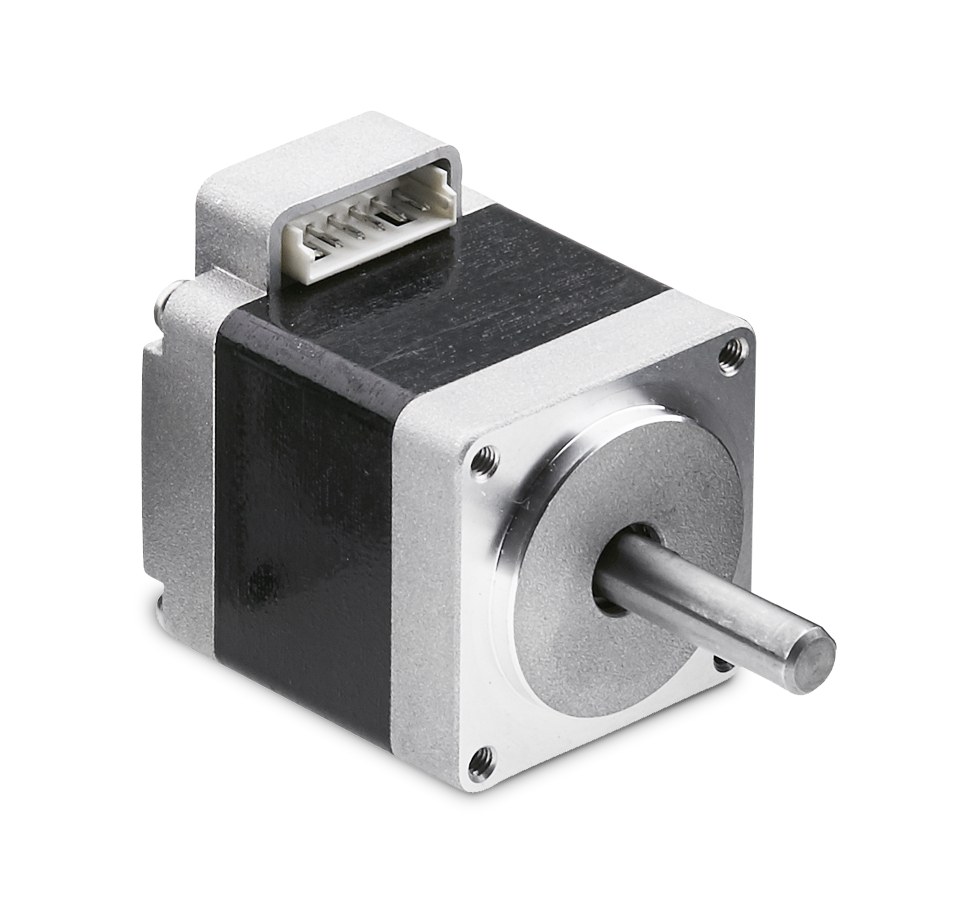

TPE11M Stepper Motor
TorquePower™ Enhanced Series
Summary Details
Size: Nema 11, 1.8°Holding Torque: up to 16 Ncm or 23 oz.in
Speed: up to 100 RPS
Complete Motion Solution
For a complete motion solution, the TPE11M is compatible with ElectroCraft's Universal and PRO Series drives.
Powerful. Adaptable.
The ElectroCraft Torque Power™ Enhanced Nema 11 is the
newest member of our TPE range. Produced using advanced
manufacturing techniques, this high performance stepper motor
leads the field in terms of torque per frame size. Motors are
available with unipolar and bipolar windings and with a variety
of shaft configurations and encoder options to suit any application.
This is a metric motor.

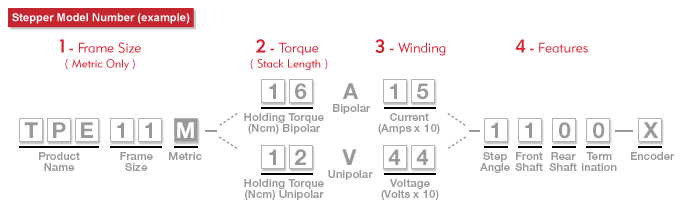

Additional Product Details

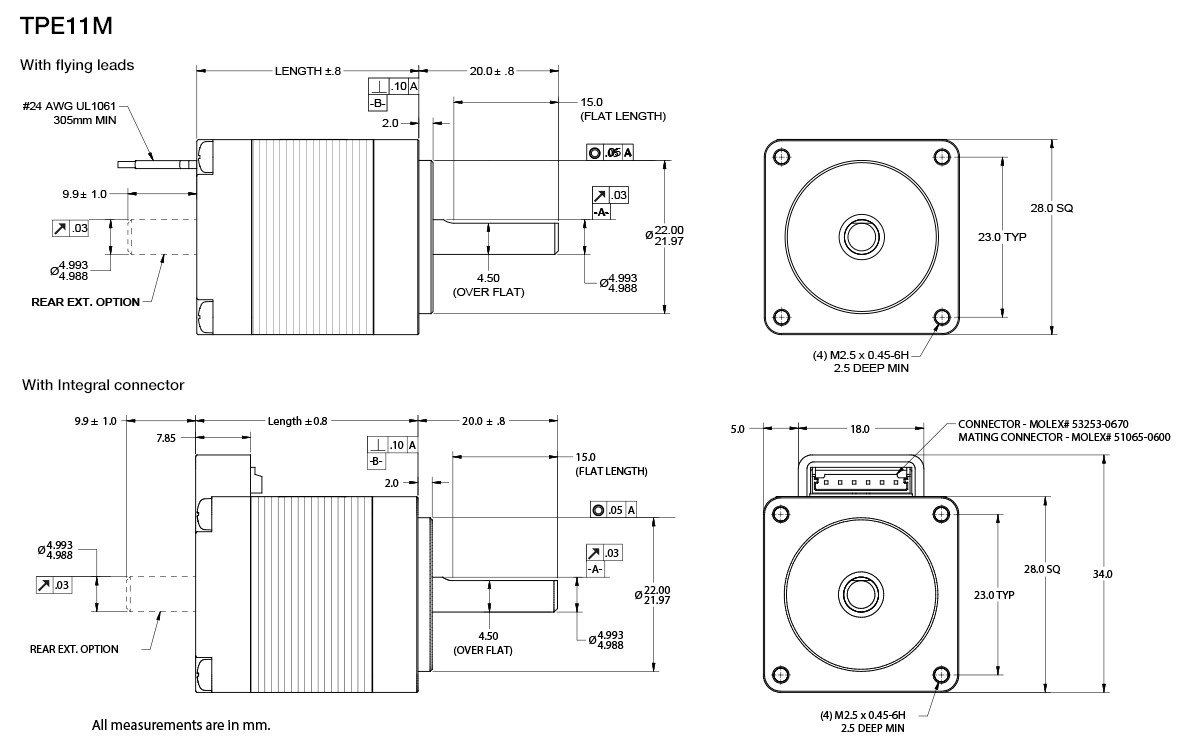

Outline Drawing
| TPE11M Frame Size Drawing Key | |||
|---|---|---|---|
| MOTOR TYPE | LENGTH (INCHES) |
LENGTH (MM) |
|
| BIPOLAR | UNIPOLAR | ||
| TPE11M-8A | TPE11M-6V | 1.26 ±0.04 | 31.9 ±0.8 |
| TPE11M-11A | TPE11M-8V | 1.56 ±0.04 | 39.6 ±0.8 |
| TPE11M-16A | TPE11M-12V | 1.98 ±0.04 | 50.4 ±0.8 |
Specifications & Winding Data
| TPE11M Bi-Polar Stack Size | |||
|---|---|---|---|
| Metric Models | TPE11M-8A | TPE11M-11A | TPE11M-16A |
| Holding Torque Bi-Polar (oz-in) |
11.3 | 15.6 | 22.7 |
| Holding Torque Bi-Polar (Ncm) |
8 | 11 | 16 |
| Length (inches) |
1.26 | 1.56 | 1.98 |
| Length (cm) |
3.2 | 4.0 | 5.0 |
| Width (inches) |
1.1 | 1.1 | 1.1 |
| Width (cm) |
2.8 | 2.8 | 2.8 |
| Weight (oz) |
4.0 | 5.0 | 6.5 |
| Weight (g) |
113.4 | 141.7 | 184.3 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 4 | 4 | 4 |
| TPE11M Uni-Polar Stack Size | |||
|---|---|---|---|
| Metric Models | TPE11M-6V | TPE11M-8V | TPE11M-12V |
| Holding Torque Uni-Polar (oz-in) |
8.5 | 11.3 | 16.9 |
| Holding Torque Uni-Polar (Ncm) |
6 | 8 | 12 |
| Length (inches) |
1.26 | 1.56 | 1.98 |
| Length (cm) |
3.2 | 4.0 | 5.0 |
| Width (inches) |
1.1 | 1.1 | 1.1 |
| Width (cm) |
2.8 | 2.8 | 2.8 |
| Weight (oz) |
4.0 | 5.0 | 6.5 |
| Weight (g) |
113.4 | 141.7 | 184.3 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 6 | 6 | 6 |
| TPE11M Bi-Polar Windings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Metric Models | 8A05 | 8A10 | 8A15 | 11A05 | 11A10 | 11A15 | 16A05 | 16A10 | 16A15 |
| Current (A/Phase) |
0.5 | 1.0 | 1.5 | 0.5 | 1.0 | 1.5 | 0.5 | 1.0 | 1.5 |
| Voltage (V/Phase) |
4.8 | 2.6 | 1.6 | 5.9 | 3.1 | 2.0 | 7.4 | 4.0 | 2.6 |
| Resistance (R/Phase) |
9.6 | 2.6 | 1.1 | 11.7 | 3.1 | 1.3 | 14.8 | 4.0 | 1.8 |
| Inductance (mH) |
7.7 | 1.9 | 0.8 | 8.1 | 2.1 | 0.9 | 11.1 | 3.1 | 1.3 |
| TPE11M Uni-Polar Windings | ||||||
|---|---|---|---|---|---|---|
| Metric Models | 6V14 | 6V27 | 8V17 | 8V33 | 12V22 | 12V44 |
| Current Uni-Polar (A/Phase) |
1.8 | 0.9 | 1.8 | 0.9 | 1.8 | 0.9 |
| Voltage Uni-Polar (V/Phase) |
1.4 | 2.6 | 1.7 | 3.2 | 2.2 | 4.3 |
| Resistance Uni-Polar (R/Phase) |
0.7 | 2.8 | 0.9 | 3.4 | 1.2 | 4.6 |
| Inductance Uni-Polar (mH) |
0.2 | 1.0 | 0.4 | 1.5 | 0.4 | 1.7 |
| Current Bi-Polar (A/Phase) |
1.3 | 0.7 | 1.3 | 0.7 | 1.3 | 0.7 |
| Voltage Bi-Polar (V/Phase) |
2.0 | 3.8 | 2.3 | 4.6 | 3.1 | 6.2 |
| Resistance Bi-Polar (R/Phase) |
1.5 | 5.6 | 1.8 | 6.8 | 2.4 | 9.2 |
| Inductance Bi-Polar (mH) |
0.9 | 4.0 | 1.5 | 5.8 | 1.7 | 6.7 |

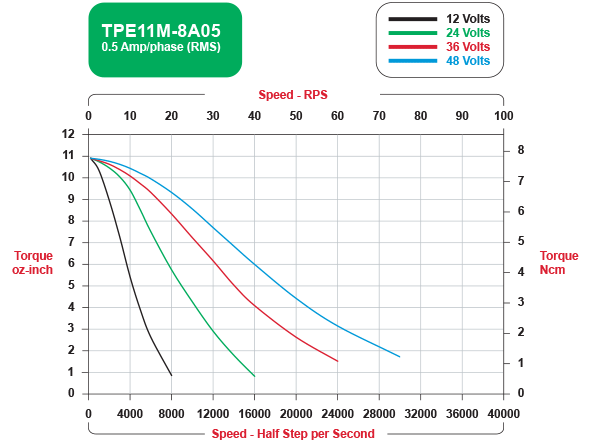

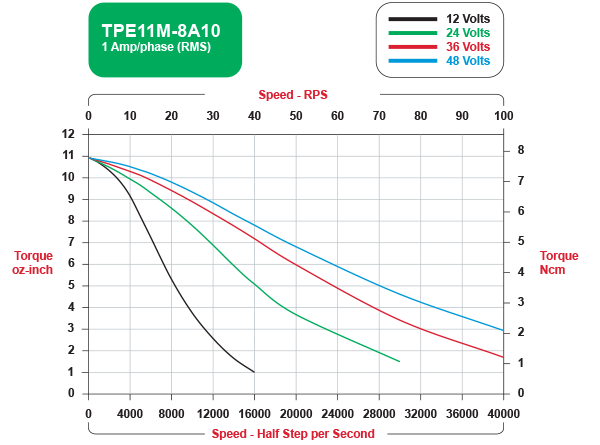

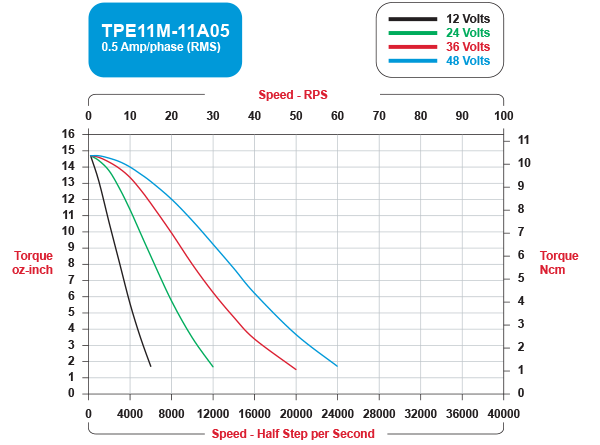

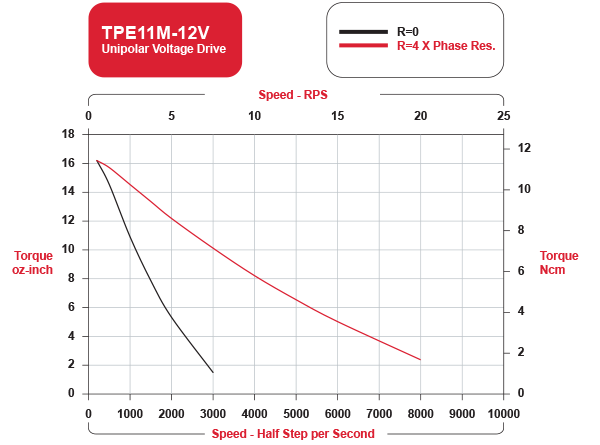

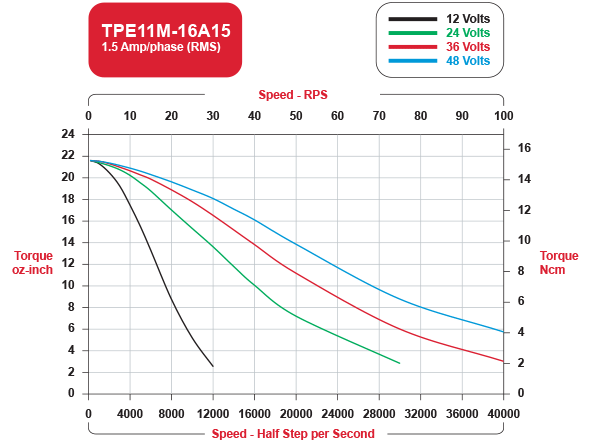

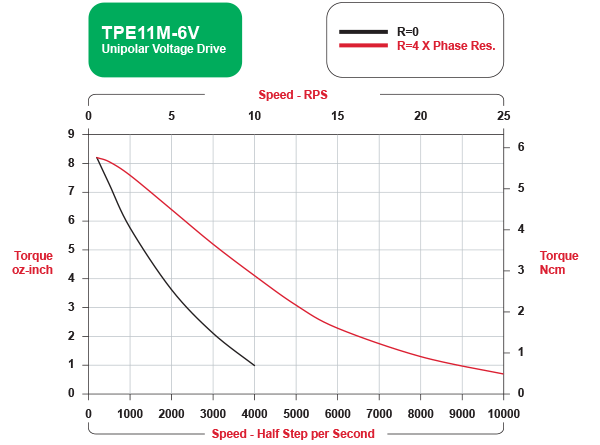

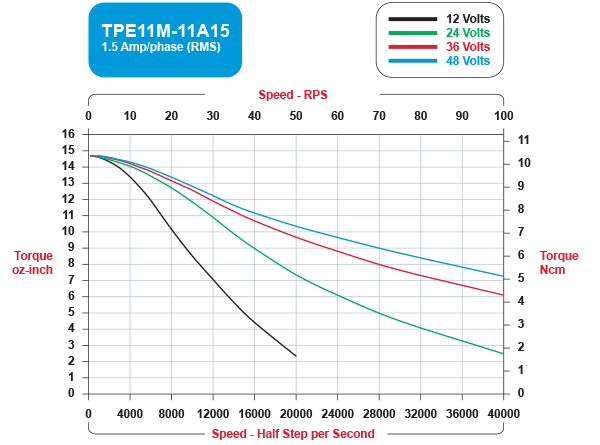

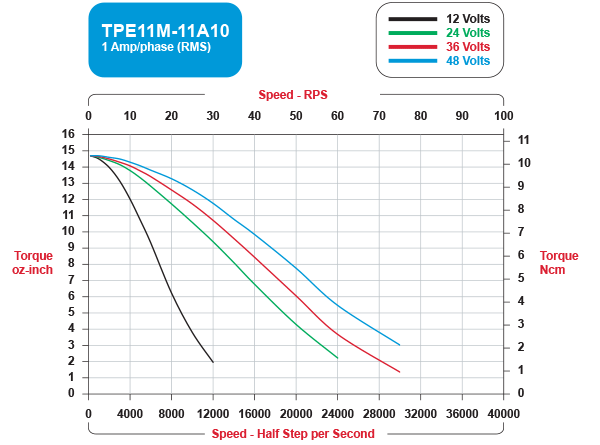

Speed / Torque Curves
BIPOLAR
UNIPOLAR
Drive Compatibility
Please contact us for drive compatibility information on this motor series.
