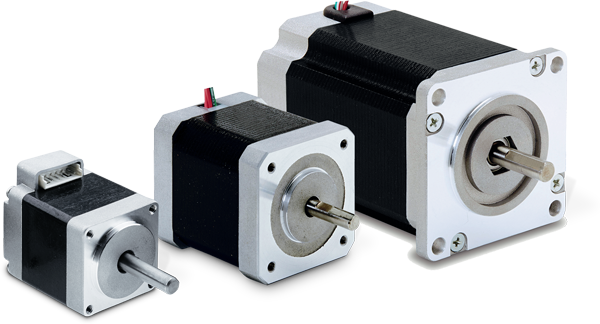

Stepper Motors
from ElectroCraft

ElectroCraft sets the standard for quality, reliability, and durability in hybrid stepping motors. The precision of our TorquePower motors is matched only by the dependability of their performance. Delivering exceptional holding torque at low speeds, our stepper motors are perfect for engineers, OEMs and manufacturers in automation, robotics, medical devices, and precision machinery sectors who demand reliable, high-torque motion control in compact spaces.

Superior Torque and Performance
Holding torques up to 294 oz-in (208 Ncm) in NEMA 23 frames, 78 oz-in (55 Ncm) in NEMA 17, and 23 oz-in (16 Ncm) in NEMA 11, with speeds reaching 100 RPS—surpassing standard motors for enhanced low-speed stability and overall efficiency.
Rugged, Low-Maintenance Design
Totally enclosed construction with permanently lubricated ball bearings ensures bi-directional operation, smooth performance, and extended lifespan in demanding environments, minimizing downtime and repair costs.
Customization and Versatility
Available in a variety of standard or custom windings, with various shaft and encoder options, enabling seamless integration into diverse applications while providing precise, dependable stepping at 1.8° angles.

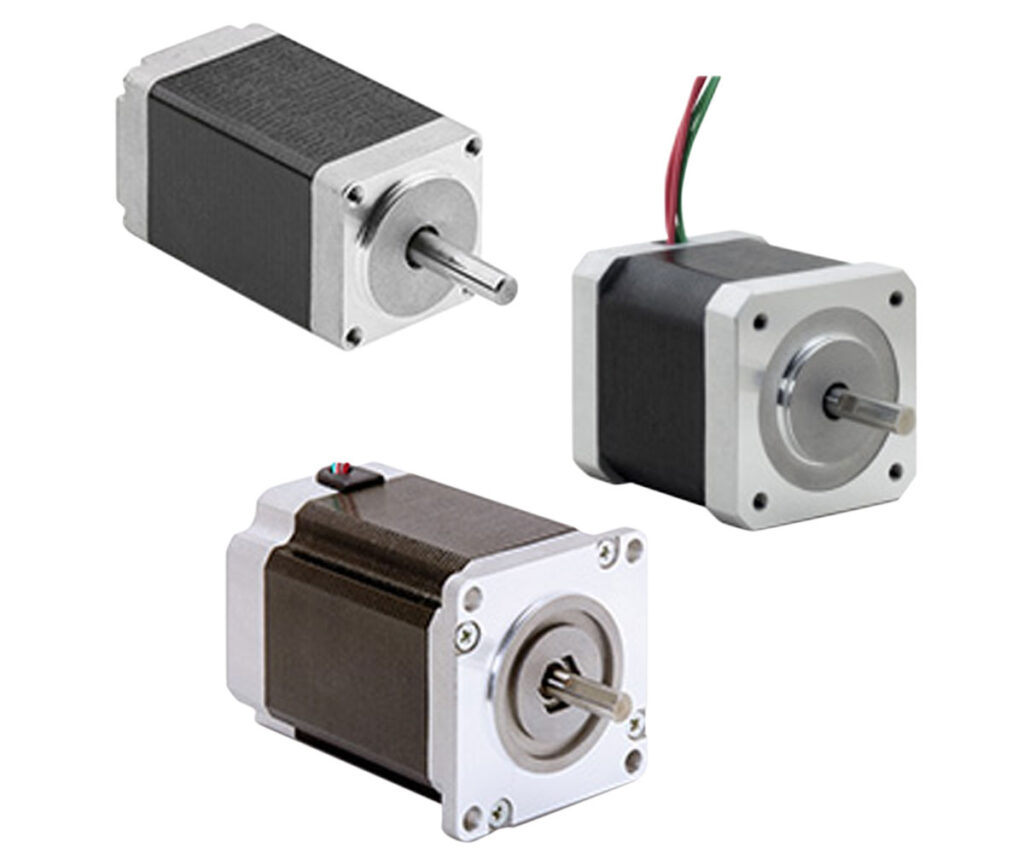

TorquePower Enhanced Stepper Motors

Holding Torque 11 to 294 oz-in (8 to 208 Ncm), Speed 50 to 100 RPS

The TorquePower Enhanced Series is our newest, highest performing hybrid stepper motor in NEMA 11, 17, and 23 frame sizes, offering increased holding torque and improved low speed performance, making it the go-to choice for applications requiring power, precision, and protection without compromising on compactness.

more ▸

ElectroCraft’s TPE series empowers your designs with unmatched power density and reliability, reducing total cost of ownership while accelerating time-to-market for innovative motion solutions. Choose the TPE series to elevate your systems beyond the ordinary.

◂ less
Frame Size
Holding Torque
Speed

TPE11M NEMA 11 Stepper Motors

Frame Size NEMA 11
Holding Torque 23 oz-in (16 Ncm)
Speed 100 RPS

TPE17 NEMA 17 Stepper Motors

Frame Size NEMA 17
Holding Torque 78 oz-in (55 Ncm)
Speed 80 RPS

TPE23 NEMA 23 Stepper Motors

Frame Size NEMA 23
Holding Torque 294 oz-in (208 Ncm)
Speed 50 RPS

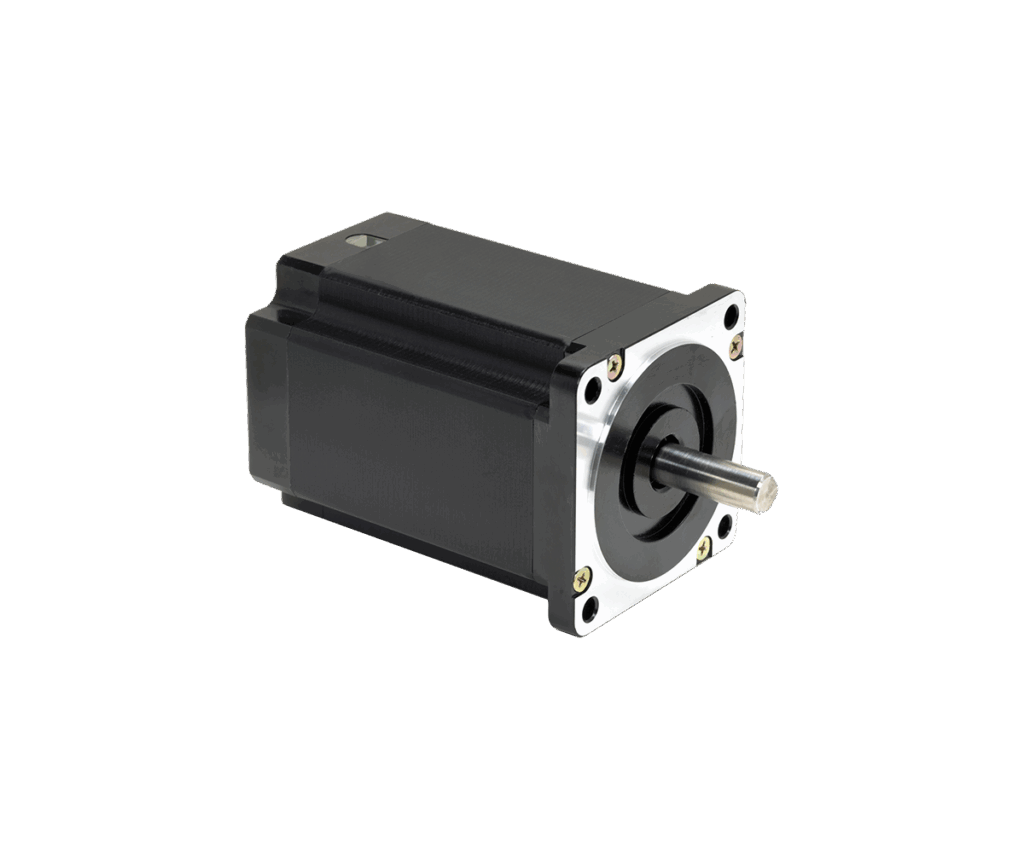

TPP34 NEMA 34 Stepper Motors

Frame Size NEMA 34
Holding Torque 1,190 oz-in (840 Ncm)
Speed 35 RPS

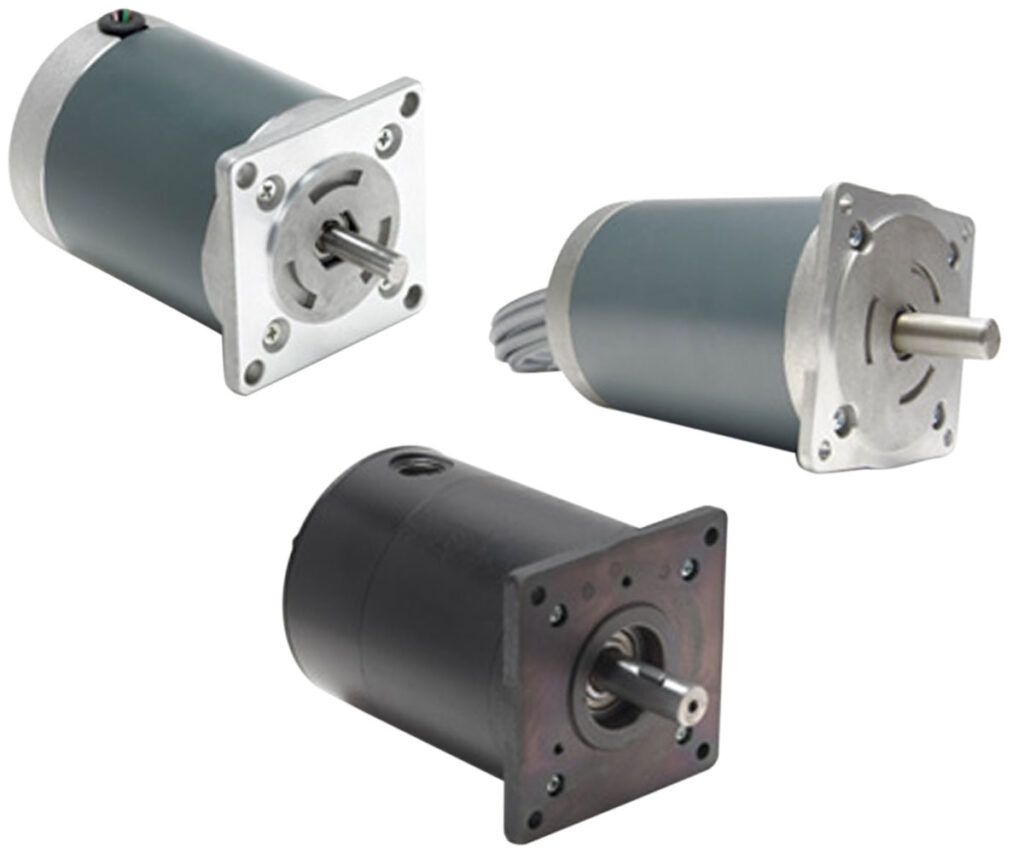

TorquePower Stepper Motors

Holding Torque 48 to 2,100 oz-in (33.9 to 1,482.9 Ncm), Speed 24 to 85 RPS

For larger capacity applications, the TP series hybrid stepper motor family offers larger frame sizes with up to 2,100 oz-in of holding torque and a sealed case for improved environmental protection.

Size
Holding Torque
Speed

TP23 NEMA 23 Stepper Motors

Size NEMA 23
Holding Torque 210 oz-in (148.3 Ncm)
Speed 85 RPS

TP34 NEMA 34 Stepper Motors

Size NEMA 34
Holding Torque 620 oz-in (437.8 Ncm)
Speed 34 RPS

TP42 NEMA 42 Stepper Motors

Size NEMA 42
Holding Torque 2,100 oz-in (1,482.9 Ncm)
Speed 24 RPS
