Hybrid Stepper Linear Actuators
from ElectroCraft

ElectroCraft hybrid stepper linear actuator solutions provide original equipment manufacturers the precision, performance and reliability that is required for a wide variety of motion control positioning applications. ElectroCraft offers configurable or completely customizable solutions in three unique product designs to meet a variety of application requirements.

more ▸

The integrated stepper linear actuator design provides optimal performance in terms of linear force and speed, load rating, system efficiency and reliability. Fewer mechanical components mean lower costs and greater system accuracy. This integrated solution is also compact in size to allow for smaller equipment footprints. ◂ less
Linear Actuator
(non-captive, internal nut)
Configured with the leadscrew nut integral to the stepper motor’s rotating shaft inside the motor. The leadscrew is threaded through the motor body.
Guided Linear Actuator
(captive, internal nut)
Similar in functionality to the non-captive linear actuator but uses the stepper motor to provide mechanical support and prevent rotation of the leadscrew.
Leadscrew Motor
(external nut)
The leadscrew is integral to the stepper motor’s rotating shaft, and the leadscrew nut is external to the motor.

AxialPower Enhanced Series Hybrid Stepper Linear Actuators

Force 16 to 400 lbf (71 to 1,779 N)

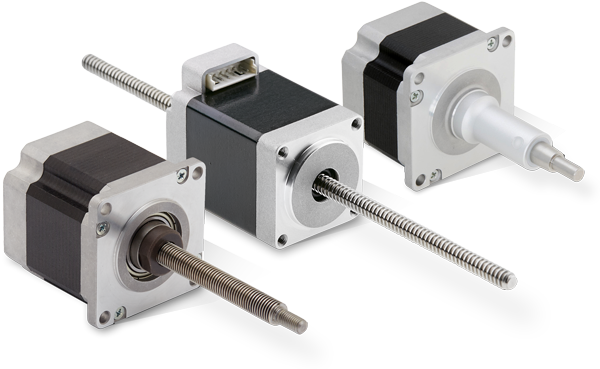

ElectroCraft’s unique motor, shaft and insert designs offer industry-leading output force per frame size while providing superior precision, speed and efficiency.  Available in NEMA 11, 17, and 23 frame sizes with a broad selection of metric or imperial leadscrews.  Ideal for a wide variety of applications from medical and laboratory to industrial machinery, allowing equipment manufacturers to reduce product footprints while significantly increasing performance.

Frame Size
Force

APES11M NEMA 11 Linear Actuators

Frame Size NEMA 11
Force 43 lbf (190 N)

APES17 NEMA 17 Linear Actuators

Frame Size NEMA 17
Force 225 lbf (1,001 N)

APES23 NEMA 23 Linear Actuators

Frame Size NEMA 23
Force 400 lbf (1,779 N)

L3 Series Hybrid Stepper Linear Actuators

Force 280 to 470 lbf (1,246 to 2,091 N)

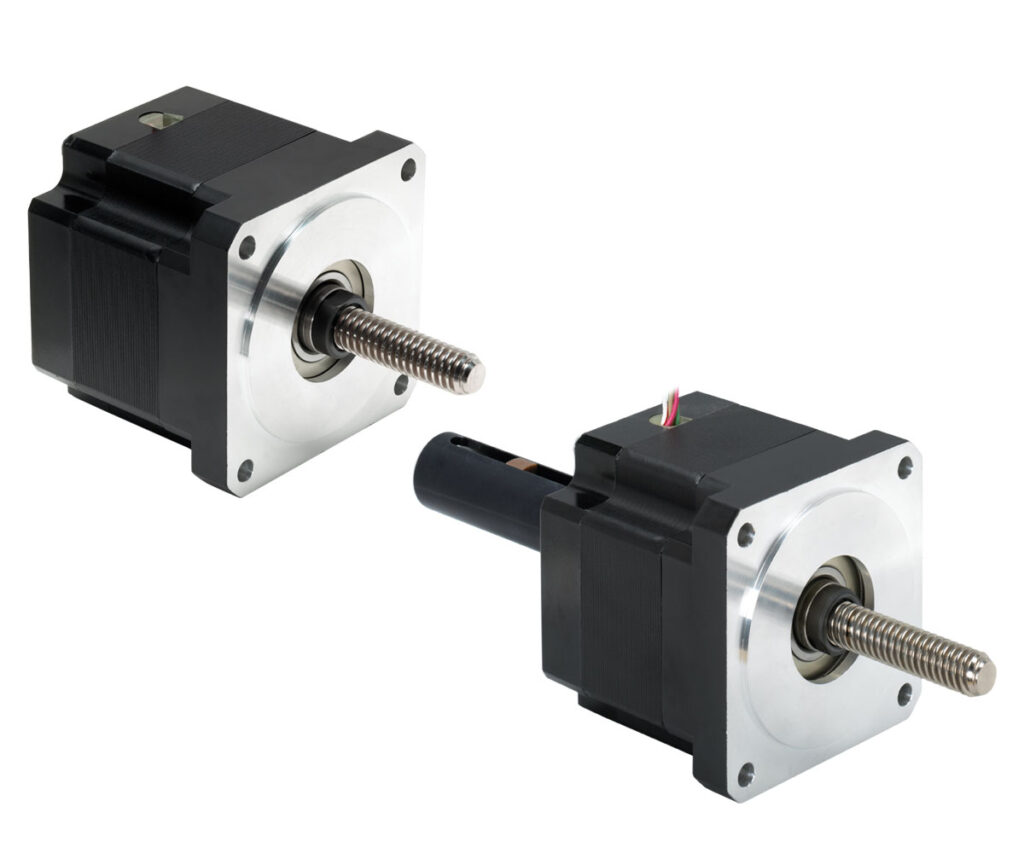

The L3 is an 86mm / NEMA 34 frame, hybrid stepper-based linear actuator. The unique dual load-side bearing design provides exceptional durability, capable of handling very heavy loads.
Frame Size
Force

L3 NEMA 34 Linear Actuators

Frame Size NEMA 34
Force 470 lbf (2,091 N)
