Universal DC Motor Drive
24V 40A with USB, USB+CAN

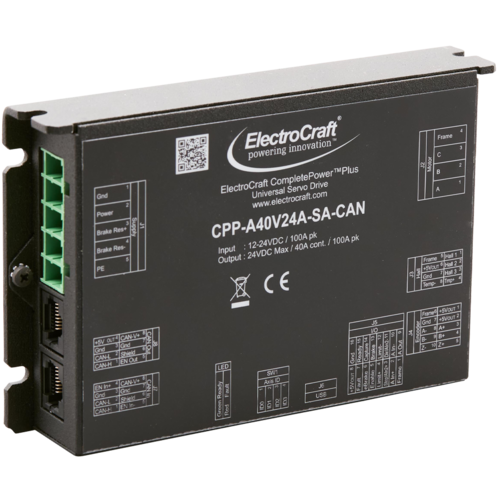

CPP-A40V24 Motor Drive
CPP-A40V24 Motor Drive
CPP-A40V24 Motor Drive

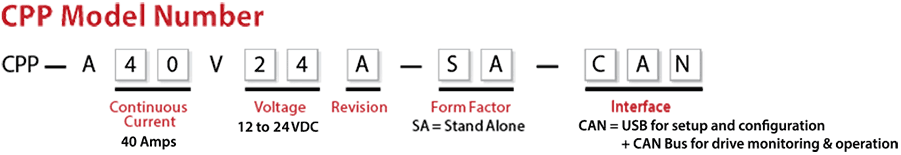

CPP Family of Motor Drives
Series CPP-A40V24 Peak Output Power 2075 Watts Operating Voltage 12 to 24 VDC Peak Output 100 Amps (peak of sine) Continuous Output 40 Amps (peak of sine) Commmunications USB, USB+CAN

Product Details

Overview & Features

Optimize your motor’s performance with an ElectroCraft Universal Drive, the latest addition to the ElectroCraft CompletePower™ Plus family of DC motor drives. Takes performance, efficiency, and flexibility to the next level, utilizing state-of-the-art digital drive technology combined with an intuitive and highly configurable user interface. more ▸

Compatible with a variety of motor architectures, including Brushless DC Motors, PMDC Brush Motors and DC Stepper Motors, the Universal Drive is perfect for a wide variety of applications.

There are five standard capacities available in the model lineup with customized versions available for large volume OEM requirements. Now available with CAN Bus! ◂ less

  • Driven by design to be one of the most space efficient, low voltage, digital servo drives available.
  • Utilizes the latest in digital drive architecture to provide software selectable control mode operation.
  • Compatible with Brushless motors and PMDC Brush motors from 12 to 24 VDC and up to 40A continuous, 100A peak current.
  • Modes of operation include speed, torque, or position control.
  • Sine-wave commutation for brushless motors using either hall sensors or encoder feedback.
  • Advanced Field Oriented Control (FOC) of Brushless motors provides high dynamic response resulting in a robust motor controller with low torque ripple that produces smoother, more efficient motion!
  • Hall sensor feedback with compensation function for 3-phase brushless motor commutation.
  • Digital encoder feedback for precise speed and position control.
  • Easy setup and configuration via USB interface with ElectroCraft Complete Architect™ - Windows-based software.

Models & Performance



Model Names CPP-B06V48A-USB CPP-A06V48A-USB CPP-A12V80A-USB CPP-A24V80A-USB
CPP-B06V48A-CAN CPP-A06V48A-CAN CPP-A12V80A-CAN CPP-A24V80A-CAN CPP-A40V24A-CAN
Features
Features 2 or 4 quadrant control
Sinusoidal or Trapezoidal Commutation Modes
Halls Only Operation Mode for Brushless Motor Speed Control
Encoder Feedback for Precision Speed or Positioning Control
Built-in Electromagnetic Brake Control with Adjustable Voltage Settings
Integrated Circuit for Regenerative Braking Control
Configurable Ramp for Current and Speed
Built-in Short Circuit, Over-Current, Over-Temperature, Voltage Detection
Software Selectable Protection Options
Electrocraft CompleteArchitect™ - Windows-based configuration software
Electrical Ratings
Input Voltage (VDC) 12 to 48 12 to 48 12 to 80 12 to 80 12 to 24
Output Voltage (VDC) 12 to 48 12 to 48 12 to 80 12 to 80 12 to 24
Peak Output Power (W) 249 620 2075 4150 2075
Peak Current - A (Arms) 6 (4.24) 15 (10.6) 30 (21.21) 60 (42.42) 100 (70.70)
Continuous Current - A (Arms) 6 (4.24) 6 (4.24) 12 (8.48) 24 (16.97) 40 (28.28)
PWM Output Frequency (kHZ) 20, 40, 80 (selectable)
Efficiency 97%
Control Methods
Analog Speed Control +/-10VDC
Analog Torque Control +/-10VDC
Digital Step & Direction Position Control 0 to 24VDC (1MHz @50% ± 10%)
Speed, Torque, Position Control via CAN Bus Available with -CAN Models
Supported Motors
Brushless DC (BLDC) Yes Yes Yes Yes Yes
Brush DC (PMDC) Yes Yes Yes Yes Yes
Stepper (Open and Closed Loop) Yes Yes Yes No No
Feedback
Hall Sensors 120°
Encoder 4MHZ, Differential or Single-ended
Current Resolution 12 bit
Speed Resolution 32 bit
Position Resolution 32 bit
Control Loops
Current Loop Update 20kHZ
Speed Loop Update Digitally adjustable up to 10kHZ
Position Loop Update Digitally adjustable up to 10kHZ
Control Inputs
Hall Inputs TTL, CMOS, Open Collector
Encoder Inputs TTL, CMOS, Open Collector
Digtial Inputs x7 (1 enable, 2 limits, 1 direction, 1 step, 1 brake, 1 general purpose or position capture)
Analog Input +/-10VDC (x1 command input, x1 configurable)
Control Outputs
Digtial Outputs x3 (1 ready, 1 fault, 1 general purpose or eBrake)
Analog Output +/-10VDC (x1 configurable)
Auxiliary Voltage for Feedback Device 5VDC / 250mA
Communication
USB I/F For Setup & Configuration (Standard on All Models)
CAN Bus For Monitoring & Control (Available with -CAN Option)
Display
LED's Green - Ready
Red - Fault
Environment
Ambient Temperature 0 to 40 C°
Humidity 5% to 95% RH, Non-Condensing

Drawings & CAD

CAD Download

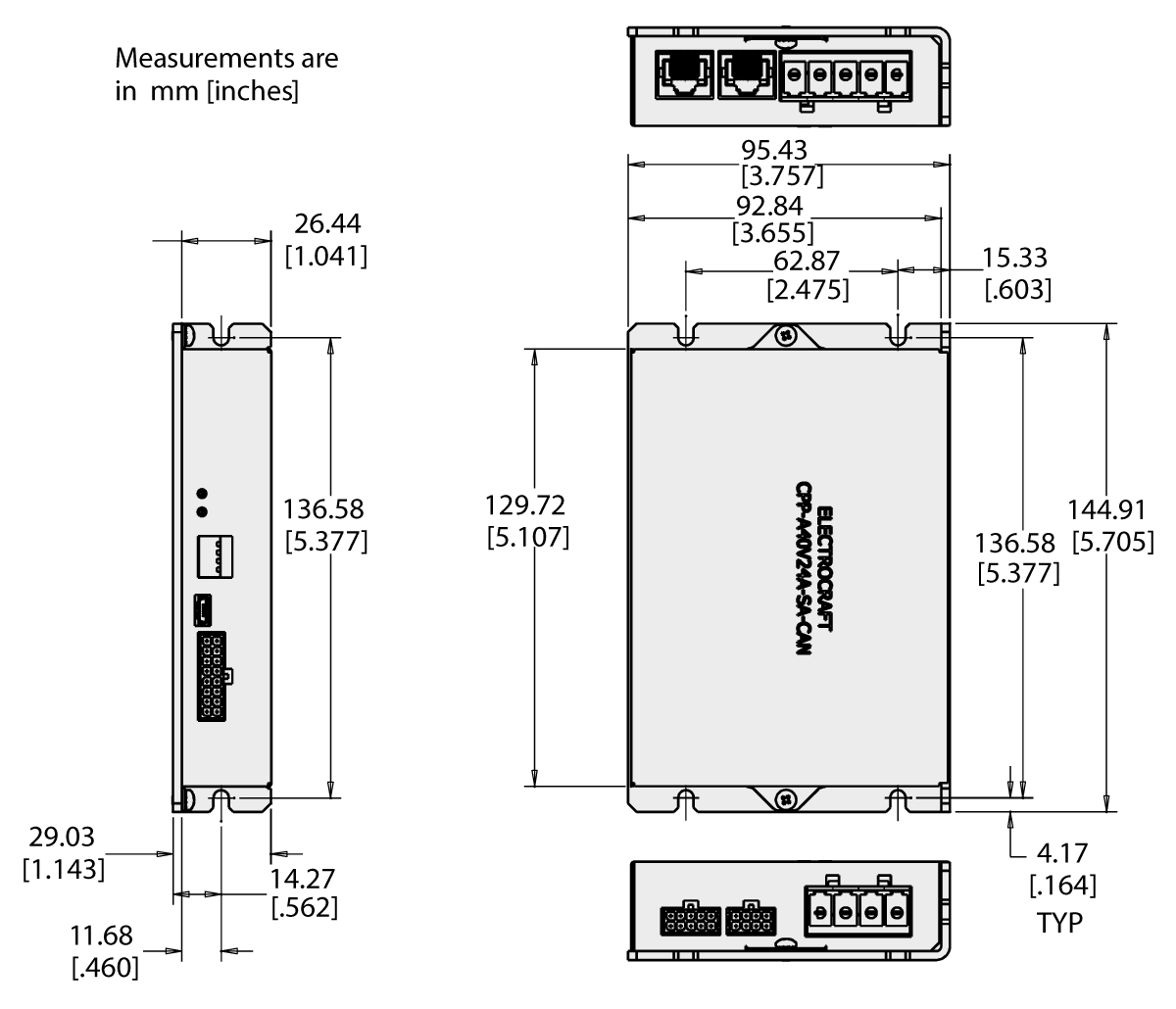

Dimensional Drawing

Technical Drawings

Connector Pinouts

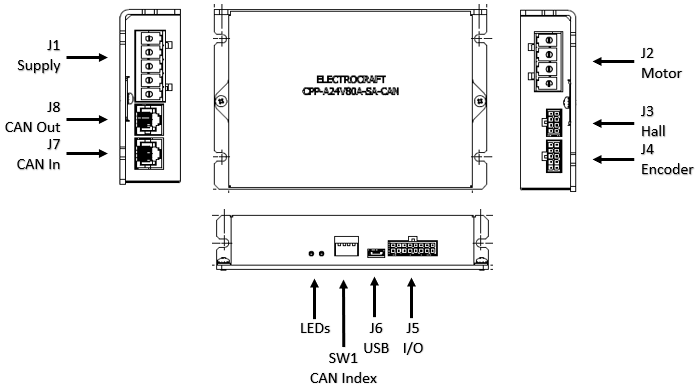

Connector Locations and Pin Numbers

-USB Drive Connector Layout

-CAN Drive Connector Layout

J1 Supply Connector Pinout

Pin # Name I/O Description
1 Gnd Input DC Power Input - Power supply return
2 Power Input DC Power Input - Power supply
3 PE - Connected to drive chassis


J2 Motor Connector Pinout

Pin # Name I/O Description
1 A / A+ Output BLDC Motor Phase A or Stepper Motor Phase A+ / PMDC motor +
2 B / A- Output BLDC Motor Phase B or Stepper Motor Phase A- / PMDC Motor -
3 C / B+ Output BLDC Motor Phase C or Stepper Motor Phase B+
4 Brake / B- Output Braking Resistor or Stepper Motor Phase B-
5 Frame - Connected to drive chassis


J3 Hall Connector Pinout

Pin # Name I/O Description
1 Hall 1 Input Hall Signal A; Internal pull up to +5Vdc.
2 Hall 2 Input Hall Signal B; Internal pull up to +5Vdc.
3 Hall 3 Input Hall Signal C; Internal pull up to +5Vdc.
4 Temp+ Input Motor Temperature Sensor Positive; Analog input.
5 Frame - Connected to drive chassis
6 +5VOUT Output +5 Volts DC Power; Internally generated.
7 Gnd - Digital Ground; Return for hall signals.
8 Temp- Input Motor Temperature Negative; Return for Motor Temperature Sensor.


J4 Encoder Connector Pinout

Pin # Name I/O Description
1 +5VOUT Output +5 Volts DC Power; Internally generated.
2 +5VOUT Output +5 Volts DC Power; Internally generated.
3 A+ Input Encoder "A+" Signal; 0 to +5 Volt digital signal.
4 B+ Input Encoder "B+" Signal; 0 to +5 Volt digital signal.
5 Z+ Input Encoder "Z+" Signal; 0 to +5 Volt digital signal.
6 Frame - Connected to drive chassis
7 Gnd - Digital Ground; Return for encoder signals.
8 A- Input Encoder "A-" Signal; 0 to +5 Volt digital signal.
9 B- Input Encoder "B-" Signal; 0 to +5 Volt digital signal.
10 Z- Input Encoder "Z-" Signal; 0 to +5 Volt digital signal.


J5 I/O Connector Pinout

Pin # Name I/O Description
1 Frame - Connected to drive chassis
2 A In+ Input Analog In+; Differential analog input.
3 Step / A In2+ (note) Input Step; Digital input / Analog In+ 2; Differential analog input
4 Limit+ Input Limit Switch, Positive Direction; Digital input.
5 Enable Input Enable; Digital input. User selectable polarity.
6 Out0 / eBrake (note) Output Digital ouput
7 Fault Output Fault; Digital output.
8 +5VOUT Output +5 Volts DC Power; Internally generated.
9 A Out Output Analog Out; Analog output referenced to analog ground.
10 A In- Input Analog In-; Differential analog input.
11 Dir / A In2- (note) Input Direction; Digital input / Analog In- 2; Differential analog input
12 Limit- Input Limit Switch, Negative Direction; Digital input.
13 Brake Input Brake; Digital input.
14 In0 / Capture (note) Input Digital Input
15 Ready Output Ready; Digital Output.
16 Gnd - Digital Ground; Return for digital I/O pins.


J6 USB Communications Connector Pinout

Pin # Name I/O Description
- USB In/Out USB 2.0 compatible communications interface for drive configuration.


J7 CAN Communications Input Pinout (available with -CAN configuration only)

Pin # Name I/O Description
1 CAN-H In/Out CAN high differential signal
2 CAN-L In/Out CAN low differential signal
3 GND - CAN GND (digital GND)
4 EN In+ Input Isolated, digital input high side for CAN eanble
5 EN In- input Isolated, return for Enable In+
6 Shield - CAN Shield (pass thru to J8 pin 6)
7 GND - CAN GND (digital GND)
8 CAN V+ - Pass thru (no connection)


J8 CAN Communications Input Pinout (available with -CAN configuration only)

Pin # Name I/O Description
1 CAN-H In/Out CAN high differential signal
2 CAN-L In/Out CAN low differential signal
3 GND - CAN GND (digital GND)
4 +5Vout Output +5 Volts DC Power; Internally generated
5 EN out Output Digital output for CAN enable
6 Shield - CAN Shield (pass thru to J8 pin 6)
7 GND - CAN GND (digital GND)
8 CAN V+ - Pass thru (no connection)


Accessories

Photo Model Number Description
2000685 Compact braking module with internal capacitance and internal braking resistor with an external resistor option available to increase braking power. Wide range of power supply voltages from 11 – 70Vdc. Nominal current up to 30 Amps when heat sunk.
44-0000060 Power Connector Harness Kit for CPP-A40V24A-SA-USB
44-0000055 Universal Drive I/O Harness Kit
178-0000032 CPP Quick Start Kit
44-0001104 RJ45 CAN Terminator Resistor for CPP-A12V80, CPP-A24V80, CPPA40V24

Motor Compatibility

Brushless DC Motors

PMDC Motors

Stepper Motors

Linear Actuators

Please contact ElectroCraft if the motor you are searching for is not included in the charts below.
