RPX22 Brushless DC Motor
RapidPower™ Xtreme Series

RPX22 Brushless DC Motor

Summary Details

Size: 22mm (0.87 in)
Peak Torque: 91 mNm (13.2 oz.in)
Buy Now

Complete Motion Solution

For a complete motion solution, the RPX22 is compatible with ElectroCraft's Universal and PRO Series drives.

High torque density. Excellent torque per frame size performance.

New from ElectroCraft, the RPX22 is a highly dynamic and controllable very small frame metric motor. With an advanced 8-pole encapsulated core, this compact DC motor offers high torque density at a very affordable price. The RPX22 is available in 12V, 24V and 48V versions and like all ElectroCraft motors is fully customizable. This versatile motor is highly energy efficient and ideal for embedded applications.

All versions of the RPX22 include hall sensor feedback and can be configured with an optional encoder (differential, optical encoder with up to 2048 lines)

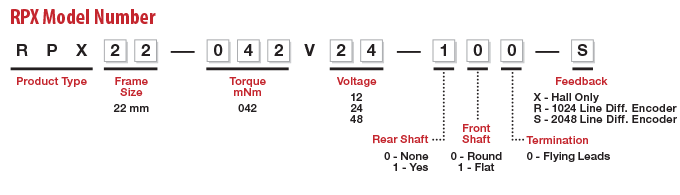

RPX Model Number Legend

Additional Product Details

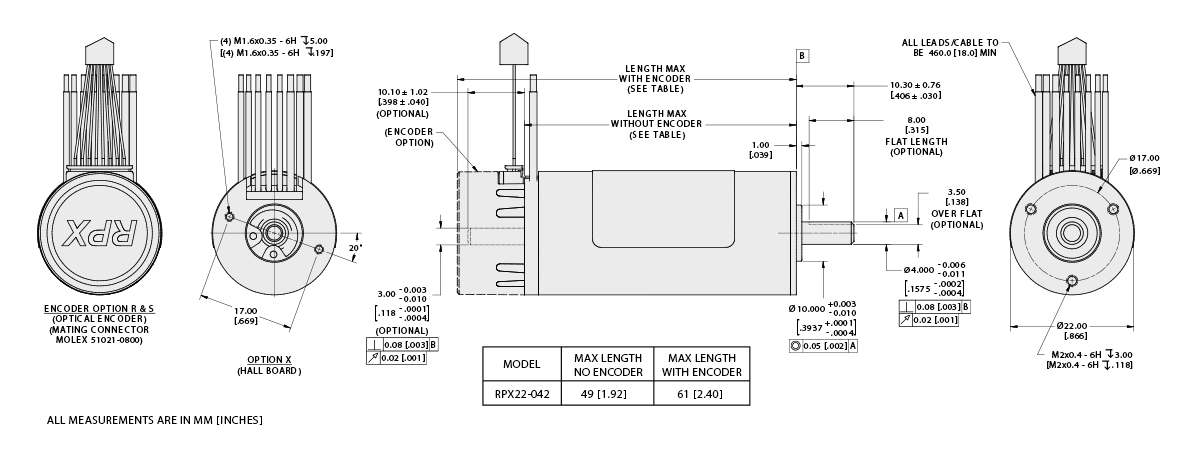

Outline Drawing

Technical Drawings

Specifications & Winding Data

RPX22 Stack Size and Winding Models
Specifications RPX22-042V12 RPX22-042V24 RPX22-042V48 RPX22-062V12 RPX22-062V24 RPX22-062V48
Design Voltage (VDC) 12 24 48 12 24 48
No load speed (RPM) 15,000 12,000
Peak Torque (oz-in) 13.2 25.1
Peak Torque (mNm) 91.0 178.0
Peak Current (Amps) 10.8 5.5 2.8 18.0 9.0 4.8
Continuous Stall Torque* (oz-in) 5.9 8.8
Continuous Stall Torque* (mNm) 42.0 62.0
Continuous Stall Current (Amps) 5.0 2.5 1.3 7.2 3.6 1.9
Continuous Rated Torque* (oz-in) 5.9 8.0
Continuous Rated Torque* (mNm) 42.0 56.5
Continuous Rated Current (Amps) 5.0 2.5 1.3 6.2 3.1 1.6
Continuous Rated Speed (RPM) 9,000 8,600
Voltage Constant (V / kRPM) 0.8 1.6 3.3 1.0 2.0 4.0
Torque Constant (oz-in / Amp) 1.2 2.4 4.5 1.4 2.8 5.4
Torque Constant (mNm / Amp) 8.4 16.6 32.0 10.0 20.0 38.3
Resistance (Ohms) 0.6 2.4 9.7 0.4 1.5 5.6
Inductance (mH) 0.2 0.9 3.6 0.2 0.6 2.3
Motor Constant (oz-in / √ Watt) 1.4 2.2
Motor Constant (mNm / √ Watt) 9.9 15.5
Electrical Constant (msec) 0.37 0.39
Mechanical Constant (msec) 1.23 1.17
Thermal Time Constant (sec) 281.0 280.0
Rotor inertia (oz-in²) 0.0066 0.0131
Rotor inertia (g-cm²) 1.2 2.4
Thermal Resistance (C / Watt) 5.60 4.32
Axial Load (N) 5mm from face 4.0 4.0
Radial Load (N) 5mm from face 12.0 12.0
Weight (oz) 2.5 3.8
Weight (g) 72.00 108.00
Length (inch) 1.9 2.7
Length (mm) 49.0 69.0
Number of Poles 8.0 8.0
Notes:  *Continuous rating based on a 25°C ambient temperature, winding temperature rise of 125°C. Mounted on a 150 X 150 X 6 mm aluminum heat sink.

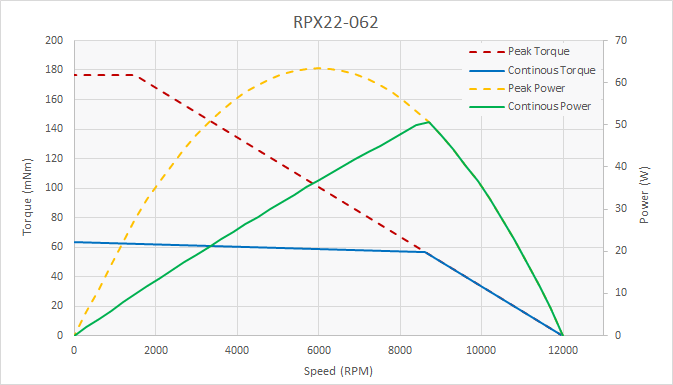

Performance Curves

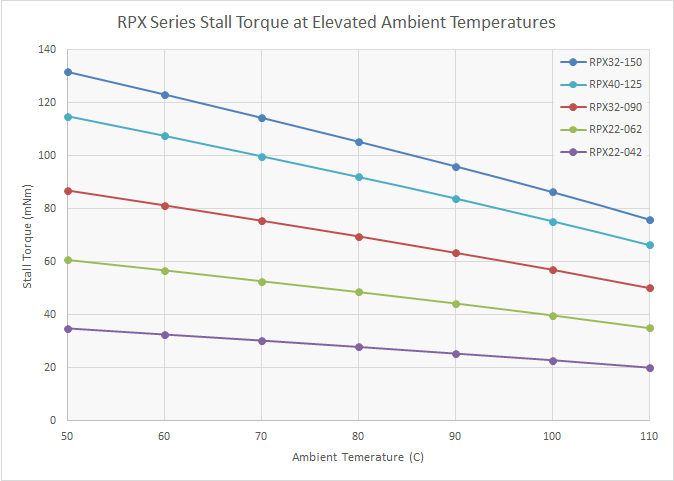

rpx22 Chart: RPX Series Stall Torque at elevated Ambient Temperatures

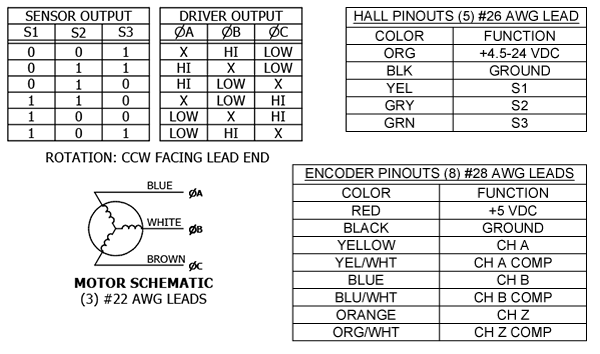

Connection

hall diagram

CAD

Drive Compatibility

Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
Imperial Metric PRO (-CAN) PRO (-CAT) CPP-Universal CPP-EZ
RPX22-042V12 5.0 10.8 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A CPP-A12V48A
RPX22-042V24 2.5 5.5 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A CPP-A06V48A
RPX22-042V48 1.3 2.8 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A CPP-A06V48A
