TPP23 Stepper Motor
TorquePower™ Plus Series
Summary Details
Size: Nema 23, 1.8°Holding Torque: up to 240 oz-in or 169 Ncm
Speed: up to 90 RPS
Complete Motion Solution
For a complete motion solution, the TPP23 is compatible with ElectroCraft's Universal and PRO Series drives.
Powerful. Precise.
This 1.8 degree size 23 hybrid DC stepping motor is
totally enclosed with permanently lubricated ball
bearings. The bi-directional size 23 has holding
torque up to 240 oz-in with a step angle accuracy
of ±3%.
Additional Product Details

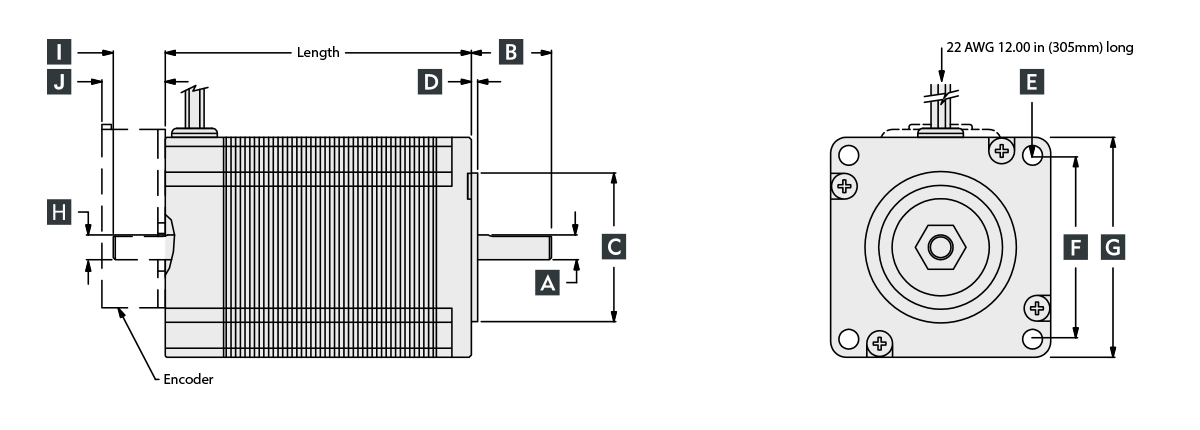

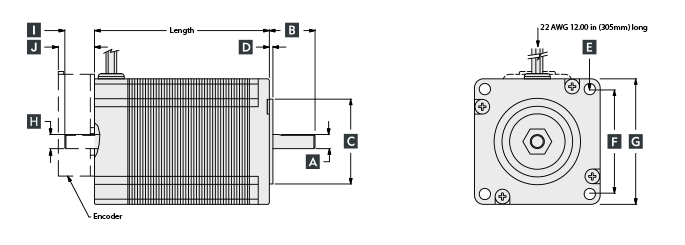

Outline Drawing
| Bipolar Model |
Unipolar Model |
MAX Length |
A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Front Shaft Diameter |
Front Shaft Length |
Pilot Diameter |
Pilot Length (Ref) |
Mount Hole Callout (Ref) |
Mount Hole Spacing (Ref) |
Flange External Dimension (Ref) |
Rear Shaft Diameter |
Rear Shaft Length |
Encoder Length (max) |
|||
| TPP23–90 | TPP23–72 | 1.75 in ±0.03 | 0.2500 in 0.2495 in |
0.81 in ±0.03 |
1.502 in 1.498 in |
0.06 in | (4) 0.205 in ±0.01 Through |
1.86 in | 2.22 in | 0.2500 in 0.2495 in |
0.53 in ±0.04 |
0.70 in |
| TPP23–150 | TPP23–120 | 2.21 in ±0.03 | ||||||||||
| TPP23–240 | TPP23–190 | 3.09 in ±0.03 | ||||||||||
| TPP23M–64 | TPP23M–50 | 44.5 mm ±0.8 | 7.988 mm 7.976 mm |
20.5 mm ±0.8 |
38.15 mm 38.05 mm |
1.5 mm | (4) 5.21 mm ±0.25 Through |
47.1 mm | 56.4 mm | 4.998 mm 4.986 mm |
13.5 mm ±0.8 |
17.8 mm |
| TPP23M–106 | TPP23M–84 | 56.1 mm ±0.8 | ||||||||||
| TPP23M–170 | TPP23M–134 | 78.5 mm ±0.8 |

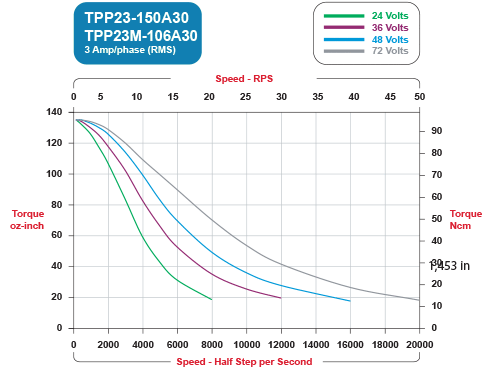

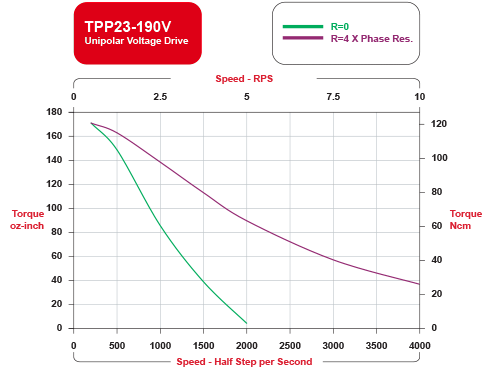

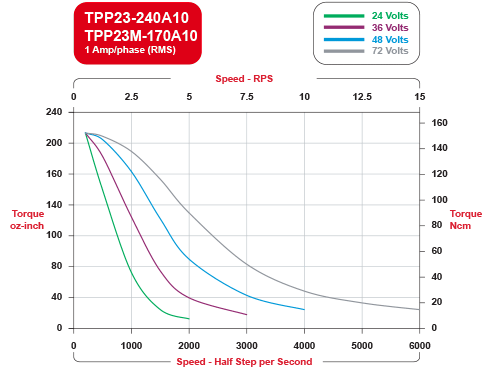

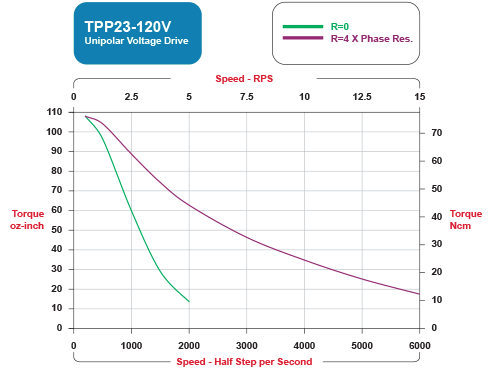

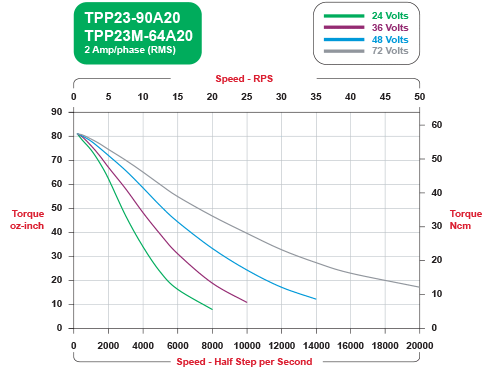

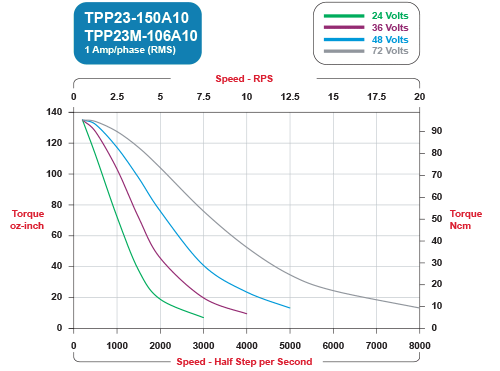

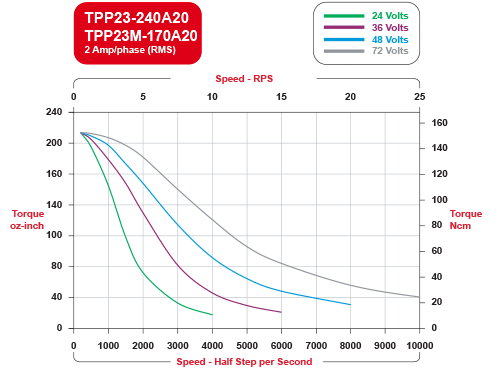

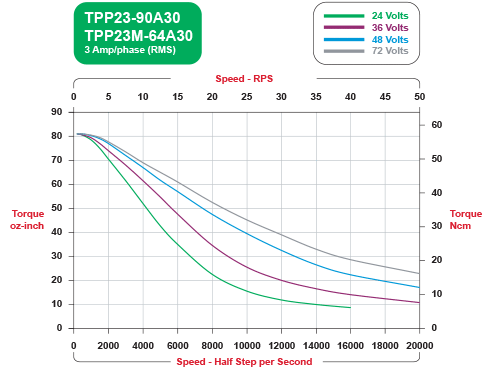

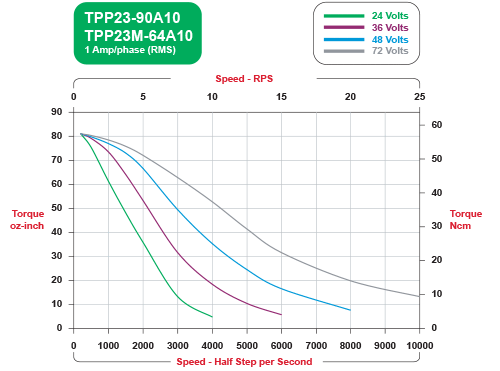

Speed / Torque Curves
BIPOLAR
UNIPOLAR
Mechanical / Winding Data
| TPP23 Bi-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TPP23-90 | TPP23-150 | TPP23-240 |
| Metric Models | TPP23M-64 | TPP23M-106 | TPP23M-170 |
| Holding Torque Bi-Polar (oz-in) |
90.0 | 150.0 | 240.0 |
| Holding Torque Bi-Polar (Ncm) |
63.55 | 105.92 | 169.46 |
| Length (inches) |
1.75 | 2.21 | 3.09 |
| Length (cm) |
4.4 | 5.6 | 7.8 |
| Width (inches) |
2.2 | 2.2 | 2.2 |
| Width (cm) |
5.6 | 5.6 | 5.6 |
| Weight (oz) |
17.0 | 24.0 | 37.0 |
| Weight (Kg) |
0.5 | 0.7 | 1.0 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 4 | 4 | 4 |
| TPP23 Uni-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TPP23-72 | TPP23-120 | TPP23-190 |
| Metric Models | TPP23M-50 | TPP23M-84 | TPP23M-134 |
| Holding Torque Uni-Polar (oz-in) |
72.0 | 120.0 | 190.0 |
| Holding Torque Uni-Polar (Ncm) |
50.8 | 84.7 | 134.17 |
| Length (inches) |
1.75 | 2.21 | 3.09 |
| Length (cm) |
4.4 | 5.6 | 7.8 |
| Width (inches) |
2.2 | 2.2 | 2.2 |
| Width (cm) |
5.6 | 5.6 | 5.6 |
| Weight (oz) |
17.0 | 24.0 | 37.0 |
| Weight (Kg) |
0.5 | 0.7 | 1.0 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 6 | 6 | 6 |
| TPP23 Bi-Polar Windings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 90A10 | 90A20 | 90A30 | 150A10 | 150A20 | 150A30 | 240A10 | 240A20 | 240A30 |
| Metric Models | 64A10 | 64A20 | 64A30 | 106A10 | 106A20 | 106A30 | 170A10 | 170A20 | 170A30 |
| Current (A/Phase) |
1.0 | 2.0 | 3.0 | 1.0 | 2.0 | 3.0 | 1.0 | 2.0 | 3.0 |
| Voltage (V/Phase) |
5.8 | 3.0 | 1.8 | 7.9 | 3.8 | 2.4 | 9.1 | 3.8 | 3.0 |
| Resistance (R/Phase) |
5.8 | 1.5 | 0.6 | 7.9 | 1.9 | 0.8 | 9.1 | 1.9 | 1.0 |
| Inductance (mH) |
20.3 | 5.2 | 2.0 | 35.0 | 8.6 | 3.5 | 45.4 | 8.6 | 4.8 |
| TPP23 Uni-Polar Windings | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 72V18 | 72V30 | 72V60 | 72V120 | 120V23 | 120V38 | 120V60 | 120V76 | 120V154 | 190V28 | 190V45 | 190V60 | 190V92 | 190V179 |
| Metric Models | 50V18 | 50V38 | 50V60 | 50V120 | 84V23 | 84V38 | 84V60 | 84V76 | 84V154 | 134V28 | 134V45 | 134V60 | 134V92 | 134V179 |
| Current Uni-Polar (A/Phase) |
3.0 | 2.0 | 1.0 | 0.5 | 3.0 | 2.0 | 1.3 | 1.0 | 0.5 | 3.0 | 2.0 | 1.5 | 1.0 | 0.5 |
| Voltage Uni-Polar (V/Phase) |
1.8 | 3.0 | 6.0 | 11.9 | 2.3 | 3.8 | 6.0 | 7.6 | 15.4 | 2.8 | 4.5 | 6.0 | 9.2 | 17.9 |
| Resistance Uni-Polar (R/Phase) |
0.6 | 1.6 | 6.0 | 23.5 | 0.8 | 1.9 | 4.8 | 7.6 | 30.9 | 0.9 | 2.2 | 4.0 | 9.2 | 35.7 |
| Inductance Uni-Polar (mH) |
1.0 | 2.6 | 10.8 | 41.4 | 1.6 | 4.2 | 11.7 | 17.7 | 67.3 | 2.1 | 5.2 | 14.0 | 22.5 | 93.8 |
| Current Bi-Polar (A/Phase) |
2.1 | 1.4 | 0.7 | 0.4 | 2.1 | 1.4 | 0.9 | 0.7 | 0.4 | 2.1 | 1.4 | 1.1 | 0.7 | 0.4 |
| Voltage Bi-Polar (V/Phase) |
2.6 | 4.2 | 8.5 | 16.8 | 3.3 | 5.4 | 8.5 | 10.8 | 21.8 | 4.0 | 6.4 | 8.5 | 13.0 | 25.3 |
| Resistance Bi-Polar (R/Phase) |
1.2 | 3.1 | 12.0 | 47.0 | 1.5 | 3.8 | 9.6 | 15.2 | 61.8 | 1.8 | 4.5 | 8.0 | 18.5 | 71.4 |
| Inductance Bi-Polar (mH) |
4.0 | 10.4 | 43.2 | 165.6 | 6.4 | 16.8 | 47.0 | 70.8 | 269.2 | 8.4 | 20.8 | 56.0 | 90.0 | 375.2 |
TPP23 CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| TPP23-150A10 | TPP23M-106A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP23-150A20 | TPP23M-106A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP23-150A30 | TPP23M-106A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| TPP23-240A10 | TPP23M-170A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP23-240A20 | TPP23M-170A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP23-240A30 | TPP23M-170A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| TPP23-90A10 | TPP23M-64A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP23-90A20 | TPP23M-64A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP23-90A30 | TPP23M-64A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
