TPP17 Stepper Motor
TorquePower™ Plus Series
Summary Details
Size: Nema 17, 1.8°Holding Torque: up to 58 oz-in or 41 Ncm
Speed: up to 80 RPS
Complete Motion Solution
For a complete motion solution, the TPP17 is compatible with ElectroCraft's Universal and PRO Series drives.
Precise. Compact.
This 1.8 degree NEMA size 17 hybrid DC stepping
motor is totally enclosed with permanently
lubricated ball bearings. The TPP17 is bi-directional
and has holding torque up to 58 oz-in
with a step angle accuracy of ±5%.
This motor is also available in Metric configuration.
Additional Product Details

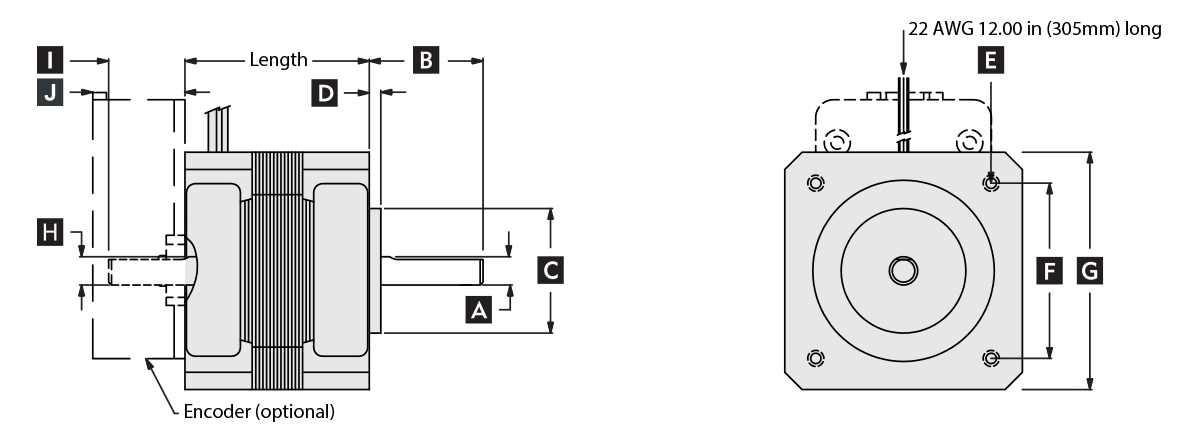

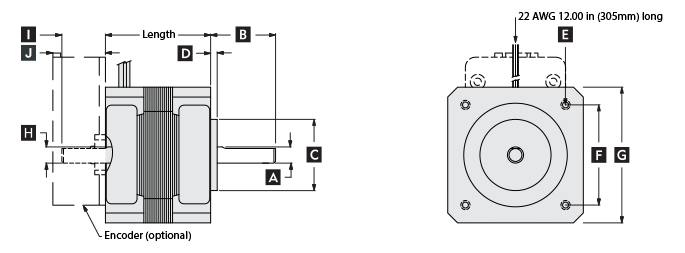

Outline Drawing
| Bipolar Model |
Unipolar Model |
MAX Length |
A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Front Shaft Diameter |
Front Shaft Length |
Pilot Diameter |
Pilot Length (Ref) |
Mount Hole Callout (Ref) |
Mount Hole Spacing (Ref) |
Flange External Dimension (Ref) |
Rear Shaft Diameter |
Rear Shaft Length |
Encoder Length (max) |
|||
| TPP17–29 | TPP17–22 | 1.28 in ±0.03 | 0.1968 in 0.1963 in |
0.79 in ±0.03 |
0.8660 in 0.8648 in |
0.08 in | (4) 4-40 UNC-2B 0.17 in Deep Min |
1.22 in | 1.65 in | 0.1968 in 0.1963 in |
0.53 in ±0.04 | 0.70 in |
| TPP17–47 | TPP17–36 | 1.52 in ±0.03 | ||||||||||
| TPP17–58 | TPP17–44 | 1.85 in ±0.03 | ||||||||||
| TPP17M–21 | TPP17M–16 | 32.5 mm ±0.8 | 4.999 mm 4.986 mm |
20 mm ±0.8 |
22.00 mm 21.97 mm |
2.0 mm | (4) M3 x 0.5-6H 4.31 mm Deep min |
30.9 mm | 41.9 mm | 4.999 mm 4.986 mm |
13.5 mm ±1.02 | 17.8 mm |
| TPP17M–33 | TPP17M–25 | 38.6 mm ±0.8 | ||||||||||
| TPP17M–41 | TPP17M–31 | 47.0 mm ±0.8 |

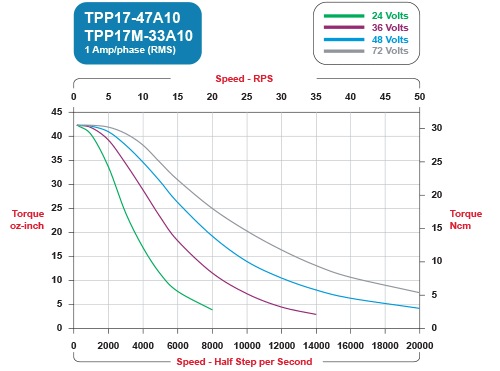

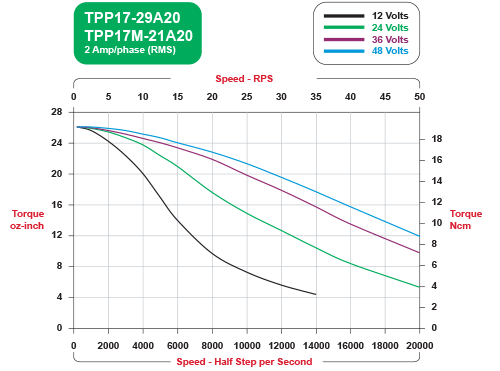

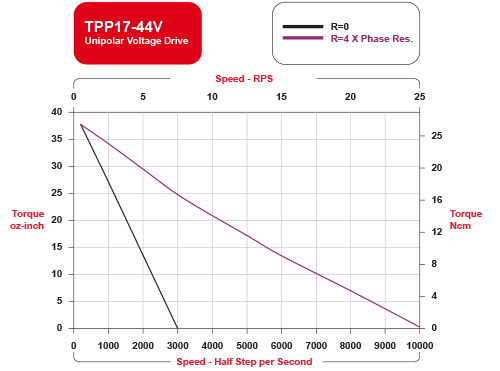

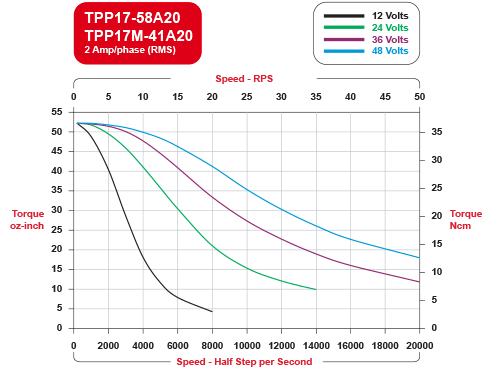

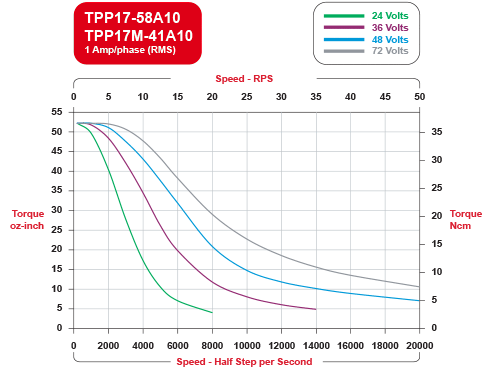

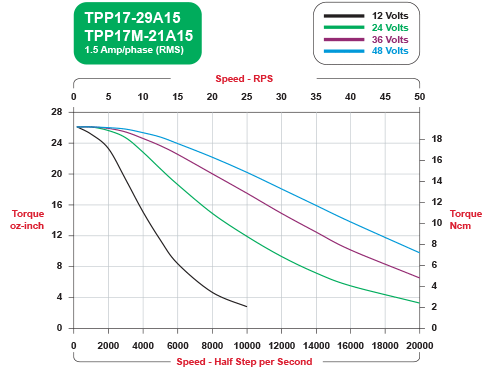

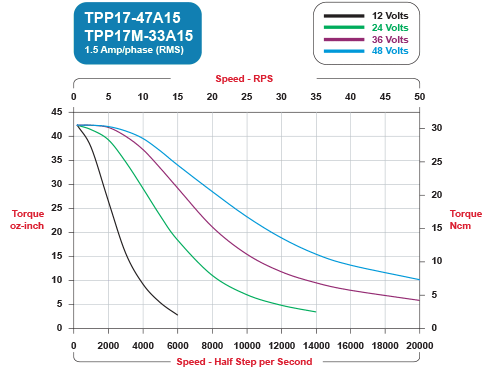

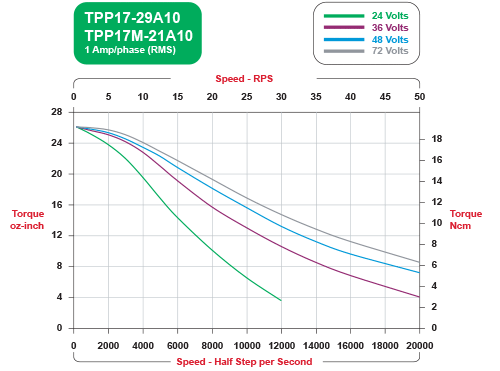

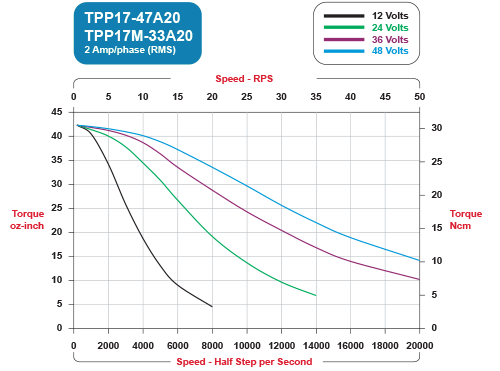

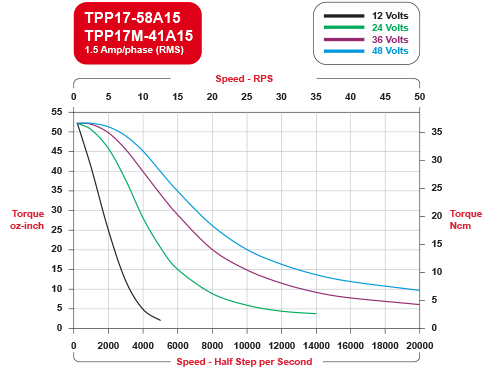

Speed / Torque Curves
BIPOLAR
UNIPOLAR
Mechanical / Winding Data
| TPP17 Bi-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TPP17-29 | TPP17-47 | TPP17-58 |
| Metric Models | TPP17M-21 | TPP17M-33 | TPP17M-41 |
| Holding Torque (oz-in) |
29.0 | 47.0 | 58.0 |
| Holding Torque (Ncm) |
21 | 33 | 41 |
| Length (inches) |
1.28 | 1.52 | 1.85 |
| Length (cm) |
3.3 | 3.9 | 4.7 |
| Width (inches) |
1.6 | 1.6 | 1.6 |
| Width (cm) |
4.1 | 4.1 | 4.1 |
| Weight (oz) |
7.0 | 9.0 | 11.8 |
| Weight (Kg) |
0.20 | 0.26 | 0.33 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 4 | 4 | 4 |
| TPP17 Uni-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TPP17-22 | TPP17-36 | TPP17-44 |
| Metric Models | TPP17M-16 | TPP17M-25 | TPP17M-31 |
| Holding Torque (oz-in) |
22.2 | 36.1 | 44.4 |
| Holding Torque (Ncm) |
16 | 25 | 31 |
| Length (inches) |
1.28 | 1.52 | 1.85 |
| Length (cm) |
3.3 | 3.9 | 4.7 |
| Width (inches) |
1.6 | 1.6 | 1.6 |
| Width (cm) |
4.1 | 4.1 | 4.1 |
| Weight (oz) |
7.0 | 9.0 | 11.8 |
| Weight (Kg) |
0.20 | 0.26 | 0.33 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 6 | 6 | 6 |
| TPP17 Bi-Polar Windings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 29A10 | 29A15 | 29A20 | 47A10 | 47A15 | 47A20 | 58A10 | 58A15 | 58A20 |
| Metric Models | 21A10 | 21A15 | 21A20 | 33A10 | 33A15 | 33A20 | 41A10 | 41A15 | 41A20 |
| Current (A/Phase) |
1.0 | 1.5 | 2.0 | 1.0 | 1.5 | 2.0 | 1.0 | 1.5 | 2.0 |
| Voltage (V/Phase) |
3.8 | 2.9 | 2.0 | 4.7 | 3.6 | 2.4 | 5.2 | 3.7 | 2.4 |
| Resistance (R/Phase) |
3.8 | 1.9 | 1.0 | 4.7 | 2.4 | 1.2 | 5.2 | 2.5 | 1.2 |
| Inductance (mH) |
4.8 | 2.3 | 1.2 | 9.1 | 4.7 | 2.3 | 8.4 | 4.3 | 2.2 |
| TPP17 Uni-Polar Windings | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 22V40 | 22V60 | 22V96 | 22V120 | 36V40 | 36V60 | 36V120 | 36V240 | 44V40 | 44V60 | 44V120 | 44V240 |
| Metric Models | 16V40 | 16V60 | 16V96 | 16V120 | 25V40 | 25V60 | 25V120 | 25V240 | 31V40 | 31V60 | 31V120 | 31V240 |
| Current Uni-Polar (A/Phase) |
1.0 | 0.6 | 0.4 | 0.3 | 1.2 | 0.8 | 0.4 | 0.2 | 1.2 | 0.8 | 0.4 | 0.2 |
| Voltage Uni-Polar (V/Phase) |
4.0 | 6.0 | 9.6 | 12.0 | 4.0 | 6.0 | 12.0 | 24.0 | 4.0 | 6.0 | 12.0 | 24.0 |
| Resistance Uni-Polar (R/Phase) |
4.2 | 9.6 | 24.0 | 38.5 | 3.3 | 7.5 | 30.0 | 120.0 | 3.3 | 7.5 | 30.0 | 120.0 |
| Inductance Uni-Polar (mH) |
2.5 | 5.8 | 15.0 | 23.0 | 3.2 | 7.0 | 28.0 | 112.0 | 2.8 | 7.0 | 28.0 | 112.0 |
| Current Bi-Polar (A/Phase) |
0.7 | 0.4 | 0.3 | 0.2 | 0.9 | 0.6 | 0.3 | 0.1 | 0.9 | 0.6 | 0.3 | 0.1 |
| Voltage Bi-Polar (V/Phase) |
5.6 | 8.5 | 13.6 | 17.0 | 5.6 | 8.5 | 17.0 | 33.9 | 0.6 | 8.5 | 17.0 | 33.9 |
| Resistance Bi-Polar (R/Phase) |
8.4 | 19.2 | 48.0 | 77.0 | 6.6 | 15.0 | 60.0 | 240.0 | 6.6 | 15.0 | 60.0 | 240.0 |
| Inductance Bi-Polar (mH) |
10.0 | 23.2 | 60.0 | 92.0 | 12.8 | 28.0 | 112.0 | 448.0 | 11.2 | 28.0 | 112.0 | 448.0 |
TPP17 CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| TPP17-29A10 | TPP17M-21A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP17-29A15 | TPP17M-21A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP17-29A20 | TPP17M-21A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP17-47A10 | TPP17M-33A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP17-47A15 | TPP17M-33A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP17-47A20 | TPP17M-33A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP17-58A10 | TPP17M-41A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP17-58A15 | TPP17M-41A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| TPP17-58A20 | TPP17M-41A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
