DPP640 Brush Motor
DirectPower™ Plus Series
Summary Details
Size: 4.1 inches or 106 mmPeak Torque: to 240 oz-in or 169 Ncm
Complete Motion Solution
For a complete motion solution, the DPP64% is compatible with ElectroCraft's Universal and PRO Series drives.
High-Torque. Long life.

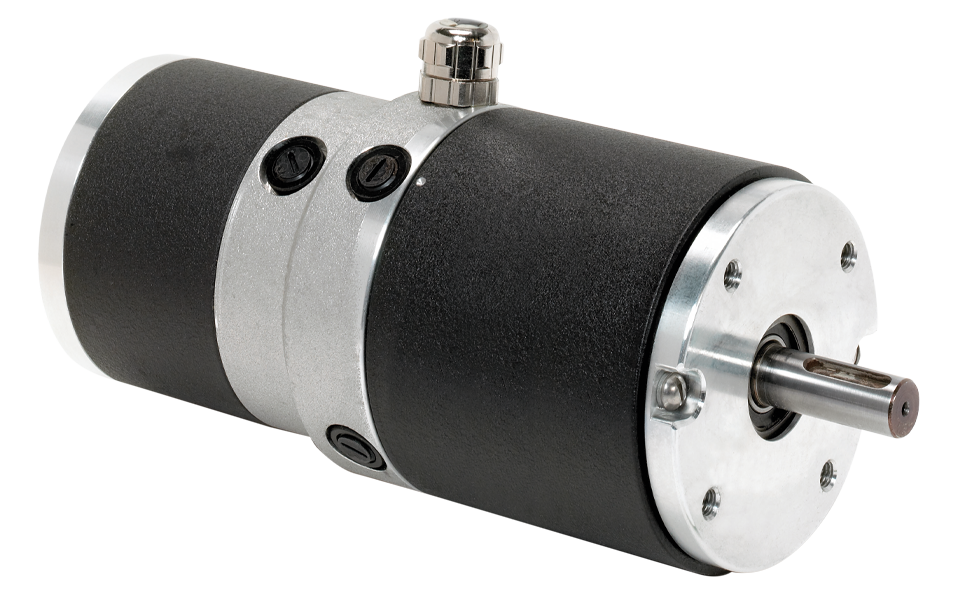

Our ElectroCraft DirectPowerTM Plus 640 Series features
a rugged, heavy-gauge steel housing construction for long-life and durability.
This high-efficiency motor includes dynamically balanced armatures, sealed
ball bearings, and replaceable brushes.

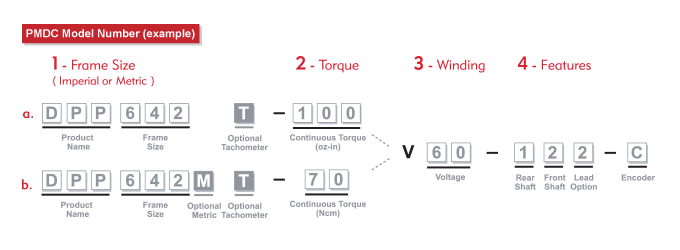

Additional Product Details

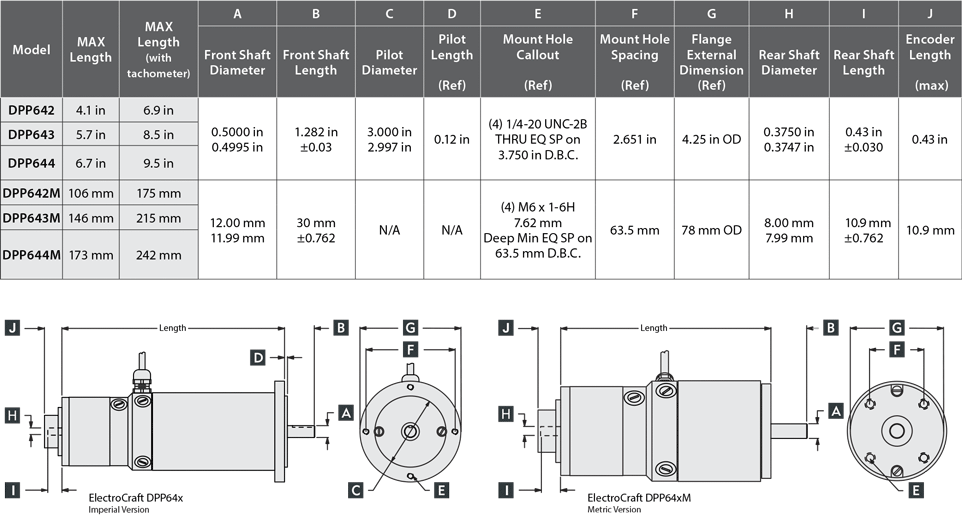

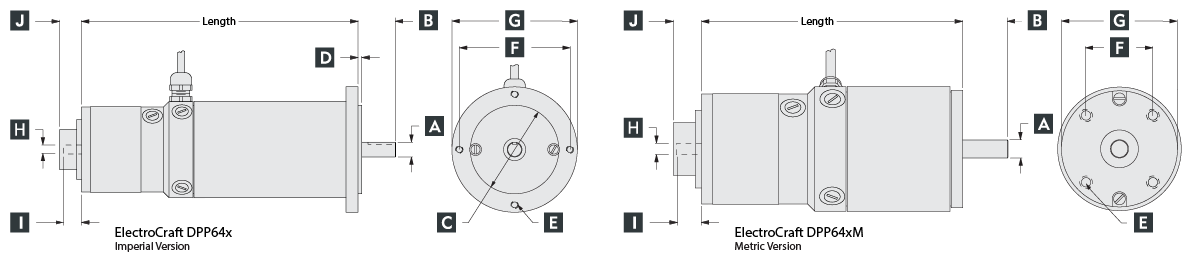

Outline Drawing
Specifications & Winding Data
| Array Stack/Torque Sizes | |||
|---|---|---|---|
| Stack Size Models | DPP642-100 | DPP643-165 | DPP644-210 |
| Continuous Stall Torque (oz-in) | 100 | 165 | 210 |
| Continuous Stall Torque (Ncm) | 70.61 | 116.51 | 148.28 |
| Peak Torque (oz-in) | 480 | 775 | 960 |
| Peak Torque (Ncm) | 338.93 | 547.23 | 677.86 |
| Rotor Inertia (oz-in-sec2) | 0.0190 | 0.0300 | 0.0370 |
| Rotor Inertia (g-cm2) | 1341.8 | 2118.6 | 2612.9 |
| Thermal Resistance (C / Watts) | 2.7 | 2.2 | 1.9 |
| Weight (lbs) | 8.0 | 10.5 | 12.0 |
| Weight (Kg) | 3.62 | 4.76 | 5.44 |
| Length (inches) | 4.1 | 5.7 | 6.7 |
| Length (cm) | 10.4 | 14.5 | 17.0 |
| Number of Poles | 2 | 2 | 2 |
| Array Winding Options | ||||||
|---|---|---|---|---|---|---|
| Winding Models | 100V48 | 100V60 | 165V48 | 165V60 | 210V48 | 210V60 |
| Design Voltage (VDC) |
48 | 60 | 48 | 60 | 48 | 60 |
| Continuous Current (Amps) |
6 | 5 | 6 | 6 | 7 | 5 |
| Peak Current (Amps) |
25 | 20 | 30 | 23 | 28 | 22 |
| Voltage Constant ±10% (VDC/kRPM) |
13.7 | 17.5 | 19.3 | 24.8 | 25.2 | 32.4 |
| Torque Constant ±10% (oz-in / Amp) |
18.5 | 23.6 | 26.1 | 33.6 | 34.1 | 43.8 |
| Torque Constant ±10% (Ncm / Amp) |
13.064 | 16.665 | 18.431 | 23.727 | 24.080 | 30.930 |
| Resistance ±10% (Ohms) |
1.0 | 1.5 | 1.2 | 1.5 | 1.1 | 1.7 |
| Inductance ±10% (mH) |
1.2 | 2.0 | 1.2 | 2.0 | 2.0 | 3.3 |
| Motor Constant (oz-in / √ Watt) |
18.54 | 19.27 | 24.2 | 27.84 | 32.43 | 33.58 |
| Motor Constant (Nm / √ Watt) |
2.09 | 2.18 | 2.73 | 3.15 | 3.66 | 3.79 |
| Electrical Constant (msec) |
1.23 | 1.33 | 1.04 | 1.37 | 1.81 | 1.94 |
| Mechanical Constant (msec) |
7.83 | 7.24 | 7.26 | 5.48 | 4.98 | 4.65 |

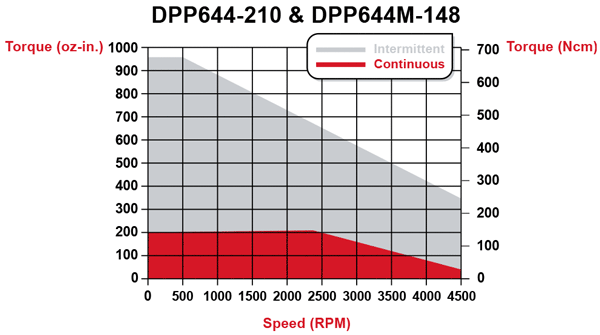

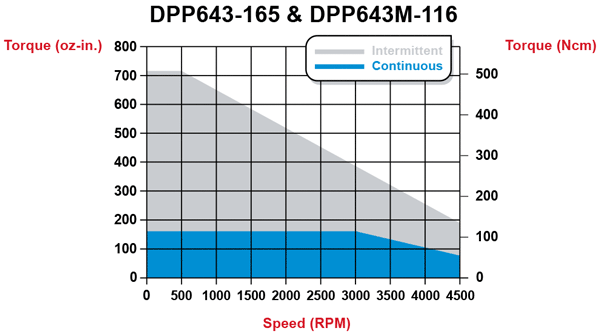

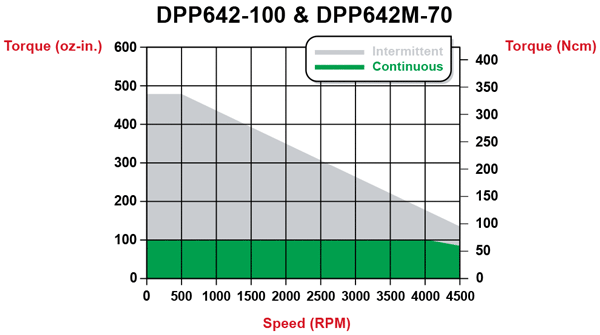

Speed / Torque Curves
CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| DPP642(T)-100V48 | DPP642M(T)-70V48 | 6.0 | 25.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP642(T)-100V60 | DPP642M(T)-70V60 | 5.0 | 20.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| DPP643(T)-165V48 | DPP643M(T)-116V48 | 6.0 | 30.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP643(T)-165V60 | DPP643M(T)-116V60 | 6.0 | 23.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP644(T)-210V48 | DPP644M(T)-148V48 | 7.0 | 28.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP644(T)-210V60 | DPP644M(T)-148V60 | 5.0 | 22.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
- Note1: PRO-A20V80A maximum peak current = 28.2Arms
