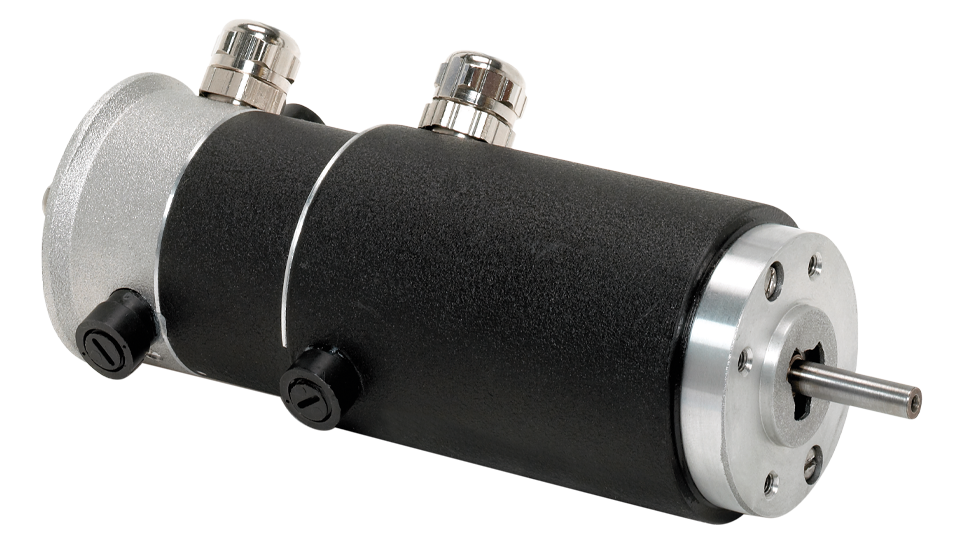

DPP240 Brush Motor
DirectPower™ Plus Series
Complete Motion Solution
For a complete motion solution, the DPP24 is compatible with ElectroCraft's Universal and PRO Series drives.
High-Torque. Long life.
Our ElectroCraft DirectPowerTM Plus 240 Series features
up a rugged, heavy-gauge steel housing construction for long-life and
durability. This high-efficiency motor includes dynamically balanced
armatures, sealed ball bearings, and replaceable brushes.

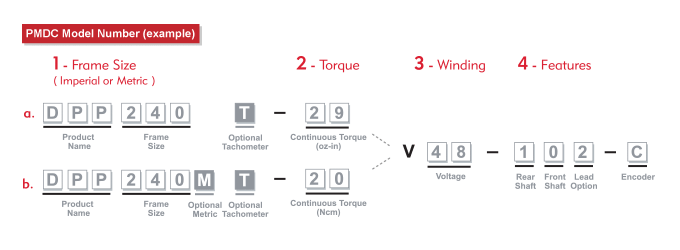

Additional Product Details

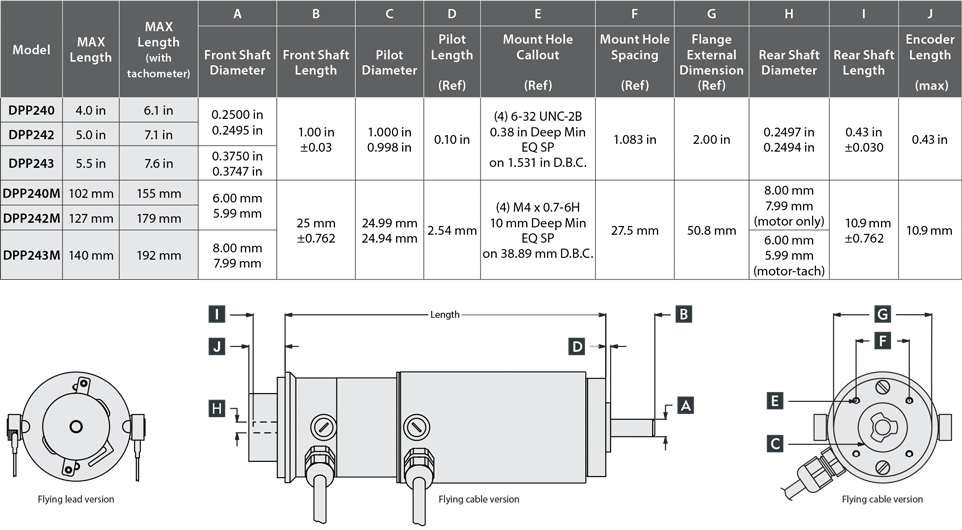

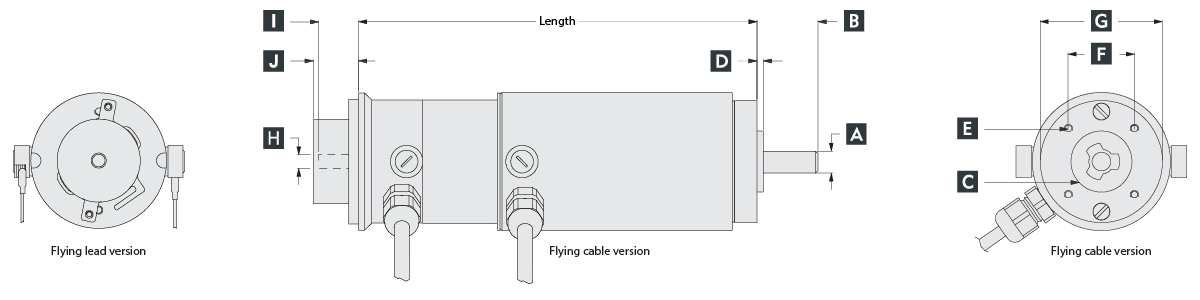

Outline Drawing
Specifications & Winding Data
| Array Stack/Torque Sizes | |||
|---|---|---|---|
| Stack Size Models | DPP240-29 | DPP242-44 | DPP243-52 |
| Continuous Stall Torque (oz-in) | 29 | 44 | 52 |
| Continuous Stall Torque (Ncm) | 20.48 | 31.07 | 36.72 |
| Peak Torque (oz-in) | 240 | 350 | 400 |
| Peak Torque (Ncm) | 169.46 | 247.13 | 282.44 |
| Rotor Inertia (oz-in-sec2) | 0.0040 | 0.0060 | 0.0070 |
| Rotor Inertia (g-cm2) | 282.5 | 423.7 | 494.3 |
| Thermal Resistance (C / Watts) | 5.0 | 4.2 | 3.8 |
| Weight (lbs) | 2.1 | 3.0 | 3.5 |
| Weight (Kg) | 0.95 | 1.36 | 1.59 |
| Length (inches) | 4.0 | 5.0 | 5.5 |
| Length (cm) | 10.2 | 12.7 | 14.0 |
| Number of Poles | 2 | 2 | 2 |
| Array Winding Options | ||||||
|---|---|---|---|---|---|---|
| Winding Models | 29V48 | 29V60 | 44V48 | 44V60 | 52V48 | 52V60 |
| Design Voltage (VDC) |
48 | 60 | 48 | 60 | 48 | 60 |
| Continuous Current (Amps) |
2 | 2 | 4 | 3 | 5 | 4 |
| Peak Current (Amps) |
16 | 14 | 27 | 21 | 32 | 25 |
| Voltage Constant ±10% (VDC/kRPM) |
10.9 | 14.2 | 9.8 | 12.4 | 9.7 | 12.3 |
| Torque Constant ±10% (oz-in / Amp) |
14.7 | 19.2 | 13.3 | 16.7 | 13.2 | 16.6 |
| Torque Constant ±10% (Ncm / Amp) |
10.380 | 13.558 | 9.392 | 11.793 | 9.321 | 11.722 |
| Resistance ±10% (Ohms) |
3.2 | 5.2 | 1.7 | 2.6 | 1.3 | 2.0 |
| Inductance ±10% (mH) |
4.8 | 8.2 | 4.2 | 6.6 | 3.8 | 6.0 |
| Motor Constant (oz-in / √ Watt) |
8.24 | 8.45 | 10.26 | 10.47 | 11.36 | 11.69 |
| Motor Constant (Nm / √ Watt) |
0.93 | 0.95 | 1.16 | 1.18 | 1.28 | 1.32 |
| Electrical Constant (msec) |
1.5 | 1.58 | 2.5 | 2.6 | 2.82 | 2.98 |
| Mechanical Constant (msec) |
7.93 | 7.53 | 8.34 | 8.01 | 8.12 | 7.67 |

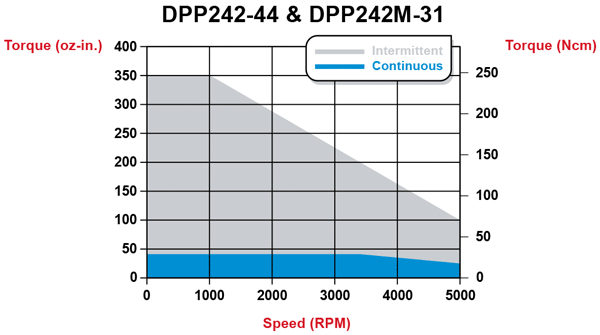

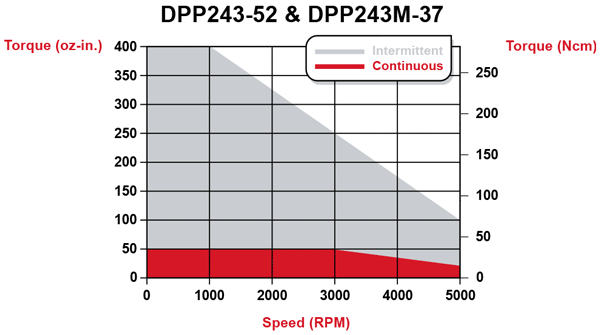

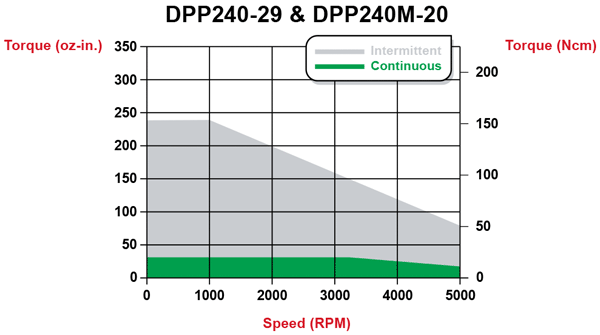

Speed / Torque Curves
CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| DPP240(T)-29V48 | DPP240M(T)-20V48 | 2.0 | 16.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| DPP240(T)-29V60 | DPP240M(T)-20V60 | 2.0 | 14.0 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | |
| DPP242(T)-44V48 | DPP242M(T)-31V48 | 4.0 | 27.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP242(T)-44V60 | DPP242M(T)-31V60 | 3.0 | 21.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
| DPP243(T)-52V48 | DPP243M(T)-36V48 | 5.0 | 32.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
| DPP243(T)-52V60 | DPP243M(T)-36V60 | 4.0 | 25.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
