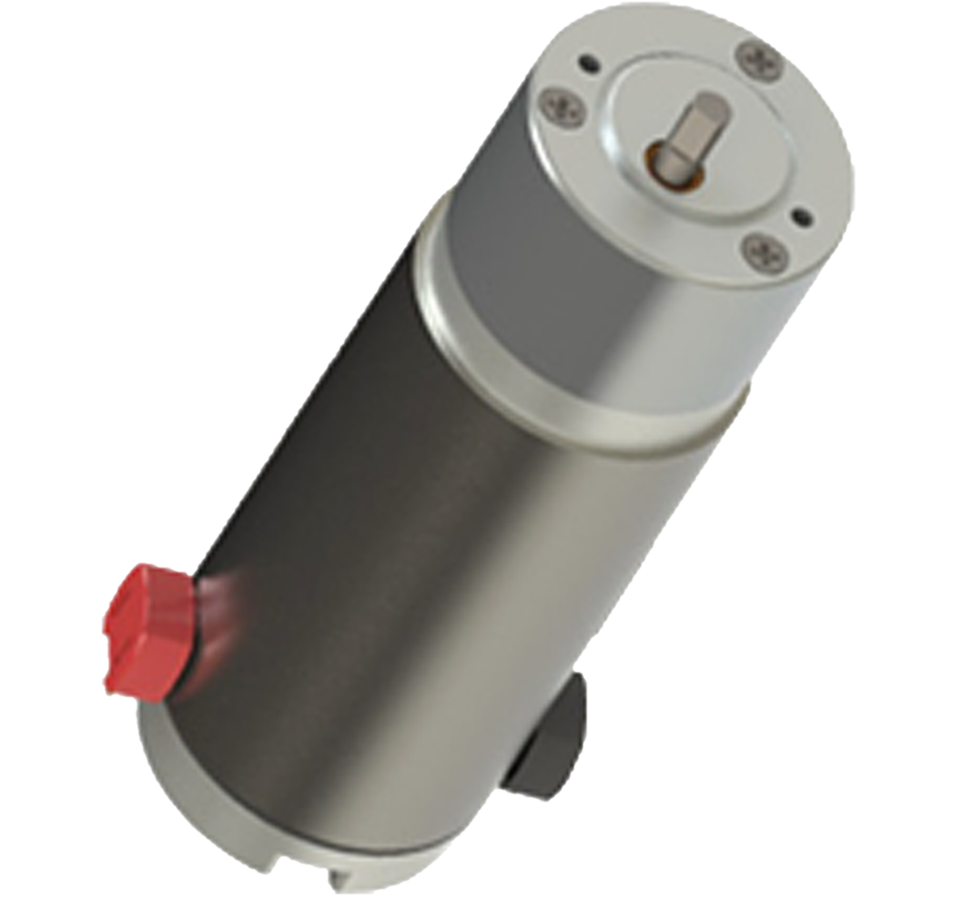

Series 121-4: 2.1 inch DC Brush Gearmotor
with 2 inch Metal Spur Gearbox
Product Details
Overview & Features
Hansen offers our 2.1" diameter DC brush motor on our 2" diameter spur gearbox. This motor package is offered in a wide range of operating voltages and with 4 gear ratio options, 12:1, 48:1, 192:1 and 768:1. Optional features include encoders, noise suppressors, custom shafts, custom leads and terminations, custom mounting and rear shaft extensions. Maximum intermittent output torque is 500 oz-in.
- Printers
- Plotters
- Pumps
- Fans
- Cutting Tools
- Medical Devices
- Robotics
- Beverage Dispensing
- Gaming/Recreational Machines
| PART NUMBER | RATIO | VOLTS NOM | NO LOAD SPEED | NO LOAD CURRENT | LOAD SPEED | LOAD TORQUE | LOAD CURRENT | MAX. THEORETICAL TORQUE (* INDICATES GEARBOX LIMIT) |
DIM "A" MAX INCH [mm] |
DIM "B" MAX INCH [mm] |
||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WNL | INL | W | TL | IL | ||||||||
| R.P.M. | AMPS | R.P.M. | IN-OZ | AMPS | IN-OZ | R.P.M. | AMPS | |||||
| NOM. | MAX. | NOM. | NOM. | MAX. | REF. | REF. | REF. | |||||
| 121-41216-12 | 12:1 | 12 | 170 | 0.4 | 135 | 214 | 3.5 | 340* | 112 | 5.3 | 6.1 [155] |
6.5 [165] |
| 121-41232-12 | 310 | 1 | 250 | 146 | 4.8 | 340* | 176 | 9.9 | ||||
| 121-41248-12 | 434 | 1.3 | 382 | 107 | 5.2 | 340* | 269 | 13.6 | ||||
| 121-41216-48 | 48:1 | 42 | 0.4 | 35 | 500 | 2.5 | 850* | 31 | 4.0 | |||
| 121-41232-48 | 74 | 0.8 | 64 | 500 | 4.4 | 850* | 57 | 6.7 | ||||
| 121-41248-48 | 110 | 1.2 | 95 | 385 | 5.1 | 850* | 81 | 9.9 | ||||
| 121-41216-192 | 192:1 | 10.1 | 0.4 | 10 | 500 | 0.9 | 850* | 9.9 | 1.3 | |||
| 121-41232-192 | 18 | 0.7 | 17 | 500 | 1.7 | 850* | 16.5 | 2.3 | ||||
| 121-41248-192 | 26 | 1.2 | 25 | 500 | 2.6 | 850* | 24 | 3.5 | ||||
| 121-41216-768 | 768:1 | 3 | 0.4 | 2.9 | 500 | 0.6 | 850* | 2.8 | 0.7 | 6.4 [163] |
6.8 [173] |
|
| 121-41232-768 | 5 | 0.7 | 4.9 | 500 | 1.1 | 850* | 4.8 | 1.3 | ||||
| 121-41248-768 | 7 | 1.2 | 6.9 | 500 | 1.6 | 850* | 6.8 | 1.9 | ||||
| 121-42416-12 | 12:1 | 24 | 173 | 0.3 | 142 | 214 | 1.8 | 340* | 123 | 2.7 | 6.1 [155] |
6.5 [165] |
| 121-42432-12 | 360 | 0.4 | 253 | 165 | 2.4 | 340* | 139 | 4.4 | ||||
| 121-42448-12 | 445 | 0.7 | 417 | 126 | 3.1 | 340* | 297 | 7.1 | ||||
| 121-42416-48 | 48:1 | 43 | 0.3 | 37 | 500 | 1.3 | 850* | 32 | 2.0 | |||
| 121-42432-48 | 73 | 0.4 | 66 | 500 | 2.1 | 850* | 61 | 3.3 | ||||
| 121-42448-48 | 110 | 0.7 | 102 | 500 | 3.3 | 850* | 95 | 5.1 | ||||
| 121-42416-192 | 192:1 | 10.2 | 0.3 | 9.8 | 500 | 0.5 | 850* | 9.6 | 0.7 | |||
| 121-42432-192 | 18 | 0.4 | 16 | 500 | 0.8 | 850* | 15 | 1.2 | ||||
| 121-42448-192 | 27 | 0.7 | 26 | 500 | 1.4 | 850* | 25 | 1.9 | ||||
| 121-42416-768 | 768:1 | 3 | 0.3 | 2.8 | 500 | 0.3 | 850* | 2.7 | 0.4 | 6.4 [163] |
6.8 [173] |
|
| 121-42432-768 | 5 | 0.4 | 4.8 | 500 | 0.6 | 850* | 4.7 | 0.7 | ||||
| 121-42448-768 | 7 | 0.7 | 6.9 | 500 | 0.8 | 850* | 6.8 | 1 | ||||
Notes:

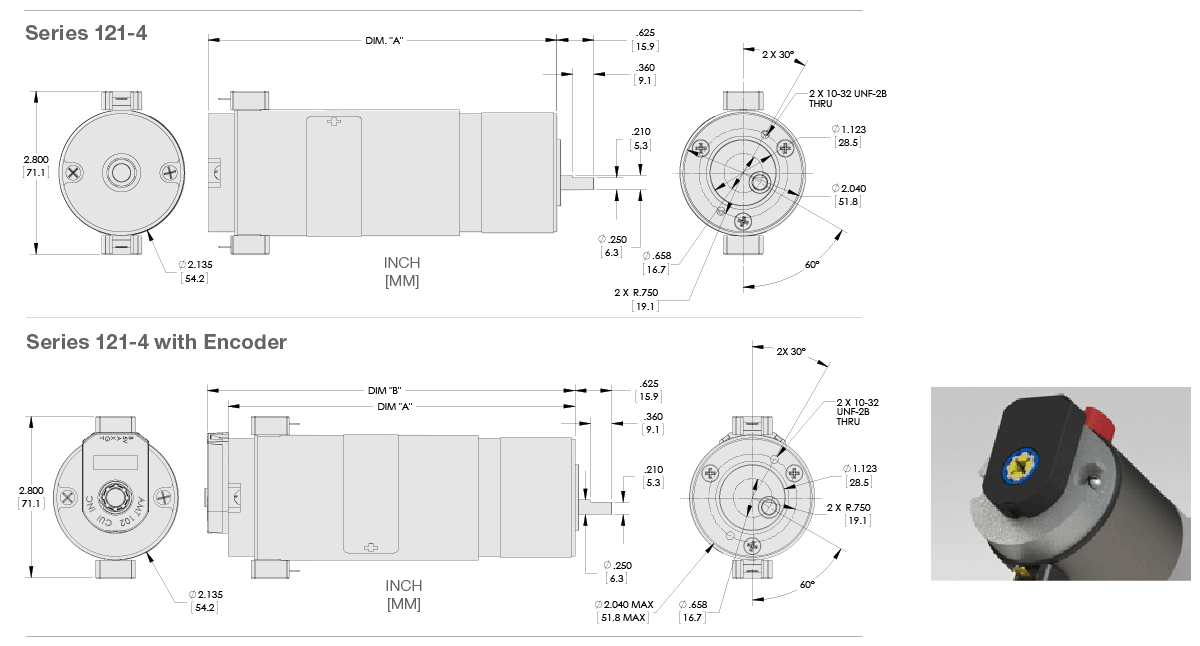

For Encoder, Add C, D, or M to end of part number. (C=100 CPR, D=500 & M=1000)Dimensional Drawing
