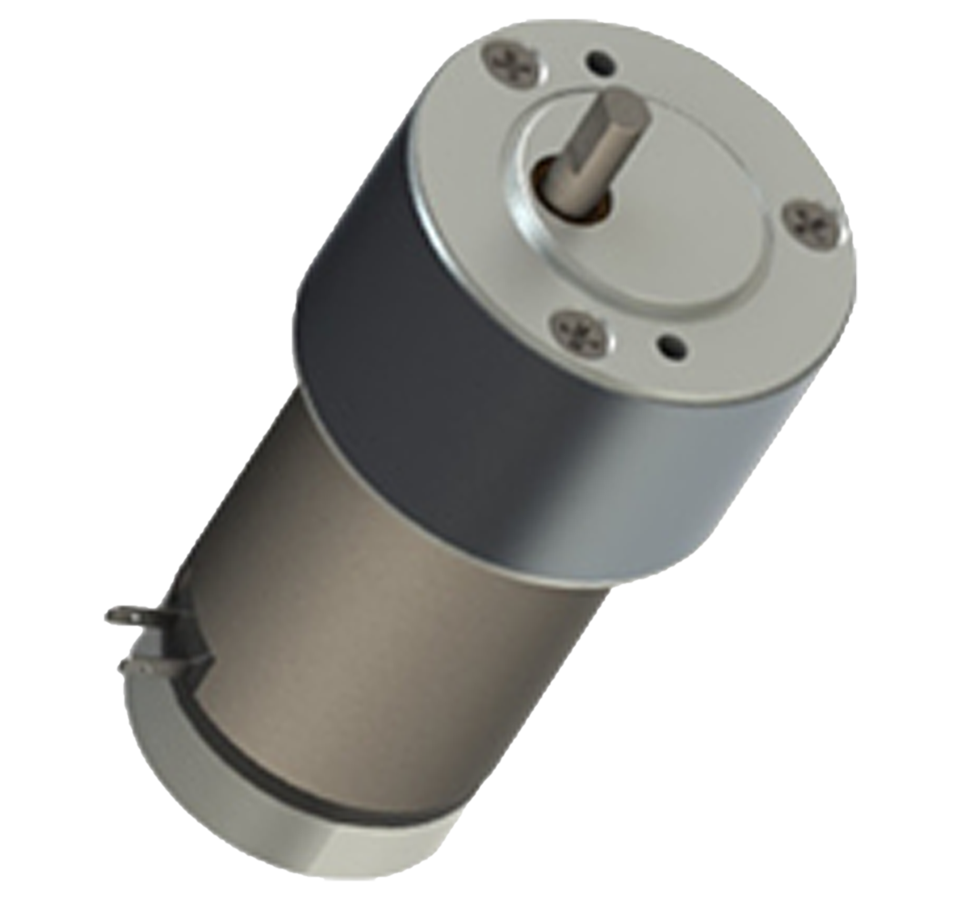

Series 116-4: 1.6 inch DC Brush Gearmotor
with 2 inch Metal Spur Gearbox

Series 116-4 Size 1.6 in (40.3 mm) Peak Torque to 850 oz-in or 6 Nm

Product Details

Overview & Features

Hansen offers our 1.6" diameter DC brush motor on a 2" diameter spur gearbox. This motor is offered in a wide range of operating voltages along with several optional features. Optional features offered include encoders, voltages, noise suppressors, custom shafting, custom leads and terminations, custom mounting and rear shaft extensions. Maximum intermittent output torque is 500 oz-in.

  • Printers
  • Plotters
  • Pumps
  • Fans
  • Cutting Tools
  • Medical Devices
  • Robotics
  • Beverage Dispensing
  • Gaming/Recreational Machines
Series 116-4 - 1.6 inch DC Spur Gear Motor Numbering Example
PART NUMBER RATIO VOLTS NOM NO LOAD SPEED NO LOAD CURRENT LOAD SPEED LOAD TORQUE LOAD CURRENT MAX. THEORETICAL TORQUE
(* INDICATES GEARBOX LIMIT)		 DIM "A"
MAX
INCH
[mm]		 DIM "B"
MAX
INCH
[mm]
WNL INL W TL IL
R.P.M. AMPS R.P.M. IN-OZ AMPS IN-OZ R.P.M. AMPS
NOM. MAX. NOM. NOM. MAX. REF. REF. REF.
116-41216-12 12:1 12 240 0.2 130 78 1.6 190 STALL 4.0 3.75
[96]		 4.10
[104]
116-41232-12 350 0.3 270 68 2.0 316 STALL 9.0
116-41248-12 500 0.4 410 58 2.6 335 STALL 13.0
116-41216-48 48:1 60 0.2 33 280 1.6 672 STALL 4.0
116-41232-48 90 0.3 67 245 2.0 850* 22 7.0
116-41248-48 125 0.4 100 209 2.6 850* 36 10.0
116-41216-192 192:1 15 0.2 11 500 0.9 850* 9 1.3
116-41232-192 22 0.3 19 500 1.3 850* 17 2.0
116-41248-192 32 0.4 27 500 2.0 850* 25 3.0
116-41216-768 768:1 4 0.2 3.3 500 0.4 850* 3 0.5 4.00
[102]		 4.35
[111]
116-41232-768 6 0.3 5.2 500 0.5 850* 5 0.7
116-41248-768 8 0.4 7.4 500 0.8 850* 7 1.1
116-42416-12 12:1 24 240 0.1 150 78 0.8 225 STALL 2.2 3.75
[96]		 4.10
[104]
116-42432-12 350 0.2 276 68 1.1 317 STALL 4.2
116-42448-12 470 0.2 400 58 1.3 340* 90 6.0
116-42416-48 48:1 60 0.1 38 280 0.8 810 STALL 2.2
116-42432-48 85 0.2 70 245 1.0 850* 26 3.2
116-42448-48 120 0.2 100 209 1.3 850* 47 4.1
116-42416-192 192:1 15 0.1 12 500 0.4 850* 10 0.7
116-42432-192 22 0.2 20 500 0.8 850* 18 1.3
116-42448-192 30 0.2 28 500 1.0 850* 26 1.4
116-42416-768 768:1 4 0.1 3.4 500 0.2 850* 3 0.3 4.00
[102]		 4.35
[111]
116-42432-768 6 0.2 5.2 500 0.3 850* 5 0.4
116-42448-768 8 0.2 7.4 500 0.4 850* 7 0.5

Notes:

For Integral Leads, Replace 116-4 with 116-5.
For Encoder, Add C, D, or M to end of part number. (C=100 CPR, D=500 & M=1000)

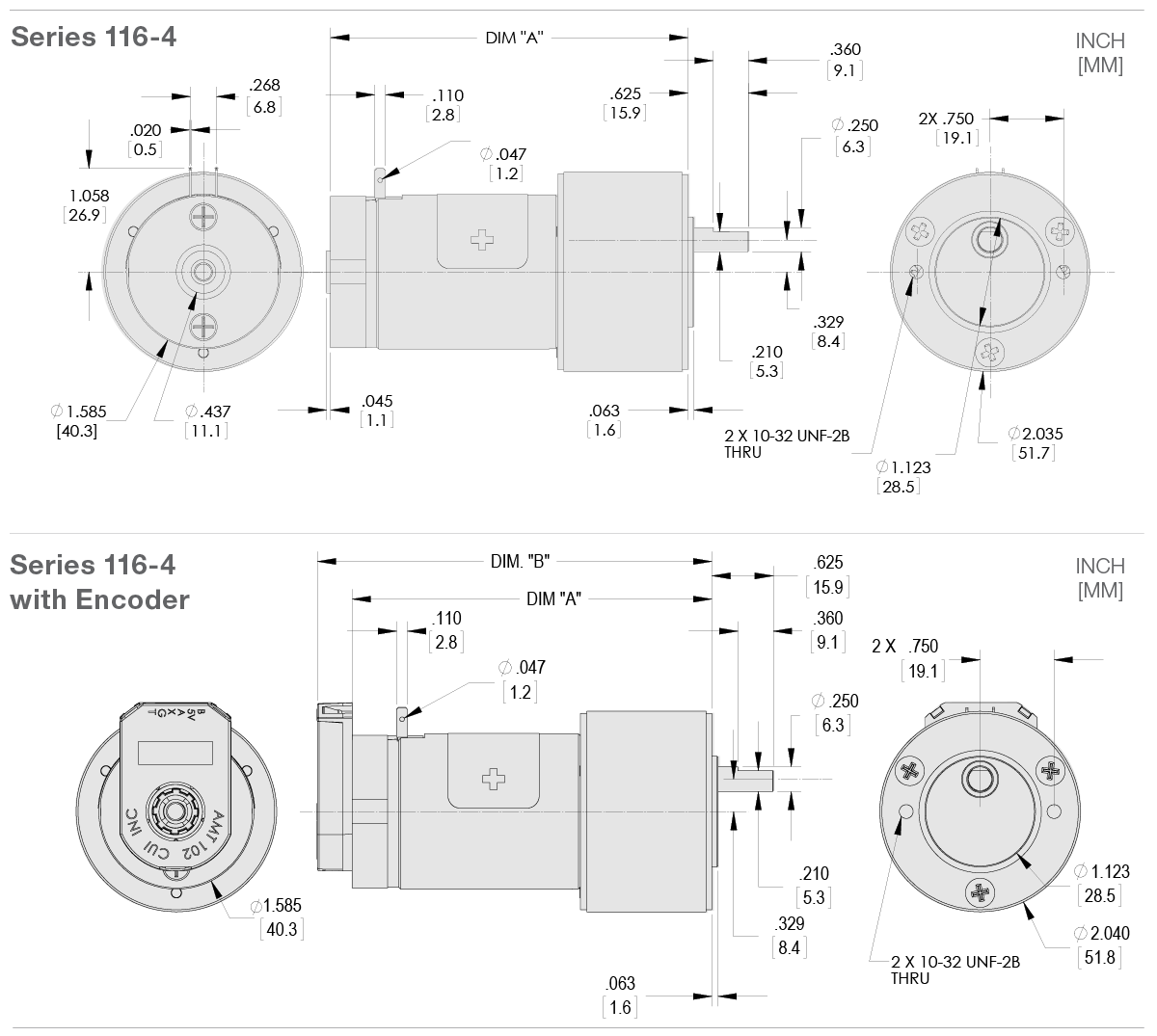

Dimensional Drawing

Technical Drawing

Drive Compatibility

Please contact ElectroCraft if the drive you are searching for is not included in the charts below.

Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
Imperial Metric PRO (-CAN) PRO (-CAT) CPP-Universal CPP-EZ
116-1121627 1.7 3.7 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1123227 2.2 8.4 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1124827 2.8 13.3 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
116-1241627 0.9 2.1 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1243227 1.2 4.6 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
116-1244827 1.5 9.1 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1121632 2.1 6.1 12 PRO-A08V48B PRO-A04V36A CPP-A06V48A
116-1123232 3.2 16.7 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
116-1124832 3.9 24 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
116-1241632 1.0 3.1 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1243232 1.6 7.5 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1244832 2.0 12.7 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A

Documents & Downloads

Download Description
Series 116-4 Data Sheet (US) Download Data Sheet (PDF)

ElectroCraft Rapid Delivery Program

Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.

Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.

Customers are responsible for all freight charges.

Rapid Delivery to:

The Americas - View Cart

Part Number Description Add to Cart
116-1121632 1.6" frame PMDC Brush motor, 12VDC winding, 2300RPM no-load speed, 37 oz-in stall torque, 11 oz-in load torque Contact Sales
116-1123232 1.6" frame PMDC Brush motor, 12VDC winding, 3600RPM no-load speed, 63 oz-in stall torque, 10 oz-in load torque Contact Sales
116-1124832 1.6" frame PMDC Brush motor, 12VDC winding, 5600RPM no-load speed, 66 oz-in stall torque, 9 oz-in load torque Contact Sales
116-1241632 1.6" frame PMDC Brush motor, 24VDC winding, 2500RPM no-load speed, 38 oz-in stall torque, 11 oz-in load torque Contact Sales
116-1243232 1.6" frame PMDC Brush motor, 24VDC winding, 4100RPM no-load speed, 55 oz-in stall torque, 10 oz-in load torque Contact Sales
116-1244832 1.6" frame PMDC Brush motor, 24VDC winding, 5700RPM no-load speed, 70 oz-in stall torque, 9 oz-in load torque Contact Sales
