Series 114-4: 1.4 inch DC Brush Gearmotor
with 2 inch Metal Spur Gearbox

Series 114-4 Size 1.4 in (35.7 mm) Peak Torque to 500 oz-in or 3.5 Nm

Product Details

Overview & Features

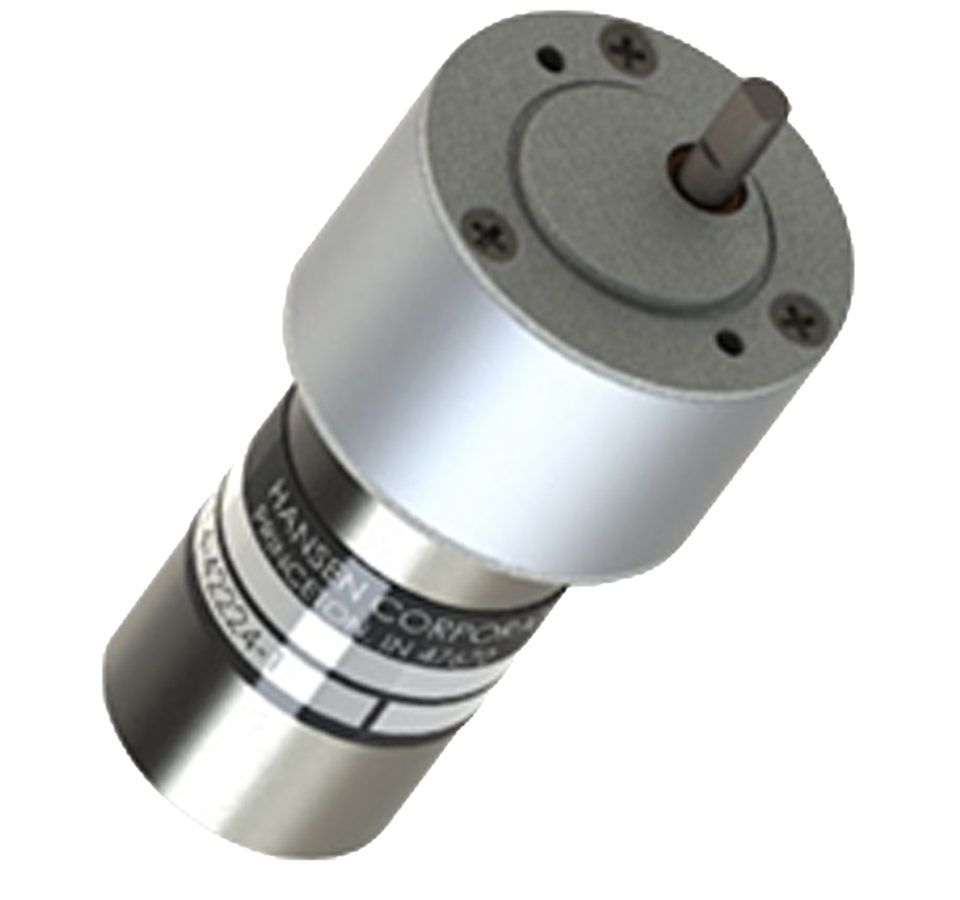

Hansen offers an inexpensive, 1.4" diameter DC brush motor on our 2" diameter spur gearbox. This motor is offered in voltages up to 24 volts DC along with several optional features. 4 ratios are offered, 12:1, 48:1, 192:1 and 768:1. The 2" gearbox motor life is rated at 1000 hours continuous duty with 250 oz-in (1770 mNm) load torque at 75 degrees F ambient. Custom features offered include shafts, custom leads and terminations and custom mounting. Maximum intermittent output torque is 500 oz-in.

  • Printers
  • Plotters
  • Pumps
  • Fans
  • Cutting Tools
  • Medical Devices
  • Robotics
  • Beverage Dispensing
  • Gaming/Recreational Machines
Series 114-4 - 1.4 inch DC Gear Motors Numbering Example
PART NUMBER RATIO VOLTS NOM NO LOAD SPEED NO LOAD CURRENT LOAD SPEED LOAD TORQUE LOAD CURRENT MAX. THEORETICAL TORQUE
(* INDICATES GEARBOX LIMIT)		 DIM "A"
MAX
INCH
[mm]
WNL INL W TL IL
R.P.M. AMPS R.P.M. IN-OZ AMPS IN-OZ R.P.M. AMPS
NOM. MAX. NOM. NOM. MAX. REF. REF. REF.
114-41226-12 12:1 12 220 0.4 150 58 1.0 190 STALL 2.0 3.7 [94]
114-41226-48 48:1 60 0.2 35 209 1.5 490 STALL 3.0
114-41226-192 192:1 15 0.2 12 500 0.9 850* 10 2.0
114-41226-768 768:1 4 0.1 3.6 500 0.3 850* 3.3 0.5 4.0 [102]
114-42452-12 12:1 24 420 0.2 340 58 1.4 310 STALL 6.0 3.7 [94]
114-42452-48 48:1 125 0.2 100 209 1.4 850* 14 5.0
114-42452-192 192:1 30 0.2 27 500 0.9 850* 24 1.5
114-42452-768 768:1 8 0.2 6.6 500 0.4 850* 5.5 0.5 4.0 [102]

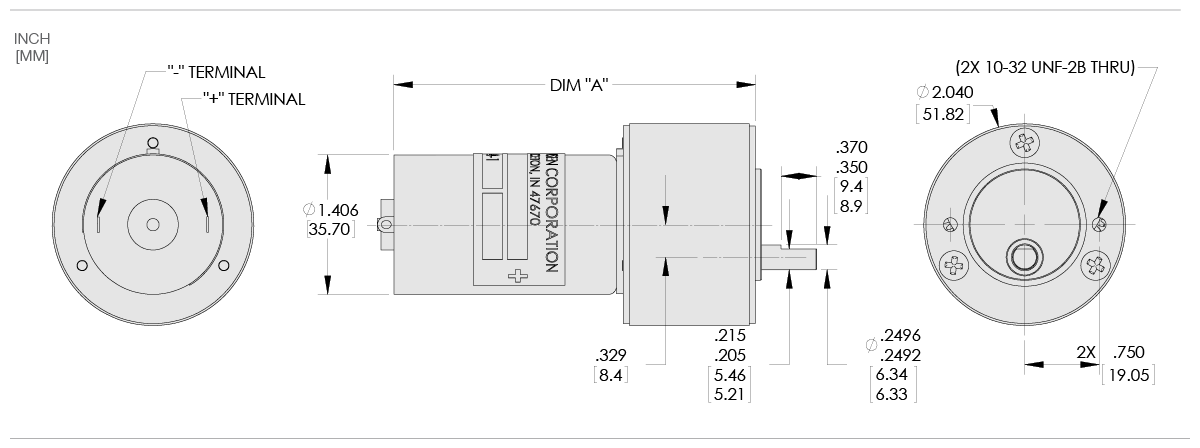

Dimensional Drawing

Technical Drawing

Drive Compatibility

Please contact ElectroCraft if the drive you are searching for is not included in the charts below.

Please contact us for drive compatibility information on this motor series.

Documents & Downloads

Download Description
Series 114-4 Data Sheet (US) Download Data Sheet (PDF)
