APPS23 Stepper Linear Actuator
AxialPower™ Plus Series
Summary Details
Technology: StepperSize: NEMA 23
Force: 512 N (115 lbs.) to 890 N (200 lbs.)
The APPS23 is a 56mm / NEMA 23 frame, hybrid stepper-based actuator. The APPS23 is available in standard or custom designs as a linear actuator (non-captive), leadscrew motor (external linear), or guided linear actuator (captive). A variety of resolutions are offered, ranging from 0.006 to 0.013 per step, with an output force of up to 890 N (200 lbs).

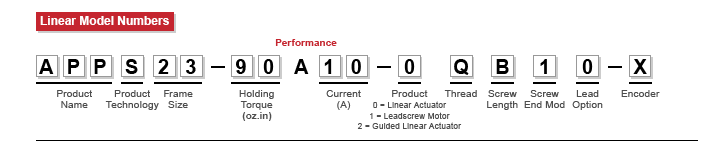

APPS23 Model Number Example
Additional Product Details

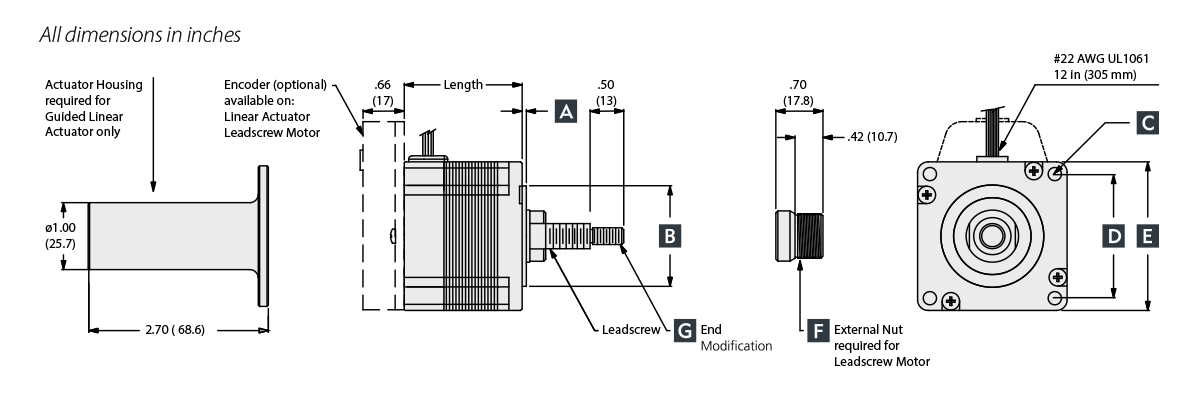

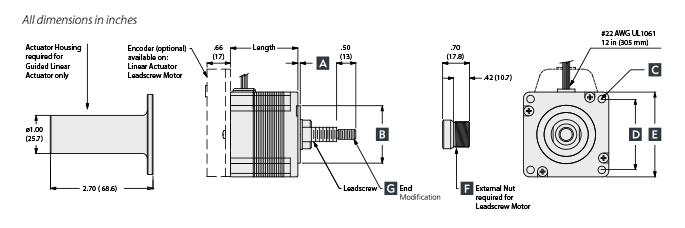

APPS23 Outline Drawing
| Model | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| Pilot Length |
Pilot Diameter |
Mount Hole Callout |
Mount Hole Spacing |
External Flange Dimension |
External Nut Thread |
Screw End Mod |
|
| APPS23-90 | 0.06 in (1.5 mm) |
1.500 ±0.002 in (38.1 ±0.05 mm) |
0.205 ±0.01 in dia (5.21 ±0.25 mm dia) |
1.86 in (47 mm) |
2.22 in (56 mm) |
M17 x 1.0 |
1/4-28 UNF M6 x 1.0 0.235 / 0.236 in dia Journal (5.97 / 5.99 mm) |
| APPS23-150 |

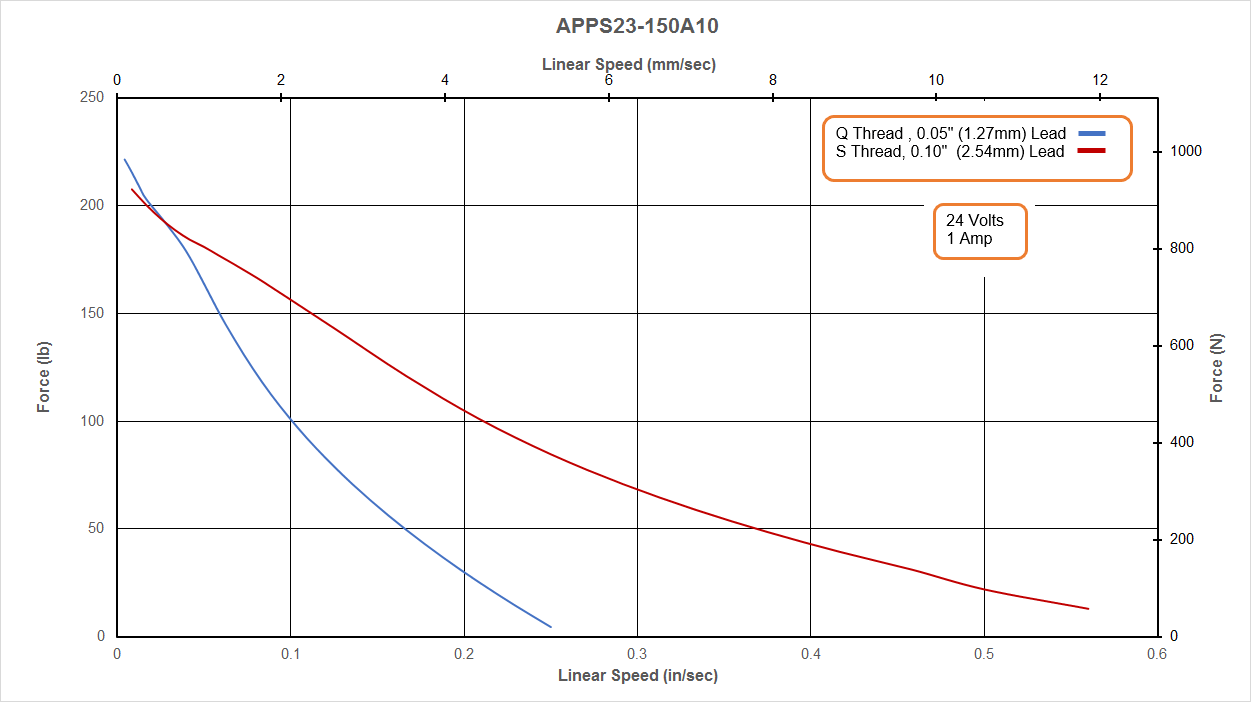

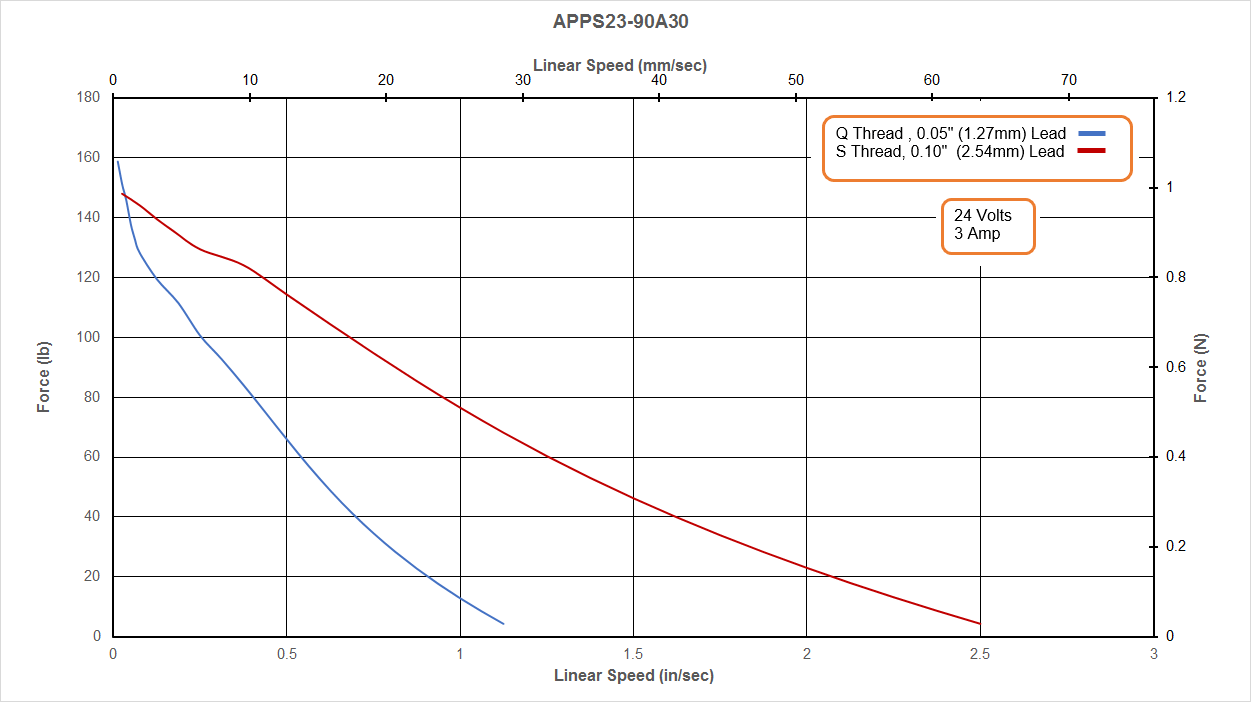

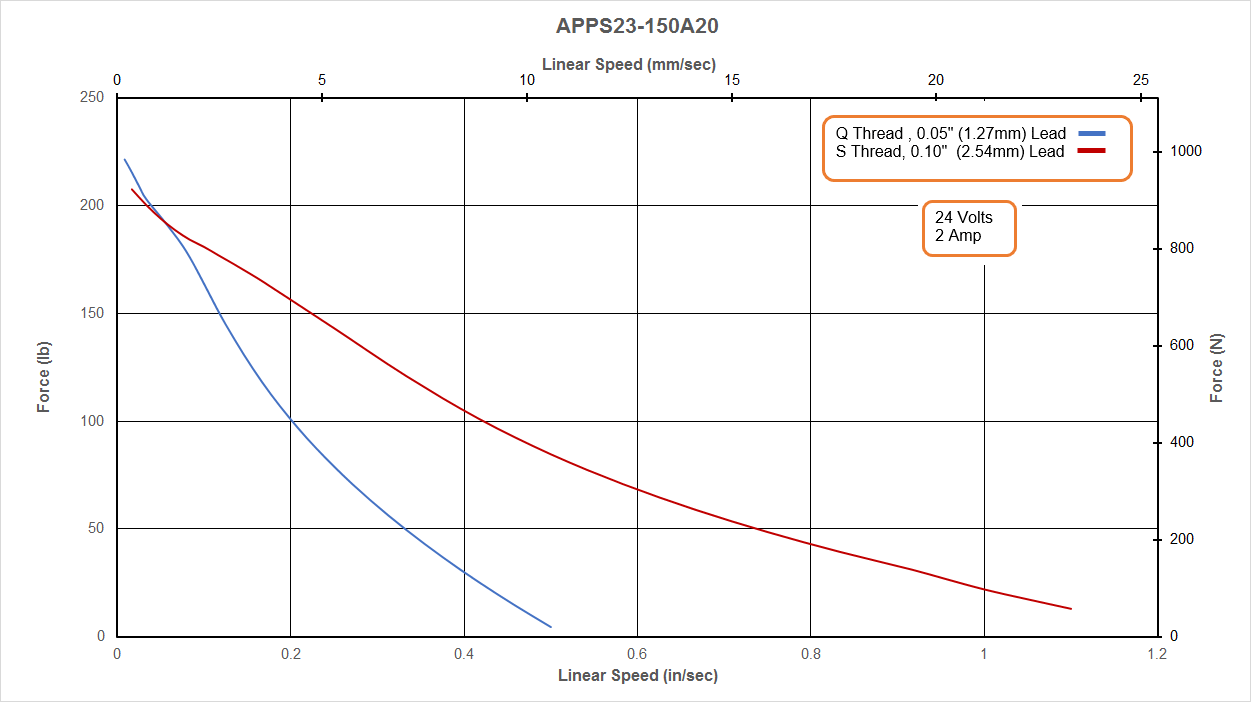

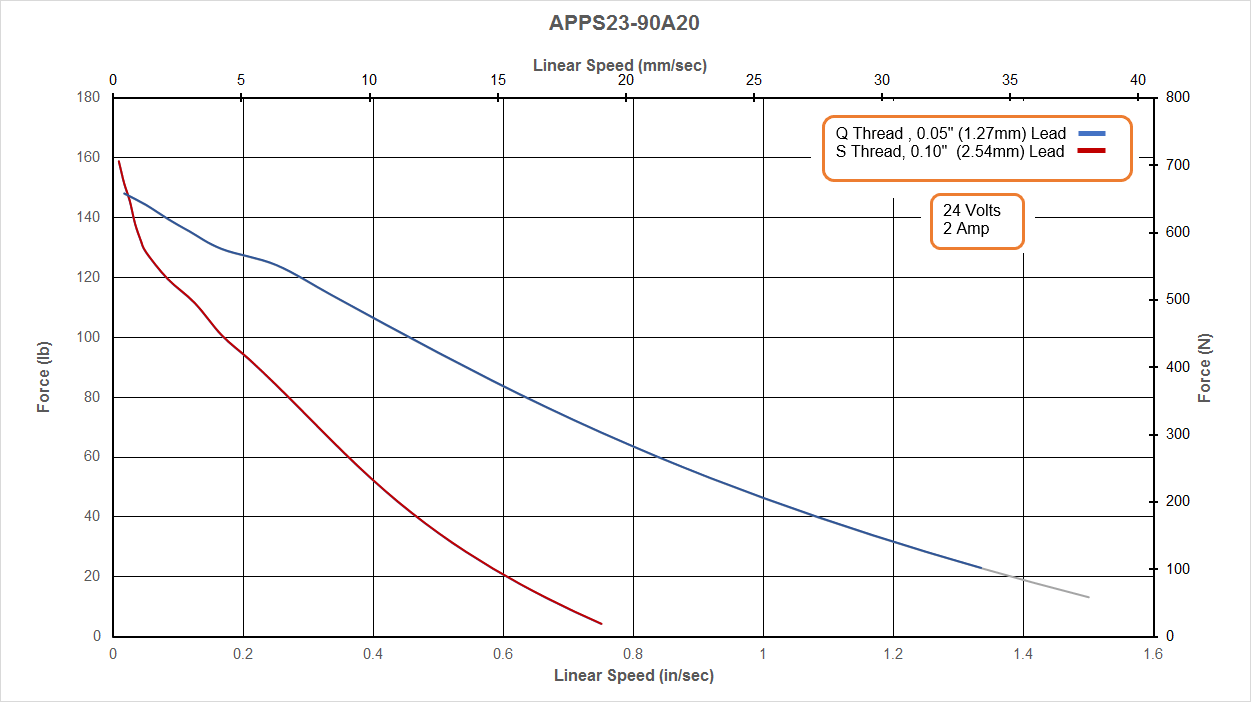

APPS23 Speed / Force Curves

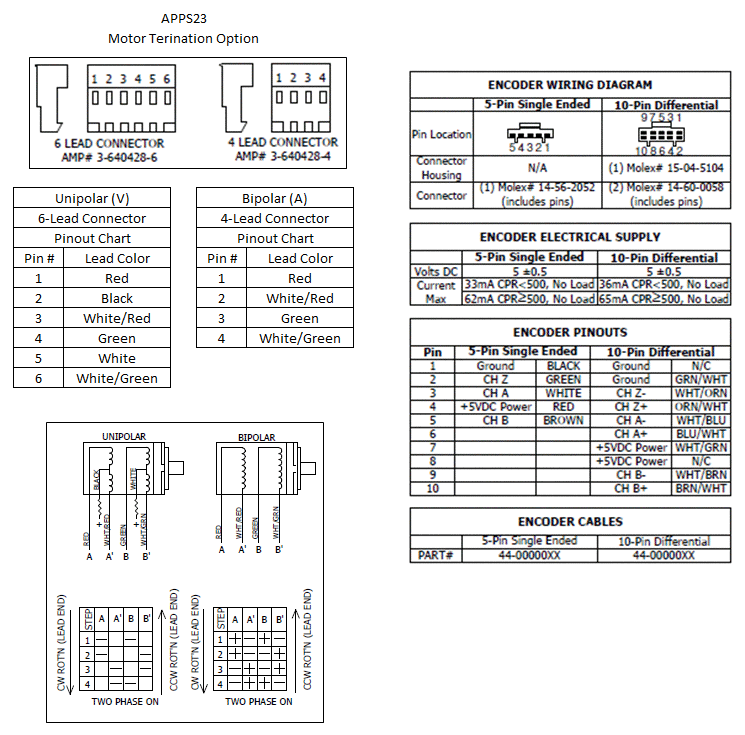

APPS23 Connection
APPS23 CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| APPS23-90A10 | APPS23M-64A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| APPS23-90A20 | APPS23M-64A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| APPS23-90A30 | APPS23M-64A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
| APPS23-150A10 | APPS23M-106A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| APPS23-150A20 | APPS23M-106A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
| APPS23-150A30 | APPS23M-106A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
