APPS17 Stepper Linear Actuator
AxialPower™ Plus Series

APPS17 Hybrid Stepper Motor Actuator

Summary Details

Technology: Stepper
Size: NEMA 17
Force: 120 N (27 lbs.) to 351 N (79 lbs.)
APPS17 Thumbnail 1
APPS17 Thumbnail 2
APPS17 Thumbnail 3
Buy Now

The APPS17 is a 42mm / NEMA 17 frame, hybrid stepper-based actuator. The APPS17 is available in standard or custom designs as a linear actuator (non-captive), leadscrew motor (external linear), or guided linear actuator (captive). A variety of resolutions are offered, ranging from 0.006 to 0.032 mm per step, with an output force of up to 351 N (79 lbs.)

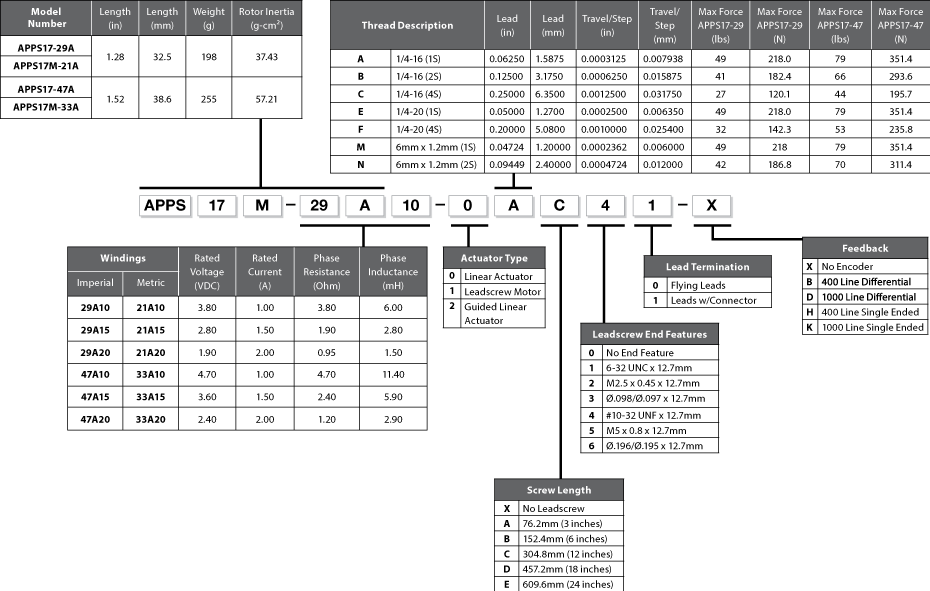

APPS17 Model Number Example

APPS17 Model Number Example

Additional Product Details

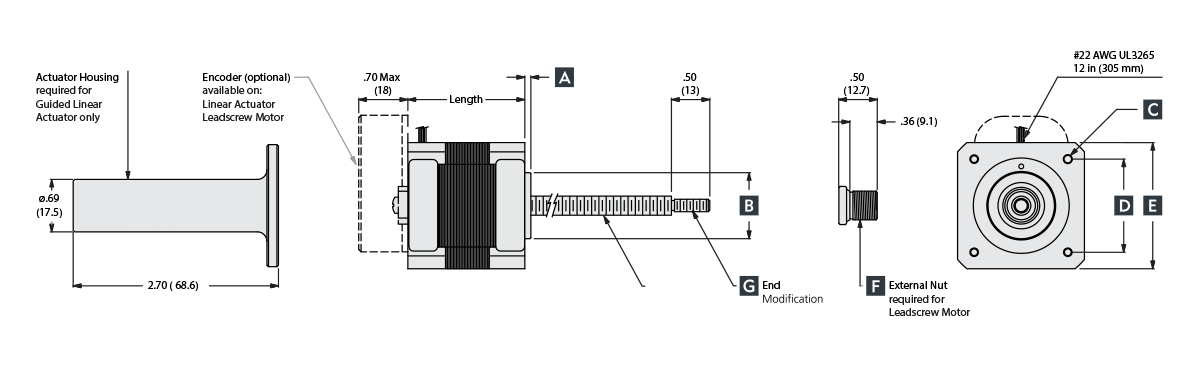

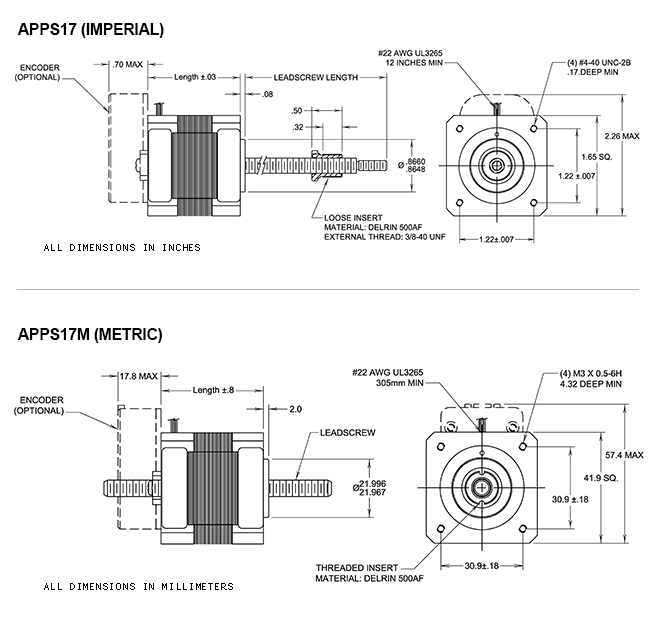

APPS17 Outline Drawing

Model A B C D E F G
Pilot
Length		 Pilot
Diameter		 Mount Hole
Callout		 Mount
Hole
Spacing		 External
Flange
Dimension		 External
Nut Thread		 Screw End
Mod
APPS17-29 0.08 in 0.8660 in
0.8648 in		 (4) 4-40UNC-2B
0.17 in deep		 1.22 in 1.65 in 3/8-40 UNF 10-32 UNC
M5 x 0.8
0.196 / 0.195
(5) dia Journal
APPS17-47
APPS17M-21 2.0 mm 22.00 mm
21.96 mm		 (4) M3x0.5-6H
3.5 mm deep		 31 mm 42 mm M10x1.25
APPS17M-33
Technical Drawings

APPS17 Speed / Force Curves

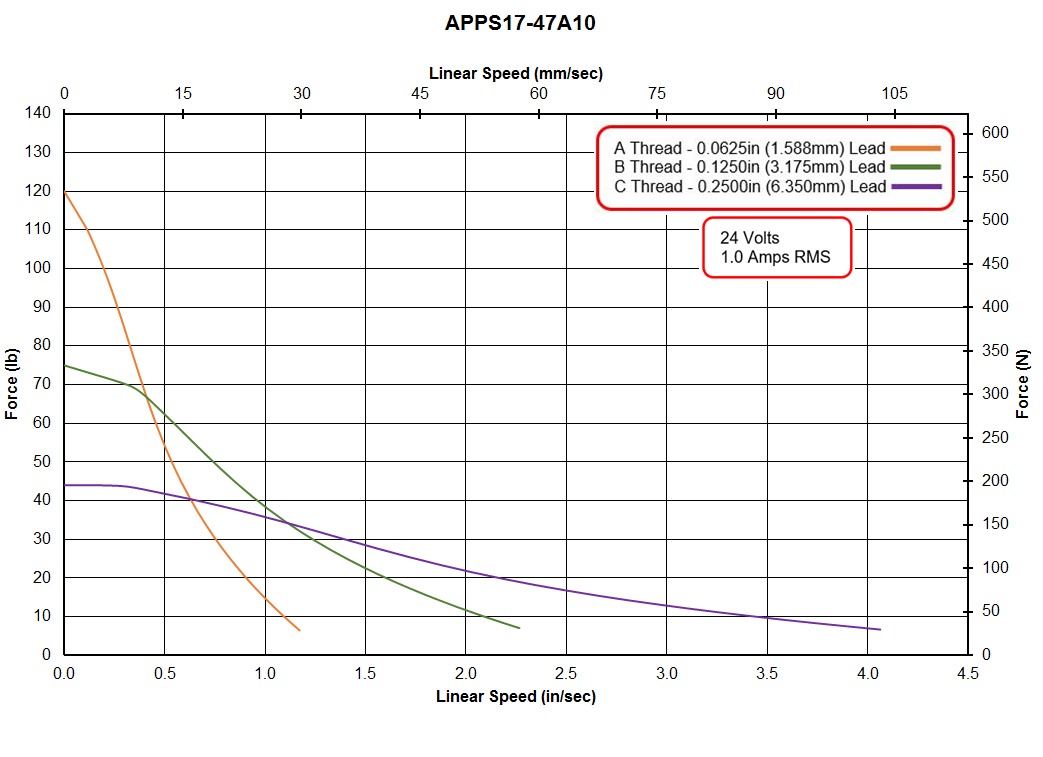

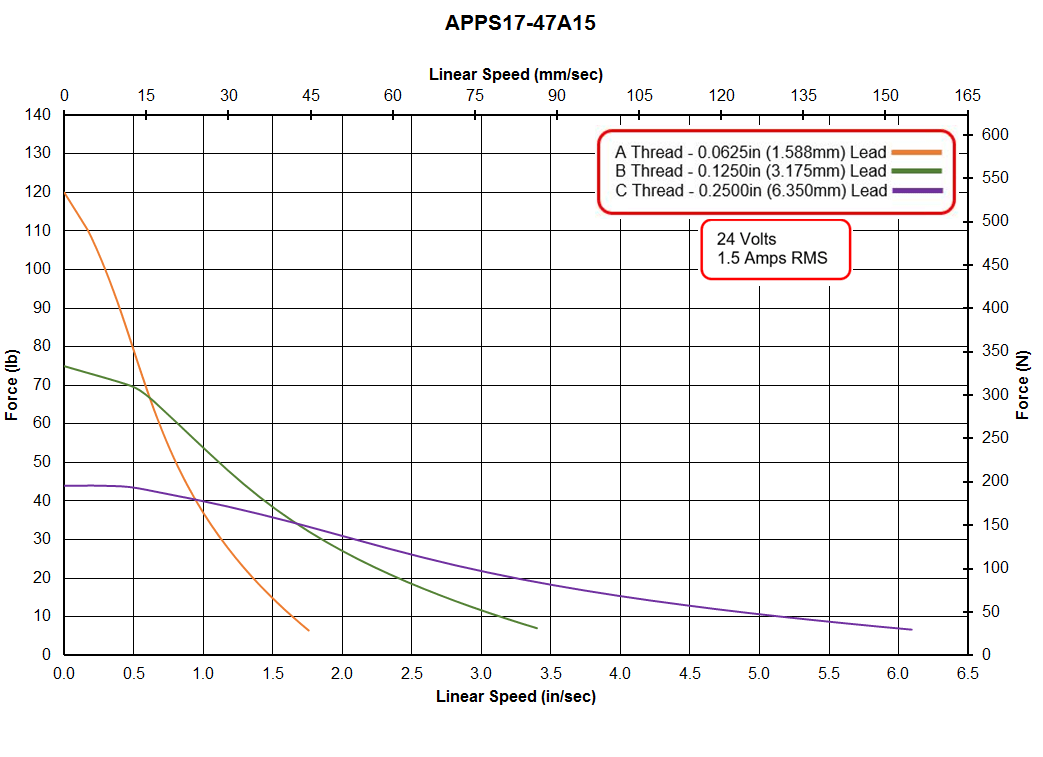

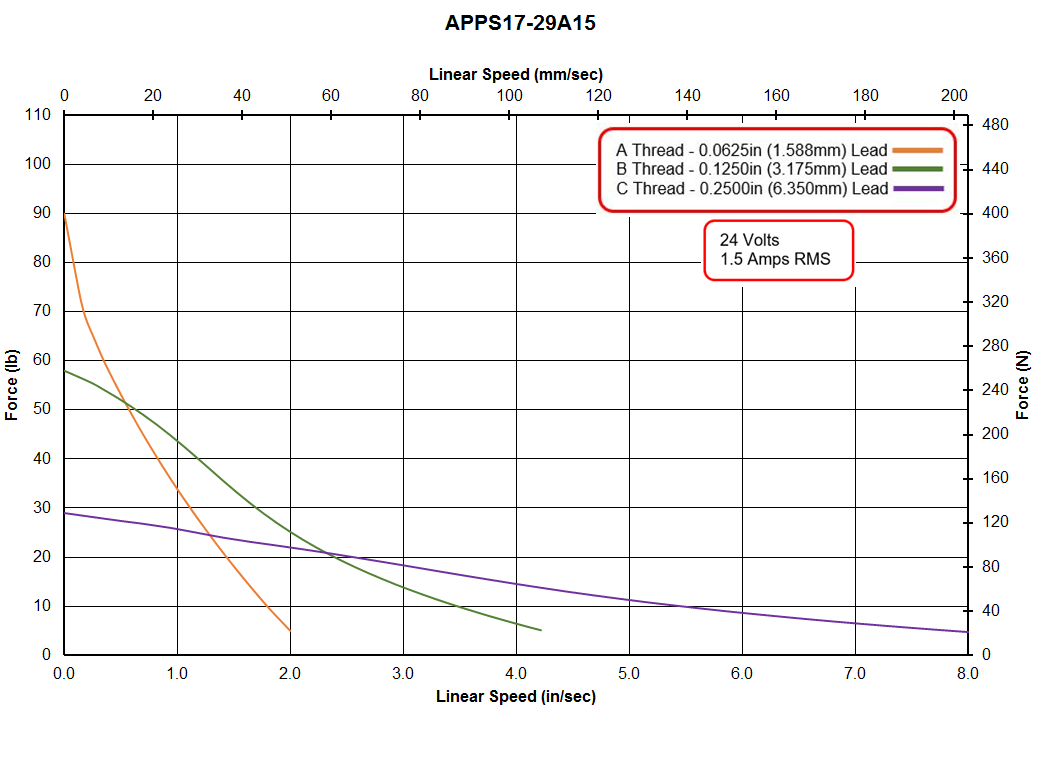

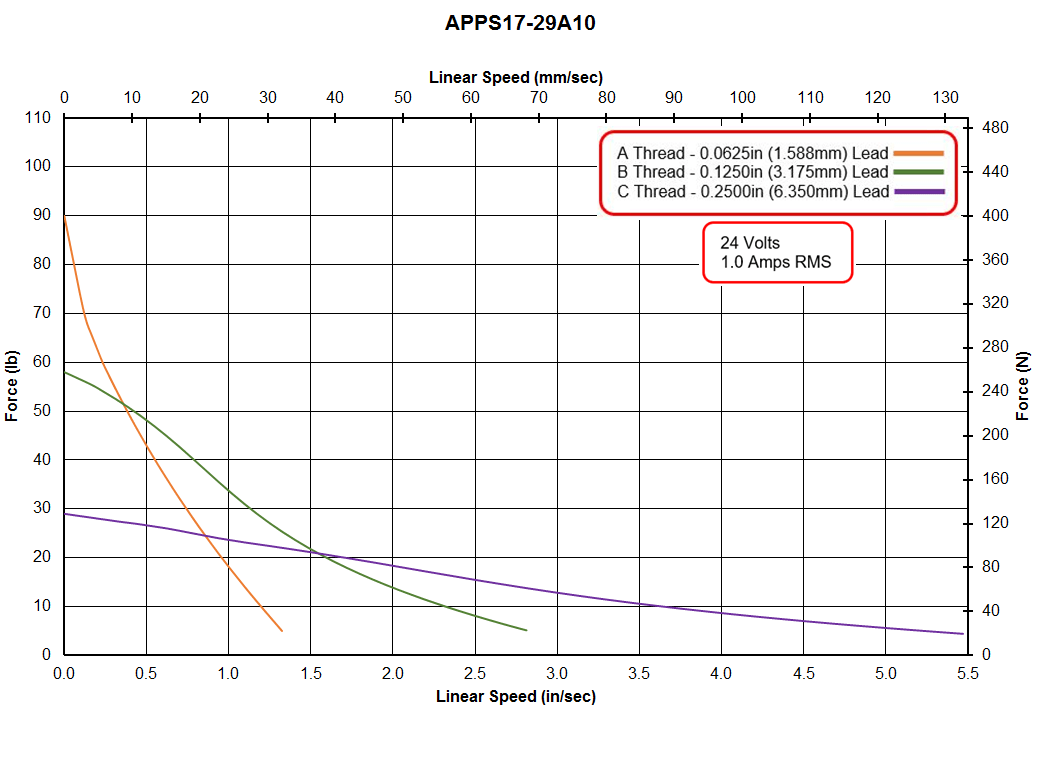

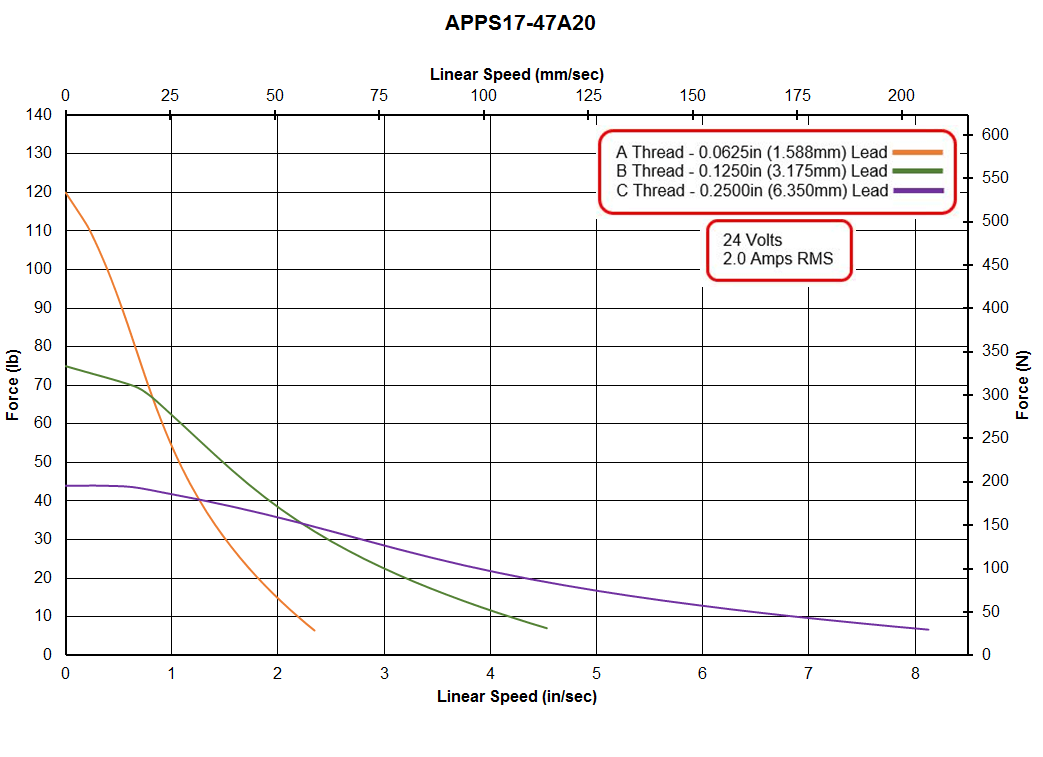

APPS17-29A10 Speed - Force Curve APPS17-29A15 Speed - Force Curve APPS17-29A20 Speed - Force Curve APPS17-47A10 Speed - Force Curve APPS17-47A15 Speed - Force Curve APPS17-47A20 Speed - Force Curve

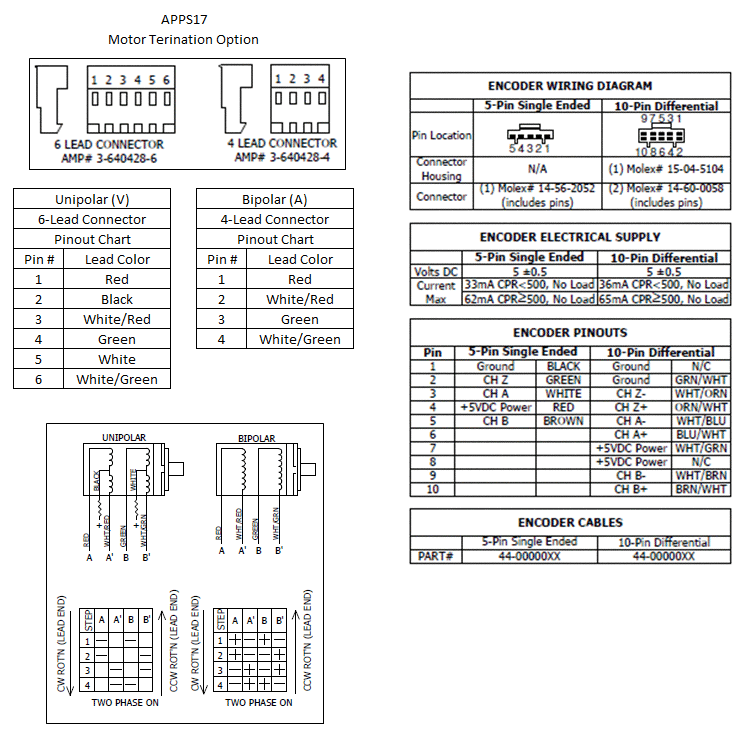

APPS17 Connection

hall diagram

APPS17 CAD

Drive Compatibility

Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
Imperial Metric PRO (-CAN) PRO (-CAT) CPP-Universal CPP-EZ
APPS17-29A10 APPS17M-21A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-29A15 APPS17M-21A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-29A20 APPS17M-21A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-47A10 APPS17M-33A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-47A15 APPS17M-33A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-47A20 APPS17M-33A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-58A10 APPS17M-41A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-58A15 APPS17M-41A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
APPS17-58A20 APPS17M-41A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A

ElectroCraft Rapid Delivery Program

Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.

Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.

Customers are responsible for all freight charges.

Rapid Delivery to:

Select the region where the product would be delivered to.

The Americas - View Cart

Part Number Description Add to Cart
APPS17-29A20-0AB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 29 oz-in holding torque, 2.0A/Phase, 1/4"-16 ACME (1-start), 0.0625" lead Buy Now
APPS17-47A20-0AB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 47 oz-in holding torque, 2.0A/Phase, 1/4"-16 ACME (1-start), 0.0625" lead Buy Now

Europe, the Middle East and Africa

Part Number Description Typical Lead Time
APPS17M-21A20-0AB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 21 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (1-start), 0.0625" lead 2 days
APPS17M-21A20-0BB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 21 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (2-start), 0.1250" lead 2 days
APPS17M-21A20-0CB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 21 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (4-start), 0.2500" lead 2 days
APPS17M-21A20-1AB50-X NEMA 17 Stepper-based lead screw motor, 1.8 degree step angle, bi-polar windings, 21 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (1-start), 0.0625" lead 2 days
APPS17M-21A20-1BB50-X NEMA 17 Stepper-based lead screw motor, 1.8 degree step angle, bi-polar windings, 21 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (2-start), 0.1250" lead 2 days
APPS17M-21A20-1CB50-X NEMA 17 Stepper-based lead screw motor, 1.8 degree step angle, bi-polar windings, 21 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (4-start), 0.2500" lead 2 days
APPS17M-33A20-0BB50-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 33 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (2-start), 0.1250" lead 2 days
APPS17M-33A20-1AB50-X NEMA 17 Stepper-based lead screw motor, 1.8 degree step angle, bi-polar windings, 33 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (1-start), 0.0625" lead 2 days
APPS17M-33A20-1BB50-X NEMA 17 Stepper-based lead screw motor, 1.8 degree step angle, bi-polar windings, 33 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (2-start), 0.1250" lead 2 days
APPS17M-33A20-1CB50-X NEMA 17 Stepper-based lead screw motor, 1.8 degree step angle, bi-polar windings, 33 Ncm holding torque, 2.0A/Phase, 1/4"-16 ACME (4-start), 0.2500" lead 2 days

Asia

Part Number Description Typical Lead Time
APPS17-29A20-0AB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 29 oz-in holding torque, 2.0A/Phase, 1/4"-16 ACME (1-start), 0.0625" lead 2 days
APPS17-47A20-0AB40-X NEMA 17 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 47 oz-in holding torque, 2.0A/Phase, 1/4"-16 ACME (1-start), 0.0625" lead 2 days
