Series 121-9 - 2.1" Planetary Gear Motor
(Plastic)
Typical Applications
- Printers
- Plotters
- Pumps
- Fans
- Cutting Tools
- Medical Devices
- Robotics
- Beverage Dispensing
- Gaming/Recreational Machines
The Hansen series 121-9 gear motor matches our 2.1" diameter DC brush motor with a 2" diameter plastic planetary gearbox. The planet gears share the load attached to the output shaft giving the planetary arrangement a higher torque to volume ratio with low backlash compared to a spur gear arrangement. Dozens of ratios are available up to 2653:1. Encoders can also be added.
Additional Product Details

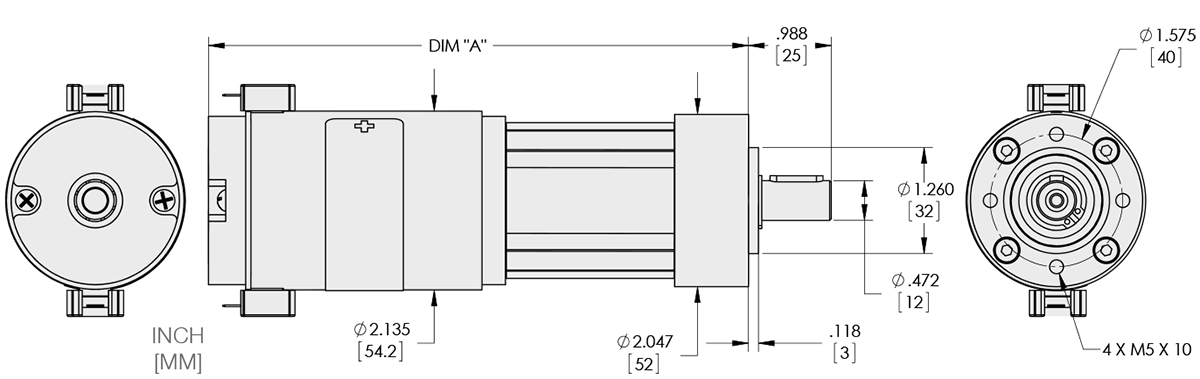

Series 121-9 - 2.1" Planetary Gear Motor (Plastic) Outline Drawing

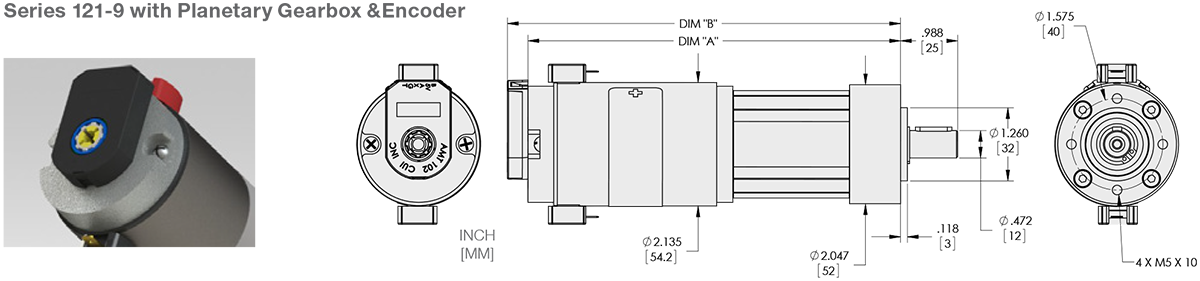

Series 121-9 - 2.1" Planetary Gear Motor (Plastic) Standard Options

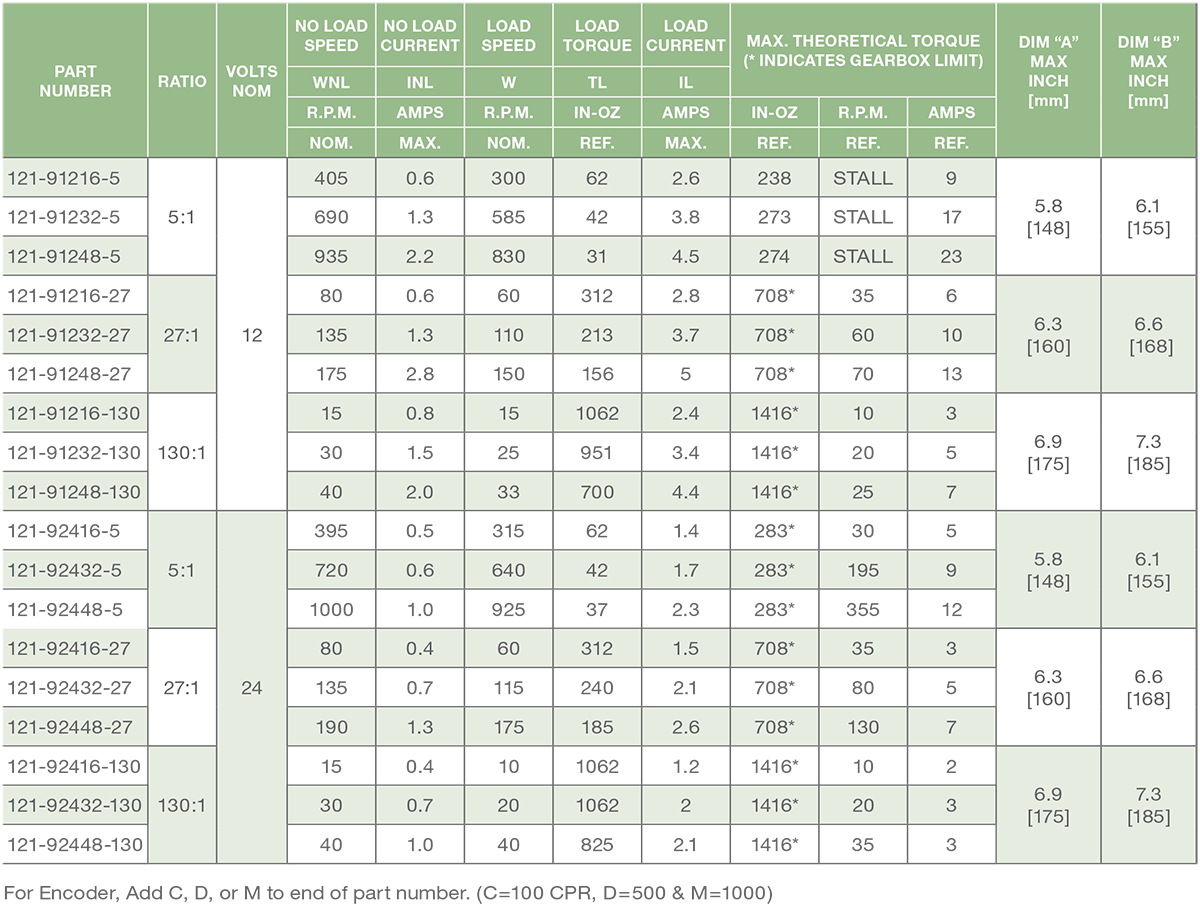

Series 121-9 - 2.1" Planetary Gear Motor (Plastic) Performance

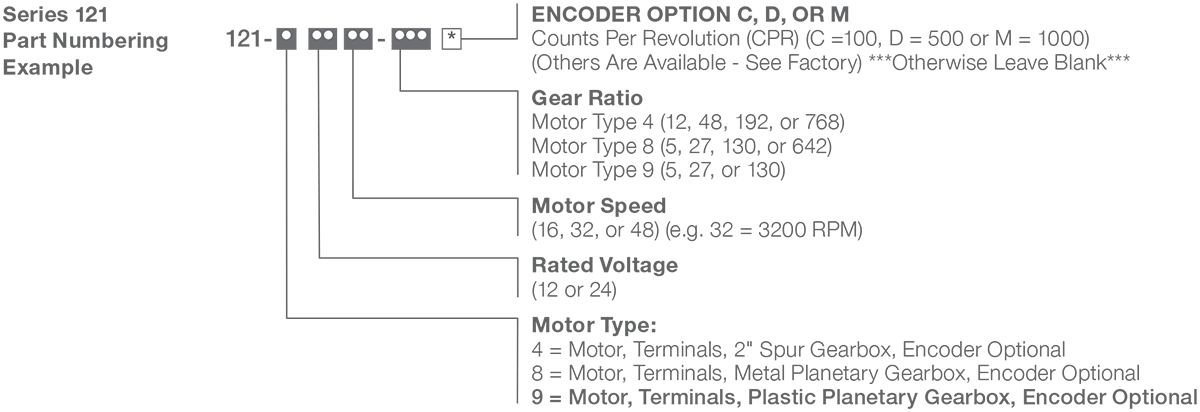

Series 121-9 - 2.1" Planetary Gear Motor (Plastic) Numbering Example
