Series 116-4 - 1.6" DC Spur Gear Motor
Typical Applications
- Printers
- Plotters
- Pumps
- Fans
- Cutting Tools
- Medical Devices
- Robotics
- Beverage Dispensing
- Gaming/Recreational Machines
Hansen offers our 1.6" diameter DC brush motor on a 2" diameter spur gearbox. This motor is offered in a wide range of operating voltages along with several optional features. Optional features offered include encoders, voltages, noise suppressors, custom shafting, custom leads and terminations, custom mounting and rear shaft extensions. Maximum intermittent output torque is 500 oz-in.
Additional Product Details

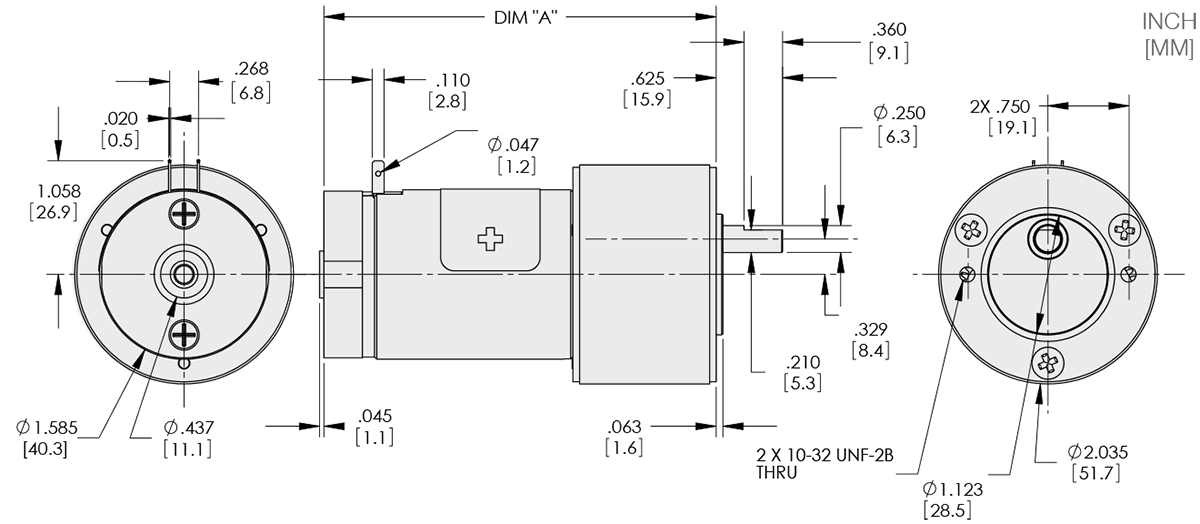

Series 116-4 - 1.6" DC Spur Gear Motor Outline Drawing

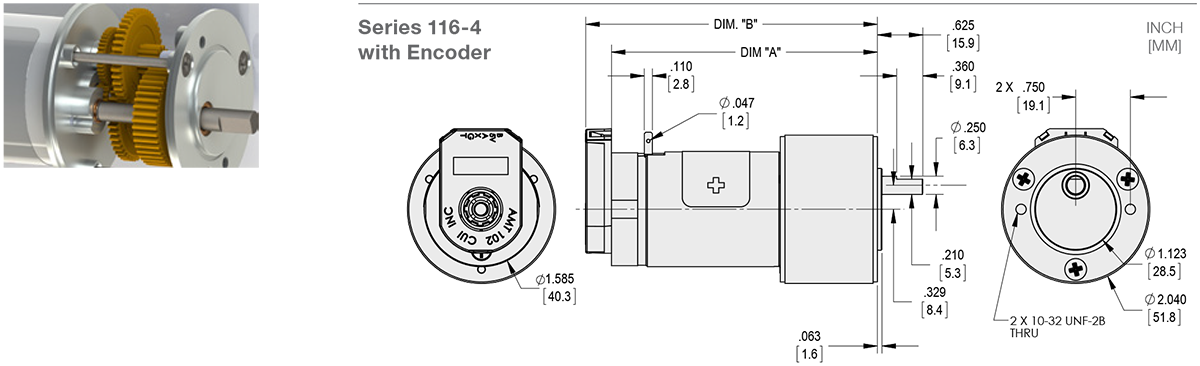

Series 116-4 - 1.6" DC Spur Gear Motor Standard Options

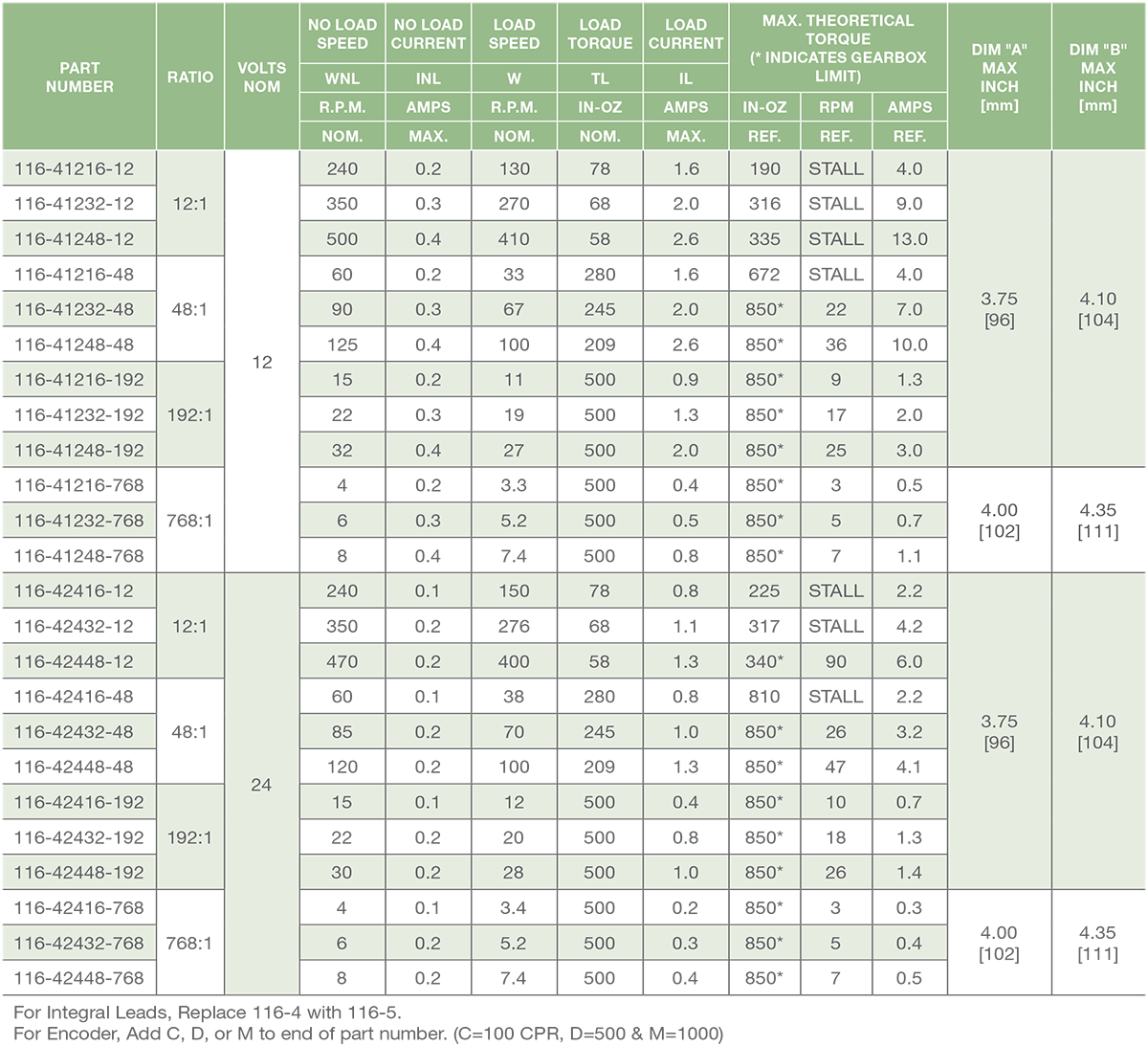

Series 116-4 - 1.6" DC Spur Gear Motor Performance

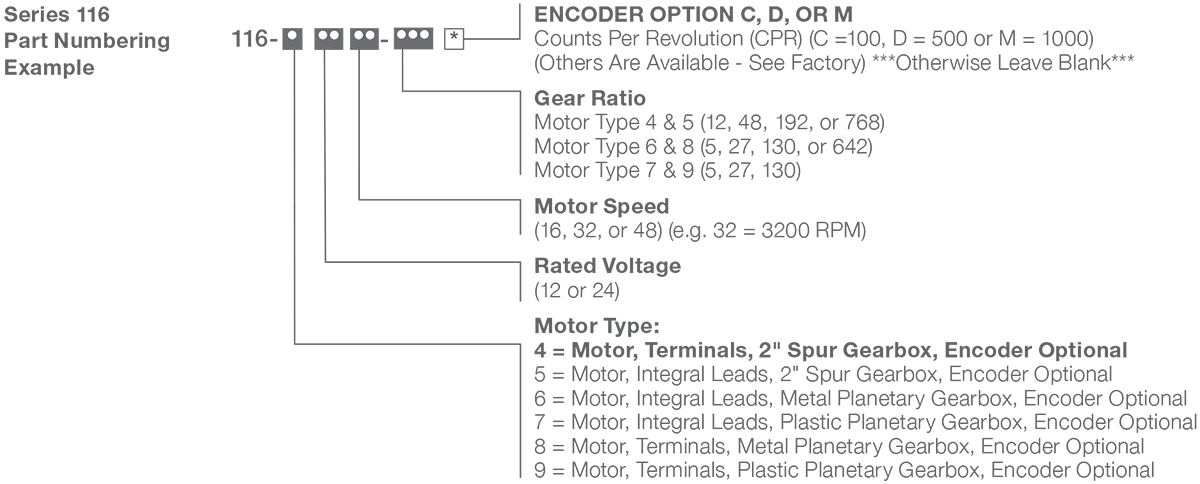

Series 116-4 - 1.6" DC Spur Gear Motor Numbering Example
