Brushless DC Motor Drive
48V 12A/24A Simplified Speed Control
![](/assets/images/products-v24/drives/output/cpp-a12v48-ez-100.png)
![CPP-A12V48-EZ Motor Drive](/img/products/drives/pic_cpp-a12v48-ez.jpg)
![CPP-A12V48-EZ Motor Drive](/img/products/drives/pic_cpp-a12v48-ez_2.jpg)
![CPP-A12V48-EZ Motor Drive](/img/products/drives/pic_cpp-a12v48-ez_3.jpg)
![CPP-A12V48-EZ Motor Drive](/img/products/drives/pic_cpp-a12v48-ez_4.jpg)
Product Details
Overview & Features
The EZ Drive is a simple & cost effective BLDC speed control drive, offering several standard capacities in the model lineup. Customized versions are also offered to meet large volume OEM requirements. Compatible with Brushless DC motors from 12 to 48VDC and up to 24A continuous, 48A peak current.
- Brushless DC motor speed control.
- 2 quadrant control.
- Analog speed control (0-10VDC).
- Trapezoidal commutation.
- Halls only operation mode.
- Encoder feedback mode for low speed precision.
- Digital tach output for external speed monitoring.
- Built-in short-circuit, overcurrent, over-temperature and over-voltage protection.
- Easy to configure hardware settings supporting a wide range of BLDC motors.
Models & Performance
![](/img/products/drives/legend_cpp-a12v48-ez.png)
Model Names | CPP-A06V48A-SA-EZ | CPP-A12V48A-SA-EZ | CPP-A24V48A-SA-EZ |
---|---|---|---|
Characteristics | |||
Input Voltage (VDC) | 12 to 48 | ||
Output Voltage (VDC) | 12 to 48 | ||
Output Power, Peak (W) | 576 | 1152 | 2304 |
Max Current - Amps Peak of Sine (2 seconds) | 12 | 24 | 48 |
Max Current - Amps RMS (2 seconds) | 8.5 | 17.0 | 33.9 |
Continuous Current - Amps Peak of Sine | 6 | 12 | 24 |
Continuous Current - Amps RMS | 4.2 | 8.5 | 17.0 |
PWM Output Frequency (kHZ) | 25 | ||
Efficiency | 97% | ||
Derating for PCBA models w/out heat sink | 25% of Rated Values | ||
Control Methods | |||
Analog Speed Control | 0-10VDC | ||
Internal Speed Control | Hardware setting + user accessible potentiometer | ||
Feedback | |||
Hall Sensors | 120° | ||
Encoder Feedback | Single phase pulse train, up to 20kHz | ||
Speed Resolution | 32bit | ||
Control Loops | |||
Speed Loop Update | 25kHz | ||
Inputs | |||
Hall Inputs | TTL, CMOS, Open Collector (0-5V) | ||
Digital Tach/Encoder Input | TTL, CMOS, Open Collector (0-5V) | ||
Digital Inputs | x3 (1 enable, 1 direction, 1 brake) | ||
Analog Input | 0-10VDC command input for speed | ||
Outputs | |||
Digtial Outputs | x2 (1 tach, 1 fault) | ||
Auxiliary Voltage for Feedback Device | 5VDC / 250mA | ||
Display | |||
LED's | Green - Ready | ||
Red - Fault | |||
Environment | |||
Ambient Temperature | 0 to 40 C° | ||
Humidity | 5% to 95% RH, Non-Condensing | ||
Supported Motors | |||
Brushless DC (BLDC) | ElectroCraft RPX, LRPX, RP, RPP, RPE, MP, MPW and 3rd party BLDC motors |
Drawings

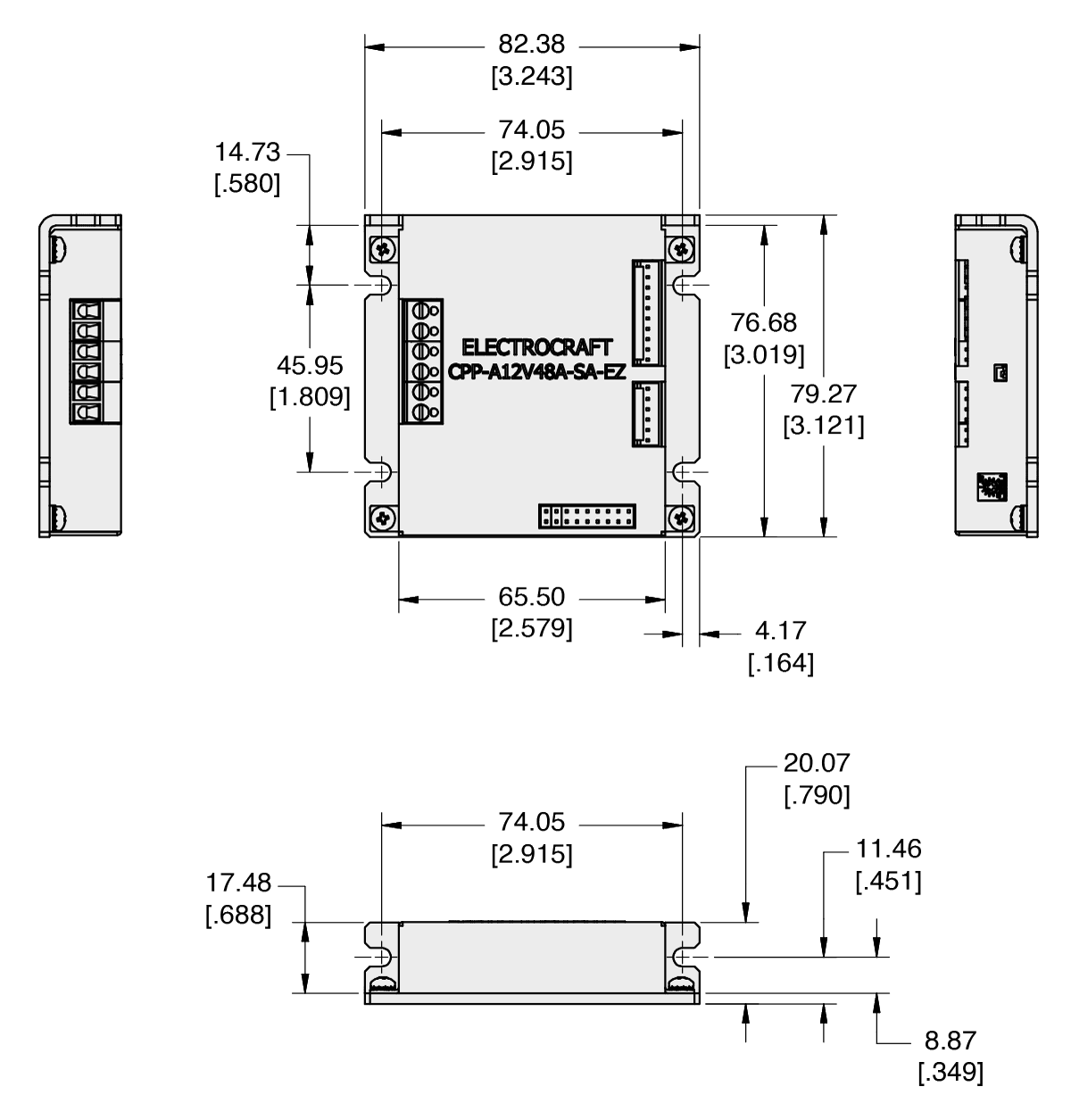

Dimensional Drawing
Connector Pinouts

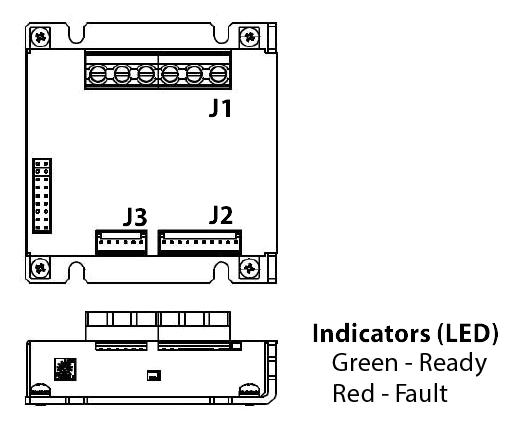

Connector Locations and Pin Numbers
J1 - Power & Phase
Pin # | Name | I/O | Description |
---|---|---|---|
1 | GND | Input | DC Power Input - supply return |
2 | Power | Input | DC Power Input - supply |
3 | PE | - | Connected to drive chassis |
4 | A | Output | BLDC Motor Phase A |
5 | B | Output | BLDC Motor Phase B |
6 | C | Output | BLDC Motor Phase C |
J2 - I/O
Pin # | Name | I/O | Description |
---|---|---|---|
1 | Frame | - | Connected to drive chassis |
2 | Analog In | Input | Analog input for speed control |
3 | Enable | Input | Drive enable, digital input |
4 | Tach Out | Output | Tach (speed), digital output |
5 | Fault Out | Output | Fault, digital output |
6 | +5V Out | Output | +5V DC Power, internally generated |
7 | NC | - | - |
8 | DIR | Input | Direction, digital input |
9 | Brake | Input | Brake, digital input |
10 | GND | - | Digital ground |
J3 - Hall & Tach
Pin # | Name | I/O | Description |
---|---|---|---|
1 | Hall 1 | Input | Hall Signal A; Internal pull up to +5VDC |
2 | Hall 2 | Input | Hall Signal B; Internal pull up to +5VDC |
3 | Hall 3 | Input | Hall Signal C; Internal pull up to +5VDC |
4 | Tach In | Input | Digital Tach input, +5V digital pulse train |
5 | +5V Out | Output | +5V DC power, internally generated |
6 | GND | - | Digital ground |
Jumper Block
Jumper | Name | Description |
---|---|---|
1 | Speed Control Mode | ON: Speed control with potentiometer OFF: Speed control using external analog voltage |
2 | Feedback Mode | ON: Hall mode OFF: Tach mode |
3 | User Max Speed Setting | 16 different settings Up to 18,000 RPM in Hall Mode, 1000 RPM in Tach Mode |
4 | ||
5 | ||
6 | ||
7 | User Max Current Setting | CPP-A06V48A-SA-EZ: 8 settings from 0.75A up to 6.0A CPP-A12V48A-SA-EZ: 8 settings from 1.5A up to 12A CPP-A24V48A-SA-EZ: 8 settings from 3.0A up to 24A |
8 | ||
9 |
Accessories
Photo | Model |
Description |
---|---|---|
![]() |
44-0001150 | Hall & Tach Mtr Interface 6 pin w/ flying leads |
![]() |
44-0001152 | I/O Interface 10 pin w/ flying leads |
![]() |
178-0000032 | CPP Quick Start Kit |
Motor Compatibility
Brushless DC Motors
Stepper Motors
Linear Actuators
Please contact ElectroCraft if the motor you are searching for is not included in the charts below.
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
RPX, LRPX | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
RPX16-005V12 | TBD | TBD | 12 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |
RPX16-005V24 | TBD | TBD | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
RPX16-005V48 | TBD | TBD | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
LRPX16-005V12 | TBD | TBD | 12 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
LRPX16-005V24 | TBD | TBD | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
LRPX16-005V48 | TBD | TBD | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
RPX16-007V12 | TBD | TBD | 12 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
RPX16-007V24 | TBD | TBD | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
RPX16-007V48 | TBD | TBD | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
RPX22-042V12 | 5.0 | 10.8 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
RPX22-042V24 | 2.5 | 5.5 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | ||
RPX22-042V48 | 1.3 | 2.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
LRPX22-042V12 (3:1 to 66:1) | 3.5 | 5.0 to 10.8 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX22-042V12 (81:1 ) | 3.2 | 4.0 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
LRPX22-042V12 (94:1 to 624:1) | 0.7 to 2.8 | 0.9 to 3.5 | 12 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
LRPX22-042V24 (3:1 to 19:1) | 1.8 | 5.5 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | ||
LRPX22-042V24 (27:1 to 624:1) | 0.4 to 1.8 | 0.4 to 4.2 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
LRPX22-042V48 (3:1 to 624:1) | 0.2 to 0.9 | 0.2 to 2.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
RPX32-090V12 | 7.6 | 23.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
RPX32-090V24 | 3.8 | 11.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
RPX32-090V48 | 1.9 | 5.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX32-090V12 (3:1 to 19:1) | 4.2 | 23.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
LRPX32-090V12 (24:1 to 28:1) | 4.2 | 16.6 to 19.6 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
LRPX32-090V12 (33:1) | 4.2 | 14.0 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
LRPX32-090V12 (50:1 to 60:1) | 4.2 | 15.5 to 18.3 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
LRPX32-090V12 (76:1) | 4.2 | 12.1 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
LRPX32-090V12 (90:1 to 192:1) | 4.0 to 4.2 | 4.8 to 10.2 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX32-090V12 (246:1 to 291:1) | 2.9 to 3.4 | 3.5 to 4.2 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
LRPX32-090V12 (344:1 to 999:1) | 0.8 to 2.5 | 0.9 to 3.0 | 12 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
LRPX32-090V24 (3:1 to 19:1) | 2.1 | 11.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
LRPX32-090V24 (24:1 to 28:1) | 2.1 | 8.3 to 9.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX32-090V24 (33:1 to 107:1) | 2.1 | 4.3 to 7.0 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | ||
LRPX32-090V24 (116:1 to 999:1) | 0.4 to 2.1 | 0.5 to 4.0 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
LRPX32-090V48 (3:1 to 24:1) | 1.1 | 4.9 to 5.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX32-090V48 (192:1 to 999:1) | 0.2 to 1.0 | 0.2 to 4.1 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
RPX32-150V12 | 12.6 | 36.8 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
RPX32-150V24 | 6.7 | 19.6 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
RPX32-150V48 | 3.3 | 9.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
RPX40-125V12 | 6.6 | 19.7 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
RPX40-125V24 | 3.3 | 9.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
RPX40-125V48 | 1.6 | 4.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
RPX40-250V12 | 10.9 | 33.3 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
RPX40-250V24 | 5.5 | 16.7 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
RPX40-250V48 | 2.7 | 8.3 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX40-250V12 (3:1 to 63:1) | 6.8 | 21.6 to 33.3 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
LRPX40-250V12 (69:1 to 93:1) | 6.8 | 14.4 to 19.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
LRPX40-250V12 (103:1 to 126:1) | 6.8 | 10.7 to 13.1 | 12 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | ||
LRPX40-250V12 (170:1 to 232:1) | 4.3 to 5.3 | 6.4 to 7.9 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
LRPX40-250V12 (257:1 to 346:1) | 2.9 to 3.9 | 4.3 to 5.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX40-250V12 (383:1 to 941:1) | 1.1 to 2.6 | 1.6 to 3.9 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
LRPX40-250V24 (3:1 to 46:1) | 3.4 | 14.5 to 16.7 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
LRPX40-250V24 (57:1 to 63:1) | 3.4 | 10.8 to 11.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
LRPX40-250V24 (69:1 to 126:1) | 3.4 | 5.4 to 9.7 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX40-250V24 (170:1 to 941:1) | 0.5 to 2.6 | 0.8 to 4.0 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
LRPX40-250V48 (3:1 to 76:1) | 1.7 | 4.4 to 8.3 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
LRPX40-250V48 (93:1 to 941:1) | 0.3 to 1.7 | 0.4 to 3.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||
RPX40-325V12 | 10.2 | 31.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
RPX40-325V24 | 5.1 | 15.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
RPX40-325V48 | 2.6 | 7.7 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
RPX52-300V12 | 20.0 | 36.8 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A40V24A | ||
RPX52-300V24 | 10.0 | 17.4 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
RPX52-300V48 | 5.0 | 8.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
RPX52-600V12 | 24.0 | 56.3 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A40V24A | ||
RPX52-600V24 | 12.0 | 26.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
RPX52-600V48 | 6.0 | 12.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
RPX52-750V24 | 14.1 | 55.8 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A40V24A | ||
RPX52-750V48 | 7.1 | 28.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A24V80A |
- Note1: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
RapidPower - RP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() |
RP17-12V24 | RP17M-8V24 | 4.2 | 7.6 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A |
RP17-12V48 | RP17M-8V48 | 2.1 | 3.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |
RP17-12V60 | RP17M-8V60 | 1.7 | 3.0 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | |
RP17-22V24 | RP17M-16V24 | 3.6 | 9.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
RP17-22V48 | RP17M-16V48 | 1.8 | 4.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
RP17-22V60 | RP17M-16V60 | 1.4 | 3.9 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | |
RP17-36V24 | RP17M-25V24 | 3.7 | 10.4 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
RP17-36V48 | RP17M-25V48 | 1.4 | 5.2 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
RP17-36V60 | RP17M-25V60 | 1.4 | 4.2 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | |
RP17-45V24 | RP17M-32V24 | 3.6 | 10.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
RP17-45V48 | RP17M-32V48 | 1.8 | 5.5 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
RP17-45V60 | RP17M-32V60 | 1.4 | 4.4 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | |
RP23-26V12 | RP23M-18V12 | 5.3 | 11.0 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
RP23-26V24 | RP23M-18V24 | 4.6 | 9.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
RP23-26V48 | RP23M-18V48 | 2.6 | 6.5 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
RP23-34V12 | RP23M-24V12 | 8.6 | 17.5 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
RP23-34V24 | RP23M-24V24 | 4.5 | 10 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
RP23-34V48 | RP23M-24V48 | 2.5 | 7.0 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | |
RP23-54V12 | RP23M-38V12 | 8.7 | 15.9 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
RP23-54V24 | RP23M-38V24 | 5.7 | 18.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
RP23-54V48 | RP23M-38V48 | 4.2 | 11.1 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
RP23-73V24 | RP23M-52V24 | 8.3 | 25.3 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
RP23-73V48 | RP23M-52V48 | 4.7 | 14.4 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
RP34-112V24 | RP34M-79V24 | 24.4 | 85.2 | 24 | N/A | N/A | CPP-A40V24A | |
RP34-112V48 | RP34M-79V48 | 12.1 | 42.4 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
RP34-112V90 | RP34M-79V90 | 6.1 | 21.2 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
RP34-217V24 | RP34M-153V24 | 22.3 | 76.0 | 24 | N/A | N/A | CPP-A40V24A | |
RP34-217V48 | RP34M-153V48 | 16.9 | 59.1 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
RP34-217V90 | RP34M-153V90 | 8.9 | 31.1 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
RP34-313V24 | RP34M-221V24 | 22.7 | 68.1 | 24 | N/A | N/A | CPP-A40V24A | |
RP34-313V48 | RP34M-221V48 | 17.0 | 59.5 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
RP34-313V90 | RP34M-221V90 | 11.3 | 39.7 | 90 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A |
- Note1: CPP-A40V24A maximum continuous & peak currents = 28.3Arms & 70.7Arms. Maximum output voltage = 24VDC
- Note2: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms. Maximum output voltage = 80VDC
- Note3: CPP-A24V80A maximum continuous & peak currents = 17Arms & 42.4Arms. Maximum output voltage = 80VDC
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
RapidPower Plus - RPP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() |
RPP23-64V48 | RPP23M-45V48 | 3.0 | 11.0 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A |
RPP23--98V48 | RPP23M-69V48 | 4.5 | 15.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
RPP23-118V48 | RPP23-83V48 | 6.0 | 20.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
RPP23-154V48 | RPP23M-108V48 | 7.3 | 25.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A |
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
MPW | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() ![]() |
MPW52-300V24 | 6.4 | 17.4 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
MPW52-300V48 | 3.4 | 8.6 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V80A | ||
MPW52-600V24 | 11.4 | 26.5 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
MPW52-600V48 | 5.6 | 12.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
MPW86-120V24 (10:1) | 22.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A | ||
MPW86-120V48 (10:1) | 15.0 | 40.0 | 48 | N/A | N/A | CPP-A24V80A | ||
MPW86-185V24 (10:1) | 30.0 | 73.0 | 24 | N/A | N/A | CPP-A40V24A | ||
MPW86-185V48 (10:1) | 16.0 | 29.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
MPW86-120V24 (20:1) | 21.0 | 47.0 | 24 | N/A | N/A | CPP-A40V24A | ||
MPW86-120V48 (20:1) | 13.0 | 23.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
MPW86-185V24 (20:1) | 24.0 | 43.0 | 24 | N/A | N/A | CPP-A40V24A | ||
MPW86-185V48 (20:1) | 10.0 | 17.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A |
- Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
MP, MPP, MPS | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() ![]() |
All MP24 (24V windings, all ratios) | up to 23.5 | 58.5 | 24 | N/A | N/A | CPP-A40V24A | |
All MP24 (48V windings, all ratios) | up to 11.8 | 29.3 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
All MPP24 (24V windings, all ratios) | up to 30.0 | 65 | 24 | N/A | N/A | CPP-A40V24A | ||
All MPP24 (48V windings, all ratios) | up to 15.0 | 32.5 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A |
- Note1: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms
- Note2: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
MP, MPP, MPS | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() ![]() ![]() |
All MP26, MP36 (24V windings, all ratios) | up to 25.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A | |
All MPP26, MPP36 (24V windings, all ratios) | up to 30.0 | 100.0 | 24 | N/A | N/A | CPP-A40V24A | ||
MPS Series (24V windings, all models) | up to 28.0 | 80.0 | 24 | N/A | N/A | CPP-A40V24A |
- Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
DirectPower - DP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() |
DP20-10V12 | DP20M-07V12 | 3.8 | 11.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A |
DP20-10V24 | DP20M-07V24 | 1.9 | 5.7 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | |
DP20-15V12 | DP20M-11V12 | 4.0 | 13.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
DP20-15V24 | DP20M-11V24 | 2.0 | 6.7 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | |
DP20-20V12 | DP20M-14V12 | 4.3 | 11.5 | 12 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | |
DP20-20V24 | DP20M-14V24 | 2.1 | 2.7 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |
DP25-30V12 | DP25M-21V12 | 9.0 | 32.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DP25-30V24 | DP25M-21V24 | 5.0 | 16.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
DP25-35V24 | DP25M-25V24 | 5.0 | 20.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
DP25-45V12 | DP25M-32V12 | 8.0 | 30.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DP25-45V24 | DP25M-32V24 | 4.0 | 16.0 | 24 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
DP30-60V12 | 9.0 | 27.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | ||
DP30-60V24 | 4.0 | 14.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||
DP30-75V12 | 7.0 | 14.0 | 12 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | ||
DP30-75V24 | 3.0 | 7.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | ||
DP30-85V12 | 5.0 | 15.0 | 12 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | ||
DP30-85V24 | 3.0 | 6.0 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A |
- Note1: PRO-A20V80A maximum peak current = 28.2Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
DirectPower Plus - DPP | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() |
DPP240(T)-29V48 | DPP240M(T)-20V48 | 2.0 | 16.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A |
DPP240(T)-29V60 | DPP240M(T)-20V60 | 2.0 | 14.0 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A12V80A | |
DPP242(T)-44V48 | DPP242M(T)-31V48 | 4.0 | 27.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP242(T)-44V60 | DPP242M(T)-31V60 | 3.0 | 21.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
DPP243(T)-52V48 | DPP243M(T)-36V48 | 5.0 | 32.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP243(T)-52V60 | DPP243M(T)-36V60 | 4.0 | 25.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP642(T)-100V48 | DPP642M(T)-70V48 | 6.0 | 25.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP642(T)-100V60 | DPP642M(T)-70V60 | 5.0 | 20.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A12V80A | |
DPP643(T)-165V48 | DPP643M(T)-116V48 | 6.0 | 30.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP643(T)-165V60 | DPP643M(T)-116V60 | 6.0 | 23.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP644(T)-210V48 | DPP644M(T)-148V48 | 7.0 | 28.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP644(T)-210V60 | DPP644M(T)-148V60 | 5.0 | 22.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP681(T)-90V48 | DPP681M(T)-64V48 | 7.0 | 30.0 | 48 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP681(T)-90V60 | DPP681M(T)-64V60 | 6.0 | 25.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A | |
DPP701-150V60 | DPP701M-106V60 | 4.0 | 27.0 | 60 | PRO-A20V80A | PRO-A20V80A | CPP-A24V80A |
- Note1: PRO-A20V80A maximum peak current = 28.2Arms
- Note1: PRO-A20V80A maximum peak current = 28.2Arms
Motor Series | Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | |||
---|---|---|---|---|---|---|---|---|
TorquePower Enhanced - TPE | Imperial | Metric | PRO-Series (-CAN) | PRO-Series (-CAT) | CPP-Universal Drive | |||
![]() |
TPE17-45A10 | TPE17M-32A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||
TPE17-45A15 | TPE17M-32A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE17-45A20 | TPE17M-32A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE17-63A10 | TPE17M-44A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE17-63A15 | TPE17M-44A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE17-63A20 | TPE17M-44A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE17-78A10 | TPE17M-55A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE17-78A15 | TPE17M-55A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE17-78A20 | TPE17M-55A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE23-100A10 | TPE23M-71A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE23-100A20 | TPE23M-71A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE23-100A30 | TPE23M-71A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
TPE23-166A10 | TPE23M-117A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE23-166A20 | TPE23M-117A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE23-166A30 | TPE23M-117A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | |||
TPE23-294A10 | TPE23M-208A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE23-294A20 | TPE23M-208A20 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | |||
TPE23-294A30 | TPE23M-208A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A |
Documents & Downloads
Download | Description |
---|---|
CPP EZ Drives Data Sheet (US) | Data Sheet (PDF) |
CPP EZ Drive User Manual | Drive User Manual (PDF) |
ElectroCraft Rapid Delivery Program
Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.
Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.
Customers are responsible for all freight charges.
Rapid Delivery to:
Select the region where the product would be delivered to.
The Americas - View Cart
Part Number | Description | Add to Cart |
---|---|---|

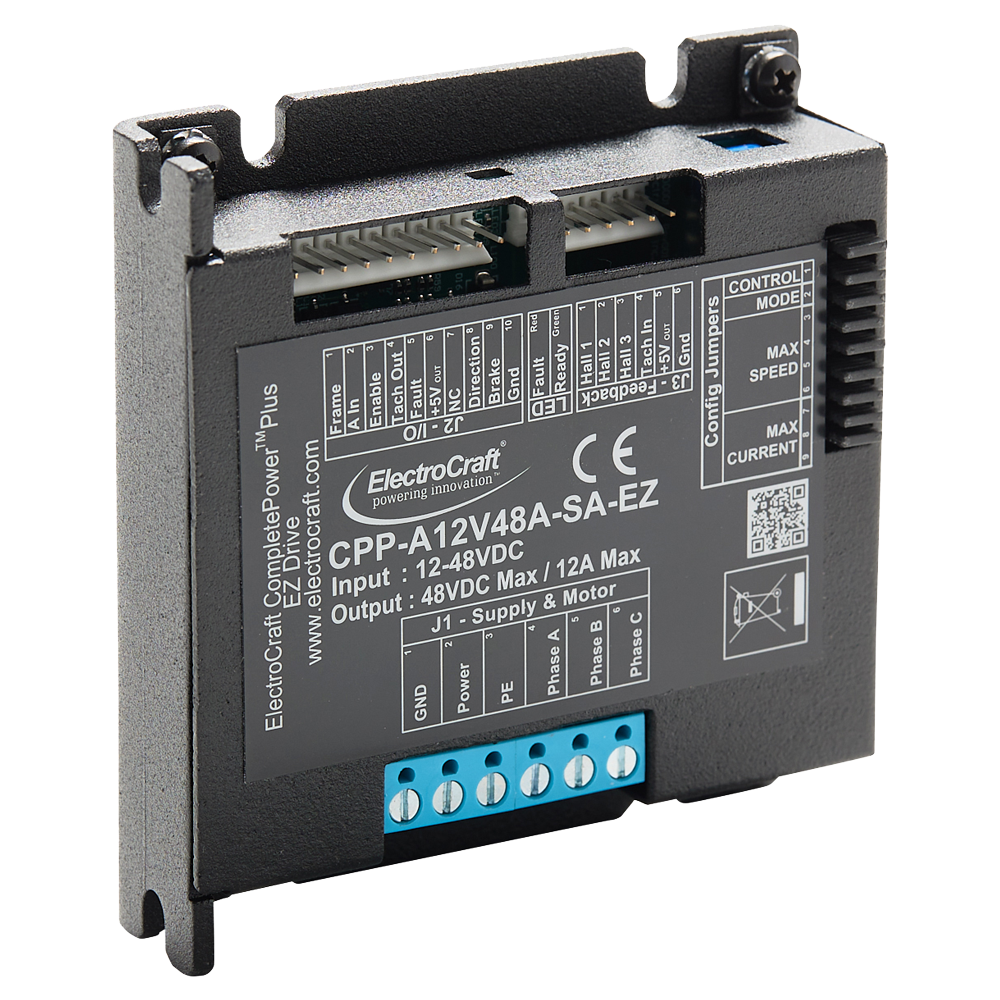

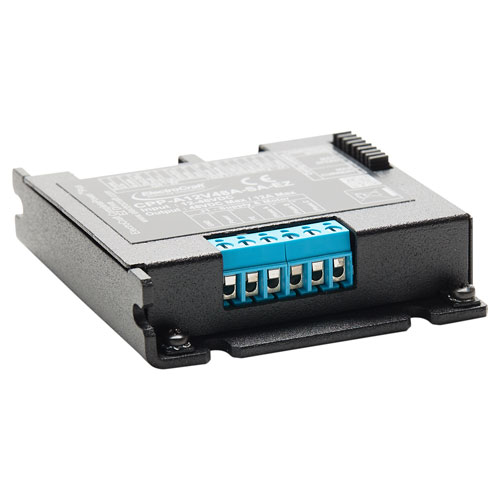

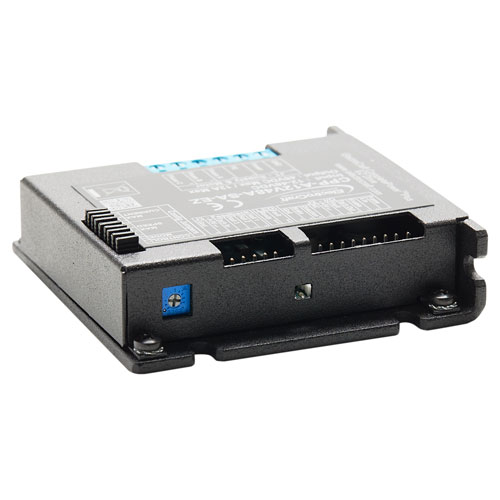

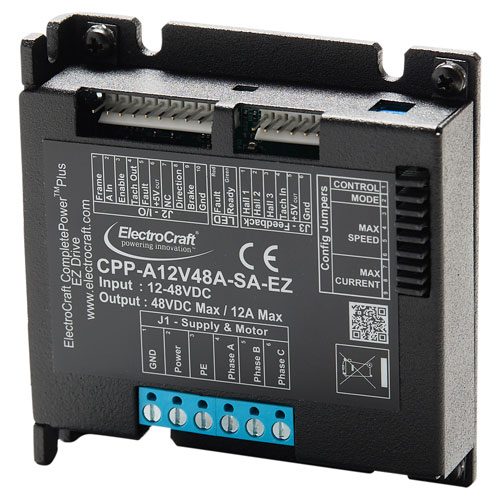

CPP-A12V48A-SA-EZ | EZ Drive for Brushless DC Motors: 12 to 48 VDC, Peak Output to 48 Amps, Continuous Output to 24 Amps | Buy Now |
Europe, the Middle East and Africa
Part Number | Description | Typical Lead Time |
---|---|---|
No products available |
Asia
Part Number | Description | Typical Lead Time |
---|---|---|
No products available |
