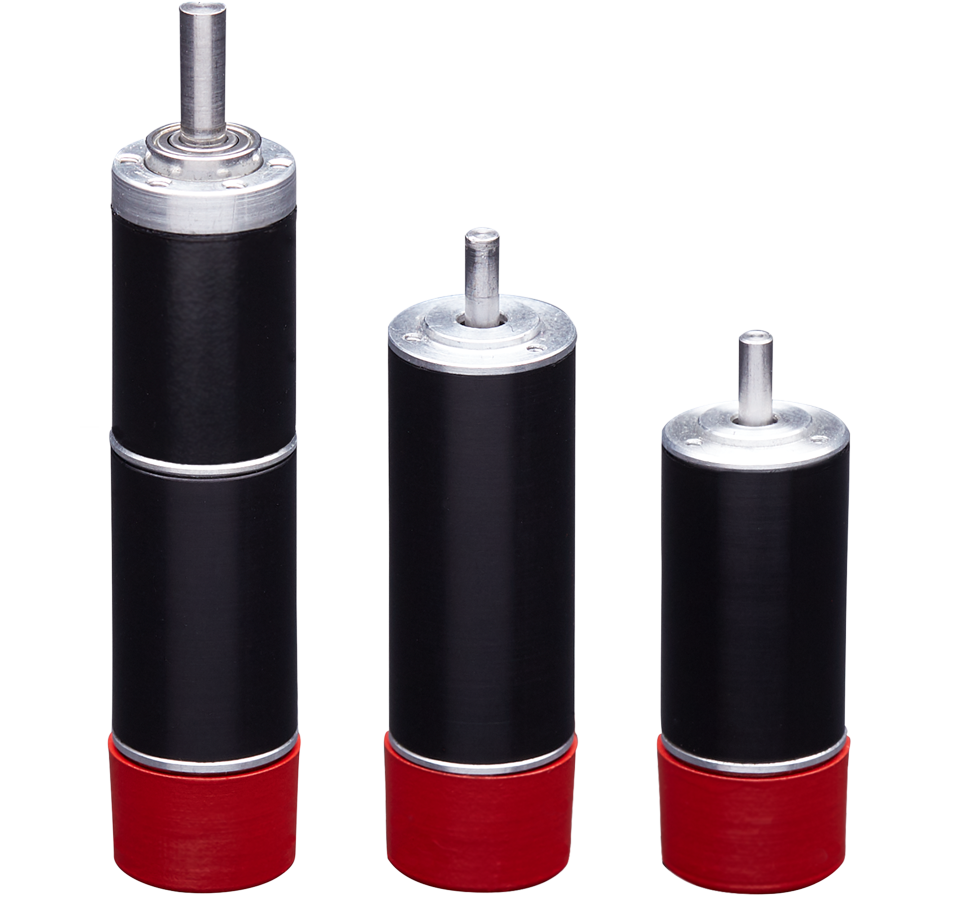

RPX16 Brushless DC Motor
RapidPower™ Xtreme Series
Product Details
Overview & Features
a. New from ElectroCraft, the RPX16 is a highly dynamic small frame brushless DC motor. With an advanced 4-pole encapsulated core, this compact brushless motor offers high torque density at a very affordable price. The RPX16 is available in 12V, 24V and 48V versions and like all ElectroCraft motors is fully customizable. This versatile motor is highly energy efficient and ideal for embedded applications. All versions of the RPX16 include hall sensor feedback and can be configured with an optional encoder (differential, optical encoder with up to 1600 lines)
| RPX16 | Stack Size and Winding Models | |||||
|---|---|---|---|---|---|---|
| Specifications | RPX16-007V12 | RPX16-007V24 | RPX16-007V48 | RPX16-013V12 | RPX16-013V24 | RPX16-013V48 |
| Design Voltage (VDC) | 12 | 24 | 48 | 12 | 24 | 48 |
| No load speed (RPM) | 19,250 | 15,900 | ||||
| Peak Torque (oz-in) | 2.3 | 4.9 | ||||
| Peak Torque (mNm) | 16.0 | 35.0 | ||||
| Peak Current (Amps) | 3.7 | 1.9 | 0.9 | 6.6 | 3.3 | 1.7 |
| Continuous Stall Torque* (oz-in) | 1.0 | 1.8 | ||||
| Continuous Stall Torque* (mNm) | 7.0 | 13.0 | ||||
| Continuous Stall Current (Amps) | 1.6 | 0.8 | 0.4 | 2.4 | 1.2 | 0.6 |
| Continuous Rated Torque* (oz-in) | 1.0 | 1.8 | ||||
| Continuous Rated Torque* (mNm) | 7.0 | 13.0 | ||||
| Continuous Rated Current (Amps) | 1.6 | 0.8 | 0.4 | 2.4 | 1.2 | 0.6 |
| Continuous Rated Speed (RPM) | 12,310 | 11,650 | ||||
| Voltage Constant (V / kRPM) | 0.6 | 1.2 | 2.5 | 0.8 | 1.5 | 3.0 |
| Torque Constant (oz-in / Amp) | 0.8 | 1.6 | 3.4 | 1.0 | 2.0 | 4.1 |
| Torque Constant (mNm / Amp) | 5.9 | 11.4 | 23.8 | 7.2 | 14.3 | 28.6 |
| Resistance (Ohms) | 2.3 | 9.1 | 45.6 | 2.0 | 8.2 | 32.0 |
| Inductance (mH) | 151.0 | 611.0 | 2,550.0 | 115.0 | 510.0 | 2,100.0 |
| Motor Constant (oz-in / √ Watt) | 0.6 | 0.5 | 0.5 | 0.7 | 0.7 | 0.7 |
| Motor Constant (mNm / √ Watt) | 3.9 | 3.8 | 3.5 | 5.1 | 5.0 | 5.1 |
| Electrical Constant (msec) | 65.65 | 67.14 | 55.92 | 57.50 | 62.20 | 65.63 |
| Mechanical Constant (msec) | 3.29 | 3.29 | 3.29 | 3.04 | 3.04 | 3.04 |
| Thermal Time Constant (sec) | 297.0 | 315.0 | ||||
| Rotor inertia (oz-in²) | 0.0027 | 0.0044 | ||||
| Rotor inertia (g-cm²) | 0.5 | 0.8 | ||||
| Thermal Resistance (C / Watt) | 10.60 | 8.90 | ||||
| Axial Load (N) 5mm from face | 1.0 | 1.0 | ||||
| Radial Load (N) 5mm from face | 10.0 | 10.0 | ||||
| Weight (oz) | 0.9 | 1.3 | ||||
| Weight (g) | 26.00 | 36.00 | ||||
| Length (inch) | 1.1 | 1.5 | ||||
| Length (mm) | 29.1 | 39.1 | ||||
| Number of Poles | 4.0 | 4.0 | ||||
| Notes: | *Continuous rating based on a 25°C ambient temperature, winding temperature rise of 125°C. Mounted on a 150 X 150 X 6 mm aluminum heat sink. | |||||

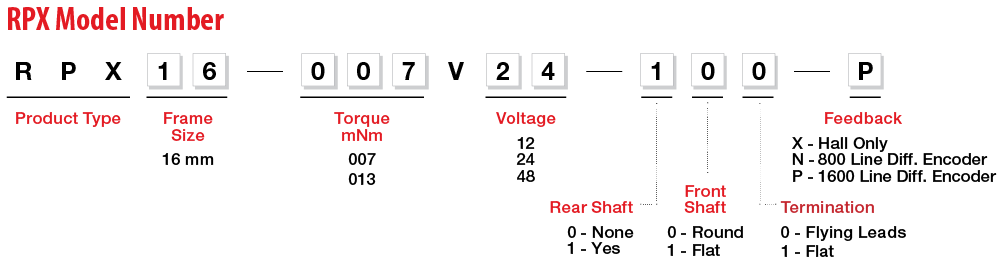

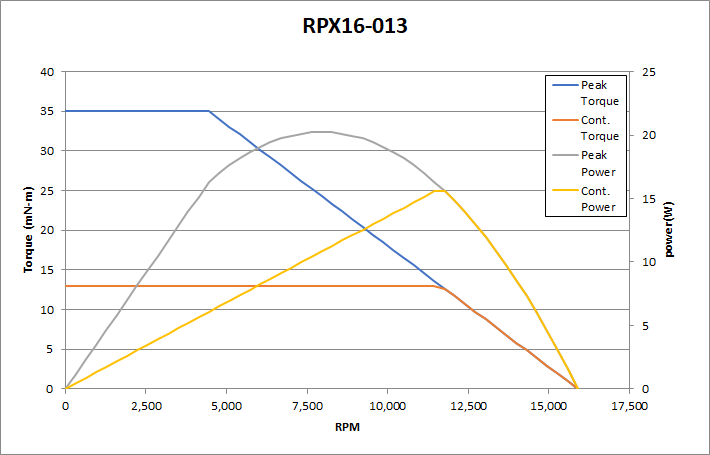

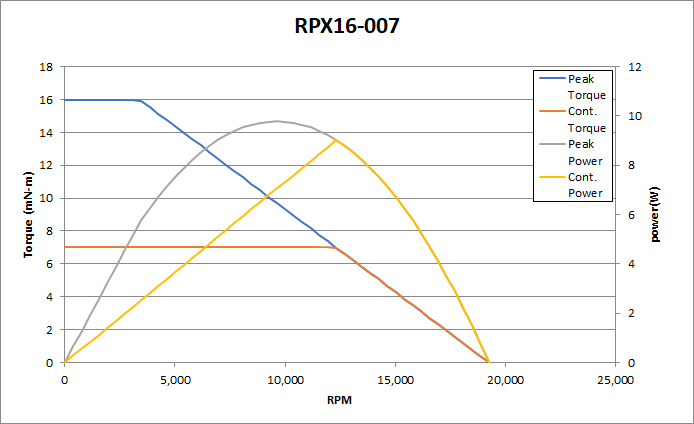

Performance Curves

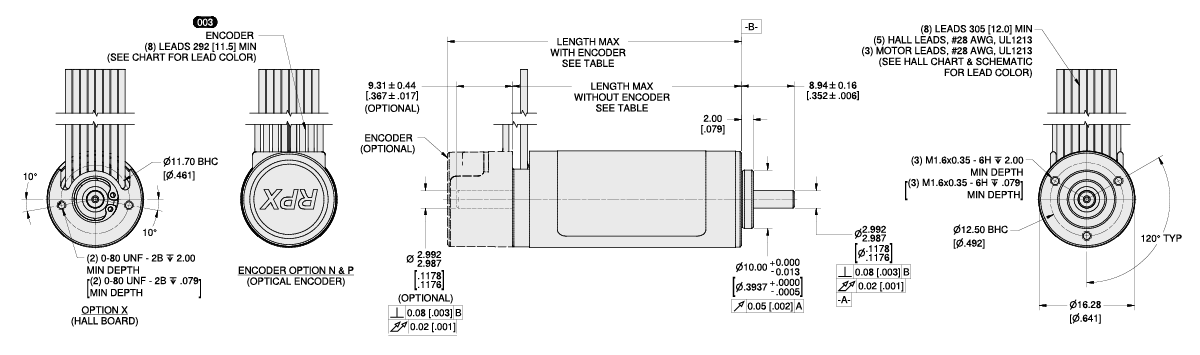

Dimensional Drawing

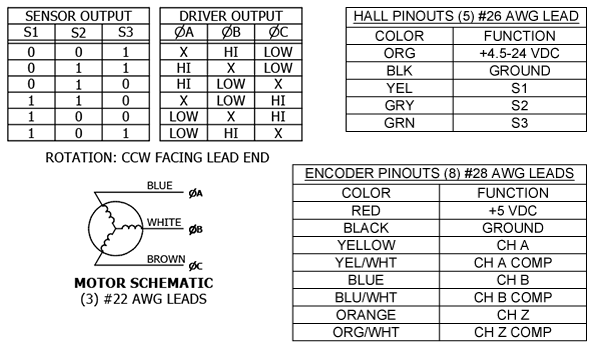

Connector Pinouts
Drive Compatibility
Please contact ElectroCraft if the drive you are searching for is not included in the charts below.
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| RPX16-007V12 | 1.6 | 3.7 | 12 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | CPP-A06V48A | |
| RPX16-007V24 | 0.8 | 1.9 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | CPP-A06V48A | |
| RPX16-007V48 | 0.4 | 0.9 | 48 | PRO-A08V48B | PRO-A04V48B | CPP-B06V48A | CPP-A06V48A | |
| RPX16-013V12 | 2.4 | 6.6 | 12 | PRO-A08V48B | PRO-A04V36A | CPP-A06V48A | CPP-A06V48A | |
| RPX16-013V24 | 1.2 | 3.3 | 24 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | CPP-A06V48A | |
| RPX16-013V48 | 0.6 | 1.7 | 48 | PRO-A08V48B | PRO-A04V48B | CPP-B06V48A | CPP-A06V48A | |
