RP34 BLDC Motor
RapidPower™ Series

Summary Details

Size: NEMA 34
Peak Torque: to 1095 oz-in or 773 Ncm
Buy Now

Complete Motion Solution

For a complete motion solution, the RP34 is compatible with ElectroCraft's Universal and PRO Series drives.

Great performance at an affordable price

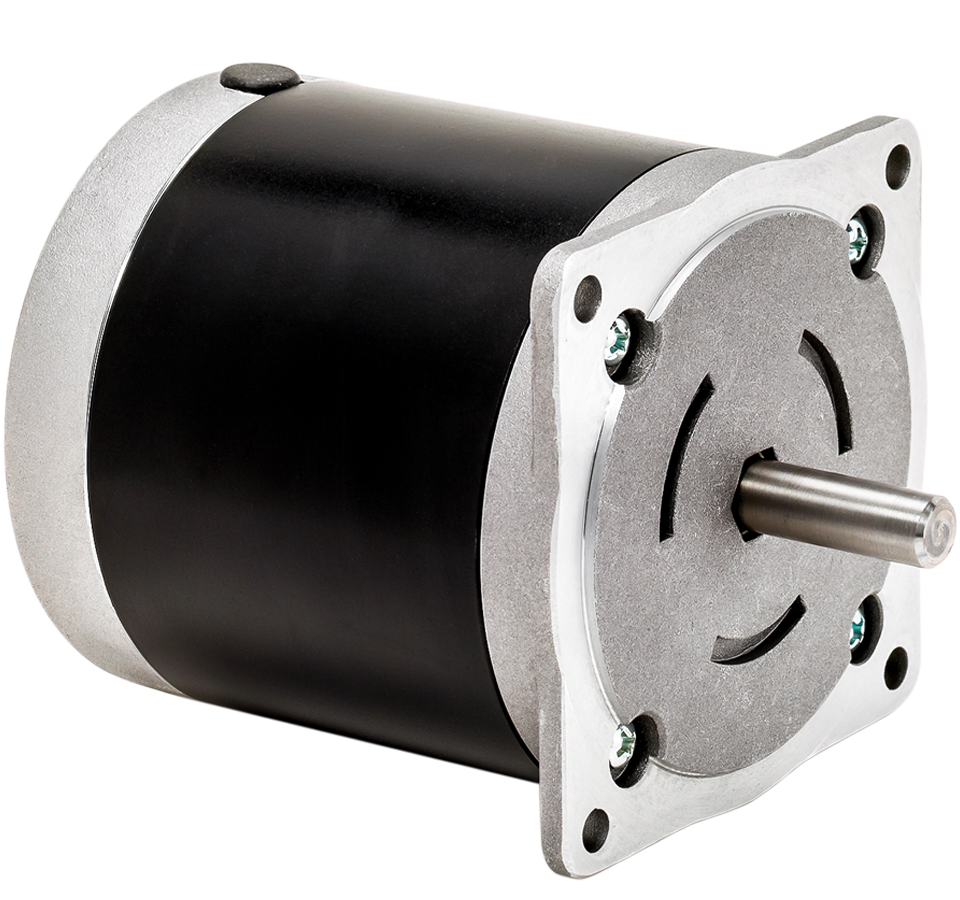

The ElectroCraft RapidPower™ RP34 is a compact, high-performance brushless motor that incorporates ball-bearing construction and a low-cogging electro-magnetic design that produces low audible and magnetic noise. It is compatible with three-phase brushless DC motor drives and is available with a variety of encoders for precision positioning applications.

Additional Product Details

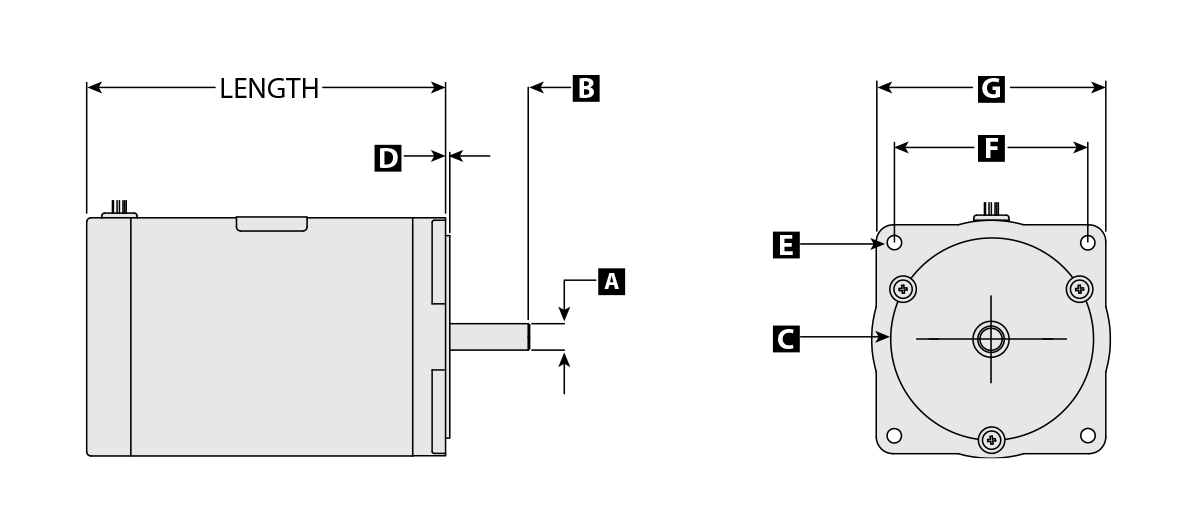

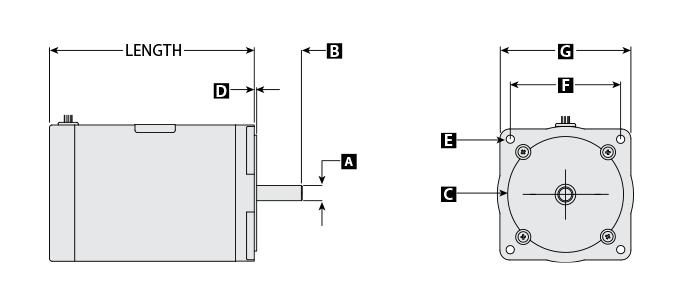

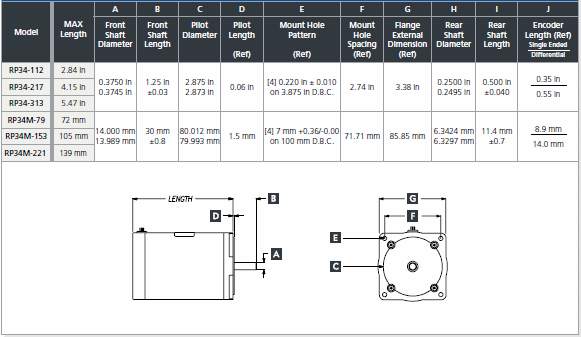

Outline Drawing

Model Max
Length		 A B C D E F G H I J
Front Shaft
Diameter		 Front Shaft
Length		 Pilot
Diameter		 Pilot
Length		 Mount Hole
Pattern		 Mount Hole
Spacing		 Flange
External
Dimension 		 Rear Shaft
Diameter		 Rear Shaft
Length		 Differential
Encoder
Length
RP34-112 2.84 in 0.375 in 1.25 in 2.875 in 0.06 in 0.22 in
thru holes		 2.74 in 3.4 in 0.25 in 0.5 in 0.55 in
RP34-217 4.15 in
RP34-313 5.47 in
RP34-79 72 mm 14 mm 30 mm 80 mm 1.5 mm 7 mm
thru holes		 70.7 mm 86 mm 6.35 mm 12.6 mm 14 mm
RP34-153 105 mm
RP34-221 139 mm
Technical Drawings

Specifications & Winding Data

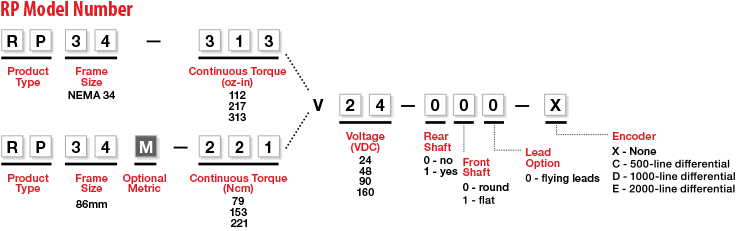

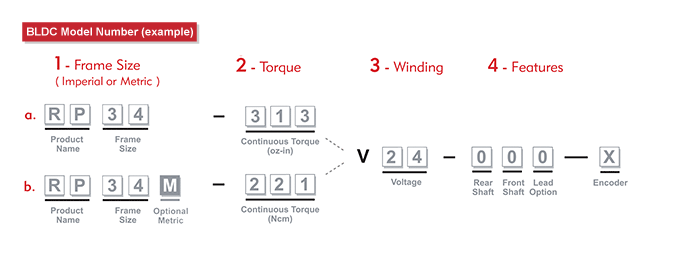

RP34 Stack Size and Winding Models
Specifications RP34-
112V24		 RP34-
112V48		 RP34-
112V90		 RP34-
112V160		 RP34-
217V24		 RP34-
217V48		 RP34-
217V90		 RP34-
217V160		 RP34-
313V24		 RP34-
313V48		 RP34-
313V90		 RP34-
313V160
RP34M-
79V24		 RP34M-
79V48		 RP34M-
79V90		 RP34M-
79V160		 RP34M-
153V24		 RP34M-
153V48		 RP34M-
153V90		 RP34M-
153V160		 RP34M-
221V24		 RP34M-
221V48		 RP34M-
221V90		 RP34M-
221V160
Design Voltage (VDC) 24 48 90 160 24 48 90 160 24 48 90 160
No load speed (RPM) 7,100 7,000 6,600 5,800 3,500 5,050 4,900 5,030 2,350 3,530 4,410 4,480
Peak Torque (oz-in) 392 392 392 392 740 759 759 759 940 1,095 1,095 1,095
Peak Torque (Ncm) 277 277 277 277 522 536 536 536 664 773 773 773
Peak Current (Amps) 85.2 42.6 21.2 11.2 76.0 59.1 31.1 17.6 68.1 59.5 39.7 23.8
Continuous Stall Torque (oz-in) 112 217 313
Continuous Stall Torque (Ncm) 79 153 221
Continuous Stall Current (Amps) 24.4 12.1 6.1 3.2 22.3 16.9 8.9 5.0 22.7 17.0 11.3 6.8
Continuous Rated Torque (oz-in) 29.0 29.0 31.0 33.0 120.0 71.0 72.0 71.0 216.0 226.0 168.0 156.0
Continuous Rated Torque (Ncm) 20.5 20.5 21.9 23.3 84.7 50.1 50.8 50.1 152.5 159.6 118.6 110.1
Continuous Rated Current (Amps) 7.8 4.3 2.3 1.0 12.5 6.9 3.7 1.7 14.7 11.4 6.9 3.3
Continuous Rated Speed (RPM) 6,390 6,760 6,300 5,200 2,740 4,730 4,660 4,455 1,680 2,600 3,990 3,740
Voltage Constant (V / kRPM) 3.4 6.8 13.7 27.6 6.9 9.5 18.1 31.8 10.2 13.6 20.4 35.7
Torque Constant (oz-in / Amp) 4.6 9.2 18.5 37.3 9.3 12.8 24.4 43.0 13.8 18.4 27.6 48.2
Torque Constant (Ncm / Amp) 3.3 6.5 13.1 26.3 6.5 9.0 17.2 30.4 9.7 13.0 19.5 34.0
Resistance (Ohms) 0.1 0.2 0.8 4.0 0.1 0.2 0.6 2.3 0.2 0.3 0.5 1.6
Inductance (mH) 0.3 1.2 4.8 20.3 0.7 1.1 3.9 13.4 1.0 1.7 3.9 11.0
Motor Constant (oz-in / √ Watt) 15.1 19.3 20.4 17.4 29.8 27.2 30.4 29.0 34.5 31.5 35.5 36.5
Motor Constant (Ncm / √ Watt) 10.7 13.6 14.4 12.3 21.0 19.2 21.5 20.5 24.4 22.2 25.1 25.8
Electrical Constant (msec) 4.8 5.5 6.0
Mechanical Constant (msec) 6.7 4.3 4.4
Rotor inertia (oz-in-sec²) 0.0149 0.0258 0.0385
Rotor inertia (g-cm²) 1,052.2 1,822.0 2,718.9
Thermal Resistance (C / Watt) 2.0 1.5 1.0
Weight (oz) 64.0 100.0 143.0
Weight (Kg) 1.8 2.8 4.1
Length (inch) 2.8 4.2 5.5
Length (mm) 71.1 106.7 139.7
Number of Poles 4 4 4

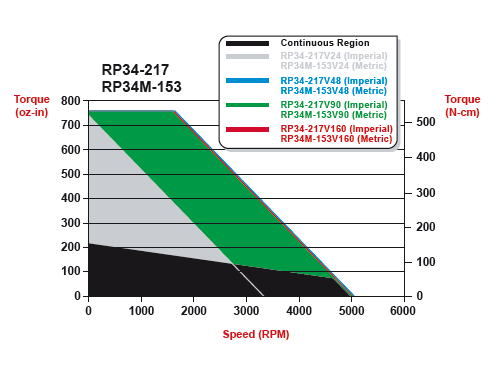

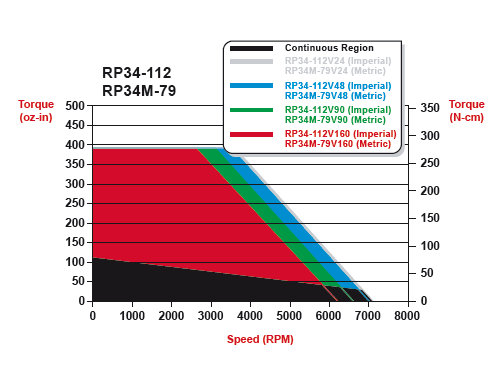

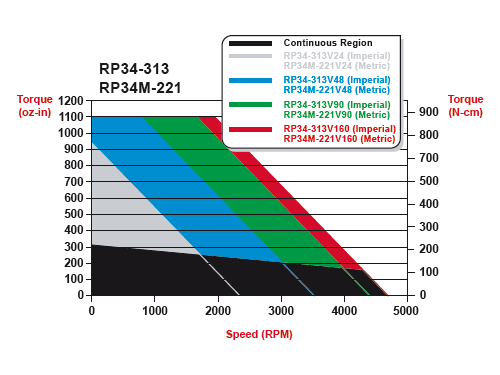

Speed / Torque Curves

rp34 rp34 rp34

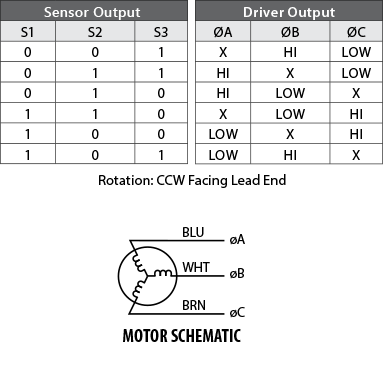

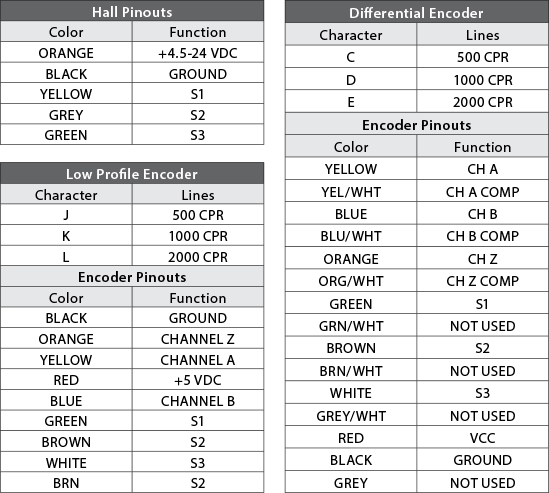

Connection

connection diagram
connection diagram

CAD

Drive Compatibility

Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
Imperial Metric PRO (-CAN) PRO (-CAT) CPP-Universal CPP-EZ
RP34-112V24 RP34M-79V24 24.4 85.2 24 N/A N/A CPP-A40V24A CPP-A24V48A
RP34-112V48 RP34M-79V48 12.1 42.4 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP34-112V90 RP34M-79V90 6.1 21.2 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A12V48A
RP34-217V24 RP34M-153V24 22.3 76.0 24 N/A N/A CPP-A40V24A CPP-A24V48A
RP34-217V48 RP34M-153V48 16.9 59.1 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP34-217V90 RP34M-153V90 8.9 31.1 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP34-313V24 RP34M-221V24 22.7 68.1 24 N/A N/A CPP-A40V24A CPP-A24V48A
RP34-313V48 RP34M-221V48 17.0 59.5 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
RP34-313V90 RP34M-221V90 11.3 39.7 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A CPP-A24V48A
  1. Note1: CPP-A40V24A maximum continuous & peak currents = 28.3Arms & 70.7Arms. Maximum output voltage = 24VDC
  2. Note2: CPP-A24V48A maximum continuous current = 17 Arms
  3. Note3: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms. Maximum output voltage = 80VDC
  4. Note4: CPP-A24V80A maximum continuous & peak currents = 17Arms & 42.4Arms. Maximum output voltage = 80VDC
