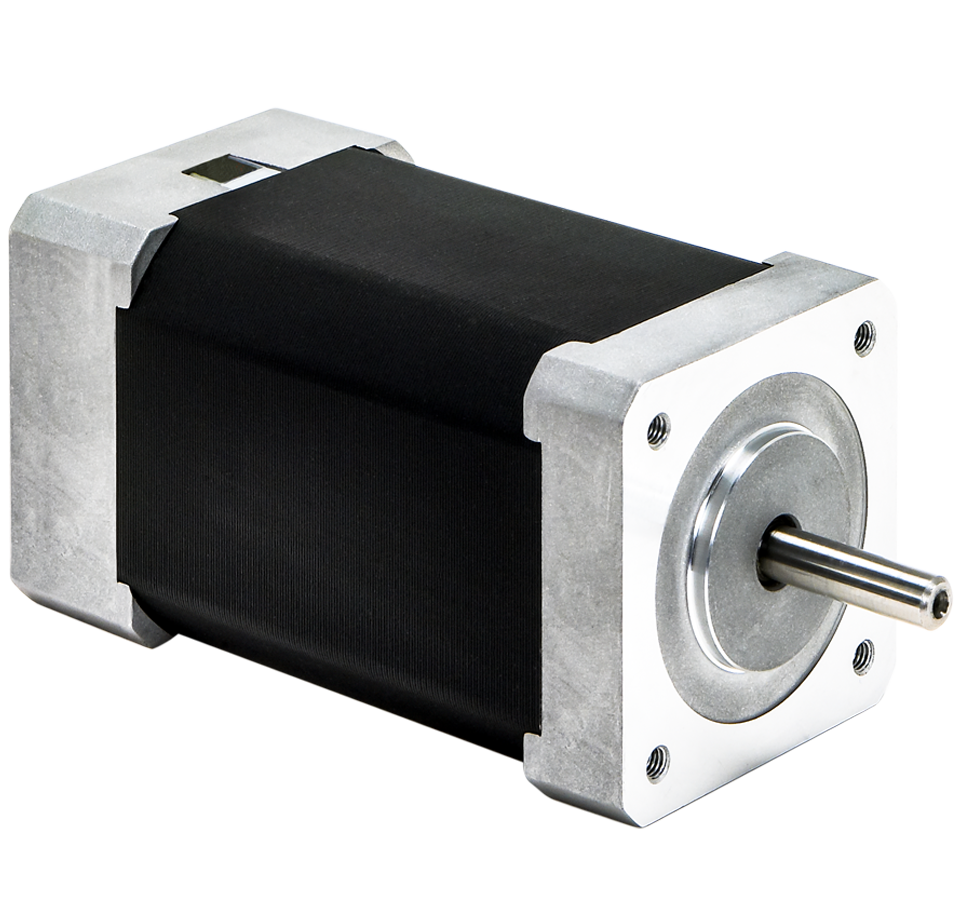

RP17 BLDC Motor
RapidPower™ Series
Complete Motion Solution
For a complete motion solution, the RP17 is compatible with ElectroCraft's Universal and PRO Series drives.
Compact yet powerful
The ElectroCraft RapidPower™ RP17 is a compact, high-performance
and high-speed brushless motor with ball-bearing construction,
dynamically balanced rotors, and low audible and magnetic noise.
It is compatible with three-phase brushless DC motor drives.

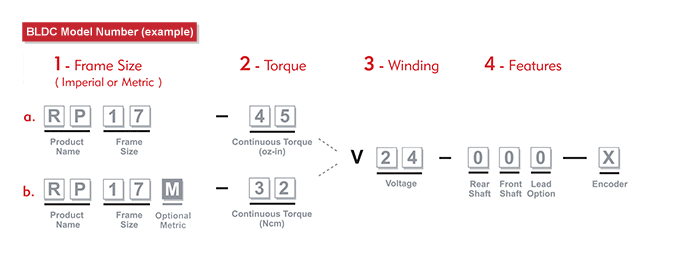

Additional Product Details

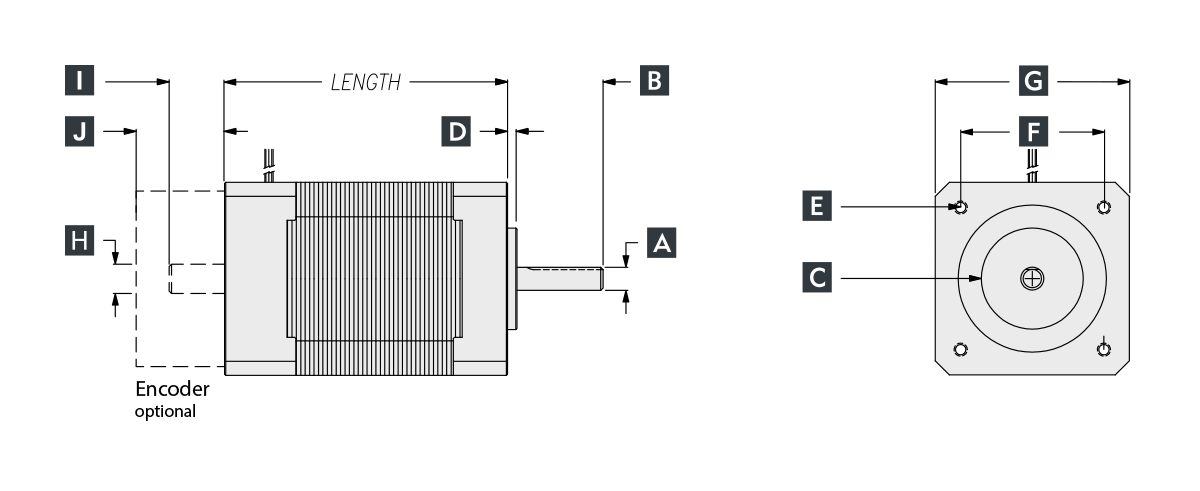

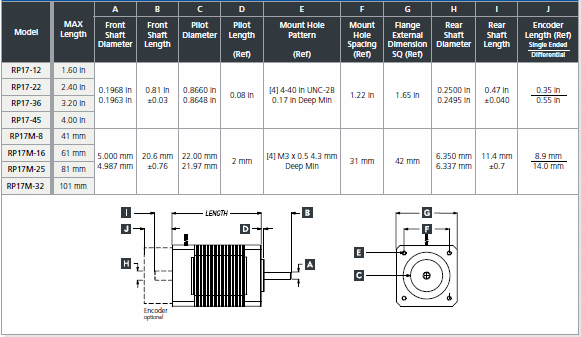

Outline Drawing
| Model | MAX Length |
A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Front Shaft Diameter |
Front Shaft Length |
Pilot Diameter |
Pilot Length |
Mount Hole Pattern |
Mount Hole Spacing |
Flange External Dimension |
Rear Shaft Diameter |
Rear Shaft Length |
Differential Encoder Length |
||
| RP17M-8 | 41 mm | 5.000 mm (0.1968 in) |
20.6 mm (0.81 in) |
22.00 mm (0.8660 in) |
2 mm (0.08 in) |
M3 x 0.5 4.3 mm deep |
31 mm (1.22 in) |
42 mm (1.65 in) |
6.350 mm (0.2500 in) |
11.9 mm (0.47 in) |
14.0 mm (0.55 in) |
| RP17M-16 | 61 mm | ||||||||||
| RP17M-25 | 81 mm | ||||||||||
| RP17M-32 | 101 mm |
Specifications & Winding Data
| RP17 | Stack Size and Winding Models | |||||||||||
| Specifications | RP17M- 8V24 |
RP17M- 8V48 |
RP17M- 8V60 |
RP17M- 16V24 |
RP17M- 16V48 |
RP17M- 16V60 |
RP17M- 25V24 |
RP17M- 25V48 |
RP17M- 25V60 |
RP17M- 32V24 |
RP17M- 32V48 |
RP17M- 32V60 |
| Design Voltage (VDC) | 24 | 48 | 60 | 24 | 48 | 60 | 24 | 48 | 60 | 24 | 48 | 60 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| No load speed (RPM) | 11,400 | 5,300 | 3,400 | 2,600 | ||||||||
| Peak Torque (oz-in) | 22 | 60 | 100 | 136 | ||||||||
| Peak Torque (Ncm) | 15 | 42 | 71 | 96 | ||||||||
| Peak Current (Amps) | 7.6 | 3.8 | 3.0 | 9.8 | 4.9 | 3.9 | 10.4 | 5.2 | 4.2 | 11.0 | 5.5 | 4.4 |
| Continuous Stall Torque (oz-in) | 12 | 22 | 36 | 45 | ||||||||
| Continuous Stall Torque (Ncm) | 8 | 16 | 25 | 32 | ||||||||
| Continuous Stall Current (Amps) | 4.2 | 2.1 | 1.7 | 3.6 | 1.8 | 1.4 | 3.7 | 1.9 | 1.5 | 3.6 | 1.8 | 1.4 |
| Continuous Rated Torque (oz-in) | 4.0 | 4.0 | 4.0 | 17.0 | 17.5 | 17.5 | 29.0 | 29.0 | 29.0 | 37.0 | 37.0 | 37.0 |
| Continuous Rated Torque (Ncm) | 2.8 | 2.8 | 2.8 | 12.0 | 12.3 | 12.3 | 20.5 | 20.5 | 20.5 | 26.1 | 26.1 | 26.1 |
| Continuous Rated Current (Amps) | 2.1 | 1.0 | 0.6 | 2.9 | 1.4 | 1.2 | 3.1 | 1.7 | 1.2 | 3.0 | 1.5 | 1.2 |
| Continuous Rated Speed (RPM) | 10,100 | 10,400 | 10,250 | 3,900 | 3,900 | 3,900 | 2,437 | 2,437 | 2,460 | 1,650 | 1,485 | 1,760 |
| Voltage Constant (V / kRPM) | 2.1 | 4.2 | 5.3 | 4.5 | 9.0 | 11.3 | 7.1 | 14.2 | 17.8 | 9.2 | 18.4 | 23.0 |
| Torque Constant (oz-in / Amp) | 2.8 | 5.7 | 7.2 | 6.1 | 12.2 | 15.2 | 9.6 | 19.2 | 24.1 | 12.4 | 24.9 | 31.1 |
| Torque Constant (Ncm / Amp) | 2.0 | 4.0 | 5.1 | 4.3 | 8.6 | 10.7 | 6.8 | 13.6 | 17.0 | 8.8 | 17.6 | 22.0 |
| Resistance (Ohms) | 0.7 | 2.7 | 4.0 | 1.1 | 4.4 | 5.5 | 1.5 | 6.4 | 7.2 | 2.0 | 8.5 | 11.4 |
| Inductance (mH) | 0.5 | 2.3 | 3.0 | 1.2 | 4.8 | 6.2 | 1.8 | 7.2 | 7.5 | 2.3 | 9.2 | 14.0 |
| Motor Constant (oz-in / √ Watt) | 3.5 | 5.8 | 8.4 | 9.0 | ||||||||
| Motor Constant (Ncm / √ Watt) | 2.5 | 4.1 | 5.9 | 6.4 | ||||||||
| Electrical Constant (msec) | 0.8 | 1.1 | 1.1 | 1.2 | ||||||||
| Mechanical Constant (msec) | 8.5 | 4.4 | 3.1 | 2.7 | ||||||||
| Rotor inertia (oz-in-sec²) | 0.0008 | 0.0012 | 0.0016 | 0.0019 | ||||||||
| Rotor inertia (g-cm²) | 53.7 | 83.3 | 112.3 | 134.9 | ||||||||
| Thermal Resistance (C / Watt) | 6.3 | 5.5 | 4.0 | 3.4 | ||||||||
| Weight (oz) | 9.0 | 17.0 | 23.5 | 31.0 | ||||||||
| Weight (Kg) | 0.3 | 0.5 | 0.7 | 0.9 | ||||||||
| Length (inch) | 1.6 | 2.4 | 3.1 | 3.9 | ||||||||
| Length (mm) | 40.6 | 61 | 78.7 | 99.1 | ||||||||
| Number of Poles | 4 | 4 | 4 | 4 | ||||||||

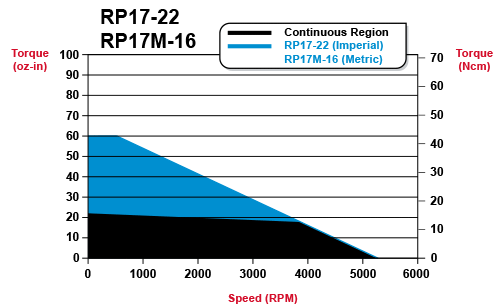

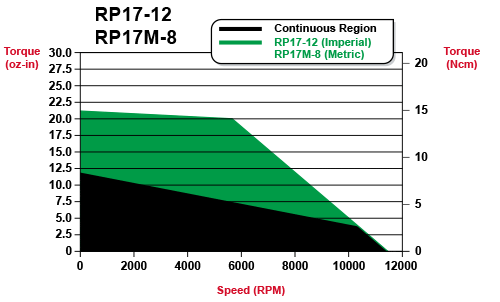

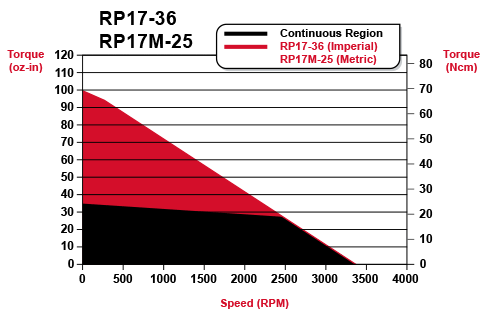

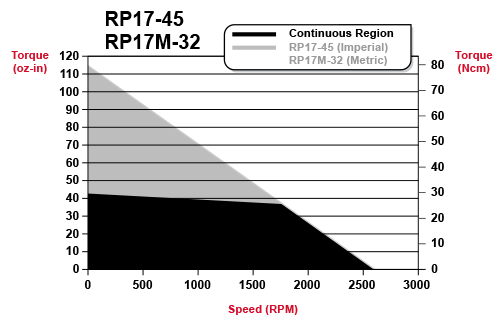

Performance Curves
Connection
CAD
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| RP17-12V24 | RP17M-8V24 | 4.2 | 7.6 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A |
| RP17-12V48 | RP17M-8V48 | 2.1 | 3.8 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | CPP-A06V48A |
| RP17-12V60 | RP17M-8V60 | 1.7 | 3.0 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | CPP-A06V48A |
| RP17-22V24 | RP17M-16V24 | 3.6 | 9.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A |
| RP17-22V48 | RP17M-16V48 | 1.8 | 4.9 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A |
| RP17-22V60 | RP17M-16V60 | 1.4 | 3.9 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | CPP-A06V48A |
| RP17-36V24 | RP17M-25V24 | 3.7 | 10.4 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A |
| RP17-36V48 | RP17M-25V48 | 1.4 | 5.2 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A |
| RP17-36V60 | RP17M-25V60 | 1.4 | 4.2 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | CPP-A06V48A |
| RP17-45V24 | RP17M-32V24 | 3.6 | 10.9 | 24 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | CPP-A06V48A |
| RP17-45V48 | RP17M-32V48 | 1.8 | 5.5 | 48 | PRO-A08V48B | PRO-A08V48B | CPP-A06V48A | CPP-A06V48A |
| RP17-45V60 | RP17M-32V60 | 1.4 | 4.4 | 60 | PRO-A10V80A | PRO-A10V80A | CPP-A06V48A | CPP-A06V48A |
