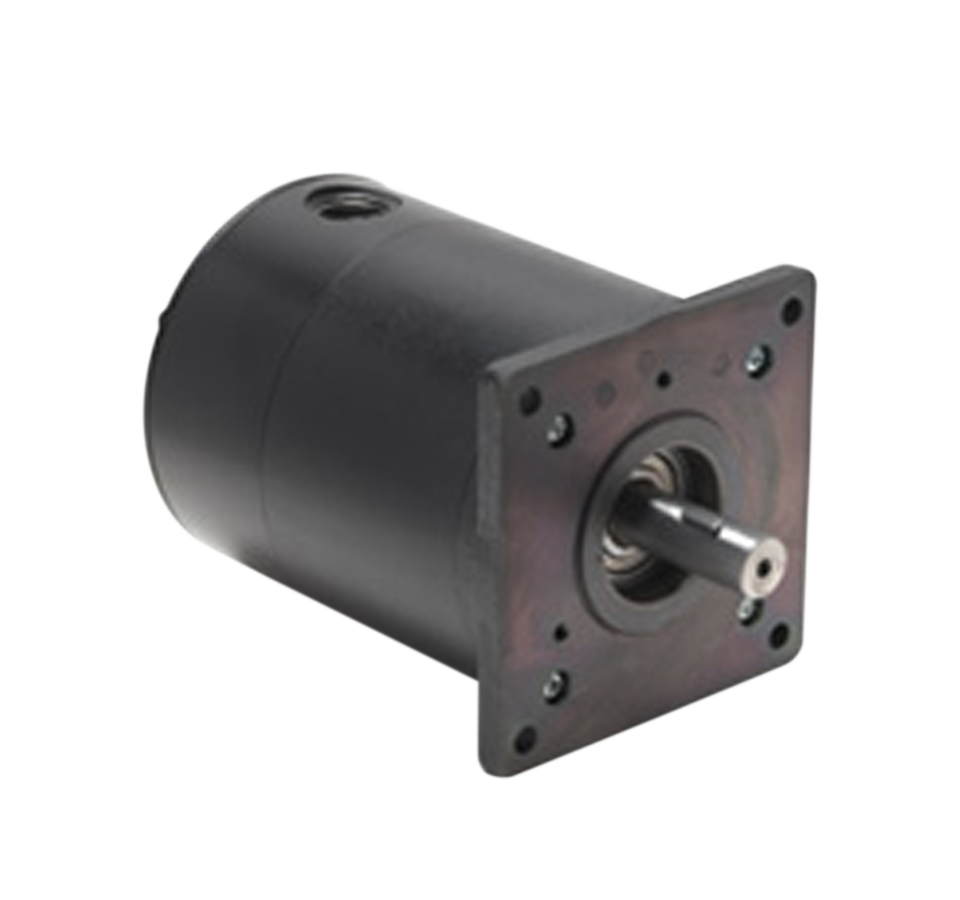

TP42 Stepper Motor
TorquePower™ Series
Summary Details
Size: Nema 42, 1.8°Holding Torque: up to 2100 oz-in or 1482.81 Ncm
Speed: up to 24 RPS
Complete Motion Solution
For a complete motion solution, the TP42 is compatible with ElectroCraft's Universal and PRO Series drives.
Protected. Force.
If you need a corrosion-resistant motor with powerful force, this
1.8 degree size 42 hybrid DC stepping motor could be for you. It
is totally enclosed with permanently lubricated ball bearings. The
bi-directional size 42 has holding torque up to 2100 oz-in with a
step angle accuracy of ±3% non-cumulative.
Additional Product Details

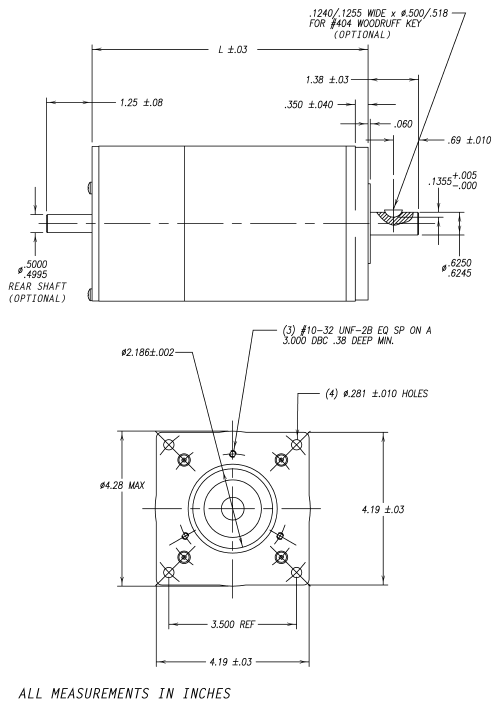

Outline Drawing
| TP42 Frame Size Drawing Key | ||
|---|---|---|
| MOTOR TYPE | LENGTH (INCHES) |
|
| BIPOLAR | UNIPOLAR | |
| TP42-810 | TP42-650 | 5.39 ±.04 |
| TP42-1440 | TP42-1150 | 7.56 ±.04 |
| TP42-2100 | TP42-1650 | 9.90 ±.04 |

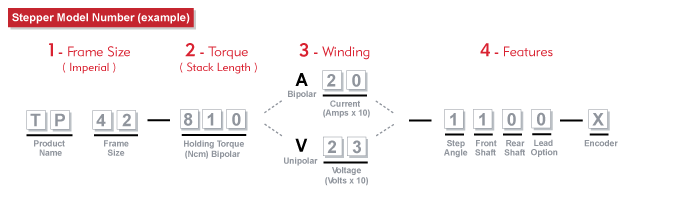

Specifications & Winding Data
| TP42 Bi-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TP42-810 | TP42-1440 | TP42-2100 |
| Holding Torque Bi-Polar (oz-in) |
810.0 | 1440.0 | 2100.0 |
| Holding Torque Bi-Polar (Ncm) |
572 | 1017 | 1483 |
| Length (inches) |
5.39 | 7.56 | 9.90 |
| Length (cm) |
13.7 | 19.2 | 25.1 |
| Width (inches) |
4.2 | 4.2 | 4.2 |
| Width (cm) |
10.7 | 10.7 | 10.7 |
| Weight (oz) |
216.0 | 320.0 | 424.0 |
| Weight (Kg) |
6.1 | 9.1 | 12.0 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 4 | 4 | 4 |
| TP42 Uni-Polar Stack Size | |||
|---|---|---|---|
| Imperial Models | TP42-650 | TP42-1150 | TP42-1650 |
| Holding Torque Uni-Polar (oz-in) |
650.0 | 1150.0 | 1650.0 |
| Holding Torque Uni-Polar (Ncm) |
459 | 812 | 1165 |
| Length (inches) |
5.39 | 7.56 | 9.90 |
| Length (cm) |
13.7 | 19.2 | 25.1 |
| Width (inches) |
4.2 | 4.2 | 4.2 |
| Width (cm) |
10.7 | 10.7 | 10.7 |
| Weight (oz) |
216.0 | 320.0 | 424.0 |
| Weight (Kg) |
6.1 | 9.1 | 12.0 |
| Step Angle (°/step) |
1.8 | 1.8 | 1.8 |
| Number Leads | 6 | 6 | 6 |
| TP42 Bi-Polar Windings | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 810A20 | 810A30 | 810A50 | 1440A20 | 1440A30 | 1440A50 | 2100A20 | 2100A30 | 2100A50 |
| Current (A/Phase) |
2.0 | 3.0 | 5.0 | 2.0 | 3.0 | 5.0 | 2.0 | 3.0 | 5.0 |
| Voltage (V/Phase) |
7.0 | 4.7 | 2.8 | 11.0 | 7.3 | 4.4 | 12.5 | 8.3 | 5.0 |
| Resistance (R/Phase) |
3.5 | 1.6 | 0.6 | 5.5 | 2.4 | 0.9 | 6.3 | 3.0 | 1.0 |
| Inductance (mH) |
63.8 | 28.3 | 10.2 | 186.0 | 82.8 | 29.8 | 140.0 | 64.0 | 22.2 |
| TP42 Uni-Polar Windings | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imperial Models | 650V23 | 650V41 | 650V79 | 650V98 | 1150V37 | 1150V46 | 1150V58 | 1150V74 | 1650V24 | 1650V32 | 1650V39 | 1650V45 |
| Current Uni-Polar (A/Phase) |
6.1 | 3.5 | 1.8 | 1.4 | 6.1 | 4.7 | 3.8 | 3.1 | 10.4 | 8.4 | 6.8 | 5.2 |
| Voltage Uni-Polar (V/Phase) |
2.3 | 4.1 | 7.9 | 9.8 | 3.7 | 4.6 | 5.8 | 7.4 | 2.4 | 3.2 | 3.9 | 4.5 |
| Resistance Uni-Polar (R/Phase) |
0.4 | 1.2 | 4.5 | 7.0 | 0.6 | 1.0 | 1.5 | 2.4 | 0.2 | 0.4 | 0.6 | 0.9 |
| Inductance Uni-Polar (mH) |
3.5 | 10.5 | 40.1 | 63.8 | 7.0 | 11.3 | 17.4 | 26.9 | 2.6 | 4.0 | 6.9 | 10.6 |
| Current Bi-Polar (A/Phase) |
4.3 | 2.5 | 1.3 | 1.0 | 4.3 | 3.4 | 2.7 | 2.2 | 7.3 | 6.0 | 4.8 | 3.7 |
| Voltage Bi-Polar (V/Phase) |
3.2 | 5.8 | 11.2 | 13.9 | 5.2 | 6.5 | 8.2 | 10.5 | 3.4 | 4.5 | 5.4 | 6.3 |
| Resistance Bi-Polar (R/Phase) |
0.7 | 2.3 | 8.9 | 14.0 | 1.2 | 1.9 | 3.1 | 4.8 | 0.5 | 0.8 | 1.1 | 1.7 |
| Inductance Bi-Polar (mH) |
14.0 | 41.9 | 160.0 | 255.0 | 28.0 | 45.0 | 70.0 | 108.0 | 10.4 | 16.0 | 27.6 | 42.4 |

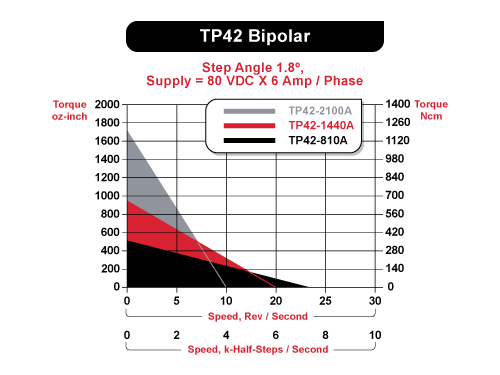

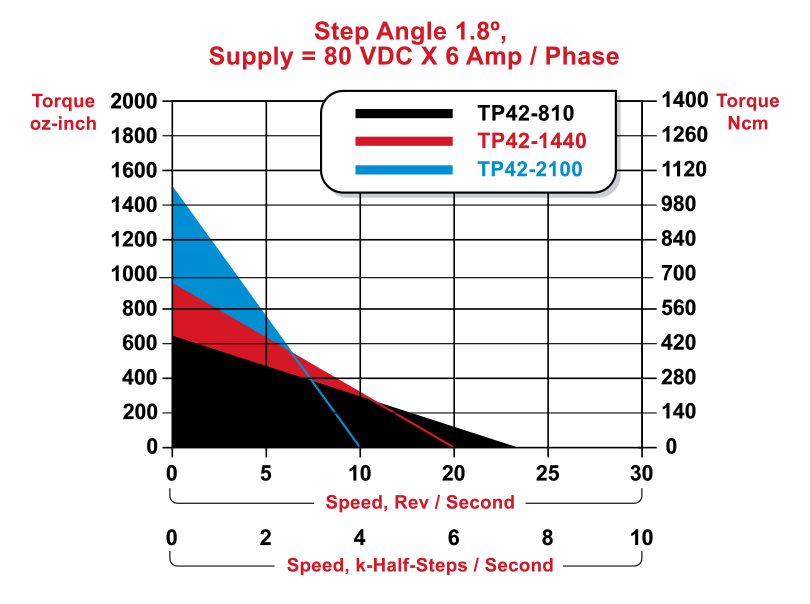

Performance Curves
BIPOLAR
Drive Compatibility
| Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
|---|---|---|---|---|---|---|---|---|
| Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
| TP42-1440A20 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||||
| TP42-1440A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||||
| TP42-1440A50 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||||
| TP42-2100A20 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||||
| TP42-2100A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||||
| TP42-2100A50 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||||
| TP42-810A20 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||||
| TP42-810A30 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-B06V48A | ||||
| TP42-810A50 | 0 | PRO-A08V48B | PRO-A08V48B | CPP-A12V80A | ||||
