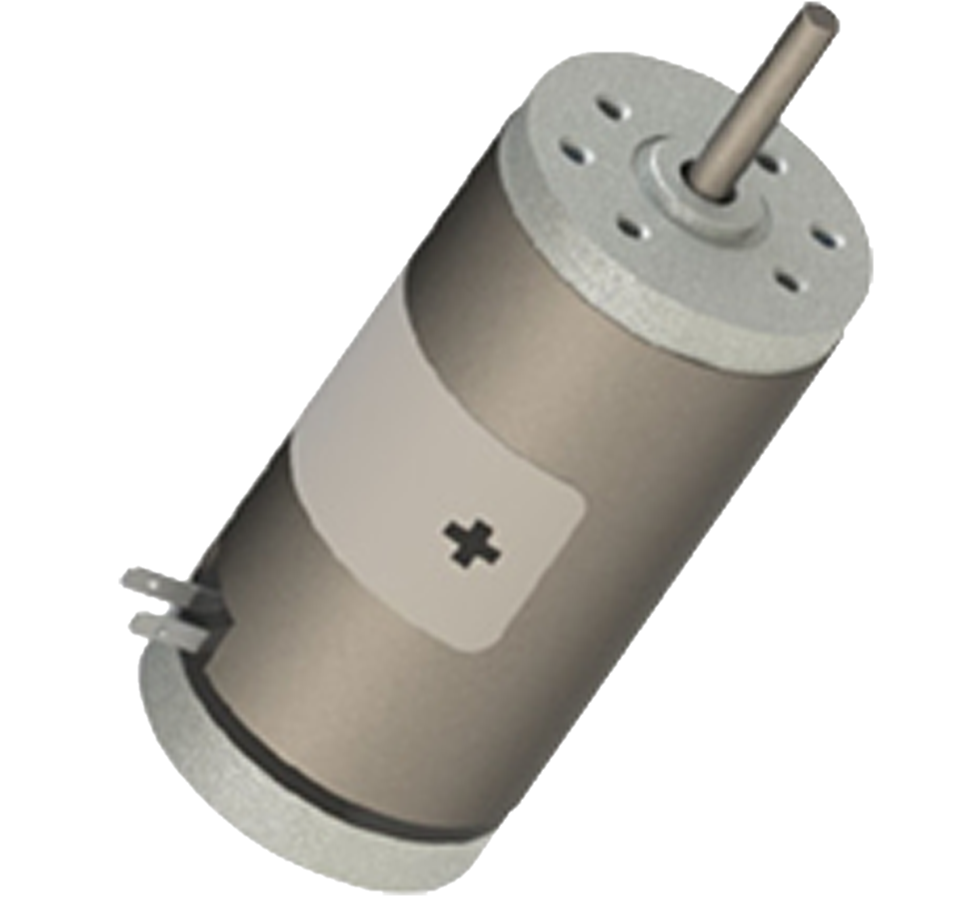

Series 116-1: 1.6 inch PMDC Brush Motor

Series 116-1 Size 1.6 inch or 40.3 mm Peak Torque to 78 oz-in or 55.1 Ncm

Product Details

Overview & Features

The Hansen series 116-1 (1.6" diameter) permanent magnet DC brush motor is available to serve the industrial, instrumentation and automotive markets in either open-loop or close-loop applications. Rotor laminations are skewed to provide very low cogging torque and no preferred rotor position. Standard catalog stall torque ratings are in the range of 19 to 78 oz-in, while no-load speeds range from 1,700 to 8,000 rpm maximum. Encoders with line counts up to 2048 are available to provide velocity and position feedback information. Reliability is further enhanced by long life, pre-loaded ball bearings. Special windings, shaft and mounting configurations are available to meet the requirements of OEM custom applications.

  • Printers
  • Plotters
  • Pumps
  • Fans
  • Cutting Tools
  • Medical Devices
  • Robotics
  • Beverage Dispensing
  • Gaming/Recreational Machines
Series 116-1 - 1.6 inch DC Motors Numbering Example
PART NUMBER VOLTS NOM NO LOAD SPEED NO LOAD CURRENT LOAD SPEED LOAD TORQUE LOAD CURRENT STALL TORQUE STALL CURRENT TERMINAL RESISTANCE BACK EMF CONSTANT TORQUE CONSTANT DIM "A"
MAX
INCH
[mm]		 DIM "B"
MAX
INCH
[mm]
WNL INL W TL IL Ts Is RT KE KT
R.P.M. AMPS R.P.M. IN-OZ AMPS IN-OZ AMPS OHMS V / KRPM IN-OZ / A
NOM. MAX. NOM. REF. MAX. REF. REF. NOM. NOM. NOM.
116-1121627 12 2800 0.2 1700 8 1.7 20 3.7 3.4 4.2 5.7 2.75
[70]		 3.10
[79]
116-1123227 4000 0.3 3100 7 2.2 31 8.4 1.7 2.9 3.9
116-1124827 5700 0.4 4700 6 2.8 34 13.3 0.7 2.0 2.7
116-1241627 24 2800 0.1 1800 8 0.9 22 2.1 11.8 8.3 11.2
116-1243227 4100 0.1 3300 7 1.2 32 4.6 5.2 5.6 7.6
116-1244827 5700 0.2 5100 6 1.5 44 9.1 2.6 4.0 5.3
116-1121632 12 2300 0.2 1800 11 2.1 37 6.1 3.0 4.6 6.3 3.20
[82]		 3.55
[91]
116-1123232 3600 0.4 3400 10 3.2 63 16.7 1.0 2.8 3.8
116-1124832 5600 0.5 4800 9 3.9 66 24 0.7 2.1 2.8
116-1241632 24 2500 0.1 1800 11 1.0 38 3.1 8.2 9.3 12.5
116-1243232 4100 0.2 3500 10 1.6 55 7.5 3.4 5.6 7.6
116-1244832 5700 0.3 4900 9 2.0 70 12.7 1.9 4.2 5.7

Notes:

For Integral Leads, Replace 116-1 with 116-2.
For Encoder, Add C, D, or M to end of part number. (C=100 CPR, D=500 & M=1000)

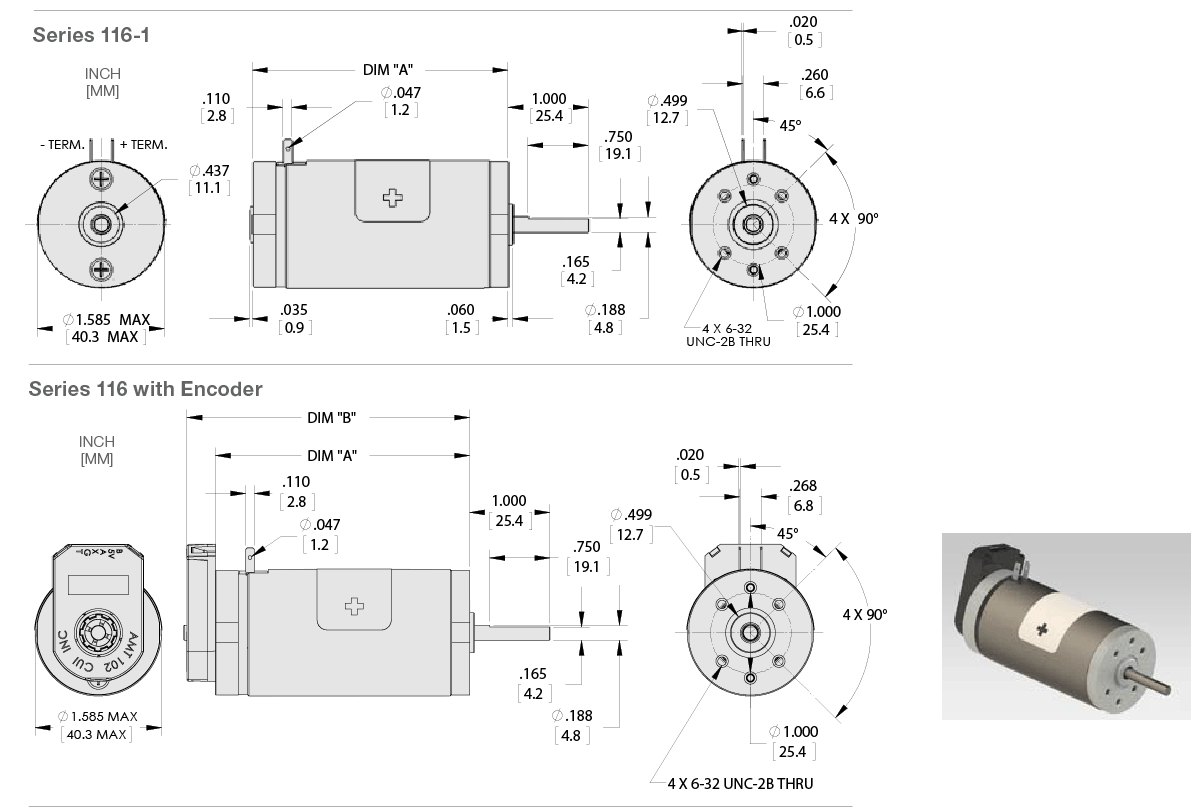

Dimensional Drawing

Technical Drawing

Drive Compatibility

Please contact ElectroCraft if the drive you are searching for is not included in the charts below.

Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
Imperial Metric PRO (-CAN) PRO (-CAT) CPP-Universal CPP-EZ
116-1121627 1.7 3.7 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1123227 2.2 8.4 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1124827 2.8 13.3 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
116-1241627 0.9 2.1 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1243227 1.2 4.6 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
116-1244827 1.5 9.1 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1121632 2.1 6.1 12 PRO-A08V48B PRO-A04V36A CPP-A06V48A
116-1123232 3.2 16.7 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
116-1124832 3.9 24 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
116-1241632 1.0 3.1 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1243232 1.6 7.5 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1244832 2.0 12.7 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A

Documents & Downloads

Download Description
Series 116-1 Data Sheet (US) Download Data Sheet (PDF)

ElectroCraft Rapid Delivery Program

Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.

Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.

Customers are responsible for all freight charges.

Rapid Delivery to:

The Americas - View Cart

Part Number Description Add to Cart
116-1121632 1.6" frame PMDC Brush motor, 12VDC winding, 2300RPM no-load speed, 37 oz-in stall torque, 11 oz-in load torque Contact Sales
116-1123232 1.6" frame PMDC Brush motor, 12VDC winding, 3600RPM no-load speed, 63 oz-in stall torque, 10 oz-in load torque Contact Sales
116-1124832 1.6" frame PMDC Brush motor, 12VDC winding, 5600RPM no-load speed, 66 oz-in stall torque, 9 oz-in load torque Contact Sales
116-1241632 1.6" frame PMDC Brush motor, 24VDC winding, 2500RPM no-load speed, 38 oz-in stall torque, 11 oz-in load torque Contact Sales
116-1243232 1.6" frame PMDC Brush motor, 24VDC winding, 4100RPM no-load speed, 55 oz-in stall torque, 10 oz-in load torque Contact Sales
116-1244832 1.6" frame PMDC Brush motor, 24VDC winding, 5700RPM no-load speed, 70 oz-in stall torque, 9 oz-in load torque Contact Sales
