APES11M Stepper Linear Actuator
AxialPower™ Enhanced Series
Summary Details
Technology: StepperSize: NEMA 11
Force: 71 N (16 lbs.) to 190 N (43 lbs.)
Complete Motion Solution
For a complete motion solution, the APES11M is compatible with ElectroCraft's Universal and PRO Series drives.

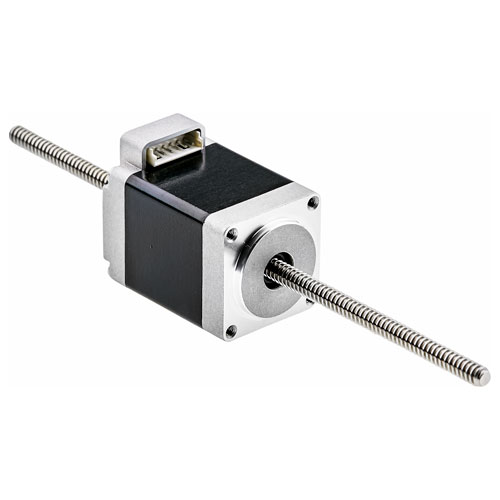

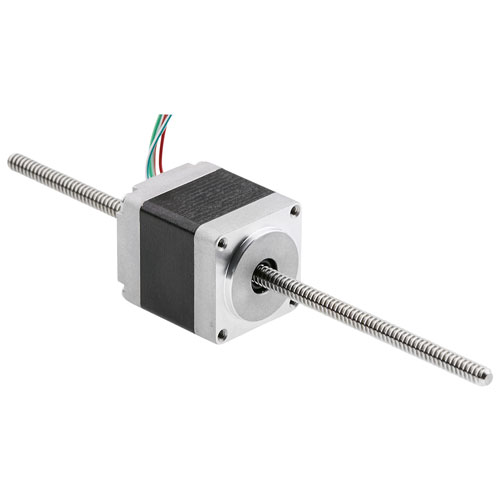

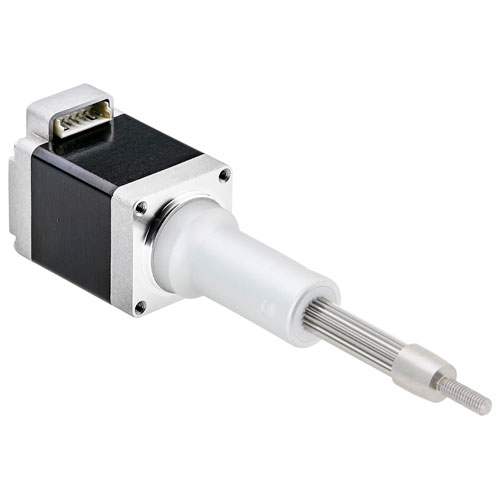

The APES11M is a 28mm / NEMA 11 frame, hybrid stepper linear actuator. The APES11M is available in standard or custom designs as a linear actuator (non-captive), leadscrew motor (external linear), or guided linear actuator (captive). A variety of resolutions are offered, ranging from 0.006 to 0.016 mm per step, with an output force of up to 190 N (43 lbs.) ElectroCraft's unique motor, shaft and insert designs offer industry-leading output force per frame size while providing superior precision, speed and efficiency.

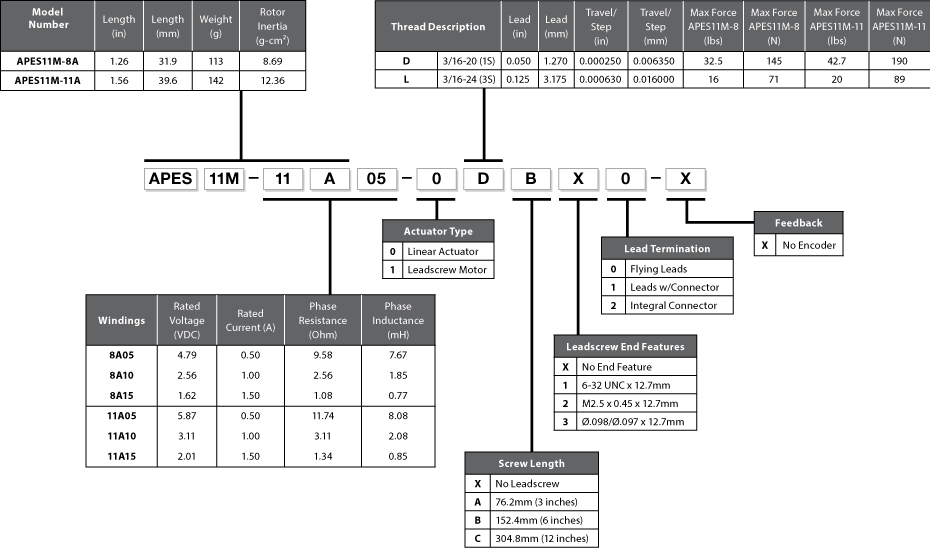

APES11M Model Number Example
Additional Product Details

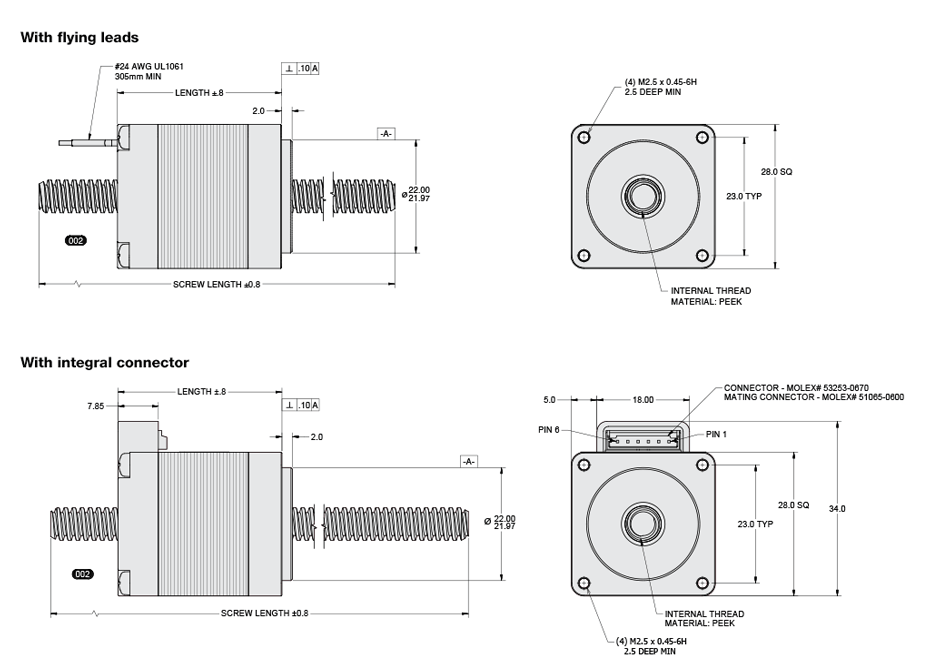

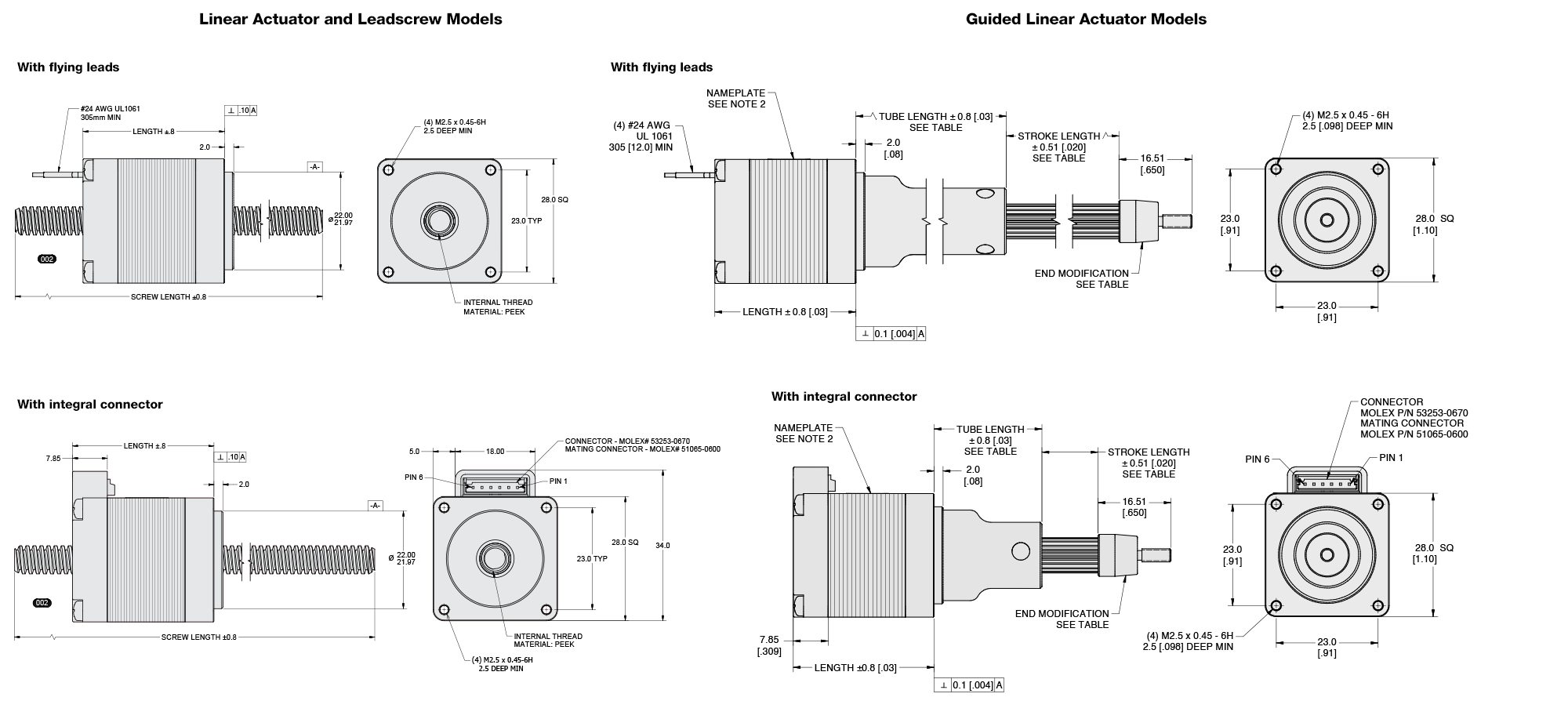

Outline Drawing
Bipolar Model | Unipolar Model | Max Length (mm) |
Max Length (in) |
---|---|---|---|
APES11M-8A | APES11M-6V | 31.9 ±.03 | 1.26 ±0.8 |
APES11M-11A | APES11M-8V | 39.6 ±.03 | 1.55 ±0.8 |

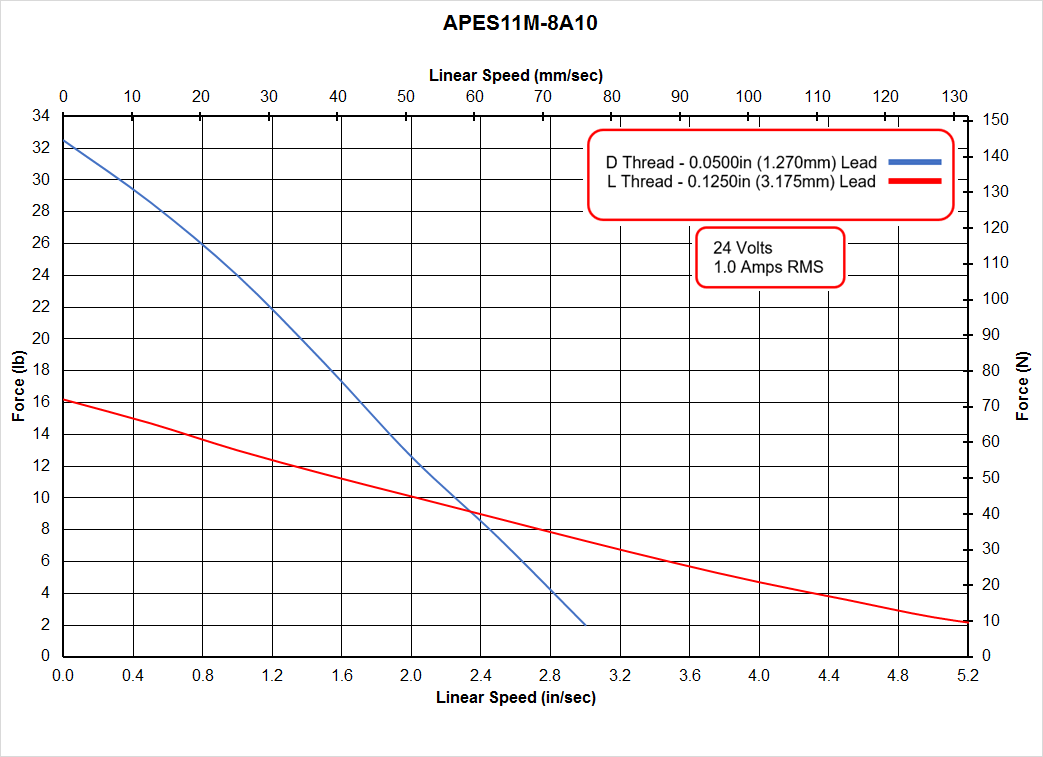

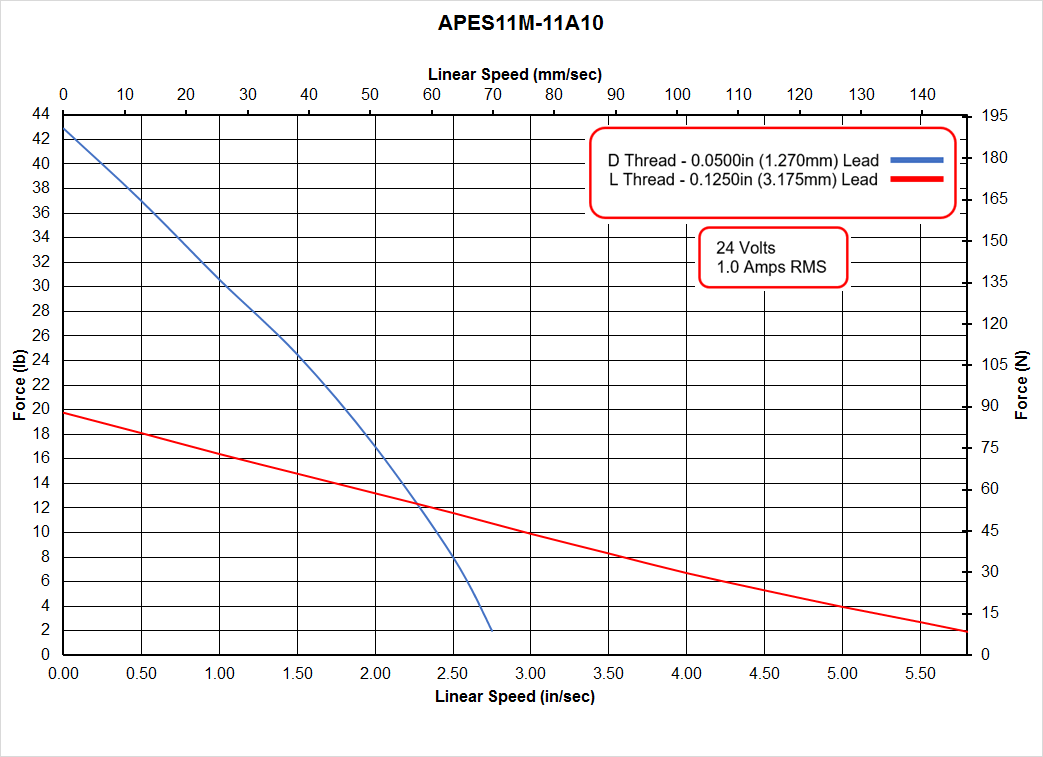

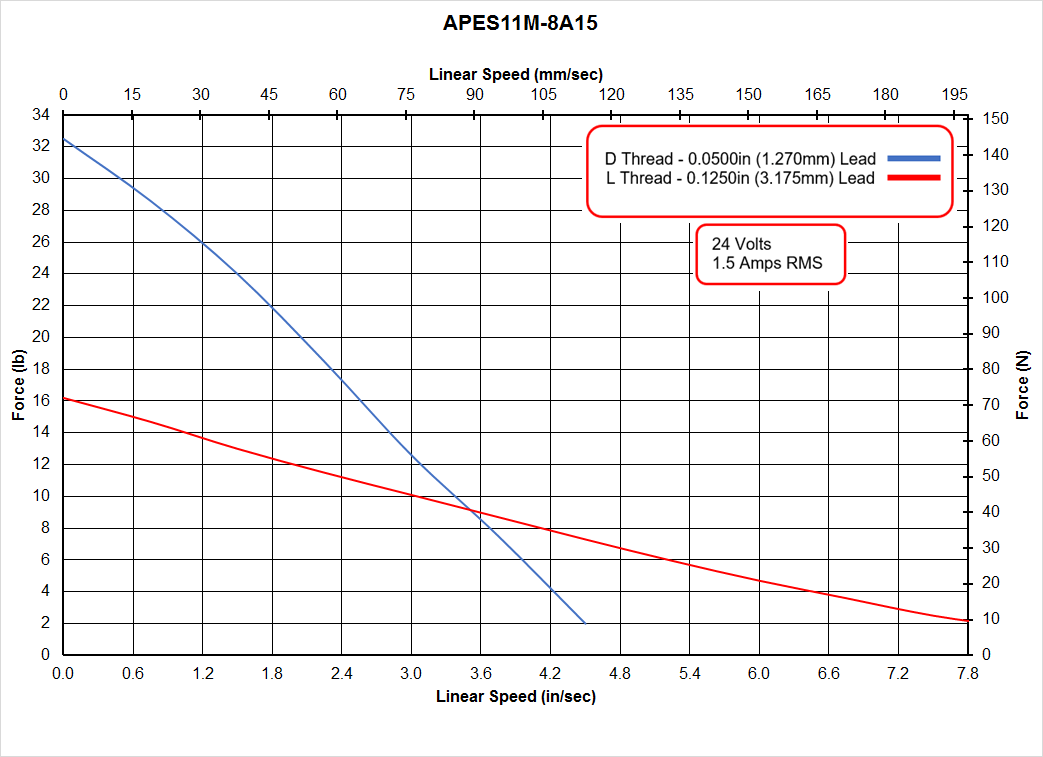

Speed / Force Curves

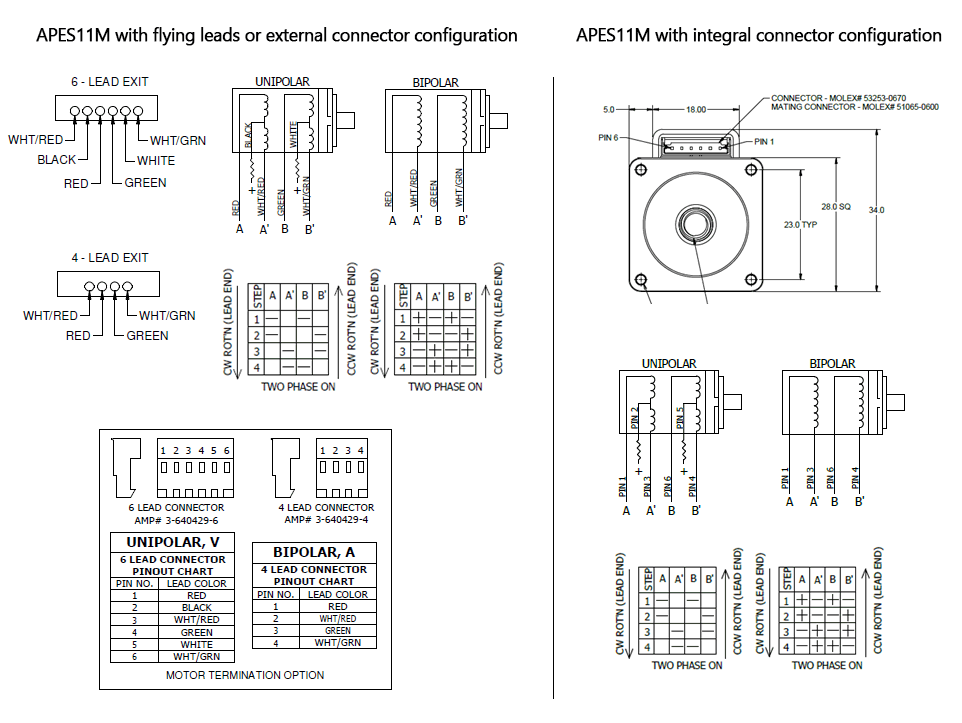

Connection
CAD
Drive Compatibility
Motor P/N | Cont Stall Current (ARMS) |
Peak Current (ARMS) |
Voltage | Drive Model | ||||
---|---|---|---|---|---|---|---|---|
Imperial | Metric | PRO (-CAN) | PRO (-CAT) | CPP-Universal | CPP-EZ | |||
APES11M-8A05 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
APES11M-8A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
APES11M-8A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
APES11M-11A05 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
APES11M-11A10 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A | ||||
APES11M-11A15 | 0 | PRO-A08V48B | PRO-A04V36A | CPP-B06V48A |
ElectroCraft Rapid Delivery Program
Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.
Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.
Customers are responsible for all freight charges.
Rapid Delivery to:
Select the region where the product would be delivered to.
The Americas - View Cart
Part Number | Description | Add to Cart |
---|---|---|
APES11M-8A15-0DB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 11.3 oz-in holding torque, 1.5A/Phase, 3/16-20 ACME (1 Start), 0.05" lead | Buy Now |
APES11M-8A15-0LB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 11.3 oz-in holding torque, 1.5A/Phase, 3/16-24 ACME (3 Start), 0.125" lead | Buy Now |
APES11M-11A15-0DB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 15.6 oz-in holding torque, 1.5A/Phase, 3/16-20 ACME (1 Start), 0.05" lead | Buy Now |
APES11M-11A15-0LB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 15.6 oz-in holding torque, 1.5A/Phase, 3/16-24 ACME (3 Start), 0.125" lead | Buy Now |
Europe, the Middle East and Africa
Part Number | Description | Typical Lead Time |
---|---|---|
APES11M-8A15-0DB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 11.3 oz-in holding torque, 1.5A/Phase, 3/16-20 ACME (1 Start), 0.05" lead | 2 days |
APES11M-8A15-0LB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 11.3 oz-in holding torque, 1.5A/Phase, 3/16-24 ACME (3 Start), 0.125" lead | 2 days |
APES11M-11A15-0DB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 15.6 oz-in holding torque, 1.5A/Phase, 3/16-20 ACME (1 Start), 0.05" lead | 2 days |
APES11M-11A15-0LB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 15.6 oz-in holding torque, 1.5A/Phase, 3/16-24 ACME (3 Start), 0.125" lead | 2 days |
Asia
Part Number | Description | Typical Lead Time |
---|---|---|
APES11M-8A15-0DB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 11.3 oz-in holding torque, 1.5A/Phase, 3/16-20 ACME (1 Start), 0.05" lead | 2 days |
APES11M-8A15-0LB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 11.3 oz-in holding torque, 1.5A/Phase, 3/16-24 ACME (3 Start), 0.125" lead | 2 days |
APES11M-11A15-0DB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 15.6 oz-in holding torque, 1.5A/Phase, 3/16-20 ACME (1 Start), 0.05" lead | 2 days |
APES11M-11A15-0LB22-X | NEMA 11 Stepper-based linear actuator, 1.8 degree step angle, bi-polar windings, 15.6 oz-in holding torque, 1.5A/Phase, 3/16-24 ACME (3 Start), 0.125" lead | 2 days |
