Brushless DC Motor Drive
48V 6A/12A Simplified Speed Control

CPP-A06V48-EZ Motor Drive
CPP-A06V48-EZ Motor Drive
CPP-A06V48-EZ Motor Drive
CPP-A06V48-EZ Motor Drive
Series CPP-A06V48-EZ Peak Output Power 576 Watts Operating Voltage 12 to 48 VDC Peak Output 12 Amps (peak of sine) Continuous Output 6 Amps (peak of sine)

Product Details

Overview & Features

The EZ Drive is a simple & cost effective BLDC speed control drive, offering several standard capacities in the model lineup. Customized versions are also offered to meet large volume OEM requirements. Compatible with Brushless DC motors from 12 to 48VDC and up to 6A continuous, 12A peak current.

  • Brushless DC motor speed control.
  • 2 quadrant control.
  • Analog speed control (0-10VDC).
  • Trapezoidal commutation.
  • Halls only operation mode.
  • Encoder feedback mode for low speed precision.
  • Digital tach output for external speed monitoring.
  • Built-in short-circuit, overcurrent, over-temperature and over-voltage protection.
  • Easy to configure hardware settings supporting a wide range of BLDC motors.

Models & Performance



Model Names CPP-A06V48A-SA-EZ CPP-A12V48A-SA-EZ CPP-A24V48A-SA-EZ
Characteristics
Input Voltage (VDC) 12 to 48
Output Voltage (VDC) 12 to 48
Output Power, Peak (W) 576 1152 2304
Max Current - Amps Peak of Sine (2 seconds) 12 24 48
Max Current - Amps RMS (2 seconds) 8.5 17.0 33.9
Continuous Current - Amps Peak of Sine  6 12 24
Continuous Current - Amps RMS 4.2 8.5 17.0
PWM Output Frequency (kHZ) 25
Efficiency 97%
Control Methods
Analog Speed Control 0-10VDC
Internal Speed Control Hardware setting + user accessible potentiometer
Feedback
Hall Sensors 120°
Encoder Feedback Single phase pulse train, up to 20kHz
Speed Resolution 32bit
Control Loops
Speed Loop Update 25kHz
Inputs
Hall Inputs TTL, CMOS, Open Collector (0-5V)
Digital Tach/Encoder Input TTL, CMOS, Open Collector (0-5V)
Digital Inputs x3 (1 enable, 1 direction, 1 brake)
Analog Input 0-10VDC command input for speed
Outputs
Digtial Outputs x2 (1 tach, 1 fault)
Auxiliary Voltage for Feedback Device 5VDC / 250mA
Display
LED's Green - Ready
Red - Fault
Environment
Ambient Temperature 0 to 40 C°
Humidity 5% to 95% RH, Non-Condensing
Supported Motors
Brushless DC (BLDC) ElectroCraft RPX, LRPX, RP, RPP, RPE, MP, MPW and 3rd party BLDC motors

Drawings

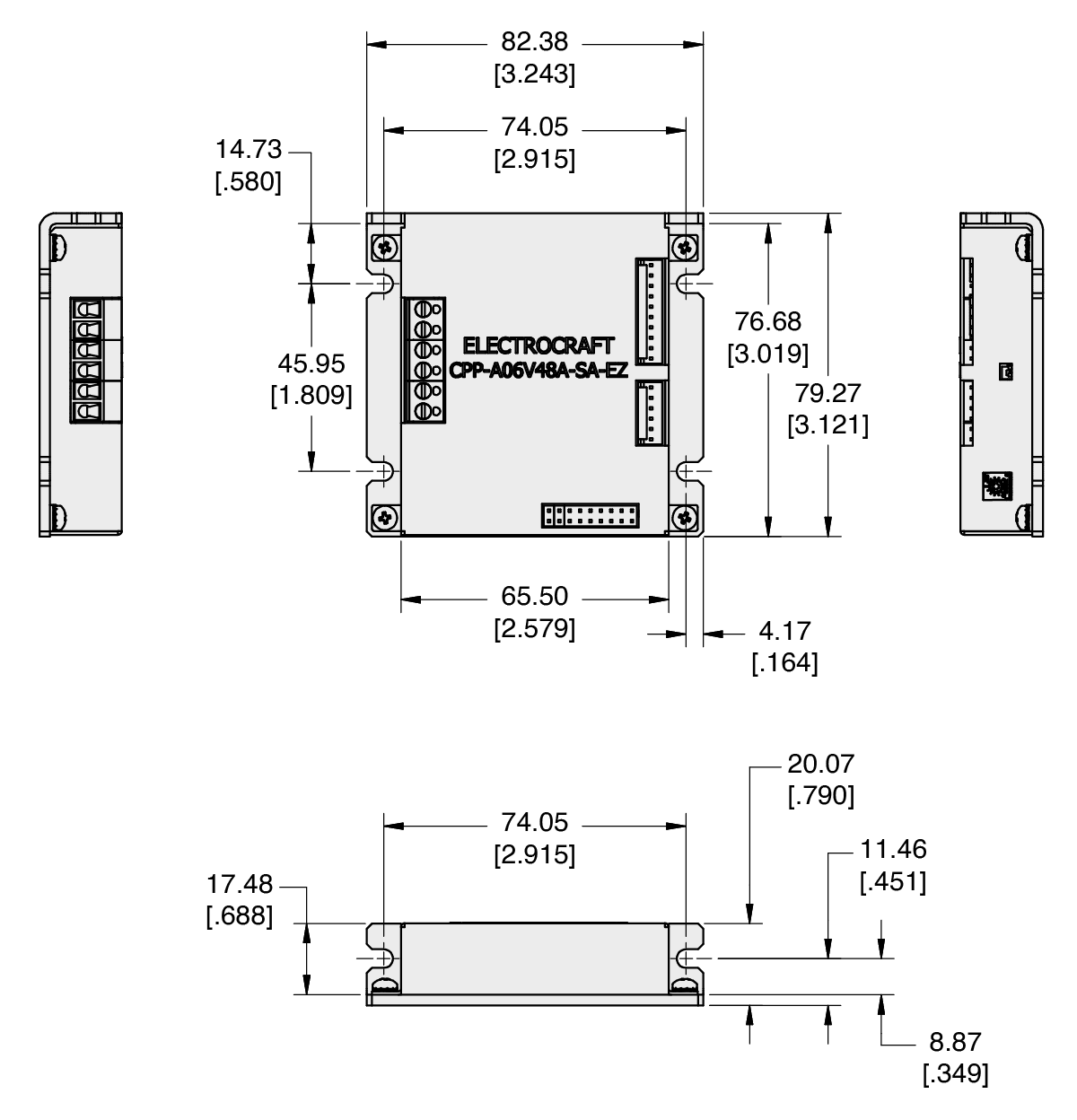

Dimensional Drawing

Technical Drawings

Connector Pinouts

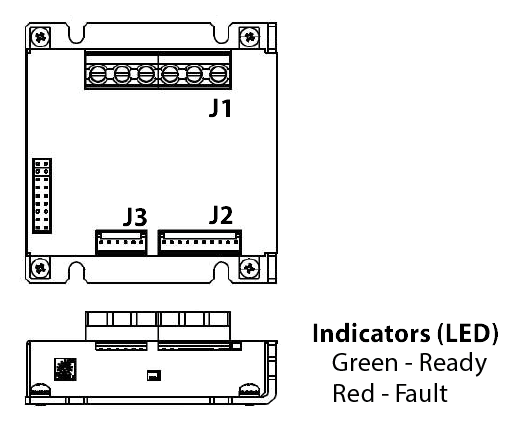

Connector Locations and Pin Numbers

J1 - Power & Phase

Pin # Name I/O Description
1 GND Input DC Power Input - supply return
2 Power Input DC Power Input - supply
3 PE - Connected to drive chassis
4 A Output BLDC Motor Phase A
5 B Output BLDC Motor Phase B
6 C Output BLDC Motor Phase C


J2 - I/O

Pin # Name I/O Description
1 Frame - Connected to drive chassis
2 Analog In Input Analog input for speed control
3 Enable Input Drive enable, digital input
4 Tach Out Output Tach (speed), digital output
5 Fault Out Output Fault, digital output
6 +5V Out Output +5V DC Power, internally generated
7 NC - -
8 DIR Input Direction, digital input
9 Brake Input Brake, digital input
10 GND - Digital ground


J3 - Hall & Tach

Pin # Name I/O Description
1 Hall 1 Input Hall Signal A; Internal pull up to +5VDC
2 Hall 2 Input Hall Signal B; Internal pull up to +5VDC
3 Hall 3 Input Hall Signal C; Internal pull up to +5VDC
4 Tach In Input Digital Tach input, +5V digital pulse train
5 +5V Out Output +5V DC power, internally generated
6 GND - Digital ground


Jumper Block

Jumper Name Description
1 Speed Control Mode ON: Speed control with potentiometer
OFF: Speed control using external analog voltage
2 Feedback Mode ON: Hall mode
OFF: Tach mode
3 User Max Speed Setting 16 different settings
Up to 18,000 RPM in Hall Mode, 1000 RPM in Tach Mode
4
5
6
7 User Max Current Setting CPP-A06V48A-SA-EZ: 8 settings from 0.75A up to 6.0A
CPP-A12V48A-SA-EZ: 8 settings from 1.5A up to 12A
CPP-A24V48A-SA-EZ: 8 settings from 3.0A up to 24A
8
9

Accessories

Photo Model Number Description
44-0001150 Hall & Tach Mtr Interface 6 pin w/ flying leads
44-0001152 I/O Interface 10 pin w/ flying leads
178-0000032 CPP Quick Start Kit

Motor Compatibility

Brushless DC Motors

PMDC Motors

Stepper Motors

Linear Actuators

Please contact ElectroCraft if the motor you are searching for is not included in the charts below.

Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
RPX, LRPX Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
RPX16-005V12 TBD TBD 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
RPX16-005V24 TBD TBD 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
RPX16-005V48 TBD TBD 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A
LRPX16-005V12 TBD TBD 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
LRPX16-005V24 TBD TBD 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
LRPX16-005V48 TBD TBD 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A
RPX16-007V12 TBD TBD 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
RPX16-007V24 TBD TBD 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
RPX16-007V48 TBD TBD 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A
RPX22-042V12 5.0 10.8 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RPX22-042V24 2.5 5.5 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
RPX22-042V48 1.3 2.8 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A
LRPX22-042V12 (3:1 to 66:1) 3.5 5.0 to 10.8 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX22-042V12 (81:1 ) 3.2 4.0 12 PRO-A08V48B PRO-A08V48B CPP-B06V48A
LRPX22-042V12 (94:1 to 624:1) 0.7 to 2.8 0.9 to 3.5 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
LRPX22-042V24 (3:1 to 19:1) 1.8 5.5 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
LRPX22-042V24 (27:1 to 624:1) 0.4 to 1.8 0.4 to 4.2 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
LRPX22-042V48 (3:1 to 624:1) 0.2 to 0.9 0.2 to 2.8 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A
RPX32-090V12 7.6 23.5 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RPX32-090V24 3.8 11.8 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RPX32-090V48 1.9 5.9 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX32-090V12 (3:1 to 19:1) 4.2 23.5 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
LRPX32-090V12 (24:1 to 28:1) 4.2 16.6 to 19.6 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
LRPX32-090V12 (33:1) 4.2 14.0 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
LRPX32-090V12 (50:1 to 60:1) 4.2 15.5 to 18.3 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
LRPX32-090V12 (76:1) 4.2 12.1 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
LRPX32-090V12 (90:1 to 192:1) 4.0 to 4.2 4.8 to 10.2 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX32-090V12 (246:1 to 291:1) 2.9 to 3.4 3.5 to 4.2 12 PRO-A08V48B PRO-A08V48B CPP-B06V48A
LRPX32-090V12 (344:1 to 999:1) 0.8 to 2.5 0.9 to 3.0 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
LRPX32-090V24 (3:1 to 19:1) 2.1 11.8 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
LRPX32-090V24 (24:1 to 28:1) 2.1 8.3 to 9.8 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX32-090V24 (33:1 to 107:1) 2.1 4.3 to 7.0 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
LRPX32-090V24 (116:1 to 999:1) 0.4 to 2.1 0.5 to 4.0 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
LRPX32-090V48 (3:1 to 24:1) 1.1 4.9 to 5.9 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX32-090V48 (192:1 to 999:1) 0.2 to 1.0 0.2 to 4.1 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A
RPX32-150V12 12.6 36.8 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RPX32-150V24 6.7 19.6 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
RPX32-150V48 3.3 9.8 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RPX40-125V12 6.6 19.7 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
RPX40-125V24 3.3 9.8 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RPX40-125V48 1.6 4.9 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RPX40-250V12 10.9 33.3 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RPX40-250V24 5.5 16.7 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
RPX40-250V48 2.7 8.3 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX40-250V12 (3:1 to 63:1) 6.8 21.6 to 33.3 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
LRPX40-250V12 (69:1 to 93:1) 6.8 14.4 to 19.5 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
LRPX40-250V12 (103:1 to 126:1) 6.8 10.7 to 13.1 12 PRO-A10V80A PRO-A10V80A CPP-A12V80A
LRPX40-250V12 (170:1 to 232:1) 4.3 to 5.3 6.4 to 7.9 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
LRPX40-250V12 (257:1 to 346:1) 2.9 to 3.9 4.3 to 5.8 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX40-250V12 (383:1 to 941:1) 1.1 to 2.6 1.6 to 3.9 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
LRPX40-250V24 (3:1 to 46:1) 3.4 14.5 to 16.7 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
LRPX40-250V24 (57:1 to 63:1) 3.4 10.8 to 11.9 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
LRPX40-250V24 (69:1 to 126:1) 3.4 5.4 to 9.7 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX40-250V24 (170:1 to 941:1) 0.5 to 2.6 0.8 to 4.0 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
LRPX40-250V48 (3:1 to 76:1) 1.7 4.4 to 8.3 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
LRPX40-250V48 (93:1 to 941:1) 0.3 to 1.7 0.4 to 3.6 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A
RPX40-325V12 10.2 31.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RPX40-325V24 5.1 15.5 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
RPX40-325V48 2.6 7.7 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RPX52-300V12 20.0 36.8 12 PRO-A20V80A PRO-A20V80A CPP-A40V24A
RPX52-300V24 10.0 17.4 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RPX52-300V48 5.0 8.6 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RPX52-600V12 24.0 56.3 12 PRO-A20V80A PRO-A20V80A CPP-A40V24A
RPX52-600V24 12.0 26.5 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RPX52-600V48 6.0 12.9 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RPX52-750V24 14.1 55.8 24 PRO-A08V48B PRO-A08V48B CPP-A40V24A
RPX52-750V48 7.1 28.6 48 PRO-A08V48B PRO-A08V48B CPP-A24V80A
  1. Note1: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
RapidPower - RP Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
RP17-12V24 RP17M-8V24 4.2 7.6 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RP17-12V48 RP17M-8V48 2.1 3.8 48 PRO-A08V48B PRO-A08V48B CPP-B06V48A
RP17-12V60 RP17M-8V60 1.7 3.0 60 PRO-A10V80A PRO-A10V80A CPP-A06V48A
RP17-22V24 RP17M-16V24 3.6 9.9 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RP17-22V48 RP17M-16V48 1.8 4.9 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RP17-22V60 RP17M-16V60 1.4 3.9 60 PRO-A10V80A PRO-A10V80A CPP-A06V48A
RP17-36V24 RP17M-25V24 3.7 10.4 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RP17-36V48 RP17M-25V48 1.4 5.2 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RP17-36V60 RP17M-25V60 1.4 4.2 60 PRO-A10V80A PRO-A10V80A CPP-A06V48A
RP17-45V24 RP17M-32V24 3.6 10.9 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RP17-45V48 RP17M-32V48 1.8 5.5 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RP17-45V60 RP17M-32V60 1.4 4.4 60 PRO-A10V80A PRO-A10V80A CPP-A06V48A
RP23-26V12 RP23M-18V12 5.3 11.0 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RP23-26V24 RP23M-18V24 4.6 9.0 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RP23-26V48 RP23M-18V48 2.6 6.5 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RP23-34V12 RP23M-24V12 8.6 17.5 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RP23-34V24 RP23M-24V24 4.5 10 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RP23-34V48 RP23M-24V48 2.5 7.0 48 PRO-A08V48B PRO-A08V48B CPP-A06V48A
RP23-54V12 RP23M-38V12 8.7 15.9 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RP23-54V24 RP23M-38V24 5.7 18.5 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
RP23-54V48 RP23M-38V48 4.2 11.1 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RP23-73V24 RP23M-52V24 8.3 25.3 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RP23-73V48 RP23M-52V48 4.7 14.4 48 PRO-A20V80A PRO-A20V80A CPP-A12V80A
RP34-112V24 RP34M-79V24 24.4 85.2 24 N/A N/A CPP-A40V24A
RP34-112V48 RP34M-79V48 12.1 42.4 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RP34-112V90 RP34M-79V90 6.1 21.2 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RP34-217V24 RP34M-153V24 22.3 76.0 24 N/A N/A CPP-A40V24A
RP34-217V48 RP34M-153V48 16.9 59.1 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RP34-217V90 RP34M-153V90 8.9 31.1 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RP34-313V24 RP34M-221V24 22.7 68.1 24 N/A N/A CPP-A40V24A
RP34-313V48 RP34M-221V48 17.0 59.5 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
RP34-313V90 RP34M-221V90 11.3 39.7 90 PRO-A20V80A PRO-A20V80A CPP-A24V80A
  1. Note1: CPP-A40V24A maximum continuous & peak currents = 28.3Arms & 70.7Arms. Maximum output voltage = 24VDC
  2. Note2: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms. Maximum output voltage = 80VDC
  3. Note3: CPP-A24V80A maximum continuous & peak currents = 17Arms & 42.4Arms. Maximum output voltage = 80VDC
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
RapidPower Plus - RPP Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
RPP23-64V48 RPP23M-45V48 3.0 11.0 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A
RPP23--98V48 RPP23M-69V48 4.5 15.0 48 PRO-A20V80A PRO-A20V80A CPP-A12V80A
RPP23-118V48 RPP23-83V48 6.0 20.0 48 PRO-A20V80A PRO-A20V80A CPP-A12V80A
RPP23-154V48 RPP23M-108V48 7.3 25.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
MPW Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
MPW52-300V24 6.4 17.4 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
MPW52-300V48 3.4 8.6 48 PRO-A08V48B PRO-A08V48B CPP-A06V80A
MPW52-600V24 11.4 26.5 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A
MPW52-600V48 5.6 12.9 48 PRO-A08V48B PRO-A08V48B CPP-A12V80A
MPW86-120V24 (10:1) 22.0 80.0 24 N/A N/A CPP-A40V24A
MPW86-120V48 (10:1) 15.0 40.0 48 N/A N/A CPP-A24V80A
MPW86-185V24 (10:1) 30.0 73.0 24 N/A N/A CPP-A40V24A
MPW86-185V48 (10:1) 16.0 29.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
MPW86-120V24 (20:1) 21.0 47.0 24 N/A N/A CPP-A40V24A
MPW86-120V48 (20:1) 13.0 23.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
MPW86-185V24 (20:1) 24.0 43.0 24 N/A N/A CPP-A40V24A
MPW86-185V48 (20:1) 10.0 17.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
  1. Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
MP, MPP, MPS Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
All MP24 (24V windings, all ratios) up to 23.5 58.5 24 N/A N/A CPP-A40V24A
All MP24 (48V windings, all ratios) up to 11.8 29.3 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
All MPP24 (24V windings, all ratios) up to 30.0 65 24 N/A N/A CPP-A40V24A
All MPP24 (48V windings, all ratios) up to 15.0 32.5 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
  1. Note1: PRO-A20V80A maximum continuous & peak currents = 14.1Arms & 28.3Arms
  2. Note2: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
MP, MPP, MPS Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
All MP26, MP36 (24V windings, all ratios) up to 25.0 80.0 24 N/A N/A CPP-A40V24A
All MPP26, MPP36 (24V windings, all ratios) up to 30.0 100.0 24 N/A N/A CPP-A40V24A
MPS Series (24V windings, all models) up to 28.0 80.0 24 N/A N/A CPP-A40V24A
  1. Note1: CPP-A40V24A maximum continuous current = 28.3Arms, maximum peak current = 70.7Arms
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
DirectPower - DP Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
DP20-10V12 DP20M-07V12 3.8 11.5 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
DP20-10V24 DP20M-07V24 1.9 5.7 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
DP20-15V12 DP20M-11V12 4.0 13.5 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
DP20-15V24 DP20M-11V24 2.0 6.7 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
DP20-20V12 DP20M-14V12 4.3 11.5 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
DP20-20V24 DP20M-14V24 2.1 2.7 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
DP25-30V12 DP25M-21V12 9.0 32.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DP25-30V24 DP25M-21V24 5.0 16.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DP25-35V24 DP25M-25V24 5.0 20.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DP25-45V12 DP25M-32V12 8.0 30.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DP25-45V24 DP25M-32V24 4.0 16.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DP30-60V12 9.0 27.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DP30-60V24 4.0 14.0 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
DP30-75V12 7.0 14.0 12 PRO-A10V80A PRO-A10V80A CPP-A12V80A
DP30-75V24 3.0 7.0 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
DP30-85V12 5.0 15.0 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DP30-85V24 3.0 6.0 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
  1. Note1: PRO-A20V80A maximum peak current = 28.2Arms
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
DirectPower Plus - DPP Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
DPP240(T)-29V48 DPP240M(T)-20V48 2.0 16.0 48 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DPP240(T)-29V60 DPP240M(T)-20V60 2.0 14.0 60 PRO-A10V80A PRO-A10V80A CPP-A12V80A
DPP242(T)-44V48 DPP242M(T)-31V48 4.0 27.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP242(T)-44V60 DPP242M(T)-31V60 3.0 21.0 60 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DPP243(T)-52V48 DPP243M(T)-36V48 5.0 32.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP243(T)-52V60 DPP243M(T)-36V60 4.0 25.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP642(T)-100V48 DPP642M(T)-70V48 6.0 25.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP642(T)-100V60 DPP642M(T)-70V60 5.0 20.0 60 PRO-A20V80A PRO-A20V80A CPP-A12V80A
DPP643(T)-165V48 DPP643M(T)-116V48 6.0 30.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP643(T)-165V60 DPP643M(T)-116V60 6.0 23.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP644(T)-210V48 DPP644M(T)-148V48 7.0 28.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP644(T)-210V60 DPP644M(T)-148V60 5.0 22.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP681(T)-90V48 DPP681M(T)-64V48 7.0 30.0 48 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP681(T)-90V60 DPP681M(T)-64V60 6.0 25.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
DPP701-150V60 DPP701M-106V60 4.0 27.0 60 PRO-A20V80A PRO-A20V80A CPP-A24V80A
  1. Note1: PRO-A20V80A maximum peak current = 28.2Arms
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
Hansen PMDC Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
111-2121623 1.1 2.0 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
111-2123223 1.8 4.9 12 PRO-A08V48B PRO-A04V36A CPP-A06V48A
111-2124823 1.9 7.8 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
111-2241623 0.5 1.0 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
111-2243223 0.7 2.0 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
111-2244823 1.0 3.9 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1121627 1.7 3.7 12 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1123227 2.2 8.4 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1124827 2.8 13.3 12 PRO-A08V48B PRO-A08V48B CPP-A12V80A
116-1241627 0.9 2.1 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1243227 1.2 4.6 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
116-1244827 1.5 9.1 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1121632 2.1 6.1 12 PRO-A08V48B PRO-A04V36A CPP-A06V48A
116-1123232 3.2 16.7 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
116-1124832 3.9 24 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
116-1241632 1.0 3.1 24 PRO-A08V48B PRO-A04V36A CPP-B06V48A
116-1243232 1.6 7.5 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
116-1244832 2.0 12.7 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
121-1121636 4.0 9.0 12 PRO-A08V48B PRO-A08V48B CPP-A06V48A
121-1123236 4.9 19.0 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
121-1124836 5.4 28.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
121-1241636 1.9 5.0 24 PRO-A08V48B PRO-A04V36A CPP-A06V48A
121-1243236 2.7 12.0 24 PRO-A08V48B PRO-A08V48B CPP-A12V80A
121-1244836 3.1 20.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
121-1121646 4.6 15.0 12 PRO-A20V80A PRO-A20V80A CPP-A12V80A
121-1123246 5.9 26.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
121-1124836 5.9 32.0 12 PRO-A20V80A PRO-A20V80A CPP-A24V80A
121-1241646 2.4 9.0 24 PRO-A08V48B PRO-A08V48B CPP-A06V48A
121-1243246 3.9 19.0 24 PRO-A20V80A PRO-A20V80A CPP-A12V80A
121-1244836 5.3 33.0 24 PRO-A20V80A PRO-A20V80A CPP-A24V80A
  1. Note1: PRO-A20V80A maximum peak current = 28.2Arms
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
TorquePower - TP Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
TP23-150A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-150A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-150A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-150A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-210A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-210A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-210A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-48A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-48A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-48A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-48A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-72A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-72A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TP23-72A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP23-72A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-235A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-235A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-235A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-235A60 0 PRO-A10V80A PRO-A10V80A CPP-A12V80A
TP34-420A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-420A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-420A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-420A60 0 PRO-A10V80A PRO-A10V80A CPP-A12V80A
TP34-620A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-620A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-620A40 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP34-620A60 0 PRO-A10V80A PRO-A10V80A CPP-A12V80A
TP42-1440A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-1440A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-1440A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
TP42-2100A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-2100A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-2100A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
TP42-810A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-810A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TP42-810A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
TorquePower Plus - TPP Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
TPP11M-10A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-10A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-10A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-14A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-14A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-14A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-18A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-18A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP11M-18A05 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-29A10 TPP17M-21A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-29A15 TPP17M-21A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-29A20 TPP17M-21A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-47A10 TPP17M-33A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-47A15 TPP17M-33A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-47A20 TPP17M-33A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-58A10 TPP17M-41A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-58A15 TPP17M-41A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP17-58A20 TPP17M-41A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-150A10 TPP23M-106A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-150A20 TPP23M-106A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-150A30 TPP23M-106A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP23-240A10 TPP23M-170A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-240A20 TPP23M-170A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-240A30 TPP23M-170A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP23-90A10 TPP23M-64A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-90A20 TPP23M-64A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPP23-90A30 TPP23M-64A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-1190A20 TPP34M-840A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-1190A30 TPP34M-840A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-1190A50 TPP34M-840A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
TPP34-396A20 TPP34M-280A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-396A30 TPP34M-280A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-396A50 TPP34M-280A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
TPP34-793A20 TPP34M-560A20 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-793A30 TPP34M-560A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPP34-793A50 TPP34M-560A50 0 PRO-A08V48B PRO-A08V48B CPP-A12V80A
Motor Series Motor P/N Cont Stall
Current
(ARMS)		 Peak
Current
(ARMS)		 Voltage Drive Model
TorquePower Enhanced - TPE Imperial Metric PRO-Series (-CAN) PRO-Series (-CAT) CPP-Universal Drive
TPE17-45A10 TPE17M-32A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-45A15 TPE17M-32A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-45A20 TPE17M-32A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-63A10 TPE17M-44A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-63A15 TPE17M-44A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-63A20 TPE17M-44A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-78A10 TPE17M-55A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-78A15 TPE17M-55A15 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE17-78A20 TPE17M-55A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-100A10 TPE23M-71A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-100A20 TPE23M-71A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-100A30 TPE23M-71A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPE23-166A10 TPE23M-117A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-166A20 TPE23M-117A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-166A30 TPE23M-117A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A
TPE23-294A10 TPE23M-208A10 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-294A20 TPE23M-208A20 0 PRO-A08V48B PRO-A04V36A CPP-B06V48A
TPE23-294A30 TPE23M-208A30 0 PRO-A08V48B PRO-A08V48B CPP-B06V48A

Documents & Downloads

Download Description
CPP EZ Drives Data Sheet (US) Data Sheet (PDF)
CPP EZ Drive User Manual Drive User Manual (PDF)

ElectroCraft Rapid Delivery Program

Some versions of this product are available via ElectroCraft's Rapid Delivery Program. Lead times for these products are given in working days and stated below. Please note, these lead times may be exceeded during holiday periods or due to unforeseen circumstances. Always contact your local ElectroCraft representative for confirmation of availability.

Rapid delivery products are stocked in locations all over the World. If the product you require is not stocked in your region, you may request accelerated delivery from other areas. Please consult your local representative for more information.

Customers are responsible for all freight charges.

Rapid Delivery to:

Select the region where the product would be delivered to.

The Americas - View Cart

Part Number Description Add to Cart

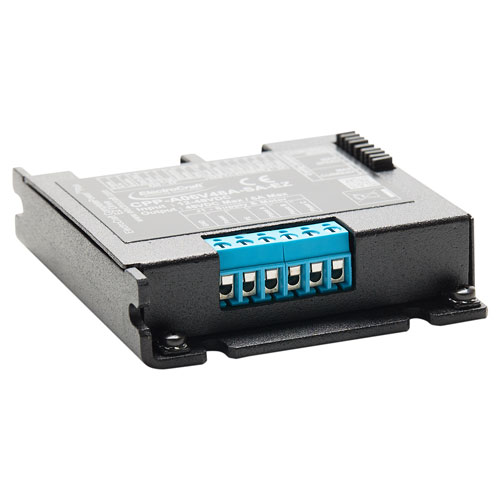

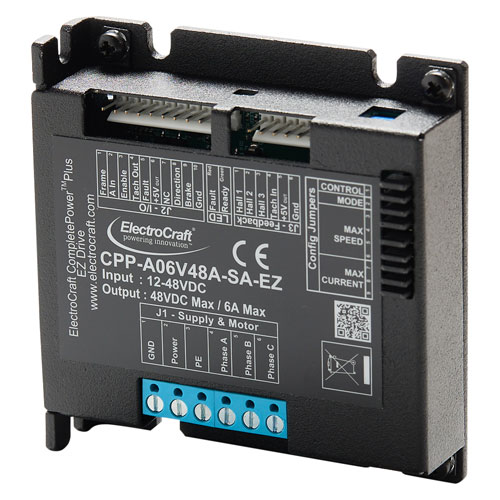

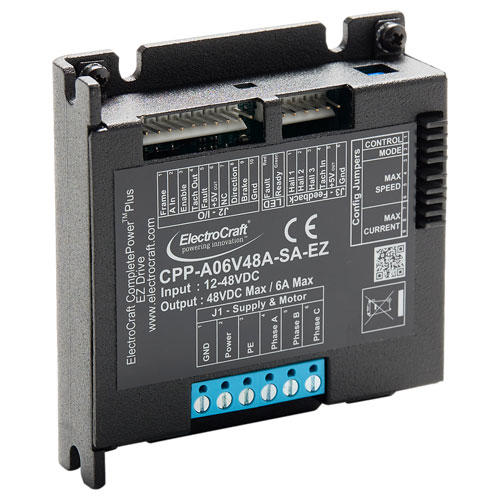

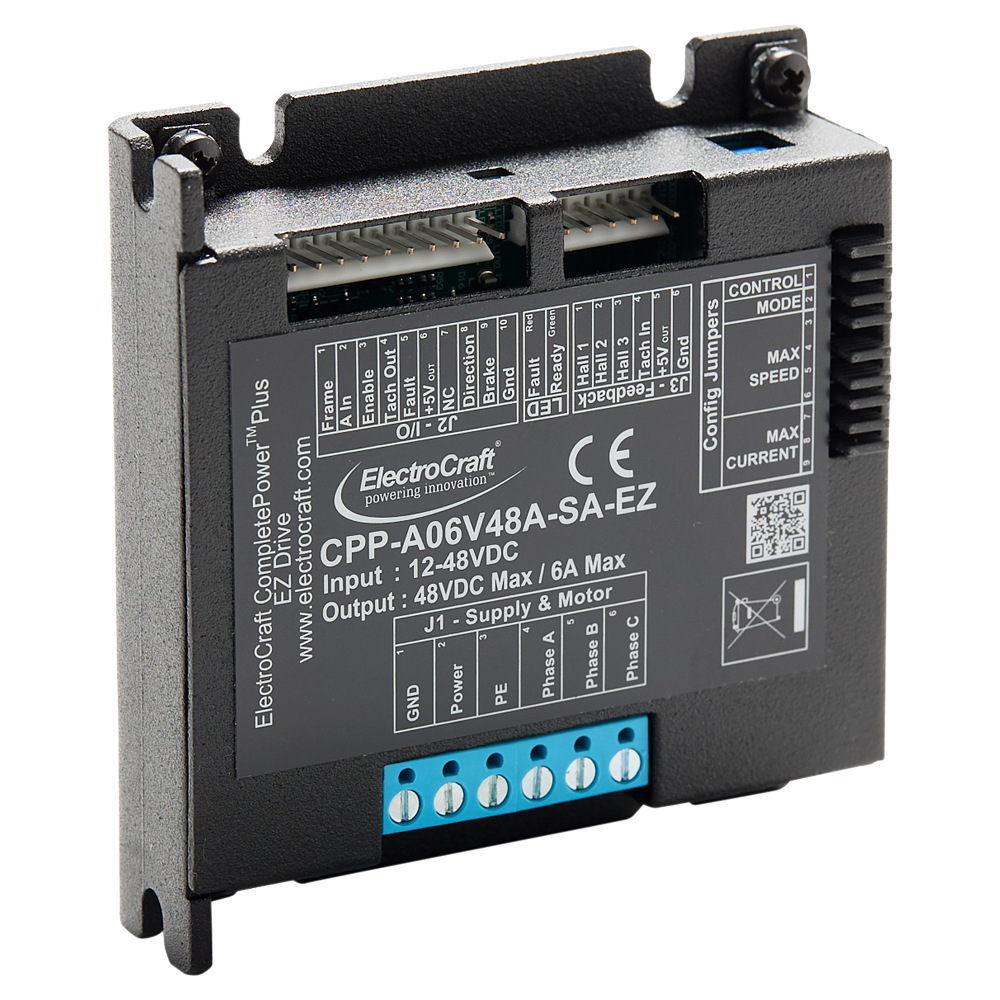

CPP-A06V48A-SA-EZ EZ Drive for Brushless DC Motors: 12 to 48 VDC, Peak Output to 48 Amps, Continuous Output to 24 Amps Contact Sales

Europe, the Middle East and Africa

Part Number Description Typical Lead Time
No products available

Asia

Part Number Description Typical Lead Time
No products available

Additional Resources

Documents
Drives Compatibility in Motion Control Applications
ElectroCraft Servo Motor Drives Feature Easy Setup and Operation
Videos
01:18
DC Motor Drives - Custom DC Motor Drives
5 years ago
03:06
ElectroCraft DC Motor Drives - performance and flexibility for a wide range of applications
4 years ago
