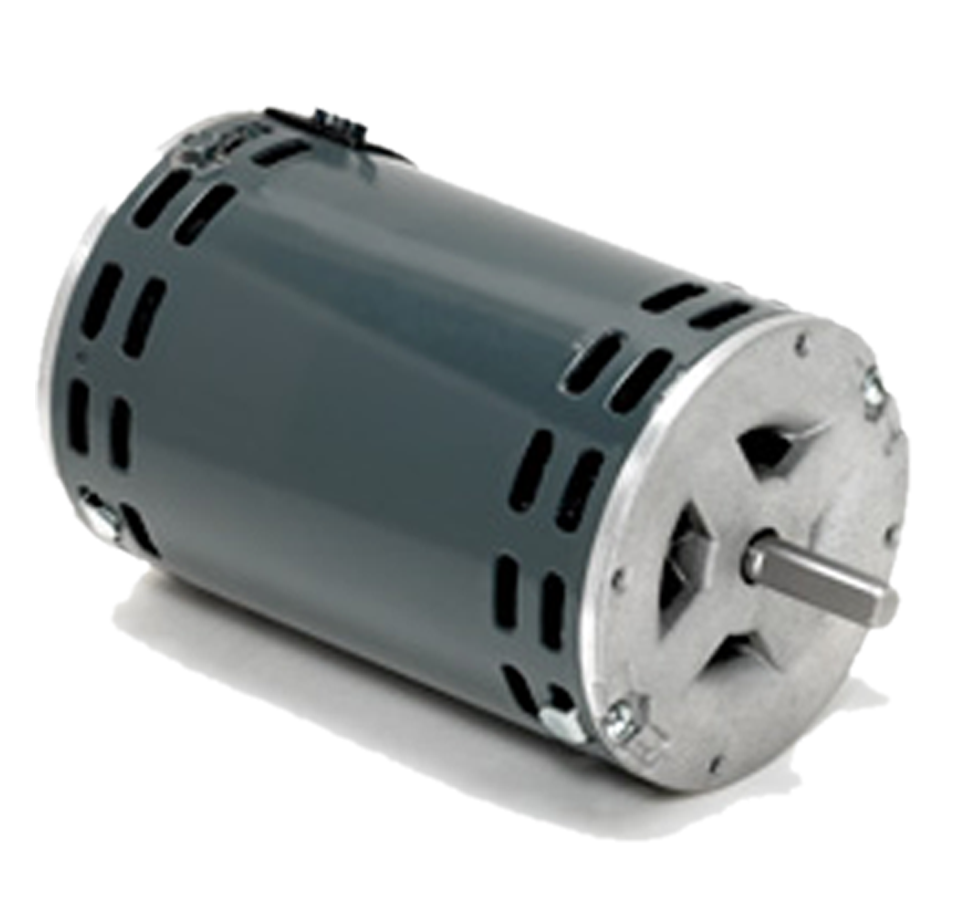

SPP37 AC Induction Motors
ElectroCraft SolidPower™ Plus Series

Summary Details

Frame Size: 3.7 Inches
Power: Up to 1/3 HP
These 3.7 inch diameter motors are designed for continuous duty and are rated for high ambient temperature environments (up to 40C). Available in single-phase permanent split capacitor or three-phase AC input voltages, with either 2-pole or 4-pole windings.

Additional Product Details

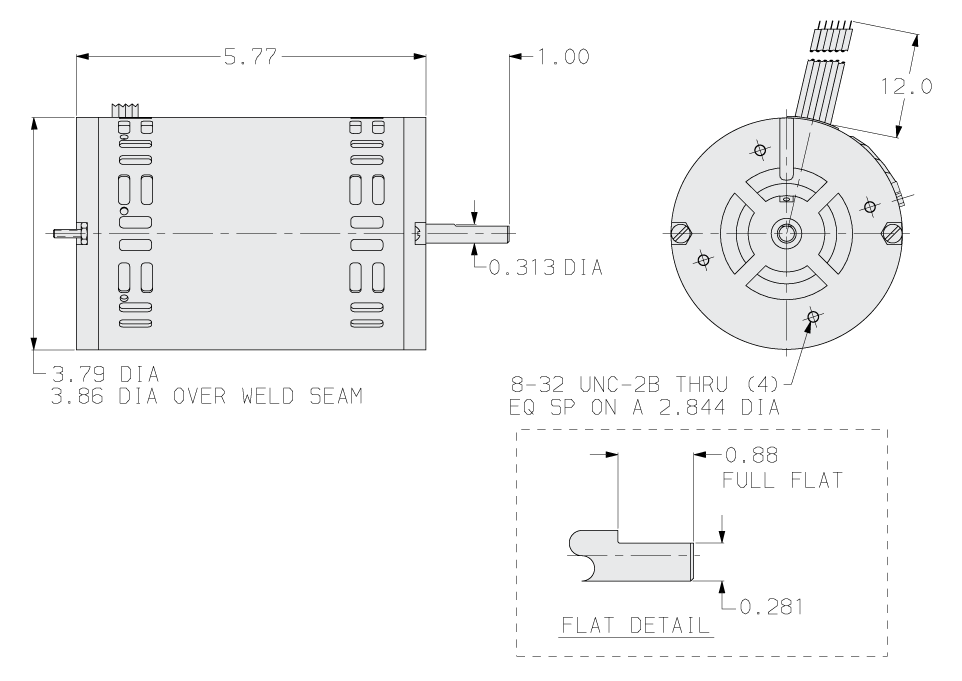

SPP37 Outline Drawing

Technical Drawings

SPP37 Speed / Torque Curves

SPP37 Mechanical / Winding Data

RATED LOAD STARTING CAPACITOR
Model No Motor
Type		 Poles Mounting Voltage
(Vac)		 Frequency
(Hz)		 HP Rating Current
(Amps)		 Power
(Watts)		 Speed
(RPM)		 Torque
(oz-in)		 Maximum Torque
(oz-in)		 Current
(Amps)		 Torque
(oz-in)		 Mfd Vac
SPP37P-8AV2 P 2 F 115 60   1/8 1.2 127 3485 49.2 70 4.6 9.8 12.0 236
SPP37P-3AV2 P 2 F 115 60   1/3 2.8 316 3450 99.0 186 12.7 24.3 25.0 236
SPP37P-10AV4 P 4 F 115 60   1/10 1.0 115 1740 58.9 108 3.1 28.4 15.0 236
SPP37P-6AV4 P 4 F 115 60   1/6 1.6 178 1725 97.2 171 3.7 44.7 25.0 236
SPP37T-3BV2 T 2 F 230 60   1/3 0.9 326 3400 99.6 269 5.0 224.0 - -
SPP37T-6BV4 T 4 F 230 60   1/6 0.7 168 1725 99.0 397 3.5 351.0 - -
