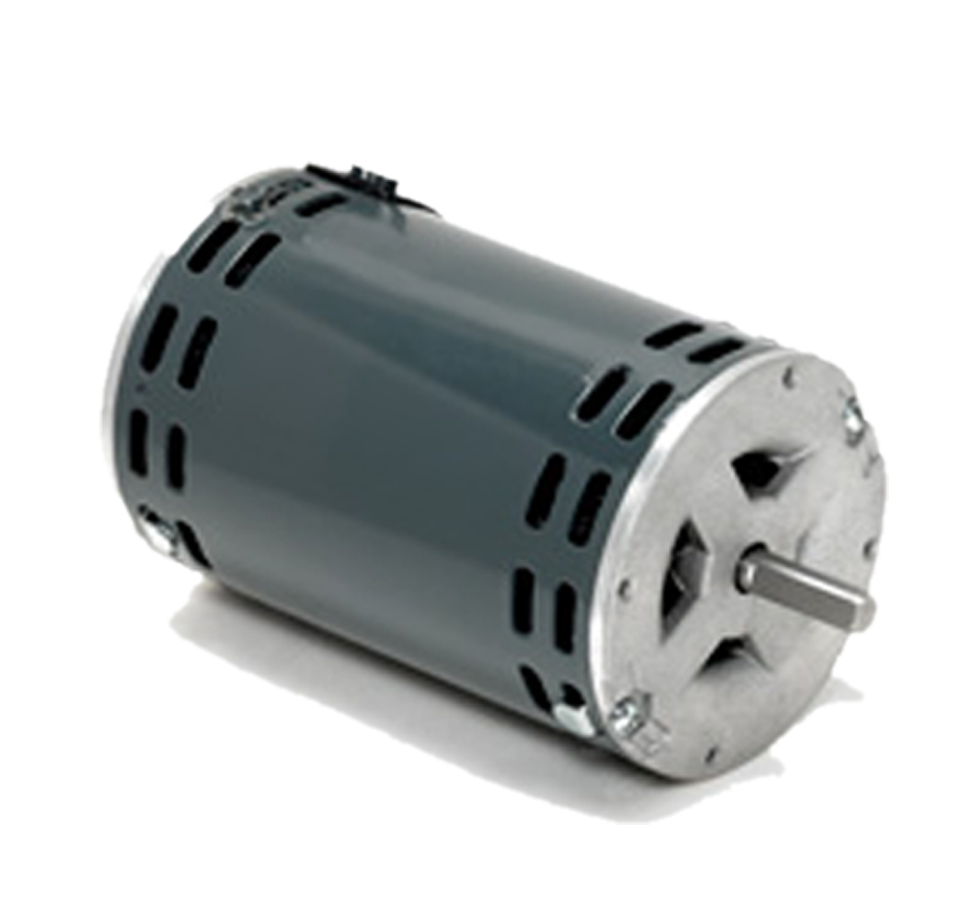

SPP33 AC Induction Motors
ElectroCraft SolidPower™ Plus Series
Summary Details
Frame Size: 3.3 InchesPower: Up to 1/3 HP
Data Sheets
These 3.3 inch diameter motors are designed for continuous duty and are rated
for high ambient temperature environments (up to 40C). Available in single-phase
permanent split capacitor or three-phase AC input voltages, with either 2-pole or
4-pole windings.
Additional Product Details

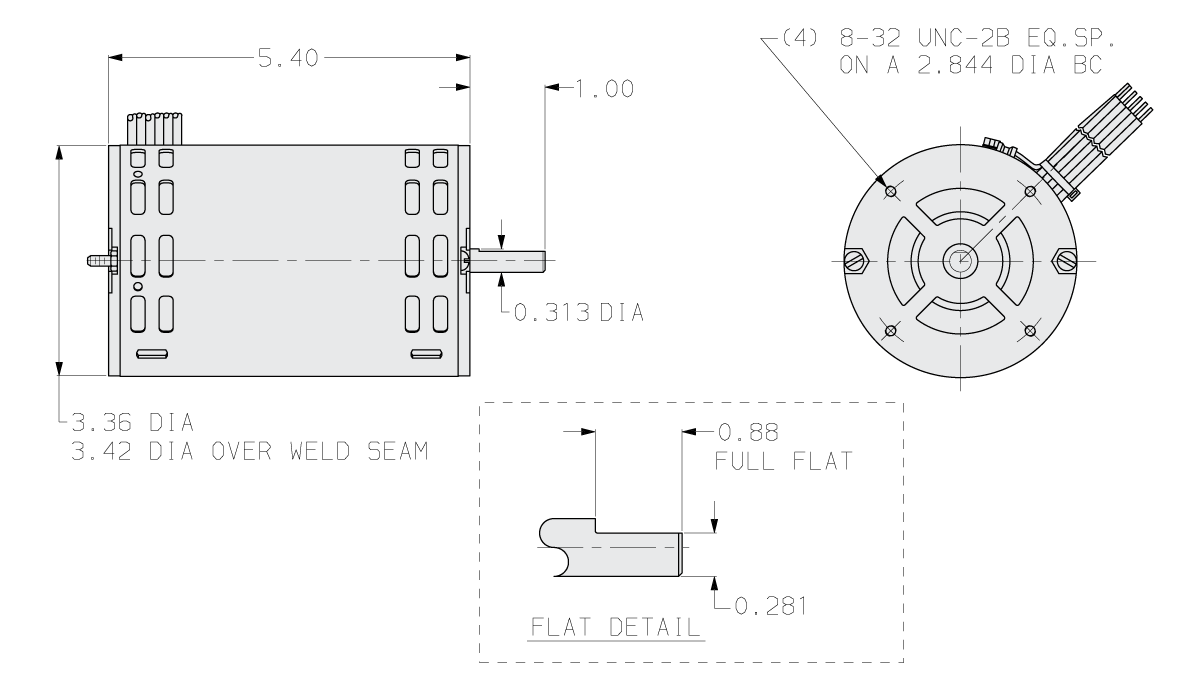

SPP33 Outline Drawing
SPP33 Speed / Torque Curves
SPP33 Mechanical / Winding Data
RATED LOAD | STARTING | CAPACITOR | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model No | Motor Type |
Poles | Mounting | Voltage (Vac) |
Frequency (Hz) |
HP Rating | Current (Amps) |
Power (Watts) |
Speed (RPM) |
Torque (oz-in) |
Maximum Torque (oz-in) |
Current (Amps) |
Torque (oz-in) |
Mfd | Vac |
SPP33P-8AV2 | P | 2 | F | 115 | 60 | 1/8 | 1.8 | 173 | 3445 | 37.0 | 75 | 5.2 | 18.0 | 7.5 | 330 |
SPP33P-5AV2 | P | 2 | F | 115 | 60 | 1/5 | 2.1 | 236 | 3435 | 60.0 | 115 | 7.2 | 30.0 | 15.0 | 330 |
SPP33P-20AV4 | P | 4 | F | 115 | 60 | 1/20 | 1.0 | 90 | 1670 | 29.0 | 72 | 2.3 | 32.0 | 6.0 | 330 |
SPP33P-8AV4 | P | 4 | F | 115 | 60 | 1/8 | 1.4 | 157 | 1655 | 76.0 | 156 | 3.9 | 71.0 | 15.0 | 330 |
SPP33T-3BV2 | T | 2 | F | 230 | 60 | 1/3 | 1.3 | 340 | 3420 | 98.0 | 416 | 8.0 | 475.0 | - | - |
SPP33T-10BV4 | T | 4 | F | 230 | 60 | 1/10 | 0.9 | 142 | 1705 | 59.0 | 347 | 3.1 | 395.0 | - | - |
