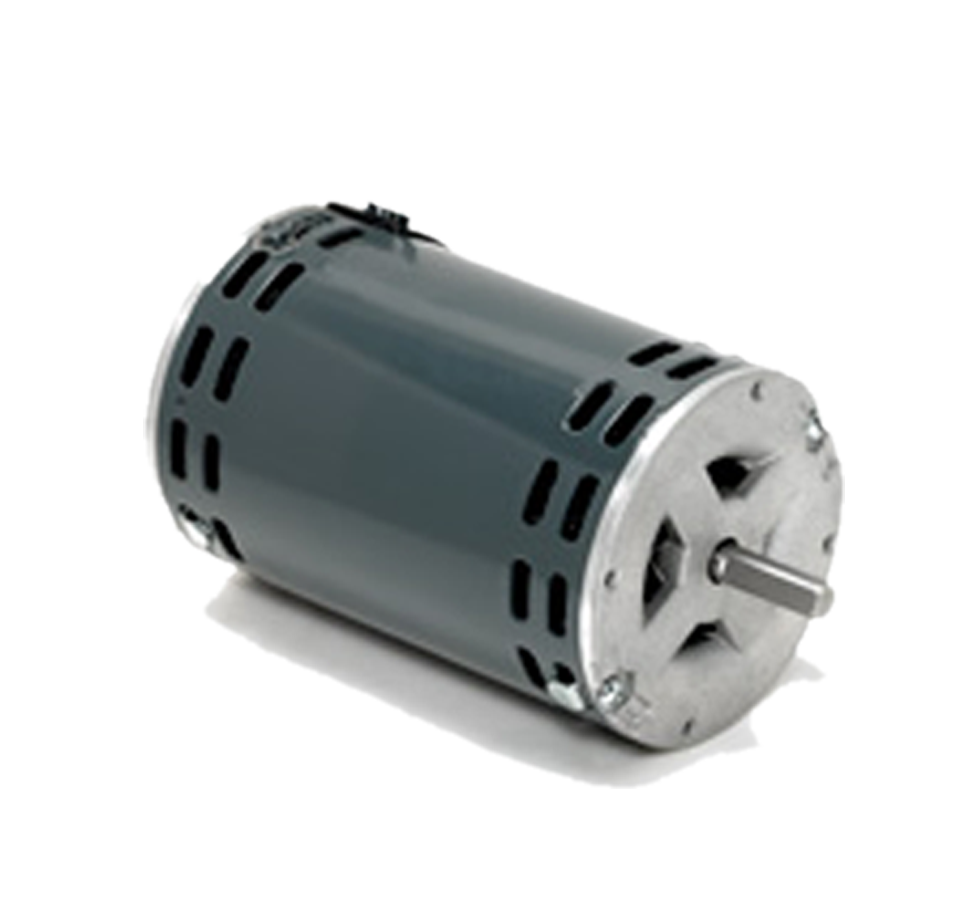

SPP30 AC Induction Motors
ElectroCraft SolidPower™ Plus Series

Summary Details

Frame Size: 3.0 Inches
Power: Up to 1/10 HP
These 3.0 inch diameter motors are designed for continuous duty and are rated for high ambient temperature environments (up to 40C). Available in single-phase permanent split capacitor or three-phase AC input voltages, with either 2-pole or 4-pole windings.

Additional Product Details

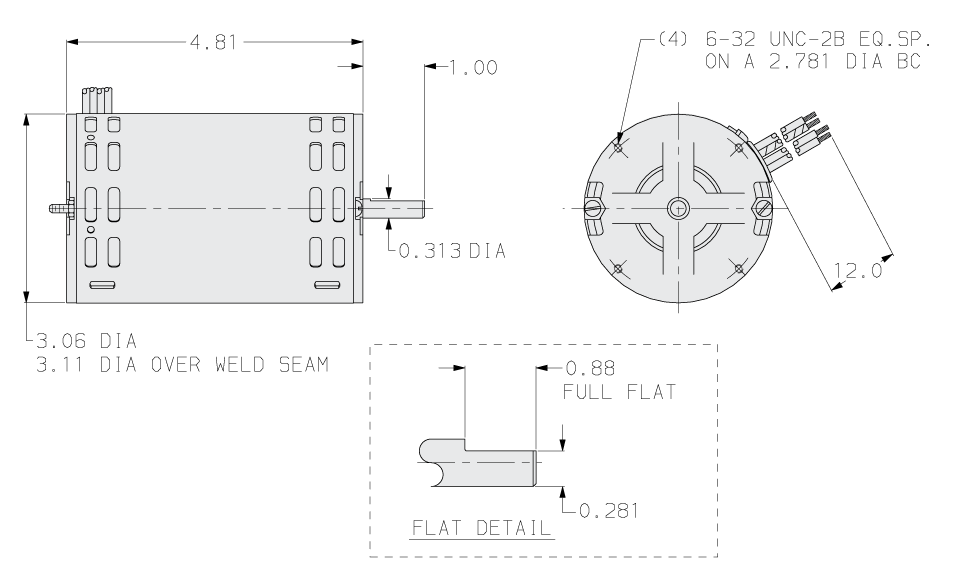

SPP30 Outline Drawing

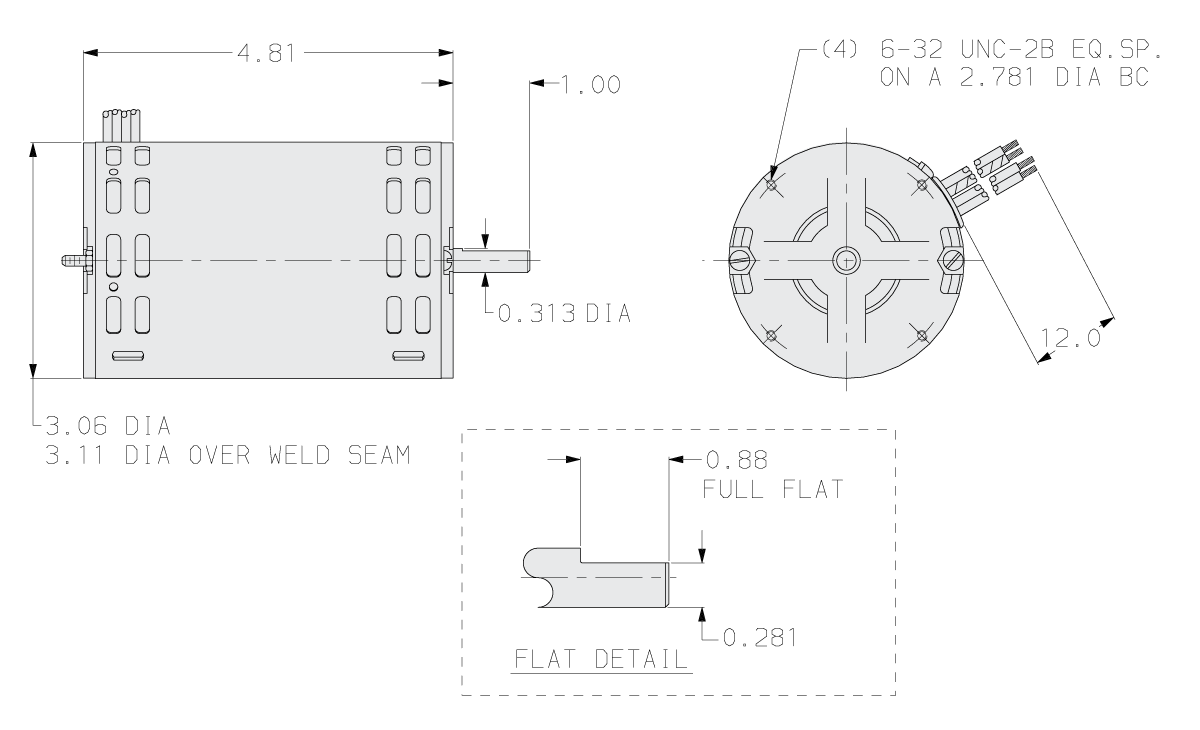

Technical Drawings

SPP30 Speed / Torque Curves

SPP30 Mechanical / Winding Data

RATED LOAD STARTING CAPACITOR
Model No Motor
Type		 Poles Mounting Voltage
(Vac)		 Frequency
(Hz)		 HP Rating Current
(Amps)		 Power
(Watts)		 Speed
(RPM)		 Torque
(oz-in)		 Maximum Torque
(oz-in)		 Current
(Amps)		 Torque
(oz-in)		 Mfd Vac
SPP30P-20AV2 P 2 F 115 60 1/20 0.6 70 3370 15.1 27.0 1.7 8.2 5.0 236
SPP30P-10AV2 P 2 F 115 60 1/10 1.3 130 3360 30.3 60.0 3.7 17.6 6.0 236
SPP30P-40AV4 P 4 F 115 60 1/40 0.5 46 1625 15.4 29.0 0.9 14.0 4.0 236
SPP30P-20AV4 P 4 F 115 60 1/20 0.8 83 1630 31.2 60.0 1.7 30.0 6.0 236
SPP30T-10BV4 T 4 F 230 60   1/10 0.4 120 1650 60.8 140.0 0.9 120.0 - -
